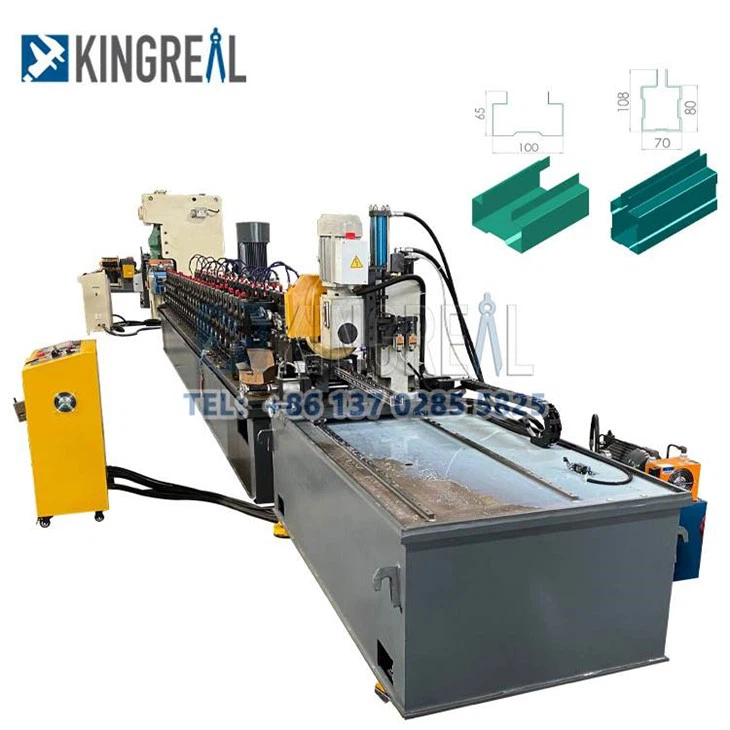

Upright Rack Making Machine Products Description

―――

KINGREAL ROLL FORMER provides high quality upright rack making machines

for making shelf relevant metal-made products.

KINGREAL ROLL FORMER Upright Rack Machines are controlled by PLC and good computer systems.

Upright Rack Machines only takes a worker to input parameters for control system,

then the whole production line will do as per required, such as changing width, height etc.

KINGREAL ROLL FORMER Pallet Rack Making Machine is a good partner with the shelf panel making machines (both back panels and rack panels).

Also, with the reinforce bars, slotted angle bars etc., KINGREAL ROLL FORMER shelf panel making machines can produce a whole standing shelf system.

Technical Specification of Pallet Rack Making Machine

―――

1. Cold bending Forming rollers sets: 22 roll forming stations sets

2. Roll material: adopt national standard Cr12MOV die steel

3. Heat treatment: the hardness of all roll molds after heat treatment reaches HRC=58-60^o

4. Spindle material: 45# steel, quenched and tempered

5. Archway structure: A3 board monolithic archway thickness 35mm

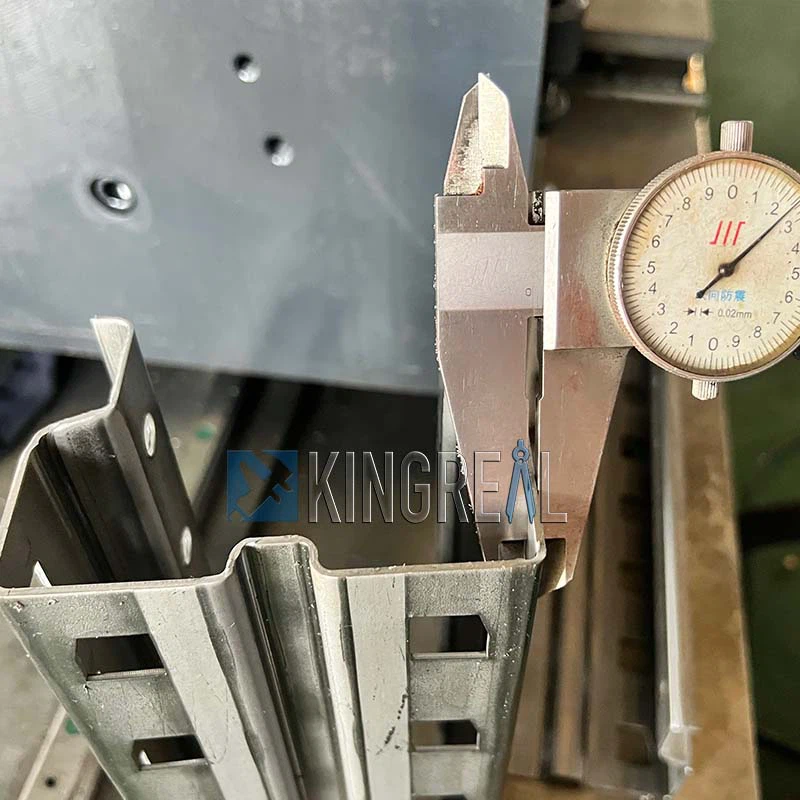

pallet rack Making Machine quality control

Structure Of Pallet Rack Making Machine

―――

Hydraulic decoiler
Precision sheet leveler
Pre-punch & notching station
Servo feeder
High precision cold roll forming
Auto shearing and bending.
Output table.
Electrical & Hydraulic system

Advantage Of Pallet Rack Making Machine

―――

Pallet rack making machine can support light storage shelves, medium storage shelves,

heavy storage shelves.
PLC control system, automatic and easy handling.
High quality hardening cylinder, hardness reaches HRC58-62 ℃.

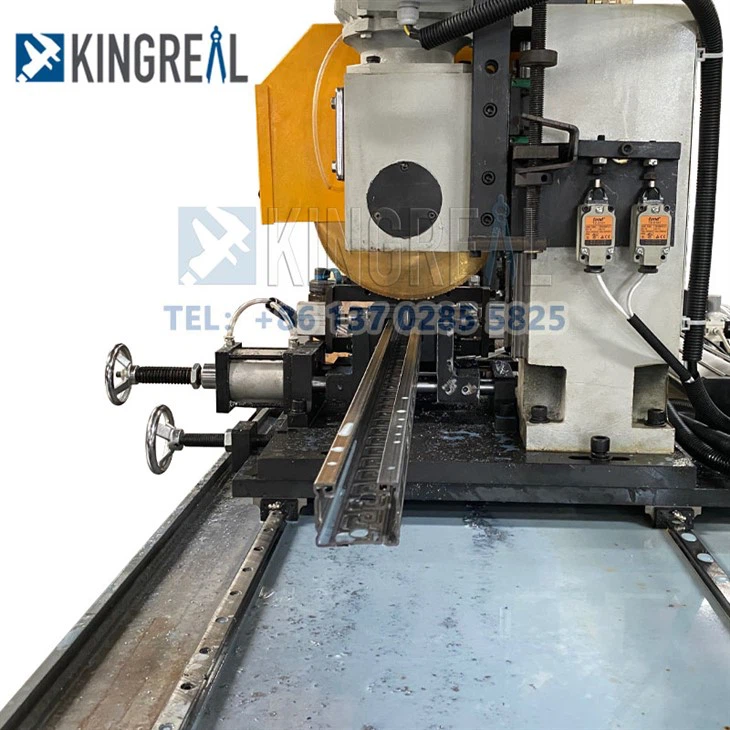

Tracking cutting system with Cr12 cutting disc.

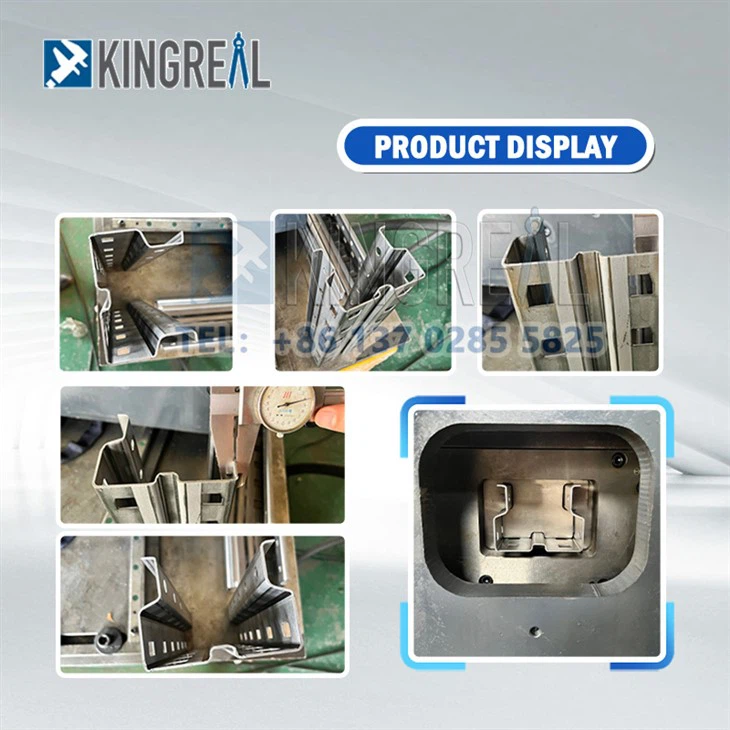

Upright Rack Making Machine Product Application

―――

The application of pallet rack is mainly reflected in its role as the main supporting structure of the shelf, bearing the weight of the goods and ensuring the stability of the shelf.

The specifications, materials and design of the columns directly affect the load-bearing capacity and service life of the shelf.

Generally speaking, the larger the specifications and the thicker the thickness of the pallet rack shelving, the stronger its load-bearing capacity.

The columns of heavy-duty shelves usually use thicker materials and larger specifications to withstand greater weight.

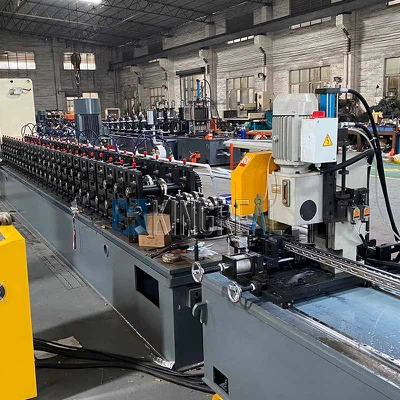

Roll Forming Machine Workshop

Pallet Rack Making Machine

KINGREAL ROLL FORMER has its own production plant, which includes a frame casting shop, a CNC control shop, a parts machining shop and an assembly shop.

In order to ensure the production quality of the Pallet Rack Making Machines, the whole line will be tested and adjusted in the factory.

KINGREAL ROLL FORMER welcomes all customers to visit our factory.

Who Are We?

Founded in 1995, KINGREAL ROLL FORMER has more than 20 years of manufacturing experience and has won the trust of customers from all over the world, including customers from Russia, India, Egypt, Arabia and the United Arab Emirates.

With a keen insight into the global market and a deep understanding of the unique machine requirements specific to different regions, KINGREAL ROLL FORMER is able to rapidly design customized machine solutions tailored to the actual project needs of each client-effectively reducing the time and effort spent on preliminary communication.
