Box Beam Making Machine
Video About Box Beam Making Machine

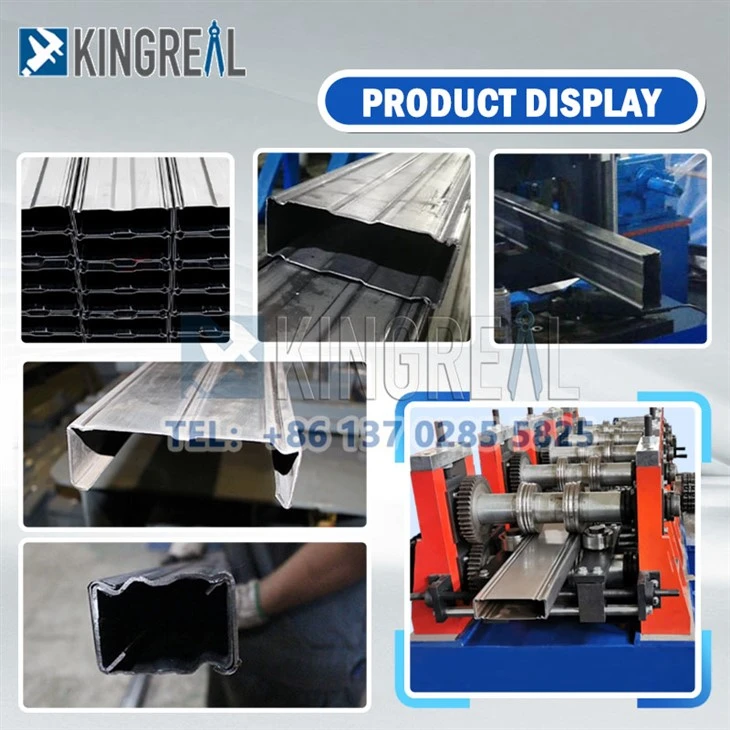

Box Beam Making Machine Description :
Shelf Box Beam Forming Machine is a beam equipment used to produce one of the components of the shelf series.The finished product produced is "C-shaped beam". It is mostly used in storage warehouses, supermarkets, shopping malls and large and small shopping malls such as goods display, placement, commodity display and other light shelf components "shelf beam".
Shelf cold-formed forming equipment Products include: shelf columns, shelf beams, shelf struts, shelf laminates
and other products. The box beam making machine equipment adopts PLC control. Molding process Automatic unwinding-guiding-leveling, feeding-continuous punching of the bottom hole-forming-sizing, cutting-receiving table
Box Beam Machine Features
1. The equipment is controlled by PLC, and multiple safety protections are set during normal production.
2. The bed is welded steel plate. And it is tempered to eliminate internal stress and avoid deformation of the fuselage.
3. The forming frame is a cast iron structure and has been tempered. High strength and long service life.
4. The material of the roll shaft is 40Cr, and the hardness is HB280 after quenching and tempering.
5. The material of the forming mold is GCr15, quenched, and hardness: HRC56-62℃.
6. The transmission structure is gear box transmission. Each forming frame has a gear box, which can ensure
the equipment overtime, high intensity operation, and long service life.
Technical Specification Of Box Beam Making Machine
| Rolling capacity of the unit | Width ≤400mm, plate thickness 1-2.5mm |
| Production speed | 0-15 m/min |
| Forming Main Machine |
a. Model: KR160 b. Frame structure: cast iron archway (material HT200 type) gantry c. Transmission mode: independent gear distribution box for each pass d. Roll material: GCr15, quenching treatment, hardness HRC58-62o |
Structure Of Box Beam Making Machine:

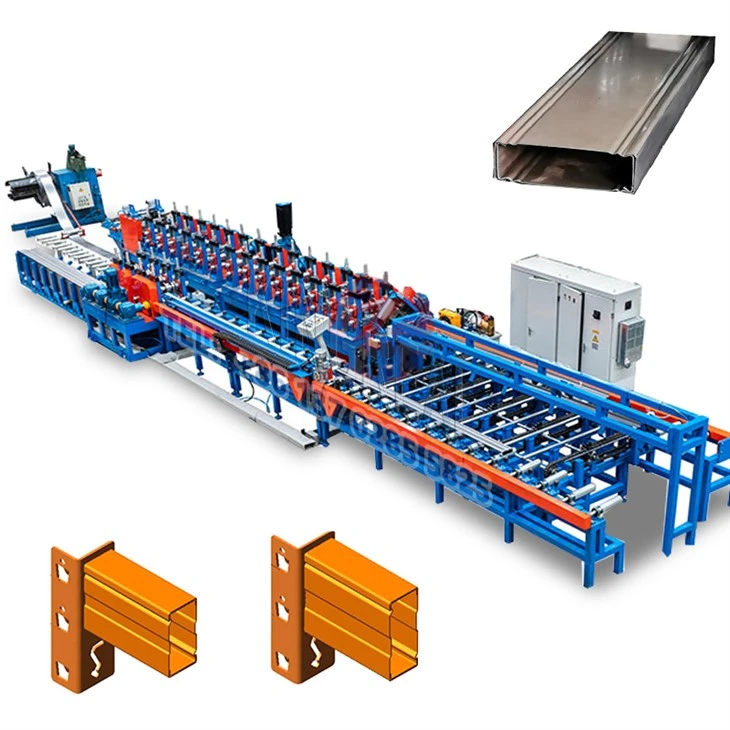

Structure of Box Beam making machine:
- Hydraulic decoiler
- Precision sheet leveler
- Pre-punch & notching station
- Servo feeder
- High precision cold roll forming
- Auto shearing and bending.
- Output table.
- Electrical & Hydraulic system
Decoiler For Box Beam Making Machine
The uncoiler of the Box Beam Making Machine is a key equipment used in the box beam production line. It adopts a hollow shaft structure and expands and contracts hydraulically or mechanically to fix coils of different inner diameters.
It is responsible for the unfolding, straightening and conveying of metal coils, providing flat raw materials for subsequent cutting, welding or forming.
01

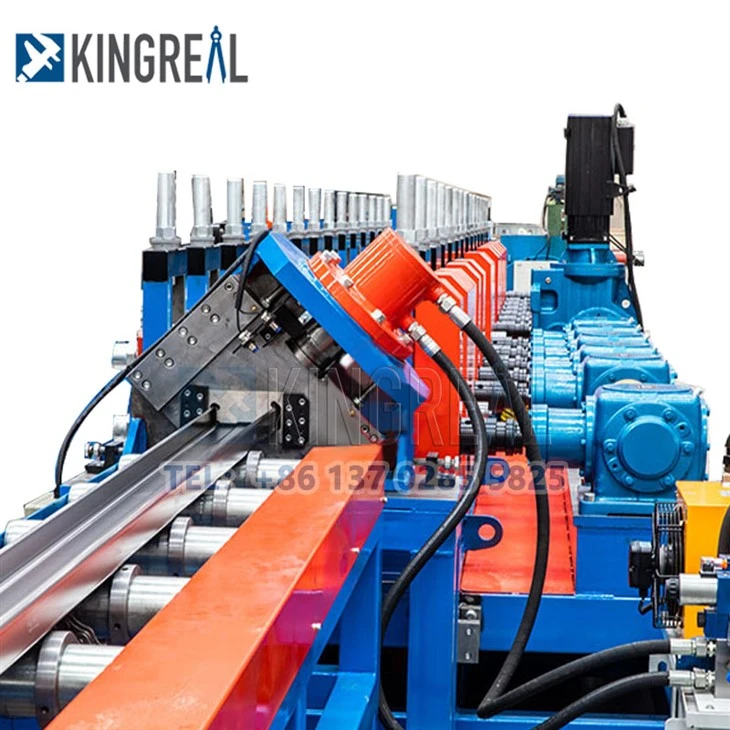

Roll Forming Machine For Box Beam
The Roll Forming Process of the Box Beaming Machine is an industrial equipment that uses multiple sets of rollers to continuously and progressively bend metal plates (such as steel plates, aluminum plates, etc.) to eventually form a Box Beam product with a specific cross-section. It has the core characteristics of high efficiency, high precision, and customization.
02
Seaming Machine For Box Beam Equipment
During the box beam forming process, the metal sheet is bent by multiple rollers to form a closed section (such as a rectangle or square). The seaming device is responsible for welding the seams at the edges of the sheet to ensure sealing and load-bearing capacity.
03
Output Table For Box Beam Machine
The Box Beam Making Machine is equipped with a discharge table device to achieve fully automatic production of box beam products.
04
Box Beam Making Machine Product Application
Shelves & Racks Equipment Solution
- Industrial shelving
- Supermarket rack system
- Full system solution
KINGREAL Exhibitation
Production Workshop
A frame casting shop, a CNC control shop, a parts machining shop, and an assembly shop are all part of KINGREAL's own production facility. The entire line will be tested and adjusted at the plant to assure the machines' production quality.
All customers are invited to visit our factory via KINGREAL ROLL FORMER.
Certification
KINGREAL ROLL FORMER has established a strict quality control process to ensure that every production step meets the standards and requirements. This includes raw material procurement, production process, assembly, testing, etc. To ensure that every part of the machine meets quality standards.It has also passed the international CE certificate certification.
