Brief Description

The three-dimensional garage wave plate cold bending equipment is an automatic forming equipment

for high-speed processing of wave plates. Aiming at the increasingly popular three-dimensional parking

market in China, the wave plate cold bending equipment carefully manufactured by Weifang Aoteng Cold

Rolling Machinery Co., Ltd. Widely used, the traditional processing mode has complex technology, relatively

low efficiency, and more labor.

The corrugated plate cold bending equipment is equipped with a fully automatic punching function by

continuously producing cold bending of strip steel. It can be easily produced by only one worker.

Not only is the production speed fast, the product precision is high, and the standard is uniform and beautiful.

Machine Features

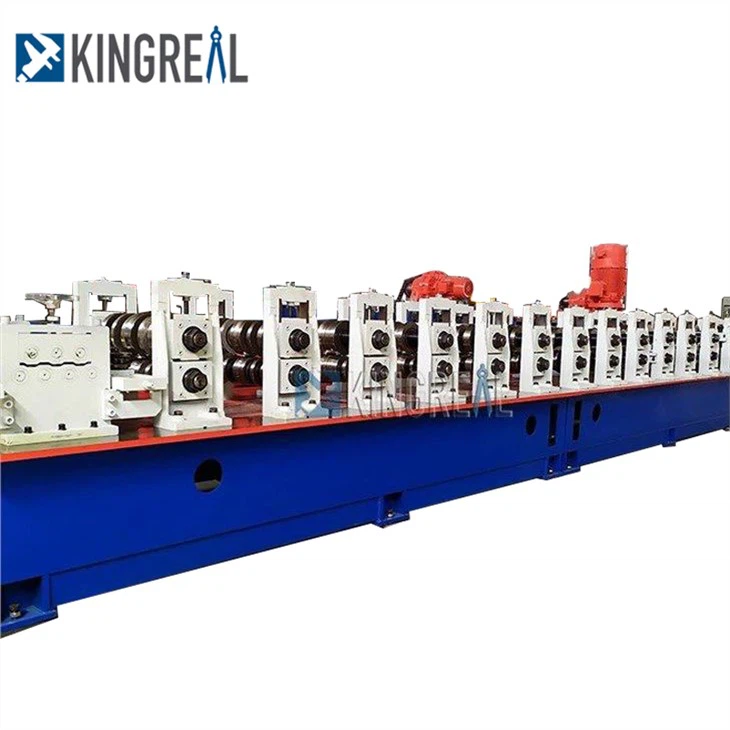

1. The layout of the cold-formed forming passes and the design of equipment structure are scientific and reasonable, with a wide range of adaptation to the softness and hardness of strip steel, and no ripples or tearing will occur during the rolling process;

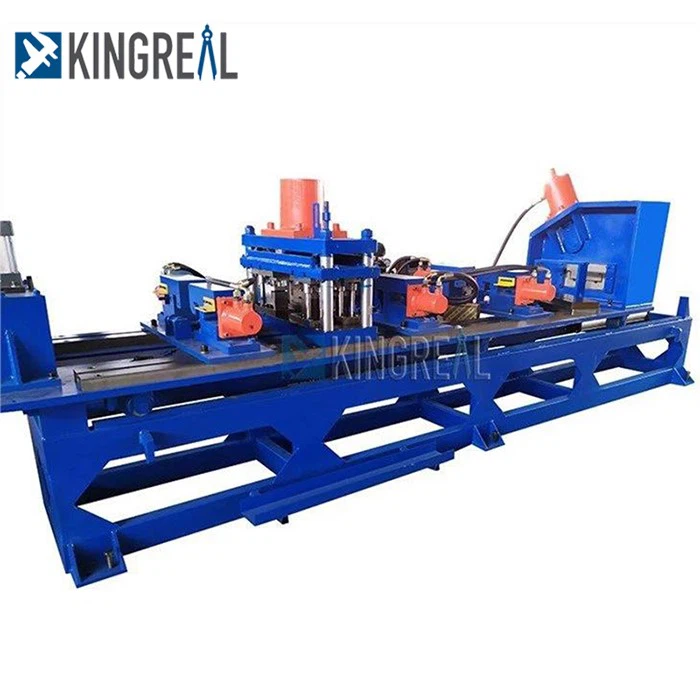

2. Use punching after forming to ensure the hole shape and position tolerance, improve installation accuracy, punching and cutting without stopping, high productivity;

Technical Specification

1. The length of the production line is 35 meters, and the power of the whole machine is about 29.5KW;

2. The production speed is adjustable from 0 to 8 meters/min;

3. The whole line is controlled by PLC, color touch screen input, frequency conversion speed regulation;

4. Through adjustment, it can meet the rolling of two specifications of corrugated plate profile, realizing one machine and two purposes;

Technological Process

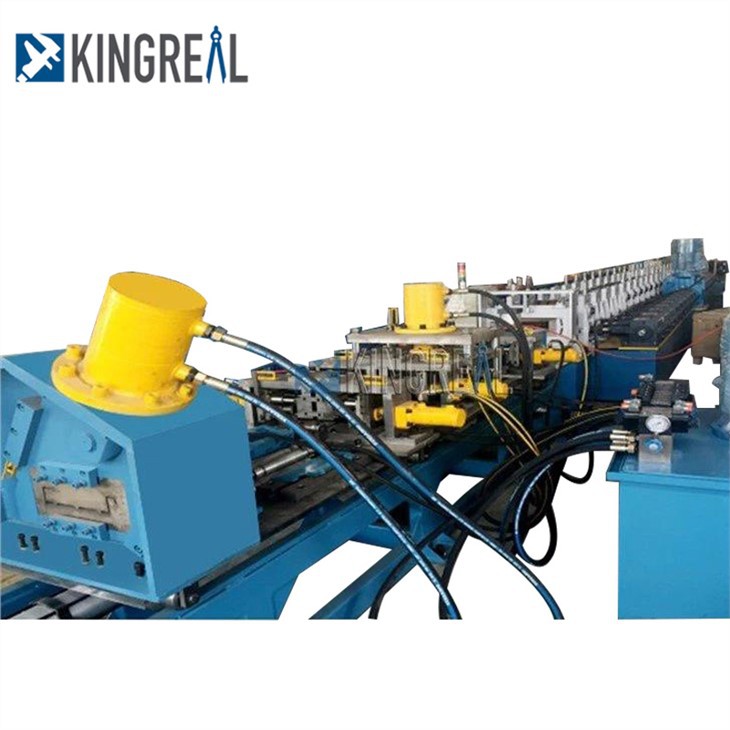

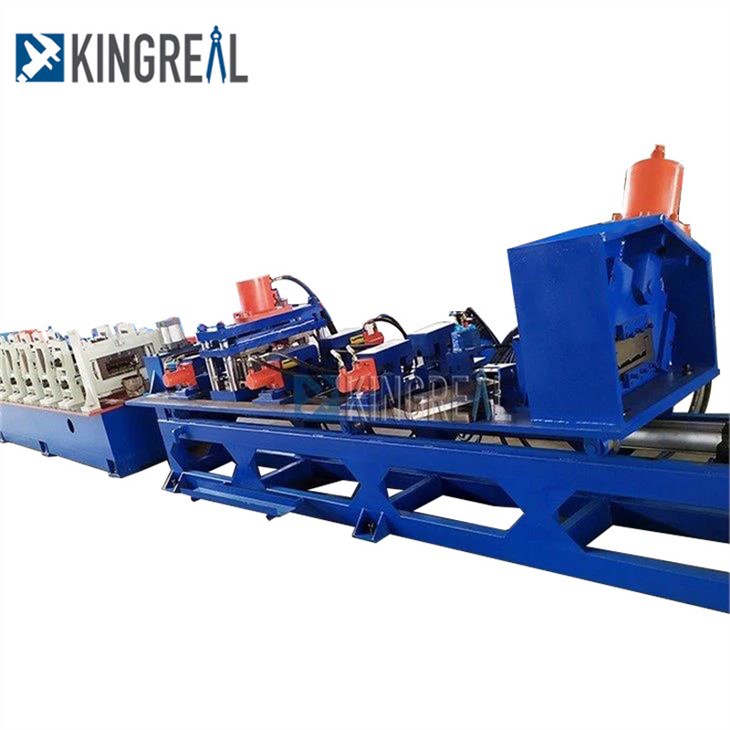

Feeding (manual)-sheet leveling-cold bending forming-profile straightening-measuring hole to length, pneumatic clamping-hydraulic automatic punching, cutting-unloading (manual)
