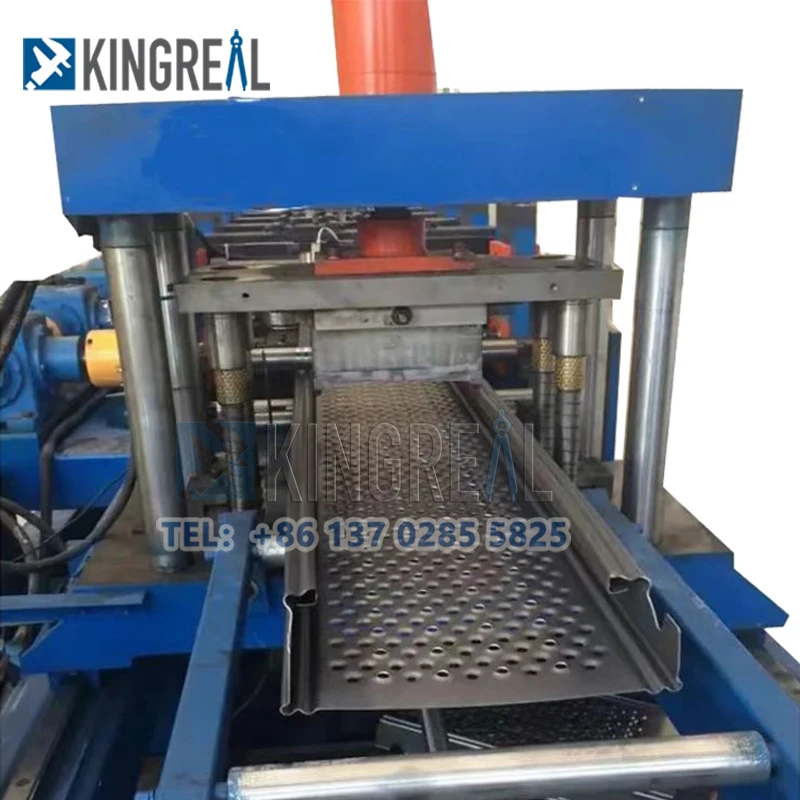

Scaffolding Planks Roll Forming Machine
KINGREAL Scaffolding Planks Roll Forming Machine is a kind of mechanical specialized in producing walk planks for scaffolding components, which made of metal materials (usually steel or aluminum) are mainly used in construction, maintenance, decoration and other projects. Aluminum scaffold walk board are widely used in various construction scenarios due to their strong, durable and reusable characteristics.
KINGREAL has been researching in the field of roll forming machines for more than 20 years, and is committed to providing customers with high-quality production equipment and better production benefits.
KINGREAL scaffolding walk board production lines can be customized according to customer production needs and drawings. Full automation and high quality are one of the biggest features of this machine.
Working Process Of Scaffolding Planks Making Machine
High Precision Decoiler -- Leveling Machine -- Tension Control Limit Switch -- Guiding Device -- Punch Press Machine -- Main Roll Forming Machine -- Cutting Device -- Output Table
Technical Specification
|
Raw Material |
Galvanized Coil/ Carbon Steel |
|
Coil Thickness |
1-2MM |
|
Coil Width |
500MM |
|
Roll Forming Machine Speed |
15M/Min |
|
Working Speed |
4M/Min |
|
Forming Rollers Material |
Gcr15 Mould Steel |
|
Cutter Material |
CR12 Mould Steel |
|
Controlling System |
Panasonic PLC And Yaskawa Converter |
|
Main Motor Power |
15kw |
(The technical parameters of the machine need to be redesigned according to production requirements and are for reference only.)

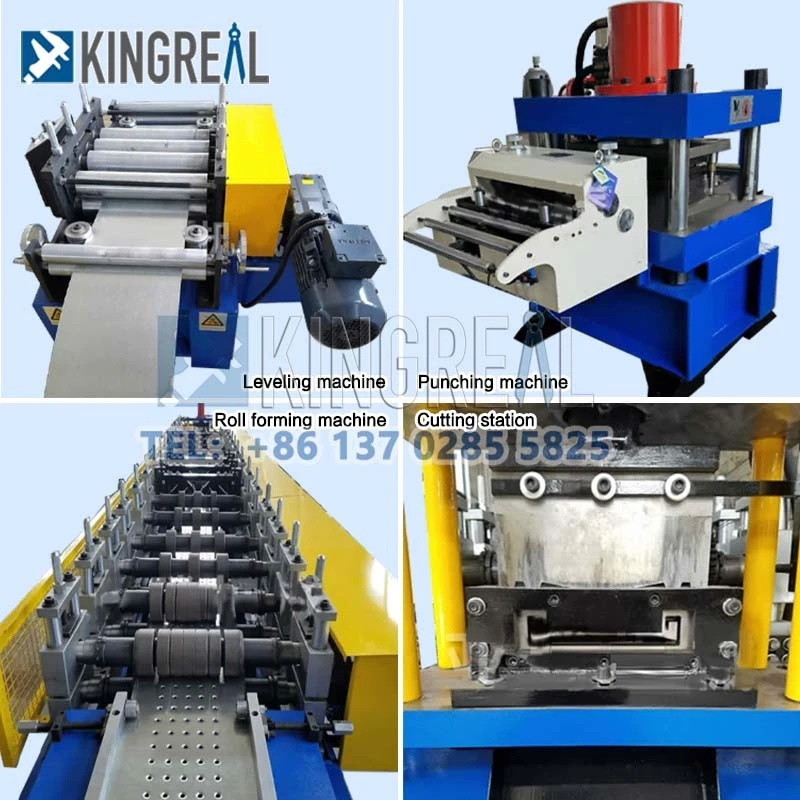

Main Component Features
Straightener Machine
a.Number of working rolls: five-roller leveler
b.Structural features:
After the leveling roller is tempered and chrome plated, its mechanical properties such as rigidity and surface roughness are greatly improved;
It consists of a pinch roller and a leveling roller. The pinch roller can be adjusted individually. The upper leveling roller adopts an integral structure and has two adjustment points at the front and rear, which can form certain tilt angle to improve the the leveling quality.
Punch Press Machine
1. High-precision stamping
Precision molds: Stamping is done with high precision molds to ensure accurate dimensions of holes, cuts and shapes.
Precision Positioning: Equipped with advanced positioning system to ensure accurate position and angle of each stamping.
2. Automation control
PLC control system: Adopting Programmable Logic Controller (PLC) for automation control, capable of realizing efficient and continuous production.
Touch screen operation: Equipped with touch screen interface, it is easy for operators to set, monitor and adjust parameters.
3. Versatility
Adjustable molds: Molds are easy to change and adjust, capable of handling pedals of different specifications and shapes.
Punching and cutting: Not only punching, but also cutting, shearing and other processes can be accomplished.

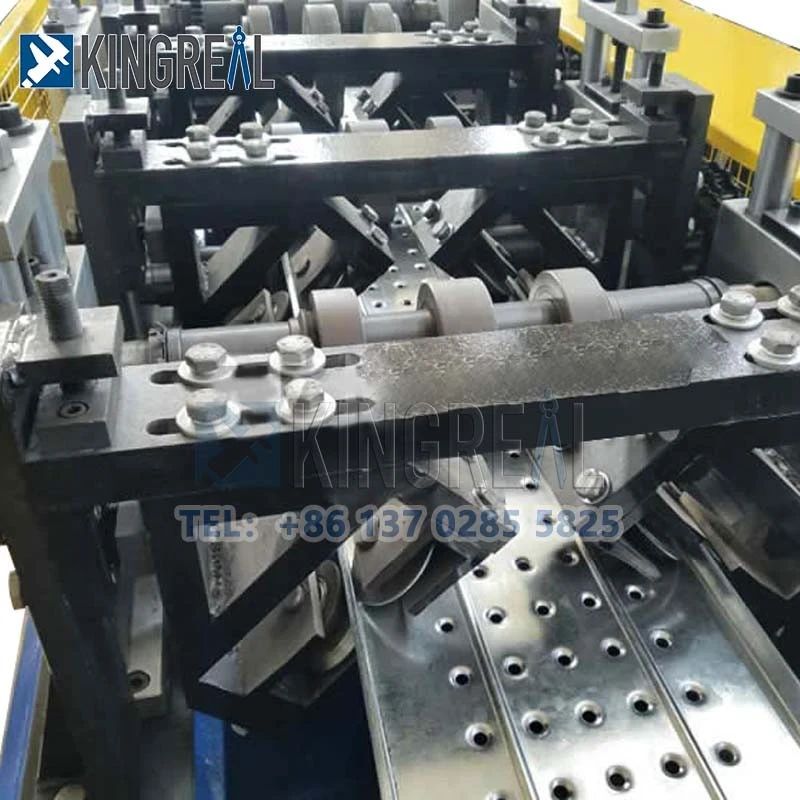

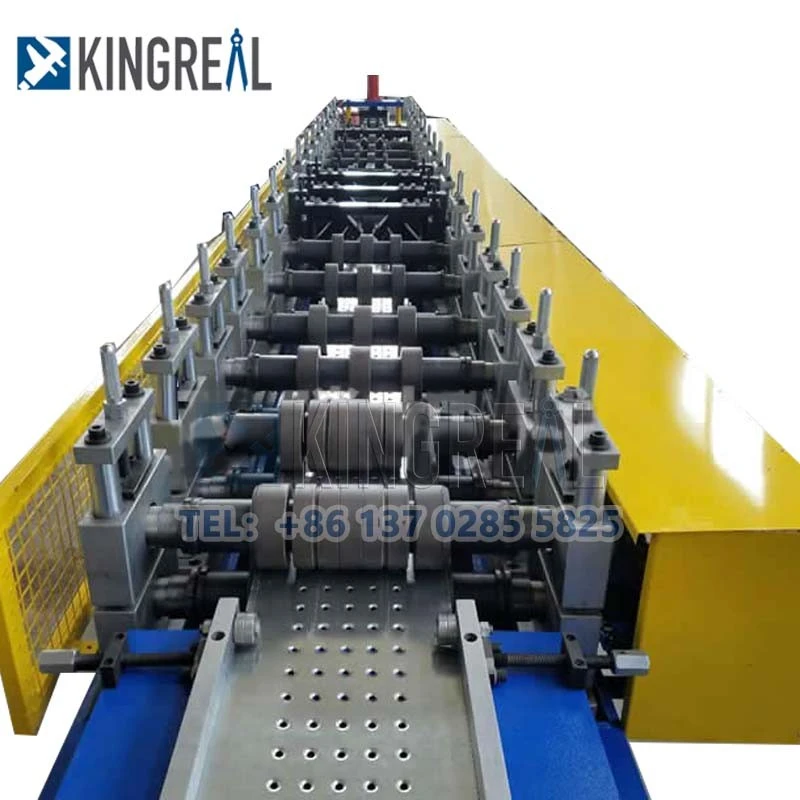

Main Roll Forming Machine
1. High Strength Structure
Sturdy body: The body is made of high-strength materials with good durability and deformation resistance.
Heavy-duty design: able to withstand the high load operation of mass production and ensure long-term stable production performance.
2. Surface treatment
Galvanized or sprayed system: Some forming machines are equipped with surface treatment equipment to galvanize or spray the formed pedals to improve corrosion resistance and service life.
Common Scaffolding Classifications
- Door-type scaffolding: It is composed of door frame, crossbar, inclined bar and other components, easy to install and dismantle, commonly used in indoor decoration and building exterior construction.
- Bowl-buckle scaffolding: It realizes fast erection and dismantling through bowl-buckle connectors, and is suitable for the construction of various complex structures.
- Plate fastening scaffolding: It is connected by plate fasteners with high stability and bearing capacity, and is widely used in large-scale projects such as bridges and high-rise buildings.
- Steel pipe fastener scaffolding: composed of steel pipes and fasteners (connectors), it is flexible and can be used to build various shapes and sizes of scaffolding according to the needs.
- Aluminum alloy scaffolding: light weight, easy to handle, suitable for construction scenes that require frequent movement and adjustment.
aluminum walk boards Display
What we can offer?
1. Professional customized program design;
2. High-quality production guarantee
3. finished product trial inspection
4. after-sales installation service
5. After-sales operation teachin
