A VCD (Volume Control Damper) is a device used to control air flow in a ventilation system. It is mainly used in HVAC (Heating, Ventilation, and Air Conditioning) systems to control the air flow through the damper by adjusting the opening and closing angle of the damper, in order to realize the regulation of temperature, humidity and air quality of the indoor environment.
Main features of VCD regulating damper
Structure and material:
Blades: usually made of aluminum alloy or galvanized steel, featuring light weight and corrosion resistance.
Frame: mostly galvanized steel or stainless steel to ensure structural strength and durability.
Seals: Rubber or plastic seals are used to minimize air leakage and noise.
A VCD (Volume Control Damper) regulating damper is a device used to control the flow of air in a ventilation system. It is mainly used in HVAC (Heating, Ventilation, and Air Conditioning) systems to control the air flow through by adjusting the opening and closing angle of the damper to realize the regulation of temperature, humidity and air quality of the indoor environment.
Adjustment mode:
Manual adjustment: change the opening and closing angle of the damper by manual operation lever or adjusting screw.
Electric adjustment: use electric actuator, through the motor to drive the opening and closing of the damper, suitable for the need for precise control of the occasion.
Pneumatic adjustment: driven by compressed air, suitable for some specific industrial environments.
Function:
Airflow control: regulates the amount of air passing through by changing the angle of the damper blades.
Pressure balancing: maintains proper pressure in the system to ensure stable operation of the ventilation system.
Isolation Function: Can be completely closed to isolate certain areas when needed.
Application Scenarios of VCD Adjustable Dampers
Building Ventilation System: Used in ventilation and air-conditioning systems of office buildings, shopping malls, hospitals and other buildings to ensure even distribution of airflow in each area.
Industrial Ventilation System: Used in factories, workshops and other industrial environments to control the heat and pollutant emissions generated during the production process.
Data Centers: Used in cooling systems in data centers to ensure that equipment operates in a suitable temperature and humidity environment.
Laboratory: In laboratory ventilation systems, air quality and pressure balance in the laboratory is controlled by regulating airflow.
The working principle of VCD regulating damper
The working principle of VCD regulating damper is mainly to control the air flow by changing the opening and closing angle of the damper blades. When it is necessary to increase the air flow, the opening angle of the blades increases, and the air flow through the volume increases; on the contrary, when it is necessary to reduce the air flow, the closing angle of the blades decreases, and the air flow through the volume decreases. The specific adjustment method can be manual, electric or pneumatic, depending on the specific application requirements.
How to produce?

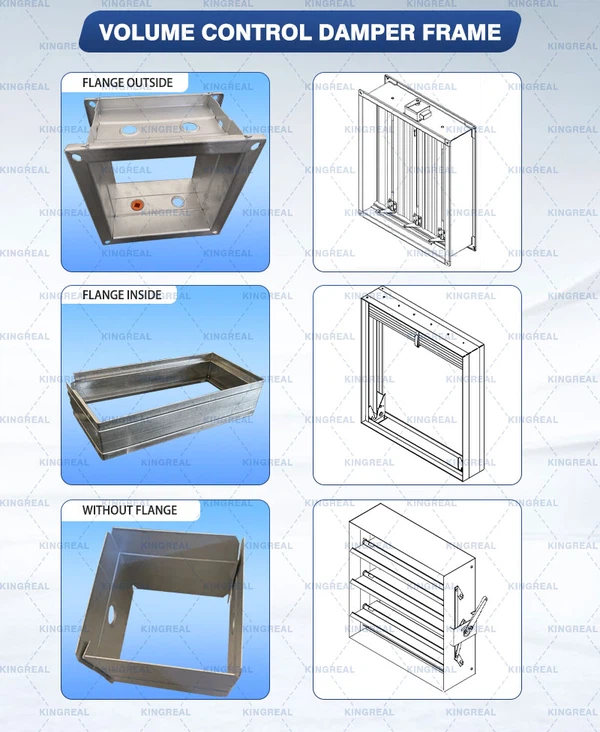

The Volume Control Damper Roll Forming Machine is designed to produce different types of VCD Frame Products.
