"Hat channel machine is a kind of equipment specially used for producing furring channels. These hat channels are usually used in conjunction with profiles produced by U channel machine and wall angle profile machine, and are widely used in suspended ceiling systems. Hat channels not only play a supporting and load-bearing role, but also provide customers with a complete suspended ceiling solution. In modern buildings, the application of hat channel machines is becoming more and more common, and the precision of their design and manufacturing is also constantly improving. This article will introduce you to the relevant information about hat channel machines. If you need more videos, pictures or parameter, please consult KINGREAL Roll Former!"

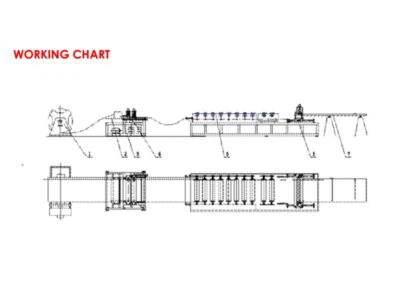

Working Process of Furring Channel Machine
Decoiler--Main Roll Forming Machine--Cutting Station--Product Table
Parameters of Hat Channel Machine
|
Material |
GI Strip |
|
Material Thickness |
0.4-1.3mm |
|
Production Speed |
120m/min |
|
Shearing Accuracy |
±1.0mm/1m(There is a little deformation due to the material stress) |
|
Straightness |
Bending is less than 1‰/m,twist is less than 1.3%/m |
Main Components of Furring Channel Machine

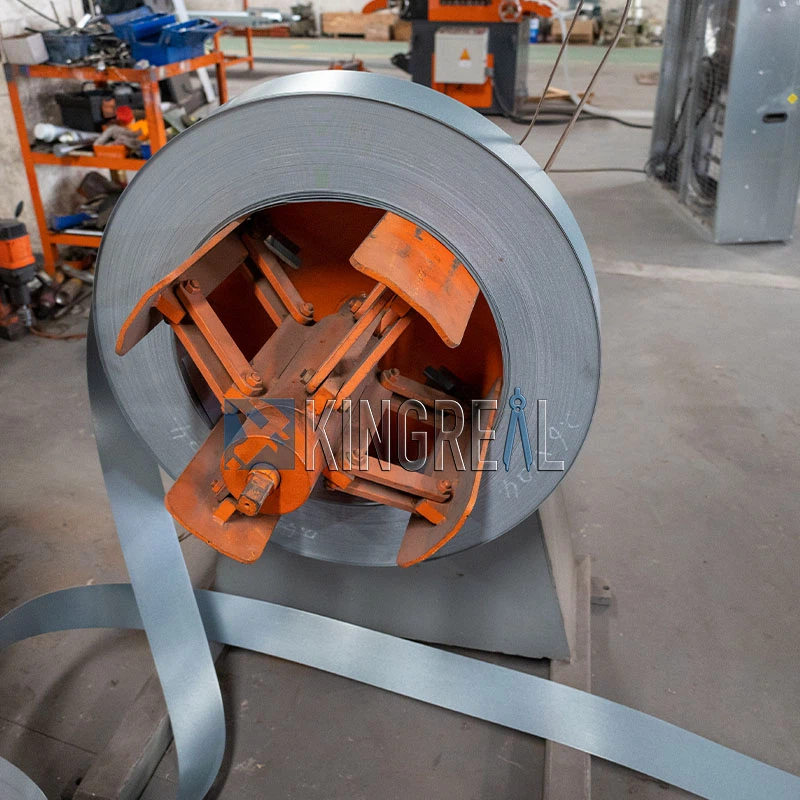

(1)Decoiler for hat channel machine
The first key component of the furring channel machine is the decoiler. The function of the decoiler is to achieve rapid decoiling of large rolls of metal coils, which significantly improves production efficiency. By unwinding the metal coil, the decoiler prepares for the subsequent forming process. This process not only saves labor costs, but also reduces material waste. The design of the decoiler usually takes into account metal materials of different thicknesses and widths to ensure its wide applicability.

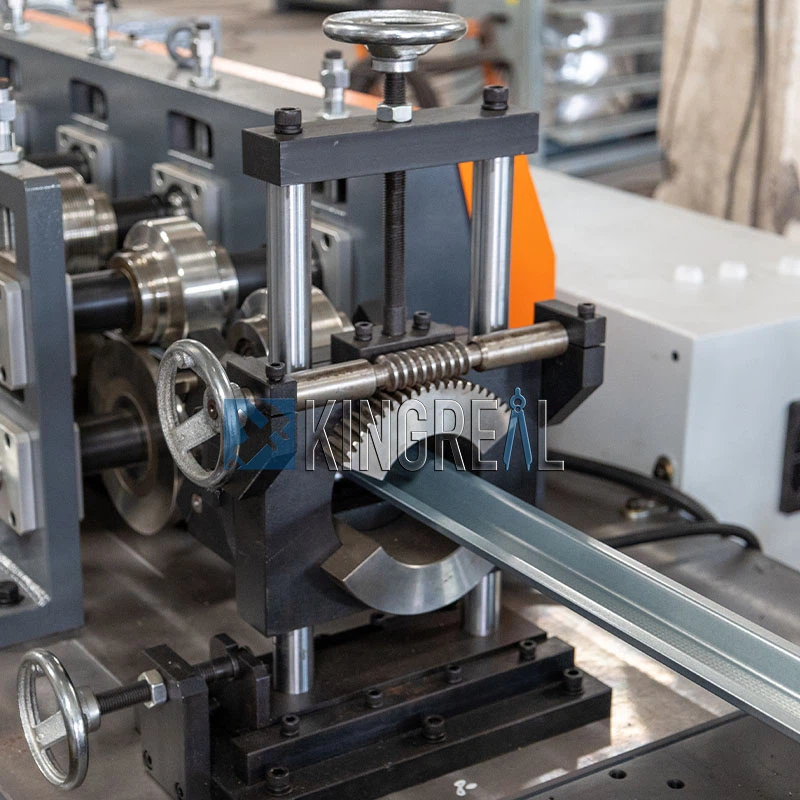

(2)Roll forming machine for hat channel machine
The roll forming machine is the heart of the furring channel machine, which consists of a series of rollers and dies arranged in sequence. Each station performs a specific forming operation on the metal strip. In the production of hat channels, the roll forming machine gradually bends the metal strip into the required shape. The hat channel machine uses precision-designed rollers and dies to gradually form the flat metal sheet into the required hat channel profile.
Along the length of the roll forming machine, each set of rollers performs a specific bending and forming action. This progressive process ensures that the hat channel is accurately, consistently formed, and uniform in size. In this way, the furring channel machine is able to produce high-quality profiles to meet the needs of different customers.
(3)Cutting station for hat channel machine
After the metal strip is successfully formed into the shape of the hat channel, it is usually equipped with a cutting station to cut the omega channel into the required length. This cutting station usually uses a fly shearing system that can quickly cut the hat channel and keep the furring channel machine running during the cutting process. The design of the fly shearing system greatly improves production efficiency while ensuring the accuracy and quality of the cutting.
Options for Hat Channel Machines
In order to improve the market competitiveness of finished products and increase the production efficiency of customers, KINGREAL Roll Former provides a series of optional solutions for hat channel machines. These optional solutions not only enhance the functionality of furring channel machines, but also meet the personalized needs of different customers.
Customization of finished products with logos
In order to help customers establish their brand image in the market, KINGREAL Roll Former provides two solutions for hat channel machines to achieve finished products with customer brand logos.

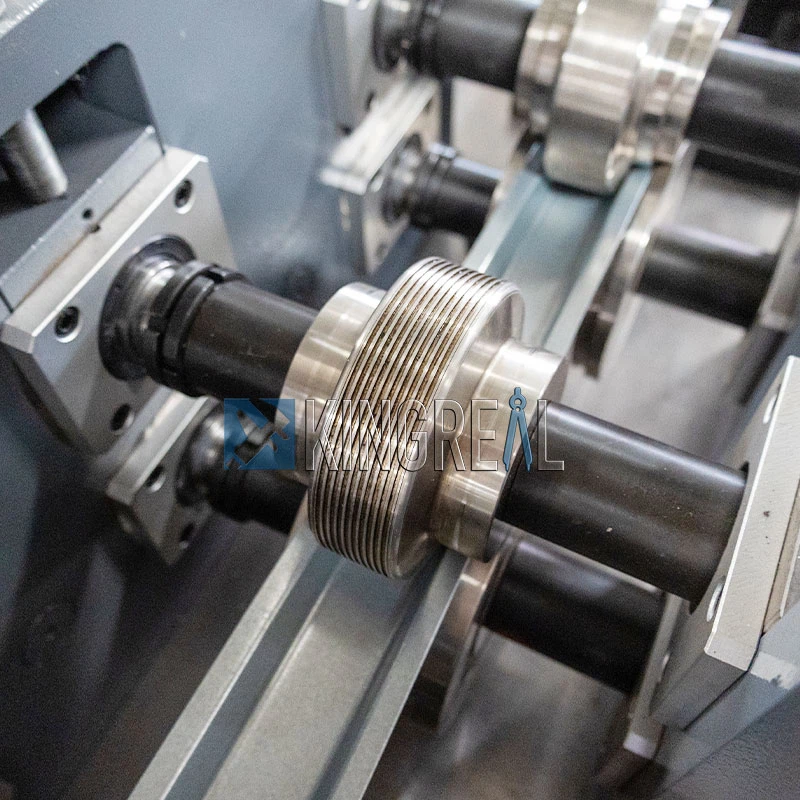

(1.1)Roller engraving logo for furring channel machine
The first solution is to equip the hat channel machine with a roller engraved with the customer's brand logo. By engraving the brand logo directly onto the hat channel during the forming process, customers can display their own brand in each finished product.

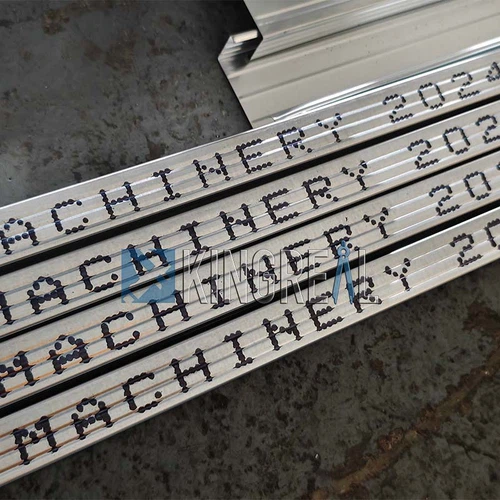

Inkjet system for furring channel machine
The second solution is to print the brand logo by installing an inkjet system on the roll forming machine. This method has higher flexibility and can change or update the logo design at any time according to customer needs. The inkjet system can print in real time during the production process, which not only improves production efficiency, but also makes brand promotion more convenient.
Auto Packaging unit for furring channel machine
After the hat channel is manufactured, how to efficiently pack, bundle and stack is an important link. To solve this problem, KINGREAL Roll Former also provides an optional automatic packaging unit. With this solution, customers can significantly reduce labor costs while ensuring production efficiency and finished product quality. The automatic packaging machine can quickly transport the hat channel to the packaging area after it is produced. The automated operation of the packaging unit not only improves efficiency, but also avoids errors and losses that may be caused by manual operation. With the help of the automatic packaging machine, the packaging speed of the finished product is greatly accelerated, thereby shortening the production cycle and improving overall production efficiency.

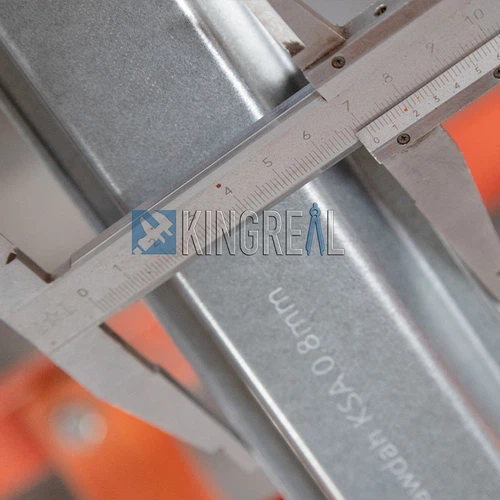

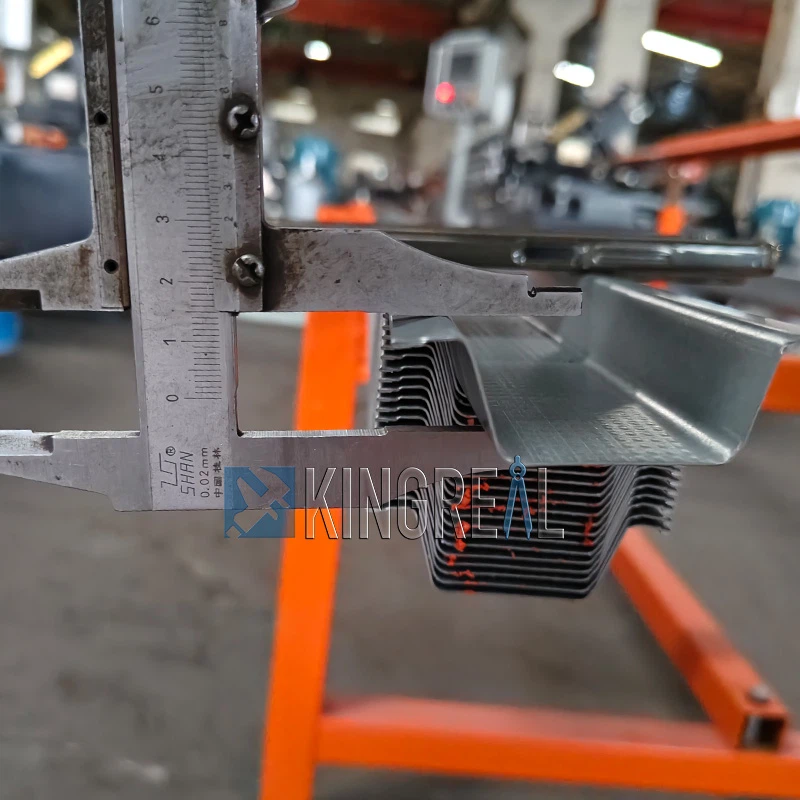

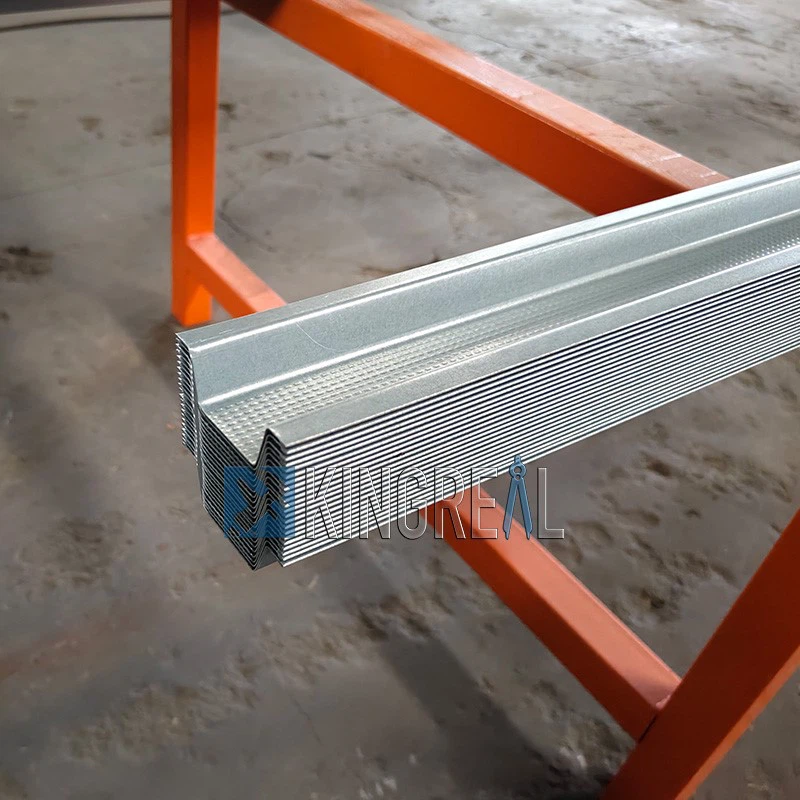

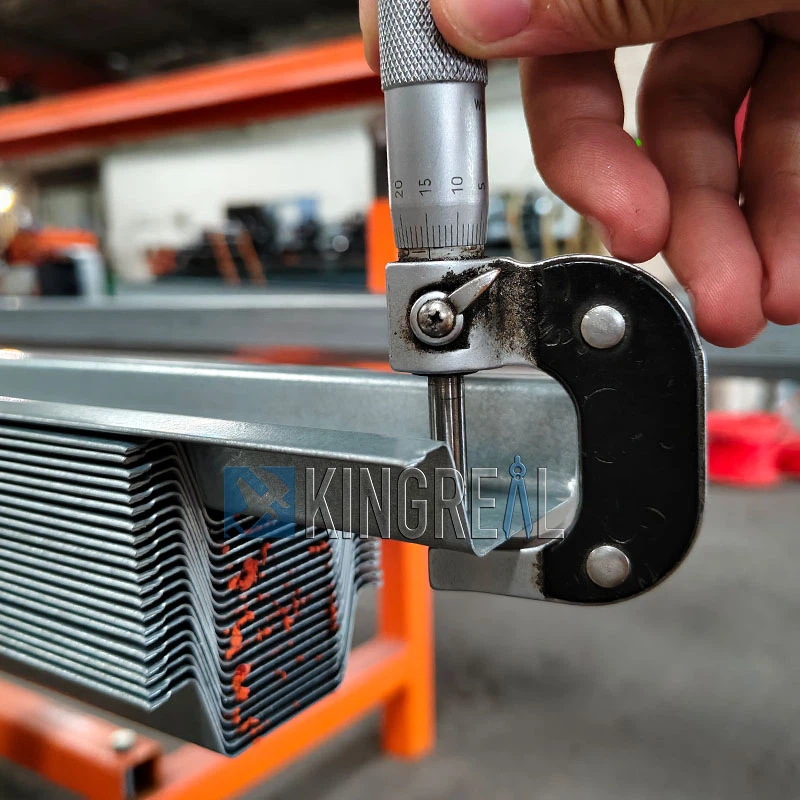

Features of Hat Channels
(1)Lightweight
Hat channels have a thin-walled structure, which makes them relatively light. Compared with solid beams or other framing materials, the lightweight characteristics of hat channels make them easier to handle and install. This feature is well suited to the need for lightweight materials in modern buildings, especially in ceiling and wall structures.
(2)Excellent durability
Hat channels are known for their durability and resistance to bending or warping under load. This makes them ideal for applications where structural stability is critical. In the ceilings and walls of buildings, hat channels are able to effectively withstand a variety of loads, ensuring the safety and stability of the entire structure.
(3)Flexible installation options
Hat channels have very flexible installation options and can be fixed to walls, ceilings or other surfaces using screws, bolts or other fasteners. This flexibility allows hat channels to adapt to different building design requirements and become an ideal mounting surface for various fixtures and equipment.
(4)Acoustic and thermal insulation
Hat channels are sometimes used as part of acoustic or thermal insulation systems. When used in conjunction with thermal insulation materials, hat channels are able to form air gaps, thereby enhancing acoustic and thermal insulation performance. This feature is especially important in places that require a quiet and comfortable environment, such as hotels, hospitals, and offices.
Application of Furring Channel Machines
The application range of hat channel machines is very wide, and hat channels produced by furring channel machines can be seen in almost all places with suspended ceilings. In hotels, offices, hospitals, subway stations and other buildings, hat channel steel plays an indispensable role as a ceiling support structure. Hat channels are loved by people for their light weight and durability.
