In the fields of modern warehousing and industrial manufacturing, the storage shelf panel machine utilizes a cold-roll forming process to efficiently produce shelf panels of various specifications. These finished products are widely used in supermarket and retail display systems, warehouse and industrial shelving, commercial and steel furniture manufacturing, as well as in logistics and automotive workspaces-covering light, medium, and heavy-duty storage environments.
The current global market demands higher precision and faster production speeds for shelf panels. A high-quality shelf panel making machine must not only offer extensive customization capabilities but also maintain high production efficiency while adapting to the diverse requirements of various applications.
To maximize returns on investment or operational gains, it is essential to have a thorough understanding of the technical features of a storage shelf panel machine.
Feature 1: Duplex Shelf Panel Making Machine
In traditional panel-forming processes, single-axis storage shelf panel machines are often limited by the width of the tooling; changing specifications typically requires significant manual labor and results in extended downtime. In contrast, advanced shelf panel making machines employ a specialized Duplex structure.
-Split-type Motorized Platforms: Unlike traditional single-axis storage shelf panel machines, the forming rollers in a Duplex configuration are mounted on two independent, motorized platforms. The shelf panel making machine's forming base is effectively divided into left and right sections, each driven by high-precision servo motors or variable-frequency motors.
-PLC-based Automatic Width Adjustment: By integrating a PLC control system, operators can simply input the target panel width via the Human-Machine Interface, allowing the storage shelf panel machine to switch between different specifications in a matter of seconds. This automated adjustment of the central gap eliminates the need for complex manual tooling adjustments, significantly enhancing production flexibility.
-Precision Assurance: The Duplex structure utilizes linear guides and ball screws to ensure the synchronization and parallelism of the two platforms as they move. This guarantees that the width-wise dimensional tolerances of the formed shelf panels are kept within an extremely narrow range.
This automatic width-adjustment design enables KINGREAL Roll Former shelf panel making machine to perfectly accommodate modern production requirements-characterized by high product variety and small batch sizes-thereby lowering operational barriers and reducing time-related costs for businesses.
Feature 2: Multi-Bend Processing and Profile Customization Capabilities

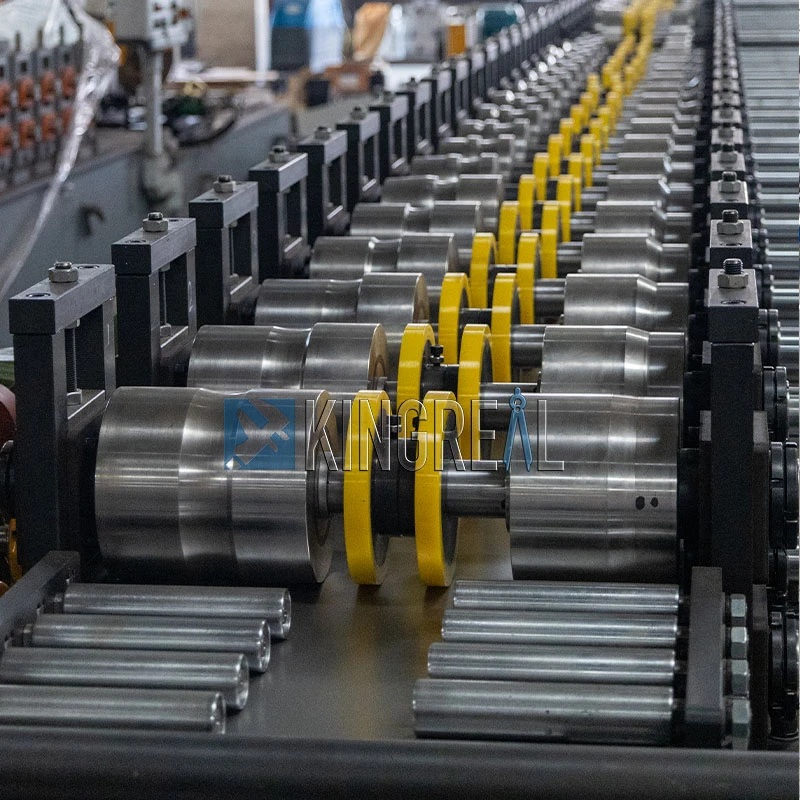

The load-bearing capacity and structural stability of a shelving panel depend largely on the design of its bent edges. A core element of the storage shelf panel machine is its multi-station bending and forming unit.
Standard and Custom Bending

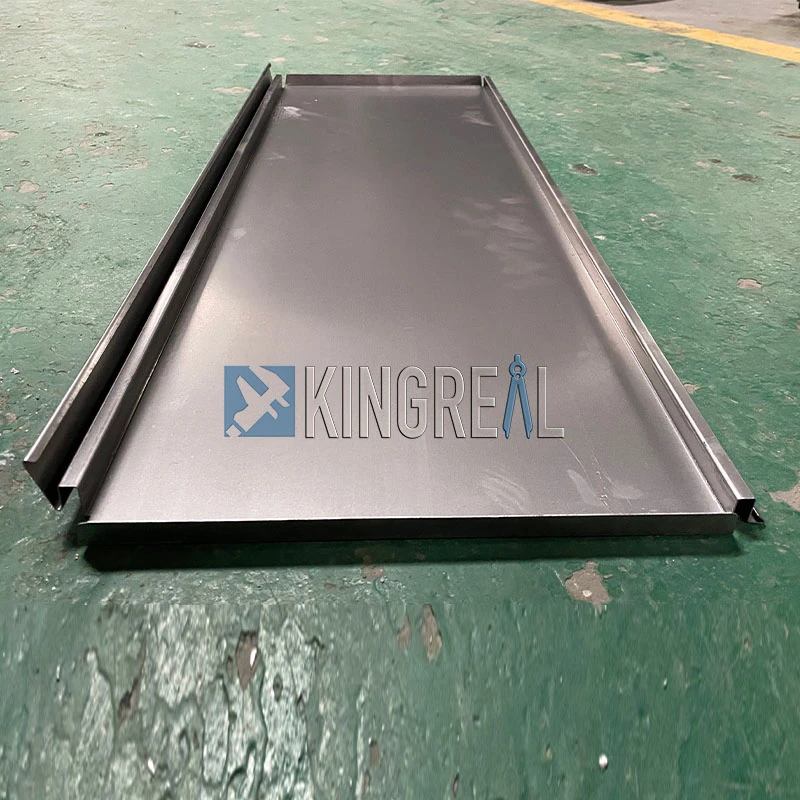

Depending on the panel thickness and load-bearing requirements, the shelf panel making machine can produce 4-fold, 6-fold or even 8-fold.
Increasing the number of bends significantly enhances the panel's flexural strength and physical structural stability.
Flexible Bending Tooling

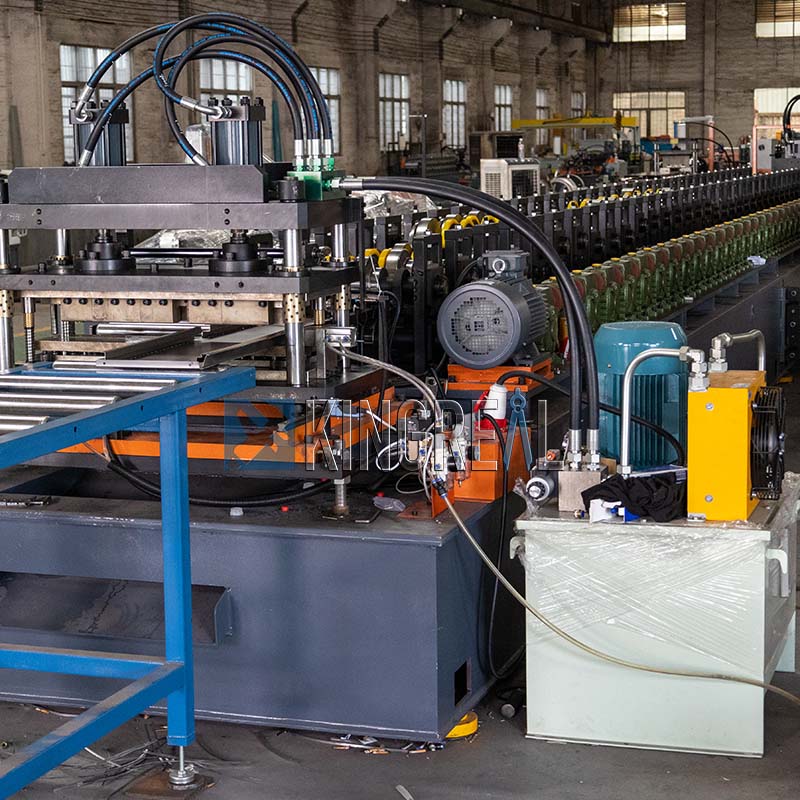

The storage shelf panel machine is typically equipped with hydraulic or servo-driven bending units.
By adjusting bending angles and tooling parameters, the shelf panel making machine can produce not only standard profiles but also customized designs, such as specialized stiffening ribs or integrated locking tabs.
Material Compatibility
These storage shelf panel machines are generally designed to process materials-including cold-rolled steel, GI, PPGI, and stainless steel-with thicknesses ranging from 0.5 mm to 1.2 mm.
Through a multi-pass roll-forming process, the shelf panel making machine ensures that the material remains free from surface damage or cracking during bending.
Feature 3: Diverse Applications of Storage Shelf Panel Machines

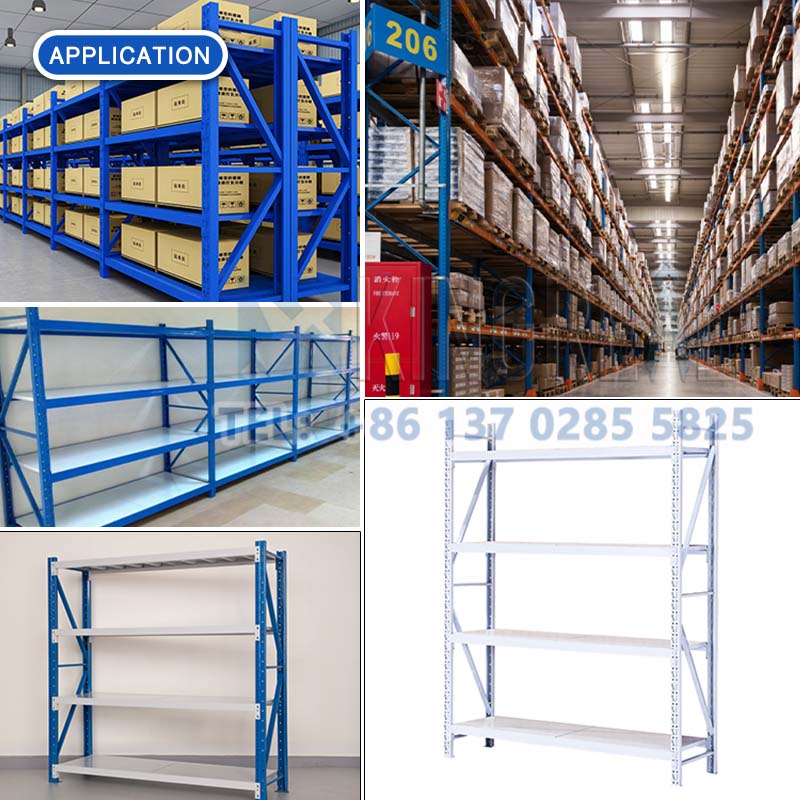

Although the end products from a shelf panel making machine are all used in shelving systems, they are categorized into distinct application segments based on whether they are intended for light-duty, medium-duty, or heavy-duty systems:
1. Supermarket and Retail Shelving
In the retail sector, shelving panels must not only support weight but also offer a high-quality aesthetic finish and precise dimensional consistency.
Key Products: Supermarket shelving panels, pegboard display racks, island shelving units, and components for checkout counters.
Machine Requirements: For these applications, the storage shelf panel machine must provide superior surface protection to prevent scratches on the raw material. It must also ensure high precision in hole placement to guarantee a perfect fit with support brackets.
2. Warehousing and Pallet Racking Production
This is a core area for industrial-grade applications, where the focus is on high strength and large-scale production.
Key finished products: Heavy-duty industrial storage shelf panels, auxiliary pallet racking panels, and long-span warehouse shelving.
Machine requirements: Shelf panel making machines for this sector must be capable of handling thicker, harder raw materials and typically feature a higher number of forming stations to ensure that the panels do not undergo permanent deformation under heavy loads.
3. Commercial and Steel Furniture Manufacturing
With the modernization of office environments, there is a massive demand for steel shelving panels used in furniture.
Key finished products: Panels for office filing cabinets, modular storage lockers, and internal components for display cabinets.
Machine requirements: These storage shelf panel machines must offer high-speed cutting and punching capabilities to keep pace with the rapid order turnover typical of the furniture industry.
4. Industrial Equipment Enclosures and Protective Systems
Panel-forming technology also extends beyond traditional shelving applications.
Key finished products: Protective machine enclosures, industrial-grade storage lockers, and specialized sealed shelving systems for unique environments.
Machine requirements: These shelf panel making machines require advanced structural customization capabilities, supporting non-standard punching patterns and pre-cutting processes.
In summary, understanding the duplex configuration, multi-bend forming processes, and diverse application range of storage shelf panel machines is essential for selecting a cost-effective solution. As warehouse and logistics automation becomes increasingly widespread globally, possessing a shelf panel making machine that offers both rapid width adjustment and stable production output will become a key competitive advantage for manufacturing enterprises.
Beyond high-performance storage shelf panel machines, KINGREAL Roll Former provides comprehensive manufacturing solutions for complete shelving systems to clients worldwide.
For detailed technical specifications, price quotes, or videos of these shelf panel making machines in operation, please contact the professional engineering team at KINGREAL Roll Former directly!
We will tailor an optimal automated production solution based on your specific raw materials and production budget.
