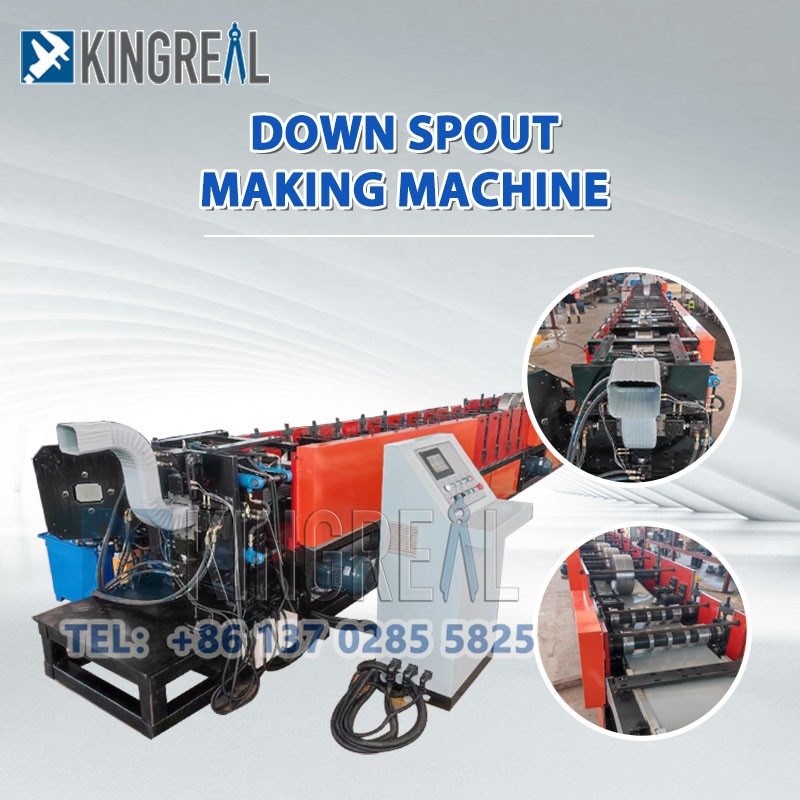

Downspout Elbow Machine

Downspout elbow machines efficiently produce downspout elbows for collecting rainwater from roofs. These downspout elbows guide rainwater from the roof to underground pipes, effectively protecting the building structure from water damage and ensuring efficient collection and drainage of roof rainwater.

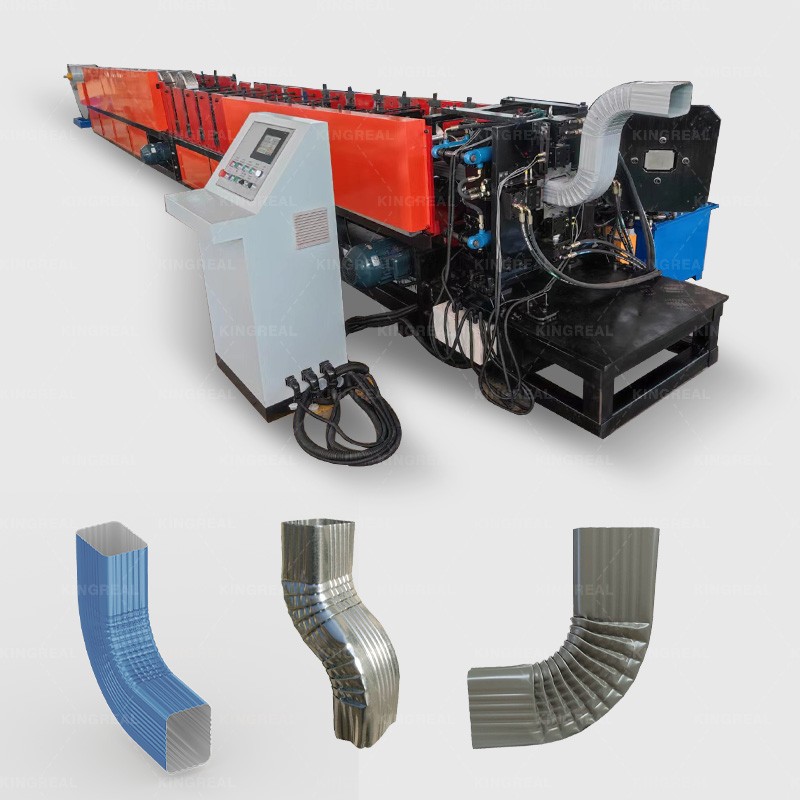

KINGREAL Roll Former downspout elbow forming machines consist of precision components such as a decoiler, roll forming machine, and a cutting curving system. They can use 0.4-0.6mm thick PPGI, PPGL, GI, and GL steel as raw materials to meet customers' actual engineering needs and produce large-scale downspout elbow A and downspout elbow B.

Working Process of Downspout Elbow Machine

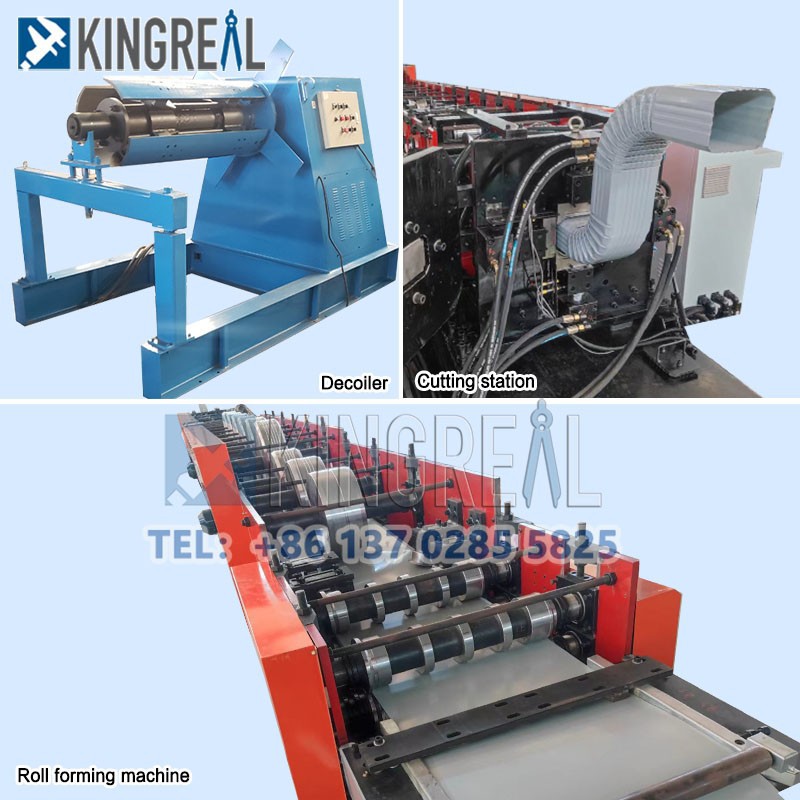

Decoiler -- Roll Forming Machine -- Cutting Curving System -- Outpu

●Material

Raw material: PPGI,PPGL,GI,GL steel coil

Material thickness: 0.4-0.6mm

●Decoiler

Work type: Passive type

Loading capacity: 3 Tons

Coil inner diameter: 470-530 mm (adjustable)

Quantity: 1 set

●Main roll forming machine

Material of roller : High grade 45# forged steel plated with hard chrome plating

Working Speed: 8-10m/min

Roller stations: 22 stations

Rolling shaft Shaft diameter: 70 mm,Tempering treatment

Machine frame: 20mm thick steel wall plate

Transmission: By chains

●Cutting curving system

Material of the cutting: Cr 12mov with quenched treatmentlt can decide cut panel dimension according to the hydraulic drive and PLC computer control system

Cutting length: Adjustable

Cutting accuracy: ±2mm

1)Speed and Efficiency

KINGREAL Roll Former downspout elbow forming machine produces downspout elbows at a speed of 10m/min, ensuring high production efficiency. Unlike traditional equipment on the market, KINGREAL Roll Former downspout elbow machine achieves a fully automated process of uncoiling, forming, curving, and cutting within a single unit. This design eliminates the need to first manufacture straight pipes and then manually bend them using other machines, greatly improving production efficiency and saving time and labor costs.

2)Applicable Material Range

KINGREAL Roll Former downspout elbow forming machine can handle a variety of metal materials, including PPGI, PPGL, GI, and GL steels with thicknesses ranging from 0.4-0.6mm. This adaptability allows the downspout elbow machine to meet customers' production needs for downspout elbows of different materials and thicknesses. No matter the customer's project requirements, KINGREAL Roll Former downspout elbow forming machine can flexibly respond, ensuring the production of high-quality downspout elbow products.

3)Control and Precision

KINGREAL Roll Former downspout elbow forming machine is driven by a PLC-controlled servo motor, making operation simple and highly precise. Users can easily program via a touchscreen to adjust the cutting length, quantity, speed, and dimensions. This intelligent control system reduces human error while improving production efficiency and product consistency. Furthermore, the touchscreen language settings can be adjusted to the customer's local language, facilitating user operation and broadening the global applicability of KINGREAL Roll Former downspout elbow machines.

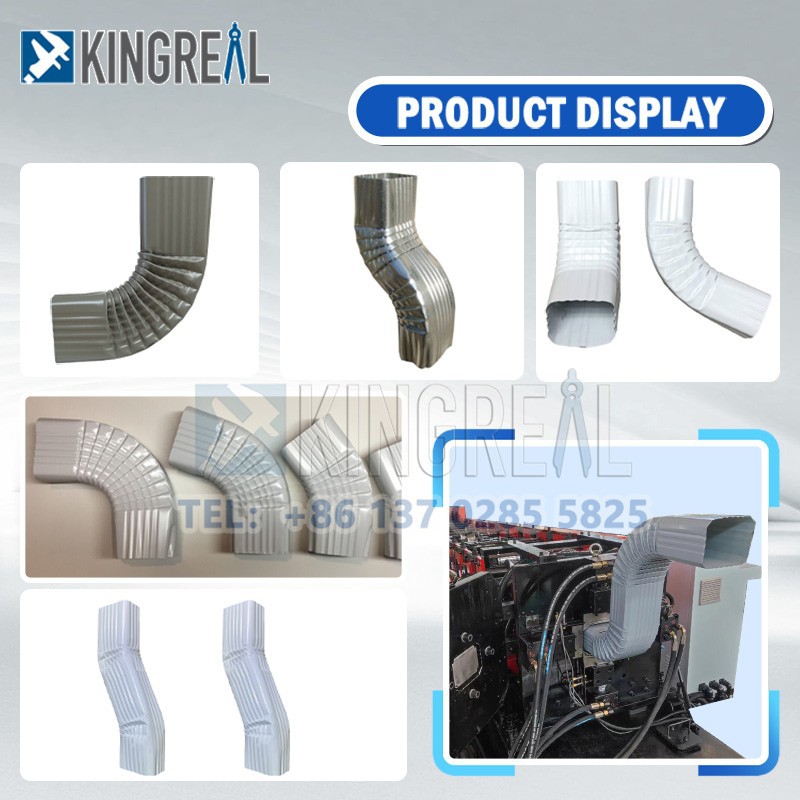

KINGREAL Roll Former downspout elbow machines can produce both downspout elbow A and downspout elbow B, offering a variety of angles including 30 degrees, 45 degrees, 75 degrees, and 90 degrees. 75-degree elbows are a common choice for residential applications, while 90-degree elbows are suitable for applications requiring a larger bend. Downspout elbow A guides water flow with slight turns and are typically used at the top and bottom of downpipes for lateral flow guidance.

Downspout elbow B, on the other hand, are used for sharp turns and are usually placed at the bottom of downpipes to guide water flow away from the building foundation. By selecting the appropriate downspout elbow type, customers can optimize rainwater drainage according to their specific needs.

KINGREAL Roll Former is not only committed to producing high-quality downspout elbow forming machines but also provides a range of services to ensure complete customer satisfaction.

1. Technical Support and Consultation

KINGREAL Roll Former provides professional technical support and consultation to ensure smooth downspout elbow machine installation and commissioning. KINGREAL Roll Former technical experts are always ready to answer customer questions and provide timely and effective technical guidance.

2. Customized Services

KINGREAL Roll Former provides personalized downspout elbow forming machine customization solutions based on specific customer requirements to better meet the needs of different customer groups. Whether it's downspout elbow machine production capacity, functional settings, or external configuration, we can tailor-make a solution for each customer.

3. Installation and Training

To help customers better utilize the downspout elbow forming machine, KINGREAL Roll Former provides professional installation services and detailed training courses for customer operators. Through systematic training, customers can quickly master the downspout elbow machine's operating skills, improve operational efficiency, and reduce potential risks.

4. After-Sales Service

KINGREAL Roll Former after-sales team regularly visits customer downspout elbow forming machine to ensure its normal operation. If any problems arise, we will provide immediate support to ensure uninterrupted production.
