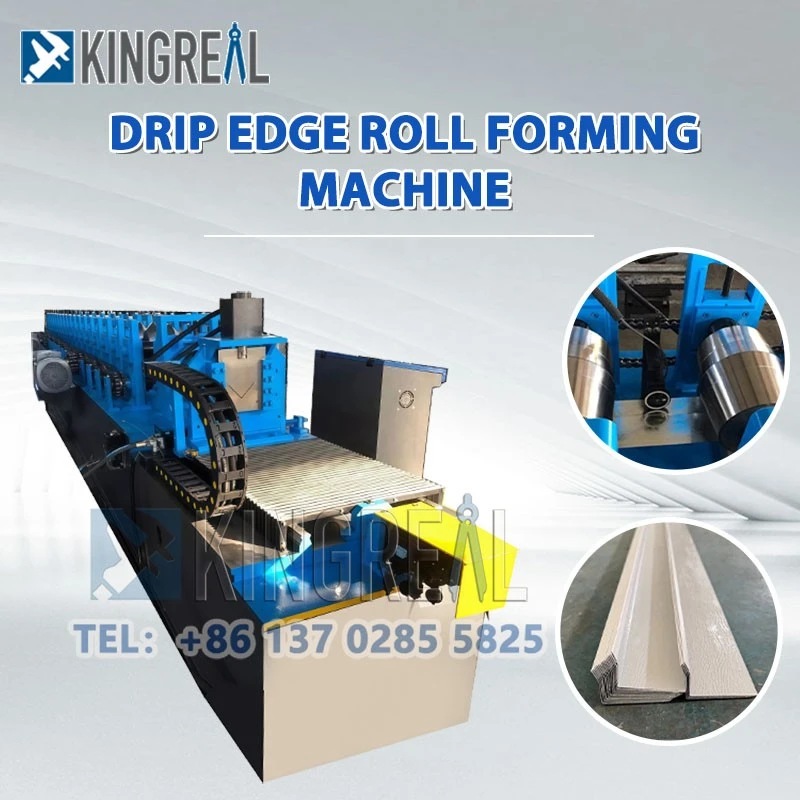

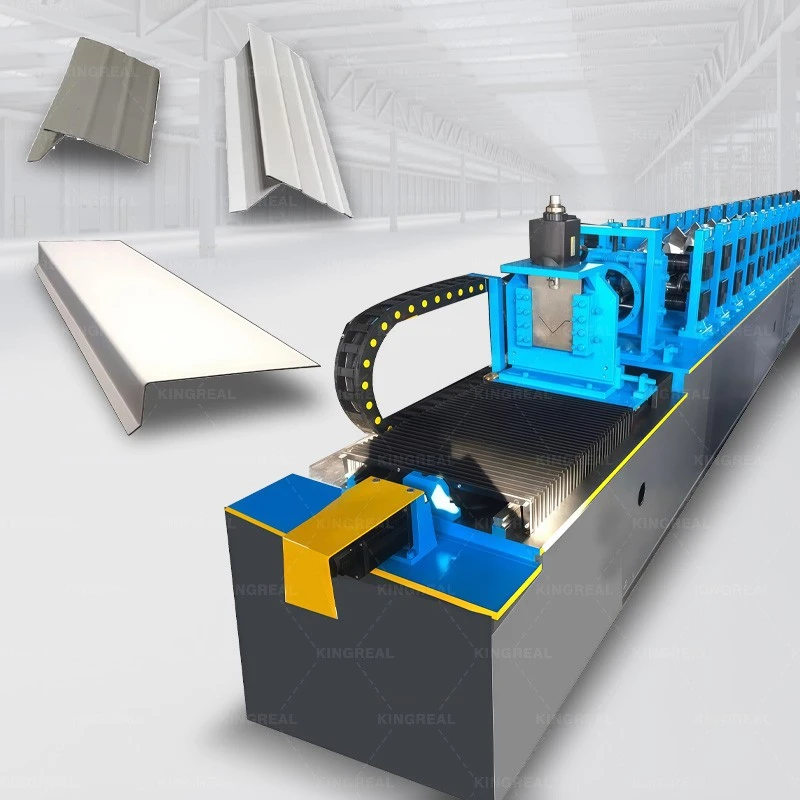

Drip Edge Roll Forming Machine

The drip edge roll forming machine, also known as a flashing roll forming machine, is specifically designed for producing drip edges. This drip edge making machine is typically used in conjunction with other roofing sheet making machines to form a complete metal roofing system. Drip edges are an indispensable part of construction, effectively helping rainwater drain smoothly from the roof structure, preventing water erosion and ensuring long-term stability.

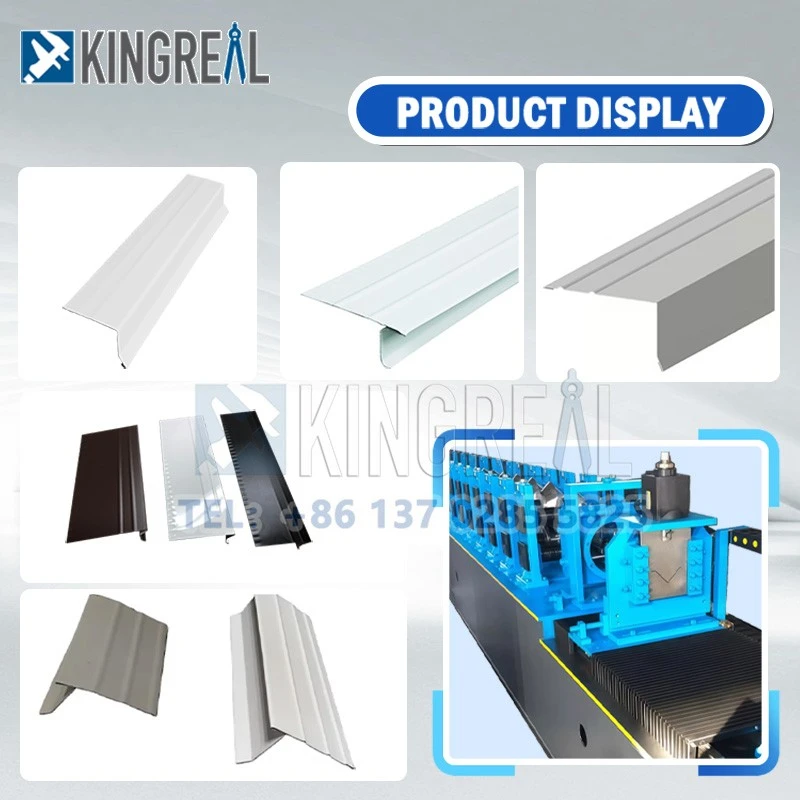

This drip edge making machine can produce three common types of drip edges: C-type, D-type, and F-type, to meet the needs of different architectural styles. These models each have unique features, satisfying market demands for different styles and functions. Through continuous forming of metal sheets, the drip edge roll forming machine automates the production of drip edges, ultimately forming the desired contour, greatly improving production efficiency and product quality.

Workflow of Drip Edge Making Machine

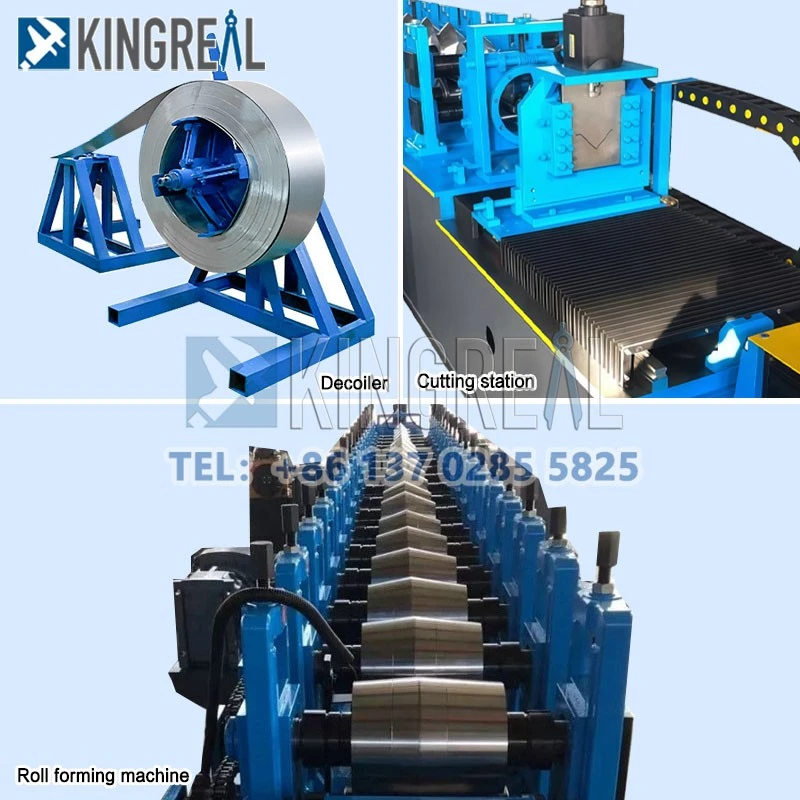

Decoiler -- Roll Forming Machine -- Cutting Station -- Output

-Roll Forming Machine: The core of the drip edge roll forming machine consists of multiple roll forming stations. Each station is equipped with a set of rollers and molds to progressively form the metal sheet into the desired drip edge profile. These workstations operate sequentially, each performing a specific forming operation to ensure the consistency and precision of the finished product. The number of workstations depends on the complexity of the drip edge profile; more complex designs require more workstations.

-Drive System: The drip edge roll forming machine is equipped with a powerful drive system, including motors and gears, capable of driving the metal sheet through each roll forming station at a controllable speed. This system ensures the precision and consistency of metal forming, ensuring that every drip edge meets the required standards.

-Cutting Station: After the metal sheet is formed into the drip edge profile, the cutting station trims the formed strip to the required length. This process ensures that each drip edge is dimensionally consistent, meeting architectural design requirements.

-Control System: Modern drip edge making machines are typically equipped with a user-friendly PLC control system. Operators can use the control panel to set parameters such as production speed, finished product length, and the desired drip edge profile. The control panel also displays drip edge making machine operating status information for convenient real-time monitoring.

-Stacker or Packaging System (Optional)

To improve labor efficiency and increase automation, the drip edge roll forming machine can be equipped with an automatic stacker or a packaging machine. These optional features reduce manual intervention and improve overall production efficiency.

1)Highly drip edge making machine

The drip edge roll forming machine is equipped with precision components such as a decoiler, roll forming machine, cutting station, and control system. Simply set the production parameters on the control panel, and the drip edge making machine will operate fully automatically. This design significantly reduces labor costs while ensuring production efficiency and finished product quality.

2)Highly flexible drip edge making machine

The drip edge roll forming machine can adapt to materials of different lengths and thicknesses (thickness range 0.3-1.2mm). Furthermore, the drip edge making machine can process various metal materials such as aluminum, galvanized steel, and copper, allowing customers to flexibly adjust production requirements according to their specific project needs.

3)Stable and efficient drip edge making machine

The drip edge roll forming machine can operate stably for extended periods, maintaining high production capacity. To meet diverse customer needs, KINGREAL Roll Former has specially designed three speed options for the drip edge roll forming machine (10m/min, 20m/min, and 30m/min), allowing customers to choose the drip edge making machine based on their production volume and other factors.

4)Customized drip edge roll forming machine

To satisfy the production needs of different customers, KINGREAL Roll Former can equip the drip edge roll forming machine with additional functions, such as a laminating device, protective shield, and packaging machine, according to specific customer requirements. These customized options effectively improve customer production efficiency and make products more adaptable to market changes.
