Roof Panel Machine Description

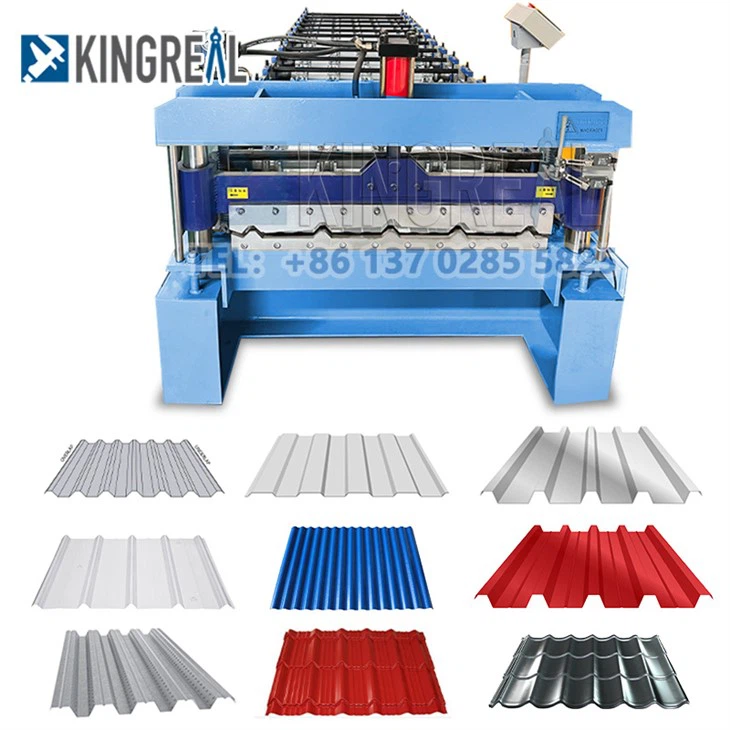

KINGREAL IBR Roof Sheet Forming Machine

KINGREAL IBR Roof Sheet Roll Forming Machine is hot sale in the South Africa, which can provide optimal solutions to our customers' production problems while maximizing economic efficiency.

You can also learn more roof sheet making machine related equipment on our website:

- Double Layer Roof Tile Machine

- Glazed Roof Sheet Roll Forming Machine

- Snap Lock Roofing Machine

- Standing Seam Roof Machine

- Metal Decking Roll Forming Machine

- Metal Ridge Cap Machine

The IBR Roof Sheet Making Machine consists of a series of rollers that gradually cold bend the metal coil to the desired profile. The process is continuous, allowing for high speed production of roofing sheets of various contours and lengths.

The operation of a IBR sheet making machine consists of several important steps. First, the metal coil is loaded onto the machine and then the front end is guided into the rollers. As the coil passes through the rollers, each set of rollers gradually bends the metal, eventually forming the desired shape.

The final step is to cut the formed sheet to the desired length using a flying cutting system. This continuous process ensures productivity and consistent product quality.

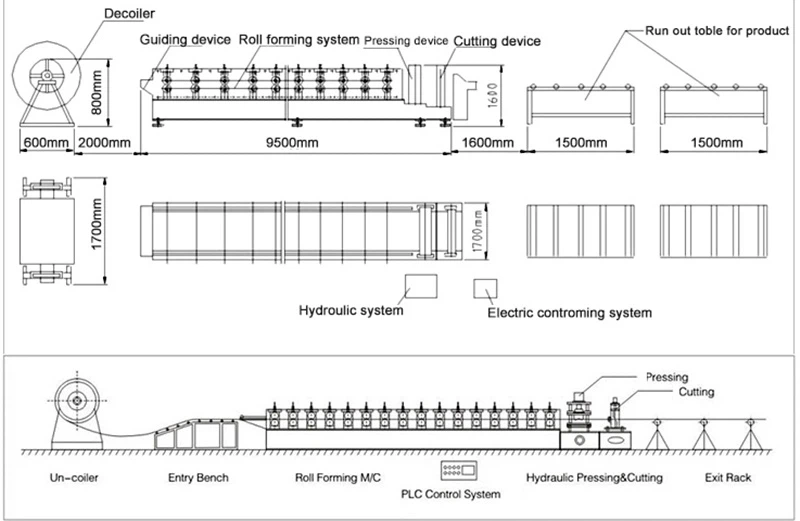

Working Process

Metal Roof Tile Machine

Hydraulic Decoiler -- Main Roll Forming Machine -- Follow Shearing Machine -- Auto Stack

Technical Specification

Raw Material	GI Steel Strip
Material Thickness	0.3-0.8MM
Production Line Speed	20M/Min
Shearing Accuracy	±1.0MM
Product Section Size	According with drawing or Sample
Straightness	Bending is less than 1‰/M, twist is less than 1.3%/M
Power Supply	AC380V, 50HZ, 3phase 4 Lines
Total Power	About 20KW

Main Components Detail

01.

Hydraulic Decoiler

- Supporting the web and unwinding: The hydraulic unwinder adapts to the inner diameter of the web by hydraulically expanding and contracting it. This ensures a smooth conveyance of the web into the forming machine.

- Motorized: The motor drives the web and is capable of forward and reverse rotation, as well as unwinding with tension.

- Adaptability: The core of the hydraulic unwinder ensures an expansion range of φ508-610mm to adapt to different sizes of coils.

02.

Main Roll Forming Machine

1. Machine frame: Made of integrally welded 400H steel. While ensuring the overall rigidity of the fuselage, it also provides a precision-guaranteed installation platform for the entire machine to ensure a high level of straightness when installing the rolling mold. This prevents side bending and distortion during the later molding process.

2. Archway panel: The thickness is 25mm and is made of high-quality steel. The roller slider slot and the bearing installation position are all precision processed to ensure the concentricity of the upper and lower rollers; ensure the vertical straightness when installing the rolling mold, and ensure the upper and lower rollers. The mold can maintain a good clearance fit to ensure stability every time the raw material tape is replaced.

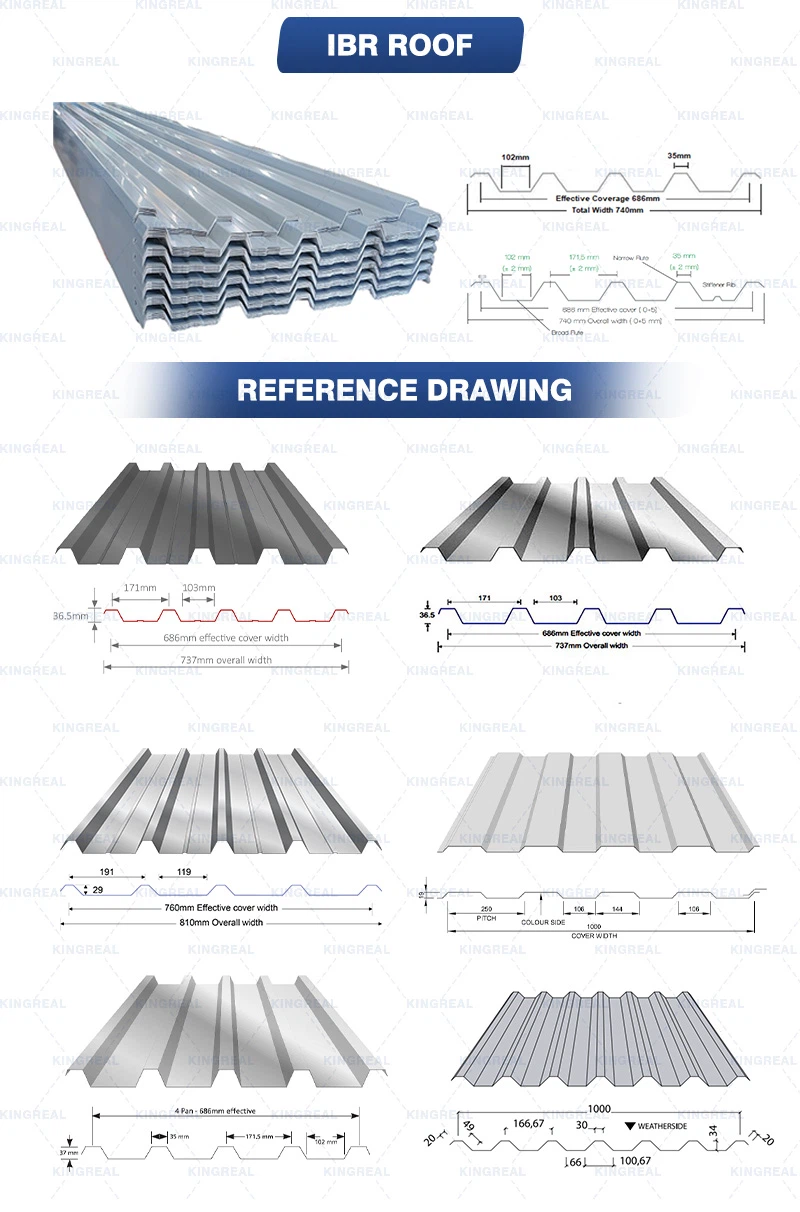

Reference Drawing

roof sheet forming machine

2026 New Project: High-Speed Metal Roofing Machine

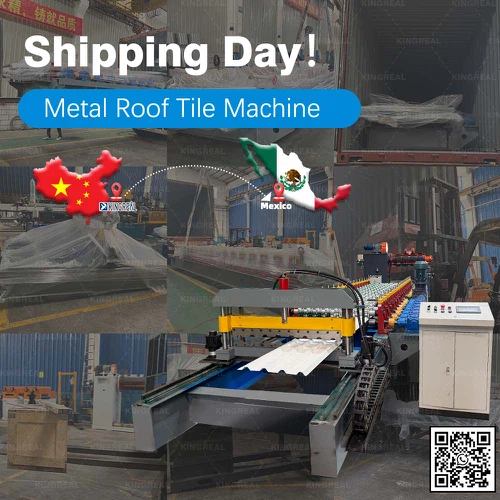

This year, KINGREAL Roll Former successfully completed the manufacturing of a high-speed metal roofing machine specifically customized for a Mexican client. This equipment represents a significant breakthrough in production speed. While most conventional metal roofing machine speeds on the market are 3-12 m/min, the KINGREAL Roll Former team increased the metal roofing machine's speed to 30-40 m/min to meet the client's high-efficiency production needs. Simultaneously, the forming section adopts an independent archway structure, driven by a gearbox, and the overall machine structure was reinforced with larger hydraulic cylinders. This metal roofing machine ultimately won high praise from the Mexican client.

Why choose Us?

Company profile

-Specializing in the manufacture and sale of molding machine equipment for over 20 years;
Professional technical team
Pre-sale design service; high quality production; after-sale technical guidance.

KINGREAL ROLL FORMER Exhibition

KINGREAL Exhibition

FAQ

01.What Are The Functions Of Metal Roof Tile Machine?

Corrugated Roofing Sheet Forming Machine is a machine that consists of discharging, molding, post molding cutting to produce

02.What are metal roof tiles?

"Metal roof tile", refers to a material made of metal as a base material, replacing traditional glazed tiles, terracotta tiles, cement tiles, resin tiles as well as asphalt tiles with metal

03.Metal Roofing Roll Former Market Changes

In the modern construction industry, roof sheet making machine has become an indispensable equipment. With the advancement of science and technology, these machines have not only improved productivity, but also promoted the innovation of building materials.

04.Why Is The Demand For Roof Tile Making Machine Increasing In Market?

In recent years, with the rapid development of the construction industry and the increased demand for environmentally friendly materials, the demand for roof tile making machine is increasing in the market.

05.Types of Roof Tiles

There are many different factors to consider when choosing roof tiles, but for inexpensive mulch that requires minimal maintenance, the two most popular options are clay and concrete. At the same time, natural slate is very tasteful, and metal roof tiles have a long service life.

06.Roll forming method

The plastic processing method of producing bolts or screws with thread roll die (screw die) is called thread roll rolling (screw die).
