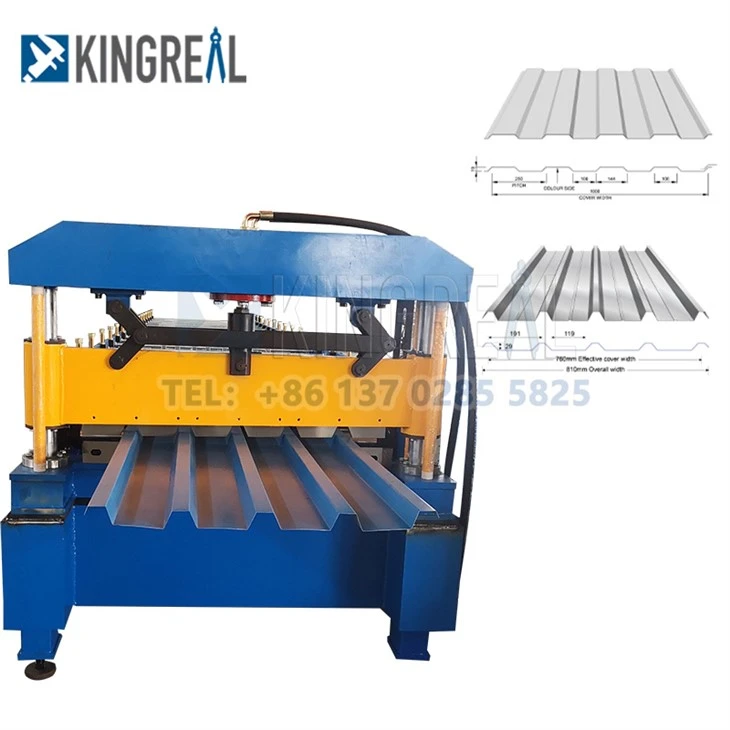

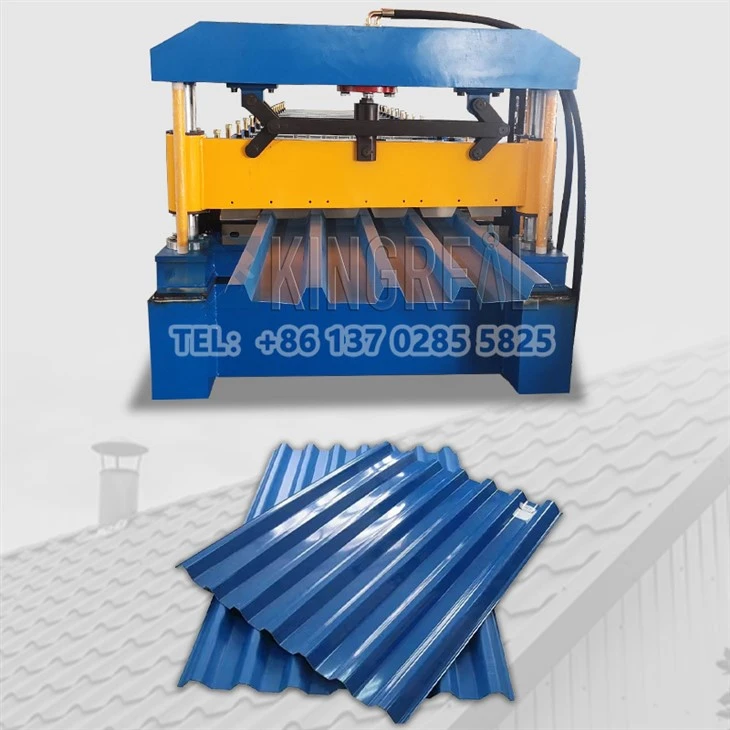

Corrugated Tile Making Machine

Working Process Of Roof Tile Roll Forming Machine

corrugated metal roofing machine



The CNC color steel tile pressing machine adopts PLC inverter control system,

which has the characteristics of simple operation, stable performance and good

output accuracy.



Equipped with high-speed sealed bearings, it can be maintenance-free and extend

the life of the machine. Coupled with the cutting method of automatic hydraulic

shearing, the equipment becomes intelligent.



The tile pressing machine adopts automatic control software, and the color steel

plate printing machine realizes production information management.



The automation control system of the whole unit adopts a highly integrated network,

which makes the function of the automation system more superior.



Features of corrugated roll forming machine:







①

This equipment has the advantages of operation, maintenance, mechanical

debugging, and convenient mold replacement. The automatic control system

of the whole unit adopts a highly integrated network, which makes the perfor-

mance of the automatic system superior.



The equipment adopts automatic control software to realize production

information management.

The products produced by the tile press have a smooth and beautiful

appearance, an average paintpattern, high strength and durability.



The blanking procedure of the color steel tile press: mold installation

and main engine test operation are the same as above, and then turn

on the air compressor, vacuum pump, extruder, tile cutter, discharger

tile press, color steel tile machine and corrugated conveyor, Stop the

extruder first, and then rest the equipment when parking.





②

It is strictly forbidden to work with a smaller closing height in the production of the color steel tile press, that is, after increasing the upper and lower molds to close, increase the height of the bottom of the upper sliding box to 290 mm of the working surface, and the thickness of the upper and lower backing plates.The bottom of the brick and tile, so the thickness cannot exceed 290 mm.
The design of the mold should be carried out according to this requirement to avoid machine tool accidents. Always pay attention to the lubricating oil height of the sliding box and the sides of the car body.

During the straightening process of the color plate produced by the tile press equipment, the profile will move from top to bottom and from left to right, which requires a relatively loose gap between the straightening mechanism and the profile.
There may be a certain gap between the straightening mechanism and the upper, lower, left and right surfaces of the profile. The gap is between 0.010-0.050 inches (0.25-1.25 mm). If straightened and twisted, the gap can be smaller.

1. Low failure rate (compared to hydraulic system, avoid oil circuit stuck valve, oil pump does not supply oil)

2. Low maintenance cost (slider, linear guide, ball screw is not easy to damage)

3. Low power consumption and energy saving (only when the plate needs to be cut, start the servo motor instantly)

4. The board output speed is 1800 m/h

5. The material of the roller is die steel heat treatment, and the surface is plated with hard chromium (such processing increases the life of the roller)

6. The size of the roller is enlarged and widened, and the upper and lower full wheel design is adopted, so that the sheet is better wrapped, so that the pressed sheet will be more flat

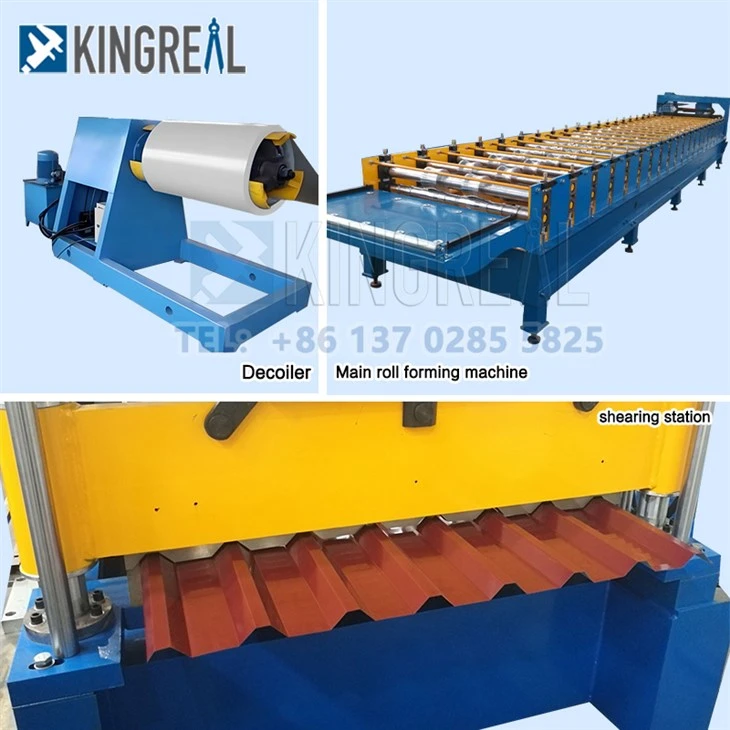

The components of the tile pressing machine include: the complete color steel plate pressing machine, PLC computer control system, hydraulic pumping station system, and automatic post-cutting system.

----------------------------------------------------------------------------------------------Production Application---------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------Our  Professional Team---------------------------------------------------------------------------------------

1. Technical Team

KINGREAL has its own professional technical team.

With strong professional ability and rich design experience, KINGREAL engineers can design machines according to the drawings provided by customers and the corresponding production needs.

Solve all technical problems during the production, installation and use of the machine.

2. After-Sale Team

As the first point of contact for customers, KINGREAL's Sale Team will provide professional services.  KINGREAL sales will listen carefully to your needs, provide the best production solutions, and ensure  you have the best service.

----------------------------------------------------------------------------------------------Local After-Sale---------------------------------------------------------------------------------------

In order to be able to effectively solve customer needs in the first time, KINGREAL has set up localized service points in many countries and regions, such as India, Russia, Turkey, the United Arab Emirates and Qatar.

Localized service points in other countries and regions are also in progress
