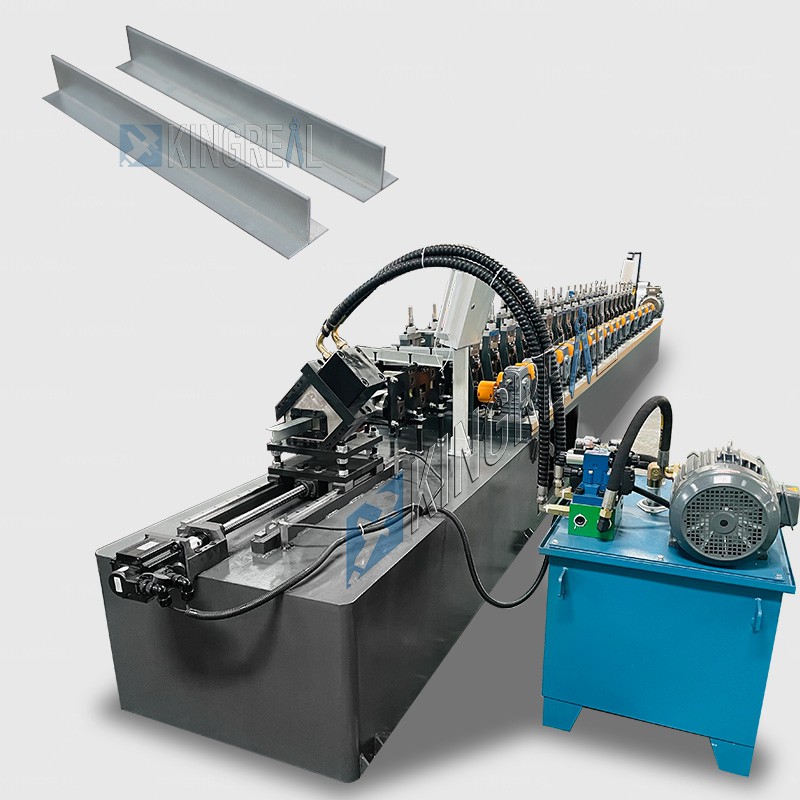

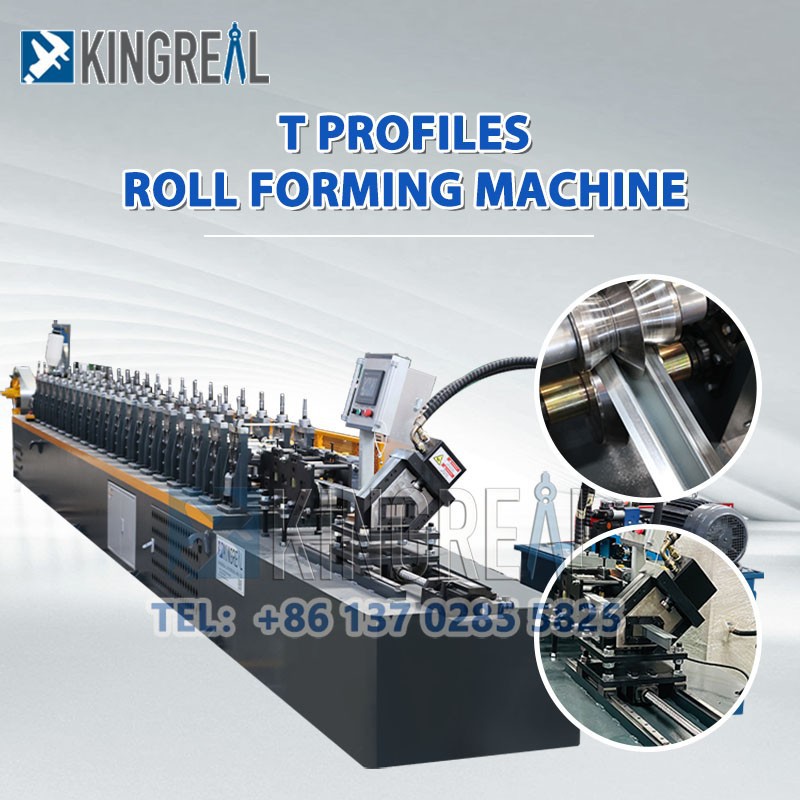

T Profile Roll Forming Machine
KINGREAL Roll Former t profile making machine is designed for the efficient production of t profiles). These t profiles are widely used in the construction industry, particularly in curtain wall systems, where they serve as supporting and connecting components, providing crucial strength and stability to buildings. The innovative design of t profiles allows them to function effectively in various architectural applications, especially in high-rise and commercial buildings, ensuring structural integrity and durability.
The t profile roll forming machine achieves highly automated production through a series of advanced technological configurations. Equipped with precision components such as a decoiler, feeding system, roll forming machine, and shearing station, the entire production process requires virtually no manual intervention. This not only reduces labor costs but also increases production efficiency. The t profile making machine can operate continuously and efficiently, significantly boosting production capacity and enabling companies to achieve large-scale production.
During the production process, the t profile roll forming machine precisely controls every step, from the uncoiling of raw materials to the forming and cutting of the profiles, and finally to the finished product. This precise control system ensures that every t profile meets international standards and possesses excellent physical properties, satisfying the requirements of various curtain wall systems. Especially at the connection points of curtain wall panels, the t profile provides the necessary contact area and expansion joints, allowing the building to flexibly adapt to temperature changes, preventing structural problems caused by contraction or expansion.
Furthermore, the t profile making machine can flexibly adjust production parameters to easily handle the production of t profiles of various sizes and shapes, according to different project requirements. Ultimately, it produces t profiles of superior quality and applicability, ensuring the safety and aesthetics of buildings, truly reflecting the advancements of modern construction technology.
Working Process of T Profile Making Machine

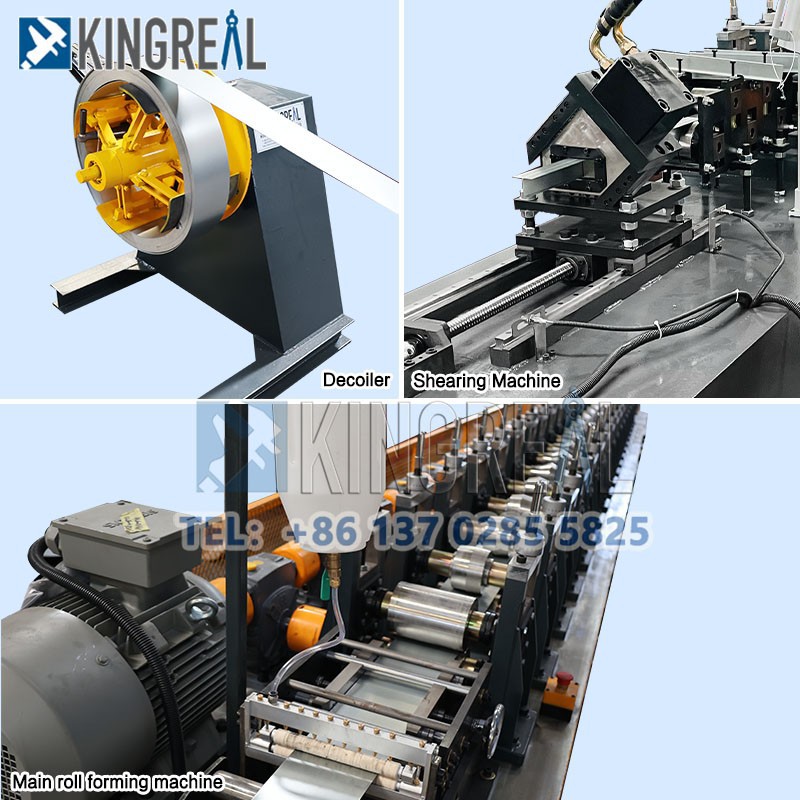

Decoiler -- Main Roll Forming Machine -- Cutting Station --Output Table
Parameter of T Profile Roll Forming Machine
|
T Profile Making Machine |
||
|
Decoiler |
Weight |
150kg |
|
Steel coil ID |
450~550mm |
|
|
Steel coil OD |
1500mm |
|
|
Roll Forming Machine |
Rollers |
14~18 Rows |
|
Material: Cr12 |
||
|
Inner diameter: 40mm; Outer diameter: 90mm |
||
|
Heat treatment hardness:HRC58-62 |
||
|
Transmission |
The main drive uses chain transmission and gear transmission |
|
|
Middle Plate |
Thickness is 25mm |
|
|
Hydraulic System |
Power |
7.5KW |
|
Cutting System |
Servo Tracking System |
2.2KW |
Features of T Profile Making Machine
Roll forming machine for t profile making machine
The roll forming machine of the t profile making machine uses rollers made of high-strength 45# forged steel, with 9 rows of rollers, ensuring that the produced t profiles have excellent rigidity and durability. The t profile roll forming machine can handle feed material thicknesses ranging from 0.3-0.8mm, meeting the production needs of t profiles with different thicknesses and strength requirements.
In addition, the system is equipped with an advanced gear transmission device and encoder, ensuring precise control during the production process, making the profile forming process more stable and efficient. The cooling system effectively reduces the temperature of the rollers during operation, thus extending the service life of the machine and reducing the risk of malfunctions.
Cutting station for t profile making machine
The cutting station uses Cr12mov material blades that have been heat-treated, ensuring the quality and precision of the cutting. Through hydraulic drive and PLC control system, the system can accurately determine the size of the cut t profiles, meaning that the cutting length and edge accuracy of the t profile are effectively guaranteed.
During the cutting process, the t profile does not undergo internal deformation, and the cutting edges remain seamless, making the finished product more aesthetically pleasing and allowing for more effective integration with other building components during installation. This advanced cutting method gives the t profile making machine high efficiency and high-quality production capabilities.
Advanced T Profile Making Machine Solutions
The t profile roll forming machine designed by KINGREAL Roll Former has unique flexibility and can manufacture three different types of profiles according to customer needs. By changing the rollers, users can easily produce t profiles, l profiles, and c profiles. This design concept greatly improves the applicability of the production equipment, avoiding the inconvenience of frequently changing t profile making machine.
For customers who do not need to frequently change the type of finished product, the t profile roll forming machine saves space and labor management requirements. A single t profile roll forming machine can meet diverse production needs.
Applications of T Profile Making Machine
KINGREAL Roll Former t profile roll forming machines have a wide range of applications in the construction industry. Especially in the housing construction and renovation industry, t profiles are often used as support materials for connecting different curtain wall panels. As an important building component, t profiles play an indispensable role in maintaining the stability, strength, and aesthetics of buildings.
The design of the t profile allows for the flexible addition of extra horizontal profiles depending on different system types and application requirements. This high degree of customizability allows the t profile making machine to perform exceptionally well in various construction projects. For example, in the facade design of commercial buildings, t profiles not only enhance aesthetics but also ensure the building's resilience against strong winds or other external pressures.

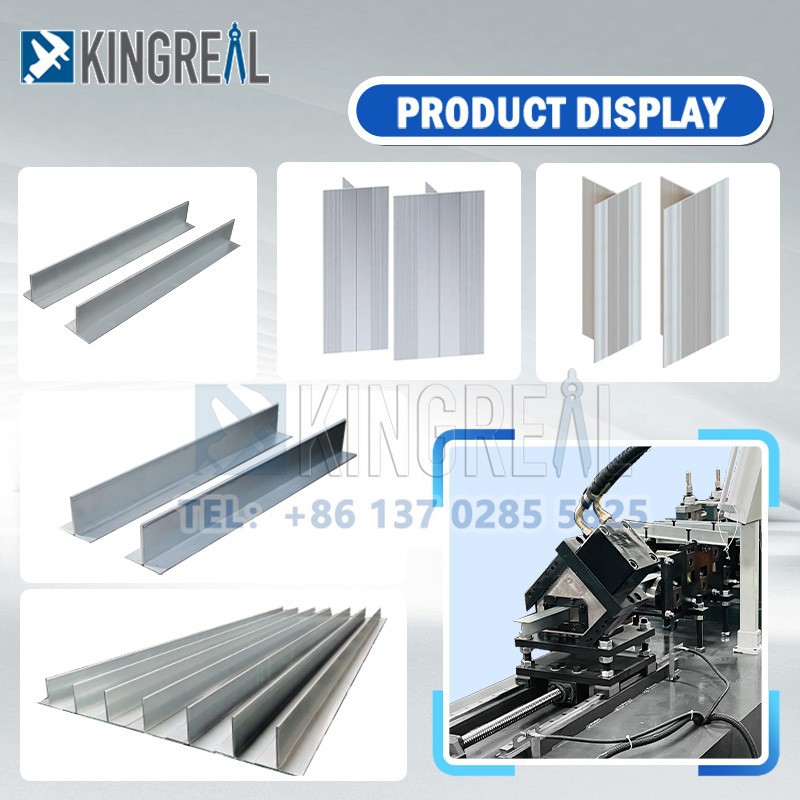

Common T Profile Sizes
80 x 60 x 2mm (3.0m Length)
110 x 60 x 2mm (3.0m Length)
120 x 60 x 2mm (3.0m Length)
110 x 40 x 2mm (3.0m Length)
80 x 60 x 3mm (3.0m Length)
