C Truss Roll Forming Machine
Video About C Truss Roll Forming Machine

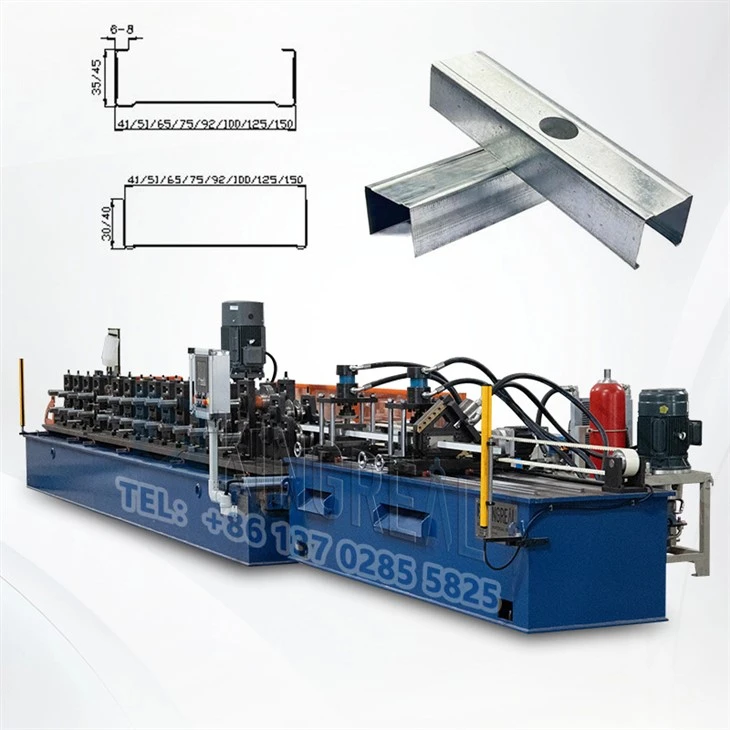

Overview Of C Truss Roll Forming Machine
The C truss machine operates by taking flat strips of metal and continuously feeding them through a series of rollers that shape the material into the desired C profile. This process not only enhances the structural integrity of the trusses but also allows for the production of custom designs tailored to specific requirements. One of the key advantages of the C truss roll forming machine is its robust design, which ensures stability and reliability during operation.

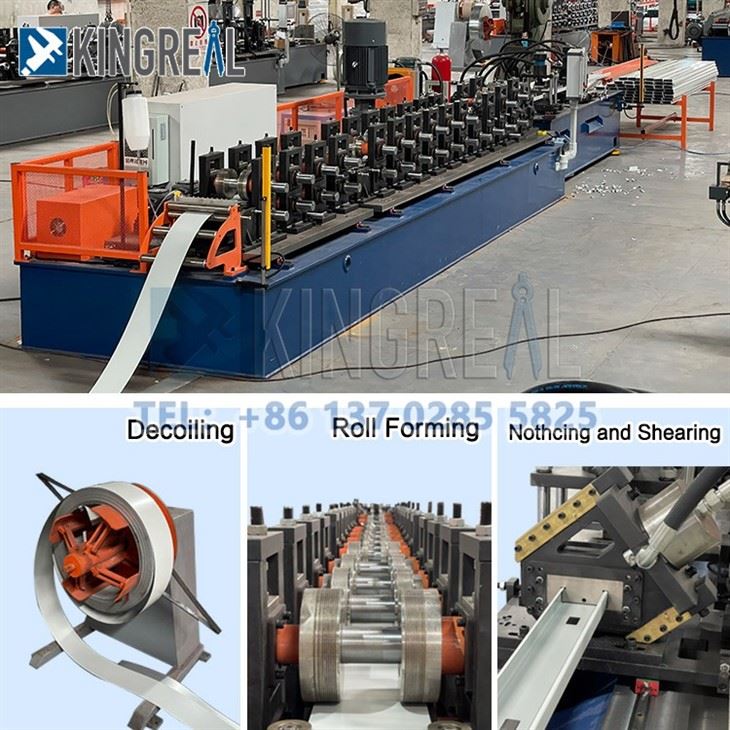

Workflow of C Truss Making Machine
The workflow of the C truss roll forming machine can be broken down into three main stages:
Decoiler for c truss roll forming machine
The decoiler is responsible for unwinding the flat metal strips and feeding them into the roll forming machine. This component ensures a smooth and continuous supply of material for the production process.
Roll Forming Machine for C truss machine
This is the core of the operation. The roll forming machine consists of multiple rollers that shape the metal into the desired C profile. The rollers are meticulously designed to ensure accuracy and consistency in the final product.
Cutting Station for c truss roll forming machine
After the C trusses are formed, they pass through the cutting station where they are cut to the required lengths. This station can be equipped with hydraulic cutting systems to ensure clean and precise cuts.
Parameters Of C Truss Roll Forming Machine
|
Total power |
11-15kw |
|
Speed |
54-60m/min |
|
Dimension (LxWxH) |
(6.5-9)x(1.2-1.4)x1.4m |
|
Weight of machine |
3.5-5tons |
|
Roller station |
14-18 |
|
Material thickness |
0.5-1.0mm(G300-G550) |
|
Material width |
100-300mm |
|
Transmission system |
Gear motor |
|
Cutting system |
Hydraulic cylinder (front cutting) |
|
Control System |
Automatic with PLC,HMI,Inverter |
Advantages of C Truss Roll Forming Machine

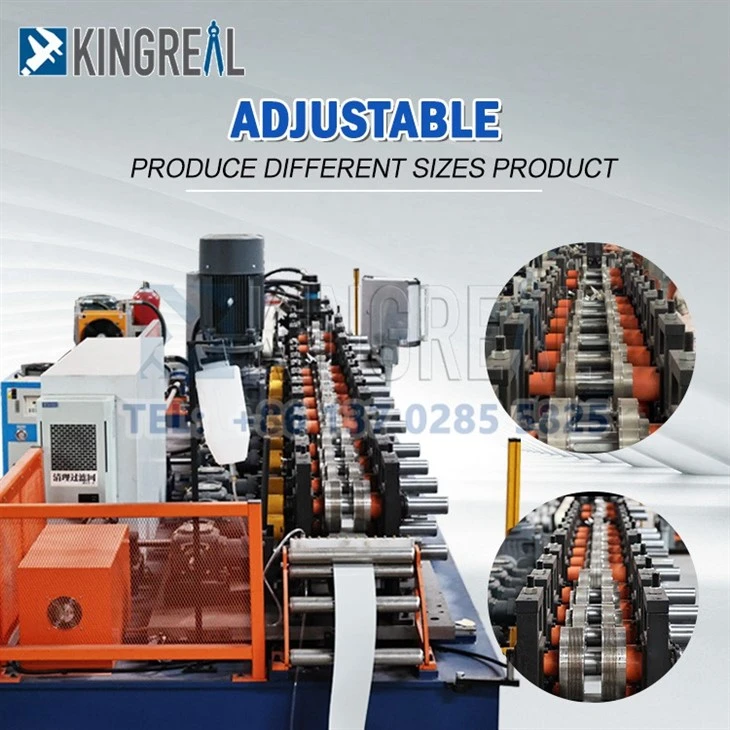

Versatile Production
One of the standout features of the C truss roll forming machine is its versatility in production capabilities. A single C truss machine is designed to produce C trusses in various sizes and configurations, allowing manufacturers to accommodate a wide range of project requirements.
This flexibility means that businesses can fulfill different orders without the need for multiple machines, significantly reducing both capital investment and operational complexity. Whether the project calls for smaller trusses for residential buildings or larger ones for commercial applications, this machine can adapt to meet those needs efficiently.
01
Robust Construction
The C truss machine is built with a robust construction that ensures longevity and reliability. It features a sturdy frame designed to withstand the rigors of continuous operation, minimizing wear and tear over time. Additionally, the rollers are crafted from high-quality alloy steel and SKD11 steel, which undergo rigorous heat treatment to achieve hardness ratings of 60-62 HRC.
This high level of hardness contributes to the machine's ability to maintain precise shaping and forming over extended periods, ensuring stable production processes and high-quality output.
02
Intelligent Control
Equipped with a state-of-the-art PLC control panel, the C truss roll forming machine offers ease of operation that is unparalleled in the industry. This intelligent control system allows operators to input various parameters effortlessly, automating the entire production process.
By reducing manual intervention, the c truss machine not only enhances operational efficiency but also minimizes the risk of human error. This advanced automation leads to significant reductions in labor costs, allowing businesses to allocate resources more effectively and focus on other critical aspects of production.
03
High-Speed Production
Another remarkable advantage of the C truss roll forming machine is its capability for high-speed production. KINGREAL Roll Former advanced models can achieve speeds of up to 60 m/min, which is particularly beneficial for manufacturers facing tight deadlines.
This high-speed operation not only increases overall output but also improves workflow efficiency, enabling companies to meet growing market demands without compromising quality. With such rapid production capabilities, businesses can respond swiftly to customer needs, thereby enhancing their competitive edge in the industry.
04
Applications of C Truss Machine
The C truss roll forming machine plays a crucial role in various sectors, particularly in construction. The C trusses produced by this c truss machine have numerous applications:
★Roofing: C trusses are commonly used in roofing systems, providing support for roof panels and evenly distributing the weight of the roof across the entire structure. Their strength and lightweight nature make them ideal for this application.
★Wall Frames: In wall construction, C trusses are utilized to create frameworks for both exterior and interior walls. They provide essential support and can also be employed in constructing curved walls and partitions.
★Flooring Systems: C trusses are ideal for flooring systems, supporting floor panels and providing a stable platform for additional building components. This application is critical in multi-story buildings.
★Bridges: C trusses can also be used in bridge construction, offering structural support for roadways and ensuring safety and durability in transportation infrastructure.
★Industrial Buildings: In industrial settings, C trusses are frequently employed to support heavy machinery and equipment. Their robust design ensures they can withstand significant loads, making them suitable for manufacturing facilities.
Global C Truss Making Machine Projects
KINGREAL Roll Former has successfully served clients across numerous regions, including Saudi Arabia, Kazakhstan, Aruba, and Mexico. By deeply integrating clients' specific production requirements with local industry standards and regulatory policies, KINGREAL Roll Former delivers comprehensive, customized equipment solutions.
Thanks to the stable and reliable quality of our c truss making machine, many clients choose to make repeat purchases and upgrade their equipment, fostering long-term, in-depth partnerships.
Moving forward, KINGREAL Roll Former will continue to expand its global sales footprint, supplying high-quality c truss making machine to even more countries.
After-Sales Service
KINGREAL Roll Former has established an integrated online and offline after-sales service system covering the entire lifecycle-from equipment installation and commissioning to operational training, troubleshooting, and the supply of genuine spare parts.
Following delivery, the KINGREAL Roll Former after-sales team continuously monitors c truss making machine performance and responds rapidly to any unexpected issues that arise during production. Leveraging extensive project experience and professional technical expertise, we efficiently diagnose and effectively resolve c truss making machine malfunctions.
C Truss Making Machine Acceptance Process
The formal acceptance phase begins once equipment manufacturing is complete.
KINGREAL Roll Former welcomes clients to visit the factory in person to inspect the c truss making machine and directly test its operational performance.
For clients unable to visit, acceptance can be conducted via a live video link; the KINGREAL Roll Former team performs the inspection on the client's behalf and provides comprehensive test reports, actual photographs, and other relevant documentation.
Acceptance is finalized only after the client confirms that the c truss making machine fully meets production requirements, at which point preparations for shipment begin.
If a client request configuration optimizations or if the c truss making machine fails to meet expected standards, KINGREAL Roll Former will promptly carry out the necessary adjustments and improvements.
About KINGREAL ROLL FORMER
KINGREAL ROLL FORMER is one of the professional roll forming machine manufacturer, c truss making machine is our features product. C truss roll forming machine is an invaluable asset in the construction and manufacturing industries. Its ability to produce high-quality C trusses with various applications makes it a preferred choice for many businesses. With features like robust construction, user-friendly operation, and high-speed production capabilities, the C truss machine stands out as a reliable solution for manufacturers looking to enhance their production efficiency.
At KINGREAL Roll Former, we are committed to providing top-quality C truss roll forming machines that meet the diverse needs of our clients. KINGREAL Roll Former C truss machines not only ensure high performance but also support the creation of innovative and sustainable structures. As the demand for efficient and versatile construction solutions grows, the C truss roll forming machine will continue to play a pivotal role in shaping the future of the industry. If you are looking for a reliable partner for your manufacturing needs, consider investing in a C truss roll forming machine from KINGREAL Roll Former to elevate your production capabilities.
