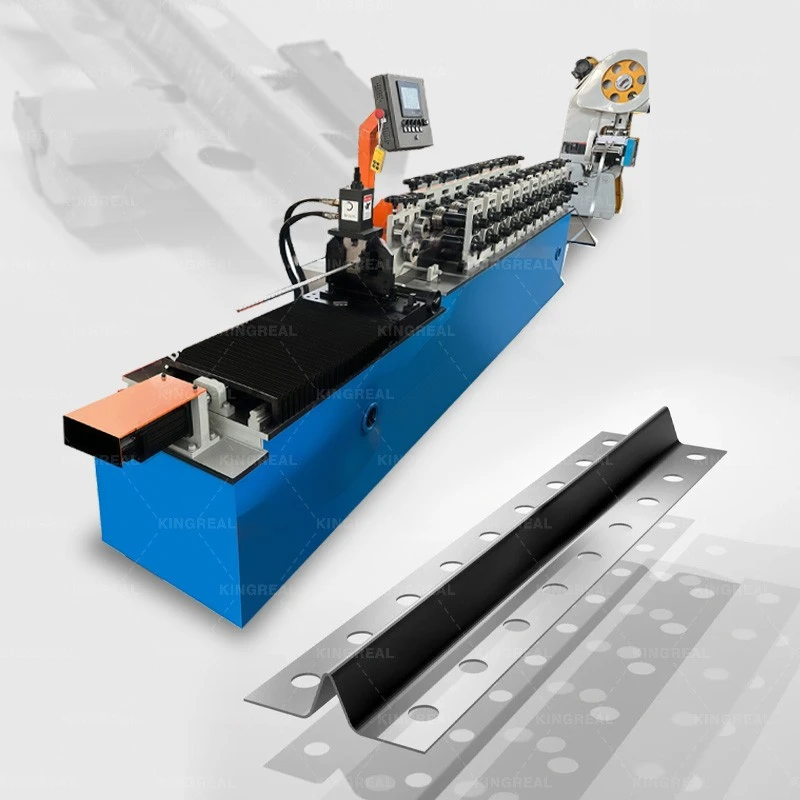

Plaster Beacon Making Machine

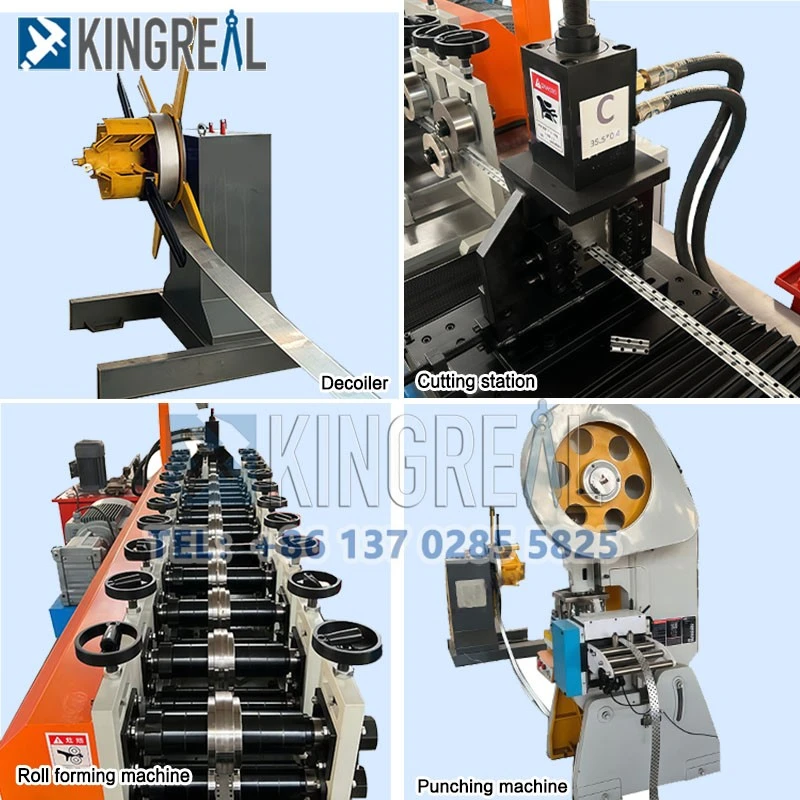

-Decoiler: The decoiler adopts advanced hydraulic automatic expansion technology, aiming to achieve stable continuous feeding, which not only improves production efficiency but also reduces the probability of failure during production. Through hydraulic switching, the decoiler can continuously supply raw materials to subsequent processing stages. Operation is very simple; the operator only needs to perform simple adjustments to start the automatic operation mode.

-Punching Machine: The servo-driven CNC feeder of the punching machine ensures precise positioning. Whether in hole shape or diameter design, the punching machine provides accurate processing results, ensuring each hole is uniform and consistent, with smooth, burr-free edges, playing a crucial role in subsequent forming. This punching machine also employs a high-linearity servo system that monitors the material position in real time during production, ensuring each punch is performed in the optimal position.

-Roll Forming Machine: This roll forming machine uses specially processed rollers with a very smooth surface and hard material, effectively preventing rust and leaving no scratches on the sheet material surface during processing. During the forming process, it achieves high-speed processing, effectively reducing production cycles and improving overall production efficiency. Simultaneously, the intelligent control system equipped in the roll forming machine monitors the processing status and adjusts production parameters in a timely manner to ensure optimal forming results.

-Cutting Station

The cutting station employs hydraulic servo tracking cutting technology, equipped with high-standard Cr12MoV blades. These blades possess excellent wear resistance and cutting precision, maintaining sharpness even during high-speed cutting to ensure burr-free and deformation-free finished products with every cut. Through its efficient shearing system, the plaster beacon roll forming machine achieves perfect synchronization between cutting and roll forming speeds. Furthermore, the plaster beacon roll forming machine produces finished products with a length tolerance of ±0.5 mm, effectively controlling the precision of each plaster beacon.

1)High efficiency plaster beacon making machine

KINGREAL Roll Former plaster beacon roll forming machine integrates multiple precision components, such as a decoiler, punching machine, roll forming machine, and cutting station, each meticulously designed. The decoiler ensures a stable supply of raw materials, while the punching machine and roll forming machines complete key processes quickly and efficiently. Finally, the cutting station ensures the length and quality of each finished product. This high-efficiency production also means that more orders can be completed in a shorter time, thereby enhancing the company's market competitiveness.

2)Fully automated plaster beacon making machine

Operators only need to pre-set the production parameters, and the plaster beacon roll forming machine will operate automatically. This not only improves production efficiency but also reduces errors that may result from manual operation. Through automated systems, plaster beacon roll forming machines can precisely execute each step of the process, ensuring the accuracy of the final product in terms of size and shape.

3)Flexible production plaster beacon making machine

The plaster beacon roll forming machines can freely adjust profile dimensions, lengths, and production speeds to adapt to different types of production tasks. Whether for large-scale industrial production or small-batch customized orders, KINGREAL Roll Former can provide suitable plaster beacon making machine manufacturing solutions.

4)High quality finished products

KINGREAL Roll Former plaster beacon roll forming machines produce plaster beacons with extremely high precision, ensuring uniform dimensions and straightness for each product. KINGREAL Roll Former uses advanced technology and manufacturing processes to ensure the precision of each component, minimizing errors during production.

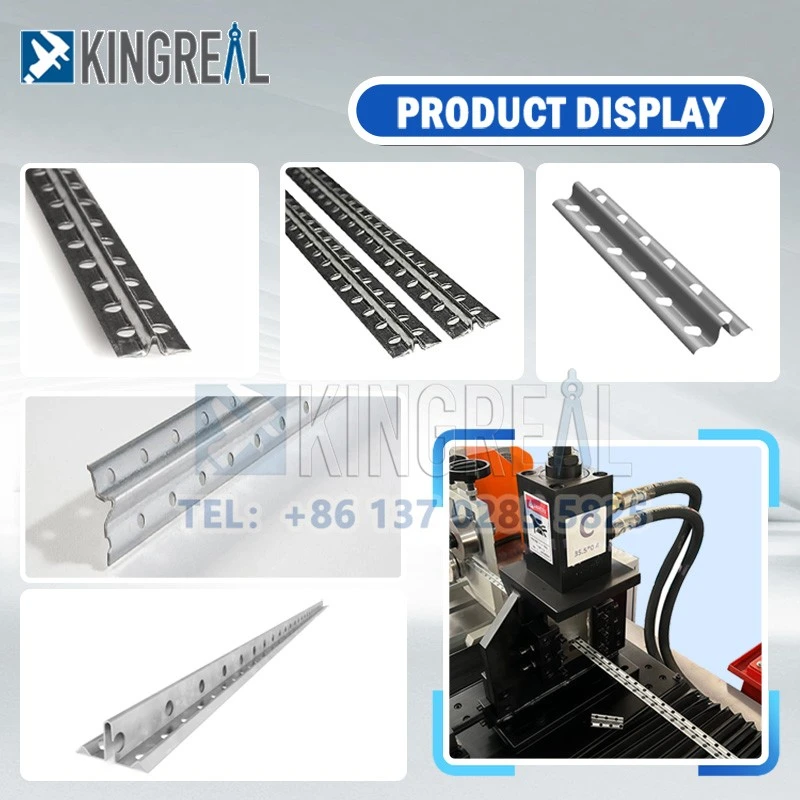

KINGREAL Roll Former plaster beacon roll forming machines produce plaster beacons with a standard length of 3m and thicknesses of 6 mm and 10 mm. 6 mm plaster beacons are typically used for thinner plaster layers, while 10 mm are suitable for thicker plaster layers. The main function of these plaster beacons is to ensure a completely smooth surface during the plastering process, thereby improving the overall quality of the project.

Specifications & Dimensions:

Length: 3.0m is the most common size, with a 2.4m option also available.

Thickness (Height): 6 mm (for thin coats) or 10 mm (for thick coats).

Material: Typically galvanized steel.

Spacing: Approximately 30 cm spacing during installation to guide the use of leveling tools.

Function: These plaster beacons help ensure accuracy, straightness, and levelness of the plaster during application.
