Gypsum Ceiling Profile Making Machine
video
Gypsum Ceiling Profile Making Machine

Gypsum Ceiling Profile Making Machine

KINGREAL Roll Former gypsum ceiling profile making machines typically use GI steel and PPGI as raw materials through processes such as uncoiling, forming, shearing, and discharging. These profiles are primarily used in suspended ceiling systems, providing support and stability, ensuring the safety and aesthetics of buildings.
Send Inquiry
Product Details ofGypsum Ceiling Profile Making Machine



Introduction to Gypsum Ceiling Profile Making Machine





Gypsum Ceiling Profile Making Machine

KINGREAL Roll Former gypsum ceiling profile making machines typically use GI steel and PPGI as raw materials through processes such as uncoiling, forming, shearing, and discharging.



These profiles are primarily used in suspended ceiling systems, providing support and stability, ensuring the safety and aesthetics of buildings.This gypsum ceiling profile machine features high production speeds and flexible adjustment of production parameters based on actual production conditions.



Customized gypsum ceiling profile making machine configurations can be added to meet specific production needs, such as engraving rollers, inkjet devices, and auto packaging unit, enabling personalized production. If you have special production requirements, please feel free to provide KINGREAL Roll Former with your drawings

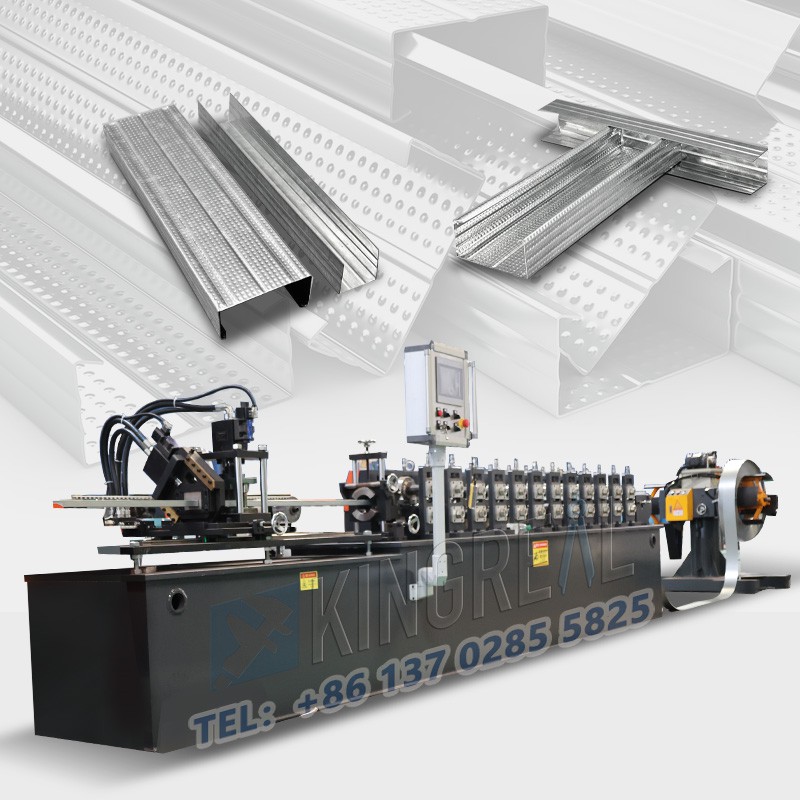

1-Gypsum Ceiling Profile Making Machine




Working Process of Gypsum Ceiling Profile Making Machine





Gypsum Ceiling Channel Machine

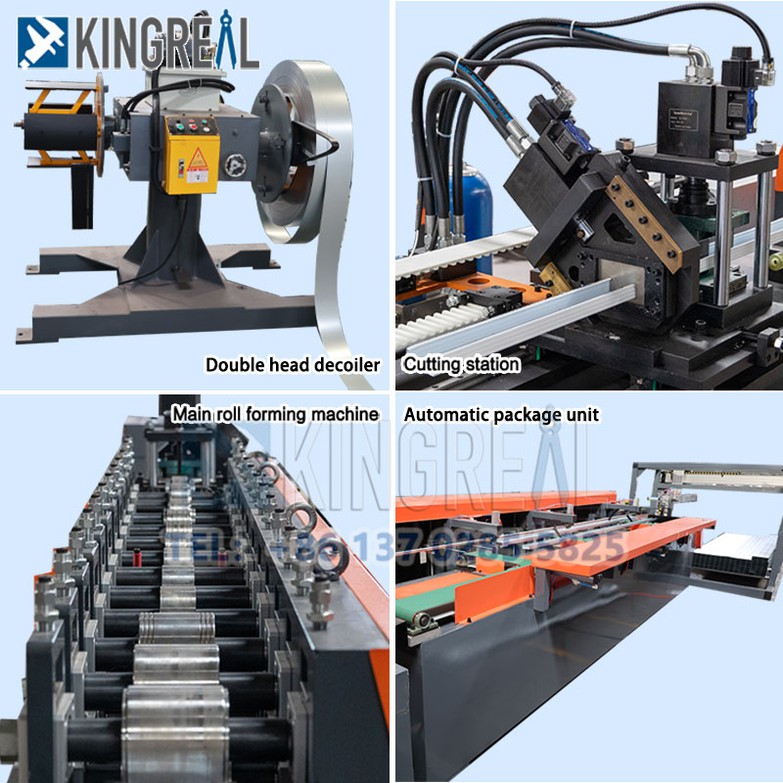

Double-head Decoiler--Roll Forming Machine--Punching and Shearing Station -- Output Table--Auto Packaging Unit (Optional)



Parameters of Gypsum Ceiling Profile Making Machine





Material

GI Steel, PPGI

Thickness

0.35-0.6mm

Coil outer diameter

≤Φ1200

Coil inner diameter

Φ480-Φ520mm

Production speed

CD without punching 90-100m/min

UD with punching 50-60m/min

Electricity connection

380V/50Hz/3Phases

Power consumption

~25KW per machine

Operators

1 skilled worker, 2 normal workers

Product length

Popular length=3000mm, adjustable by HMI

Length tolerance

±1.0mm when L=3m

(There is a little deformation due to the material stress)

(When L≥3m, tolerance +1.0mm as length+1m)

Straightness tolerance

Bending is less than 1%/m

Surface quality

No obvious shrink, irregularity, scratch, spur etc.

Remark

Tolerance related to material quality



Advantages of Gypsum Ceiling Profile Machine



High speed gypsum ceiling profile machine

The gypsum ceiling profile making machine can achieve a maximum production speed of 100 m/min.



The gypsum ceiling profile machine's operating speed can be freely adjusted via the PLC control panel, allowing customers to flexibly set it according to actual production needs.



This design not only enhances the gypsum ceiling profile making machine's flexibility but also enables it to adapt to diverse production requirements.

01

High precision gypsum ceiling profile machine

KINGREAL Roll Former gypsum ceiling profile making machine is equipped with high-standard rollers made of CR12MOV die steel. After heat treatment, its hardness reaches HRC 58°-60°. This high-hardness material effectively ensures wear resistance and stability during long-term use.



In addition, the gypsum ceiling profile machine's cutting station is also made of high-quality CR12MOV material. After quenching, the blade hardness reaches HRC 60°. This high-precision design enables the machine to accurately form and cut coils, ensuring that each finished profile meets stringent standards for size and shape. Precision errors are minimal, typically within acceptable limits, minimizing losses due to material variations and significantly improving production reliability and consistency.

02

Efficient gypsum ceiling profile making machine

KINGREAL Roll Former Gypsum ceiling profile making machine further enhances production efficiency with the optional automatic strapping feature.



Traditional manual strapping is time-consuming and prone to human error, which can compromise product quality. The automatic strapping feature automatically straps, labels, and stacks the finished profiles after the gypsum ceiling profile making machine completes production. This reduces labor and significantly lowers production costs.

03

Smooth operation for gypsum ceiling profile machine

KINGREAL Roll Former gypsum ceiling profile making machine is equipped with an oil cooling station and electrical cabinet air conditioning specifically for cooling the hydraulic system and reducing electrical cabinet temperatures.



This design effectively prevents performance degradation caused by elevated temperatures during high-speed production or extended periods of operation. The introduction of an oil cooling station significantly improves the gypsum ceiling profile machine's stability and durability under high loads, providing customers with greater peace of mind during production. Furthermore, the optimized temperature control design extends the gypsum ceiling profile making machine's service life and reduces maintenance costs.

04

2-Gypsum Ceiling Channel Machine
6-Gypsum Ceiling Profile Machine

Features of Gypsum Ceiling Profile Machine




Roll forming machine for gypsum ceiling profile making machine

The gypsum ceiling profile making machine's roll forming machine frame is constructed from welded, one-piece steel plates. This structure ensures smooth operation during production, maintaining excellent stability even at high speeds.



This design also significantly increases the gypsum ceiling profile machine's service life and reduces the risk of failure due to structural instability.

01

Flying cutting station for gypsum ceiling profile machine

To further improve production efficiency, the gypsum ceiling profile making machine is equipped with a flying cutting station. This station utilizes servo-driven shearing technology, enabling continuous shearing.



This design not only increases production speed but also ensures cutting accuracy, reducing material waste and enabling customers to obtain more finished products in a shorter time.

02

Flying cutting station for gypsum ceiling profile machine

To further improve production efficiency, the gypsum ceiling profile making machine is equipped with a flying cutting station. This station utilizes servo-driven shearing technology, enabling continuous shearing.



This design not only increases production speed but also ensures cutting accuracy, reducing material waste and enabling customers to obtain more finished products in a shorter time.

03

packaging unit for gypsum ceiling profile machine (Optional)

KINGREAL Roll Former lets you add either a manual or automatic packaging machine to your Gypsum Ceiling Channel Machine.

The automatic model integrates with the Gypsum Ceiling Channel Machine; formed profiles feed straight to its station for bundling. For the manual unit, an operator places profiles on the packing platform to strap them.



Both keep production running smoothly, and we select the setup per your actual production needs.

04

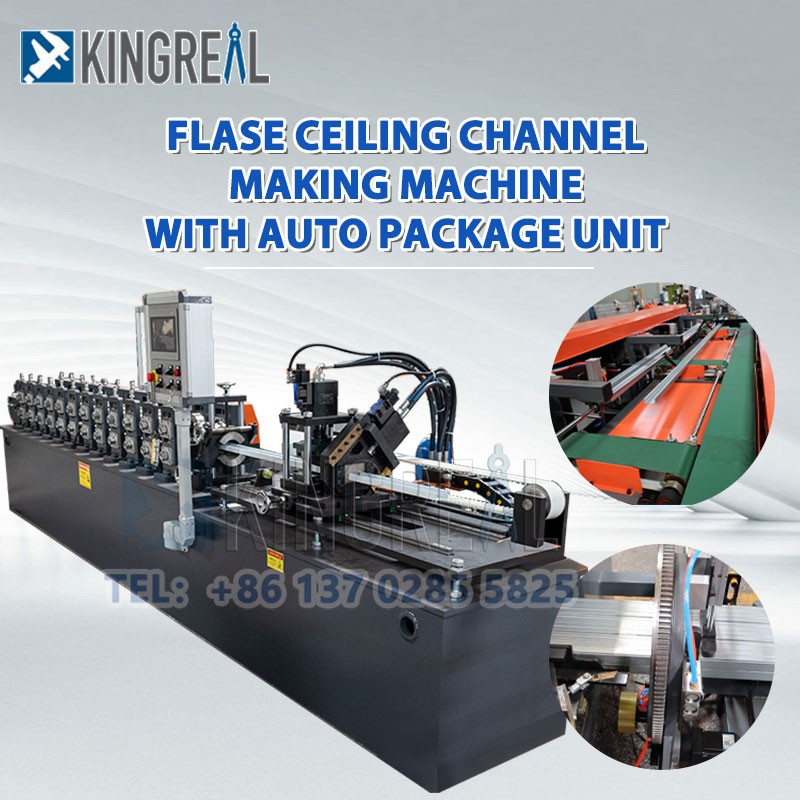

Packaging Methods: Automatic & Manual





Gypsum Ceiling Channel Machine

Automatic packaging unit

An automatic packaging machine can be integrated directly with a Gypsum Ceiling Channel Machine, allowing the entire process to operate in sync without the need for intermediate handling. This significantly boosts production efficiency during the strapping stage.


This configuration is highly suited for high-capacity operations and can be seamlessly incorporated into automated workflows. Once profiles are formed, they are automatically conveyed to the packaging unit, minimizing manual handling and labor-intensive tasks. This not only reduces labor costs but also eliminates human error, ensuring consistent tension and precise positioning for every bundle.


For businesses with high order volumes and fast delivery requirements-particularly those looking to transition toward lean-staffed or fully unmanned workshop environments-an automatic packaging machine bridges the gap between profile forming and packaging. It ensures a smoother, more continuous production flow, resulting in a steady output of finished products.

Manual packaging unit

Manual packaging machines are designed for clients with limited budgets and moderate production volumes. They offer an excellent balance of cost and performance, helping factories improve the efficiency of their existing strapping operations.



Such clients typically handle smaller production batches; while they may not require a fully automated system, they still seek to move beyond purely manual strapping to ensure a certain level of quality in the finished bundles.


Operators place the profiles onto the strapping platform, where the equipment ensures a secure, neat, and uniform bundle. Compared to traditional manual methods, this approach provides greater consistency and reduces issues such as loose or falling-apart bundles. The equipment has a small footprint, is easy to operate, and requires minimal maintenance. It also offers flexible adjustments for different product specifications, making it well-suited for production environments that involve frequent switches between various product types and smaller batch sizes.


These machines meet the need for basic automation upgrades within a constrained budget, offering a practical and economical solution. They are ideal for small-to-medium-scale production lines, enabling businesses to enhance their strapping processes with a relatively low capital investment.

Gypsum Ceiling Channel Machine






Applications of Gypsum Ceiling Profile Making Machine

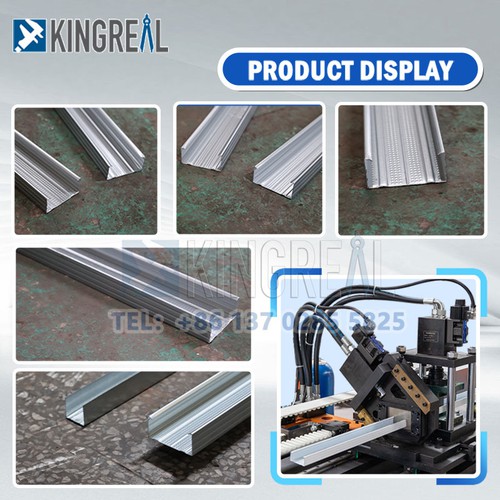

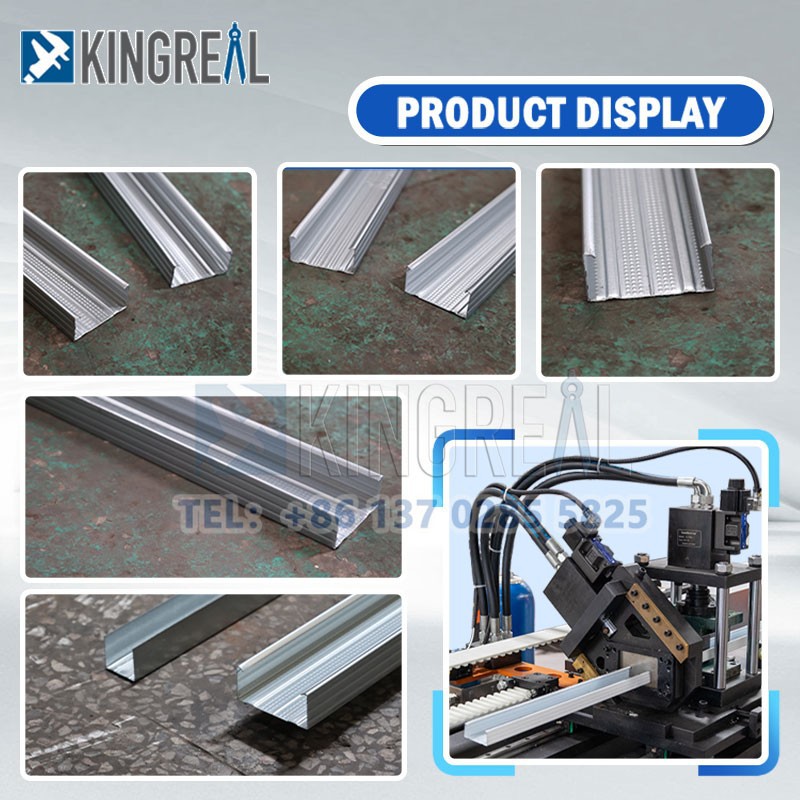

The CD and UD profiles produced by the KINGREAL Roll Former gypsum ceiling profile machine, with common specifications of 60x27mm and 28x27mm, are widely used in residential, commercial, and industrial construction projects, particularly in areas requiring gypsum partitions or suspended ceilings.

These profiles are used in the metal frame mounting system for suspended gypsum ceilings, an essential component in modern architecture.

4-Gypsum Ceiling Channel Machine


Why Choose KINGREAL Roll Former Gypsum Ceiling Profile Machine?



"KINGREAL Roll Former not only provides high-quality gypsum ceiling profile making machines, but also strives to provide customers with one-stop service. KINGREAL Roll Former service process includes"

Pre-sales Service

Accompany customers on a factory tour to demonstrate the gypsum ceiling profile machine in action.

Personalized Solution Discussion:

Through online or in-person meetings, KINGREAL Roll Former understand customers' specific needs and provide a customized gypsum ceiling profile making machine manufacturing solution.

Strict Manufacturing Process

Gypsum ceiling profile making machines are manufactured by a team with over 15 years of experience, ensuring that every machine meets quality standards.

Testing and Commissioning

Upon completion, the gypsum ceiling profile making machine undergoes rigorous in-house testing to ensure it meets customer production requirements.

Delivery and Installation

Before shipping, KINGREAL Roll Former will carefully package the gypsum ceiling profile making machine. Upon arrival at the customer's facility, a team of professional engineers will provide installation and operational training.

Ongoing Support

KINGREAL Roll Former also provides troubleshooting and repair services to ensure a worry-free experience for customers.
