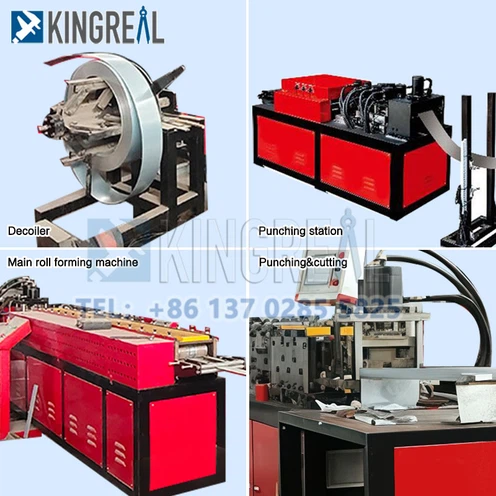

"The fire damper frame machine is a device specifically used for large-scale and batch production of fire damper frames. Fire dampers play a crucial role in HVAC systems. They can prevent the spread of fire in ventilation ducts, thereby ensuring the safety of buildings.
Through the fire smoke damper machine, all production parameters can be freely adjusted via the touch large screen. Therefore, this fire damper frame machine is suitable for the production of various types of fire dampers.
Generally, fire smoke damper machines are used in conjunction with fire damper blade making machines, and the products produced can be assembled into a complete fire damper."
Importance of Fire Dampers
A fire damper is a fire safety device, usually installed in HVAC ducts. Its main function is to prevent flames and smoke from spreading to other areas of the building through the ventilation system when a fire occurs.
Fire dampers are usually triggered by components sensitive to high temperatures. When the temperature reaches a certain threshold, the valve will automatically close, thereby preventing the spread of fire.
Parameter of Fire Damper Frame Machine
|
NO. |
Item |
Unit |
Parameter |
Remark |
|
|
1 |
Material |
Type |
galvanized sheet,mild steel,etc, |
||
|
Strength of material sheet |
Map |
≥350 |
|||
|
Thickness of material sheet |
mm |
0.8~1.5 |
customizable |
||
|
2 |
Profile sizes |
mm |
According to customer |
customizable |
|
|
3 |
Production speed |
m/min |
15 |
||
|
4 |
Material of roller |
GCr15 quenching treatment |
|||
|
5 |
Drive type |
Gearbox driven |
|||
|
6 |
Motor Power |
kw |
About 34 |
||
|
7 |
Electric control system |
PLC variable frequency control |
|||
Advantages of Fire Smoke Damper Machine
-High-efficiency fire damper frame machines: Fully automatic fire smoke damper machines can achieve continuous production, significantly enhancing production efficiency. The linear speed of some models of fire damper frame machines can reach up to 15 m/min.
-High-precision fire smoke damper machines: The fire damper frame machines adopt precise molds and control systems to ensure the accuracy of product dimensions and reduce errors. The hole spacing error can be controlled within ±0.3mm, the length error within ±0.3mm, and the diagonal error within ±1mm.
-Material-saving fire smoke damper making machines: Adopting a process design of cutting first and then forming, they minimize material waste.
-Highly flexible fire damper frame making machines: Through the touch screen control system, products of different specifications can be quickly switched to meet diverse production demands. Continuous orders of multiple specifications can be input simultaneously to achieve continuous production.
-Stably operating fire smoke damper machines: The electrical components of the machines adopt top international and domestic brands. The main mechanical parts have undergone meticulous design and fatigue tests to ensure stable production of the production line under high-intensity and high-load working conditions.
-Easy-to-operate fire damper frame making machine: Fully automated, assembly line production, computer-controlled, easy to learn and operate, saving labor costs. Only a small number of workers are needed to complete the operation, and 300 to 400 frames can be produced per 8-hour shift.
-Good forming effect fire smoke damper making machine: The machine adopts specially designed rollers to ensure that the zinc layer of the galvanized sheet is less worn after forming, guaranteeing product quality. The specially designed bending tool and the small edge at the pre-stamped mark ensure a small bending Angle through two processes.
-Multi-functional fire damper frame making machine: Some fire smoke damper making machines can produce various types of frames, such as L-shaped frames, single chip frames, hollow square frames, etc.
Fire Damper Blade Making Machine
In addition to the fire smoke damper machine, the production of fire dampers also requires fire damper blade making machine. The fire damper blade making machine can process blades of various length specifications for fire dampers, control valves, etc., and can also design blade shapes (square/round ribs) according to customer requirements.
●Technical features of fire damper blade making machine
-Multi-functional fire damper blade making machine: The same machine can produce blades of various widths, and replacement is quick.
-Automated control fire damper blade making machine: The entire production line is fully controlled by a computer PLC and operated through a touch screen. Any size can be set according to operational requirements.
-High-precision fire damper blade making machine: Maximum processing speed 15m /min, length error ± 0.5mm, diagonal error ± 0.8mm.
-Customized fire damper blade making machine: The blade size can be customized according to customer requirements. Generally, the fire damper blade making machine can produce dimensions within the standard width range of 110-188mm.
Application of Fire Damper Frame Making Machine
Fire dampers produced by fire smoke damper machines are widely used in the HVAC systems of various buildings. They are installed where pipes pass through firewalls and floors to prevent the spread of fire within the ventilation system.
When the temperature rises, the fire damper will automatically close to prevent smoke and flames from spreading through the pipes, thereby protecting the building structure and the safety of the occupants.
