Container Side Panels Making Machine



KINGREAL Roll Former container side panels machine is specially designed for the production of container side panels.

This shipping container making machine can produce container side panels of different sizes using a variety of materials such as cold plate, hot plate, galvanized plate and weathering steel to meet the needs of various containers.



Whether it is used for standard shipping containers or container house siding, KINGREAL Roll Former container side panels machines can provide strength and stability to protect the internal goods from the external environment. KINGREAL Roll Former knows that each customer's needs are unique, so we provide professional one-to-one service. According to the customer's drawings, tolerances and budget, KINGREAL Roll Former can develop different shipping container making machine manufacturing solutions to ensure that the various needs of customers are met.



Whether it is the choice of production line or the specific configuration of the container side panels machine, KINGREAL Roll Former will wholeheartedly provide you with the best solution.In addition, the production speed of KINGREAL Roll Former shipping container making machine is as high as 20 m/min, allowing customers to complete large-scale production in a short time.



Decoiler--Roll Forming Machine--Cutting Station--Discharging Platform

●Material

Applicable materials: galvanized sheet, cold-rolled sheet

Material thickness: 1.5-2.0mm

Yield strength: Q235-355 MPa

●Roll Forming Machine

Roller set: 20 stations

Material: GCR15, heat treated HRC58-62°

Roller shaft diameter: Φ110mm

Shaft material: 40CR, quenched and tempered

Motor: 15KW × 2 sets

Transmission mode: chain or gear box

Frame body: 500 H-beam

●Cutting station

Cutting method: hydraulic cutting

Cutting mold: CR12MOV, quenched

Servo motor: 5.5KW

1. Durable shipping container making machine

The forming rollers of KINGREAL Roll Former container side panels machine are made of high-quality GCR15 bearing steel.

This material is finely processed and quenched to ensure its reliability and wear resistance under high-intensity use conditions.

GCR15 steel has extremely high hardness and impact resistance, which can effectively resist wear during long-term production and extend the service life of the shipping container making machine.

In addition, KINGREAL Roll Former container side panels machine adopts a full-roll design, which significantly improves the stability of the forming process. The full-roll design can effectively disperse the stress of the material during the forming process, so that each forming link can maintain uniform pressure, thereby ensuring the high precision of the finished product.

2. Two transmission methods for container side panels machine

KINGREAL Roll Former shipping container making machine provides two transmission methods: gearbox and chain, which fully meet the needs of different customers.

Among them, the gearbox transmission has the advantages of high efficiency and precise transmission ratio, and can maintain stable power output at high speed. The design of the container side panels machine equipped with a gearbox transmission minimizes the energy loss generated by the machine during operation, ensuring the efficient operation of the shipping container making machine.

Compared with other transmission methods on the market, the gearbox has a longer service life and lower maintenance frequency, which greatly reduces the long-term operating costs of customers.

In addition, the chain drive also provides flexibility and is suitable for different production environments and needs.

3. Stacking table for container side panels machine

KINGREAL Roll Former shipping container making machine can be equipped with automatic stacking, which effectively improves production efficiency and saves labor costs. This design can automatically stack the formed side panels, reducing the need for manual handling and reducing the consumption of human resources.

4. Flexible feeding width for container side panels machine

Users can flexibly adjust different feeding widths by adjusting the screw and nut on the feeding platform.

This design not only improves the flexibility of the shipping container making machine, but also makes the procurement of raw materials more convenient. Customers can choose materials of different specifications according to actual needs, avoiding waste caused by inappropriate material specifications.

5. Powerful cutting ability for container side panels machine

The cutting station in the KINGREAL Roll Former container side panels machine adopts a sturdy knife frame design, which ensures good cutting effect during high-intensity use.

The knife holder is precision-machined and can provide consistent cutting accuracy under different materials and thicknesses to ensure the quality of each finished product.

The efficient cutting method enables each side panel of the finished product to maintain consistent quality standards, greatly reducing the defective rate caused by uneven cutting.

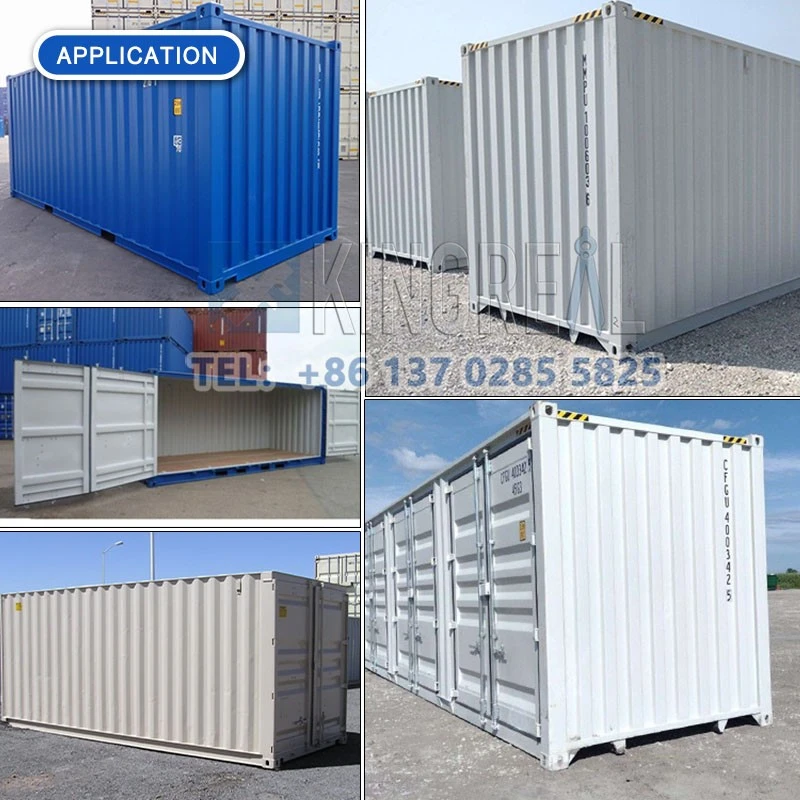

KINGREAL Roll Former container side panels machine has a wide range of applications, mainly including: Container side,Container house ,Container car panel,Machinery equipment box...
