Rectangular Ducts Bending Forming Machine
Machine Description

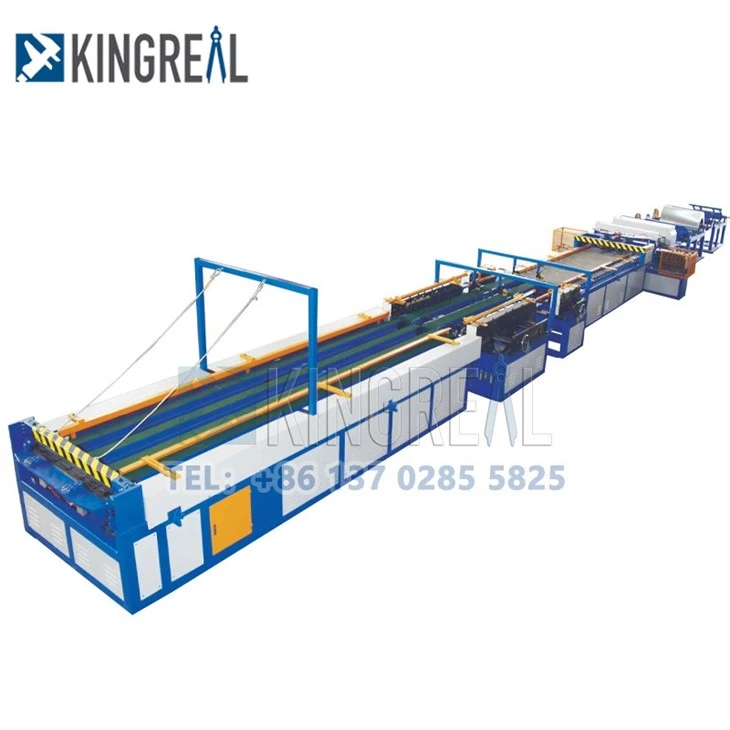

KINGREAL Rectangular Ducts Production Line is a system of equipment used to produce metal square rectangular ducts. This type of production line usually includes sheet metal uncoiling, leveling and crimping, shearing, flange forming machines and bending.
These equipment are able to realize continuous, efficient and high precision production process through cooperative operation and automation control.
So as to produce metal square duct products of various specifications and sizes. The most common thickness of square duct is between 0.6MM-1.6MM.
Main Components Of Duct Machine
|
●an electric feeding frame ●leveling and beading ●punching middle strengthening holes (optional) ●punching square mouths ● punching sharp corners ● punching flange holes (optional) Equipped),shearing ● lifting type reeling machine (simultaneously cutting, joint angle bite forming, right angle bone bite forming) ●two-machine linkage TDF common plate flange forming ●angle steel flange small side forming ●full C-bone method Blue forming or C/S bone flange forming (optional) ●positioning transfer platform (optional) ● TDF hydraulic folding machine |
 |
Technical Specification
|
Model Number |
Thickness |
Weight |
Weight(kg) |
M W |
Reference(mm) |
|
HCH-V-1300 |
0.6-1.2mm |
1250mm |
6000kg*4 |
15000kg |
25000*3500*1300 |
|
HCH-V-1600 |
1550mm |
17000kg |
25000*3800*1300 |
||
|
HCH-V-1300B |
0.6-1.5mm |
1250mm |
16000kg |
25000*3500*1300 |
|
|
HCH-V-1600B |
1550mm |
18000kg |
25000*3800*1300 |
(Different production requirements and different production design correspond to different technical parameters, the above table is for reference only)
Technical Features
|
1. The feeding mechanism adopts hydraulic servo system, and the manipulator helps to ensure the stability and speed of the machine, as well as the accuracy of the positioning system.
2. It takes only 50-55 seconds to make an L-shaped work-piece with high efficiency. 3. Daily handling capacity can reach 800-2500 square meters.
4. All rollers are made of bearing steel, extending the service life by more than 5 times.
5. CNC system material saving mode, less than 20mm waste per roll.
6. With production memory function, you can track and check the production orders. |
|
Application
Rectangular duct production line is usually used in air conditioning, ventilation, HVAC and other fields, which can improve the production efficiency and product quality, and also can meet the customer's requirements for special sizes and shapes.
