Metal Downspout Forming Machine
Video About Downpipe Roll Forming Machine→

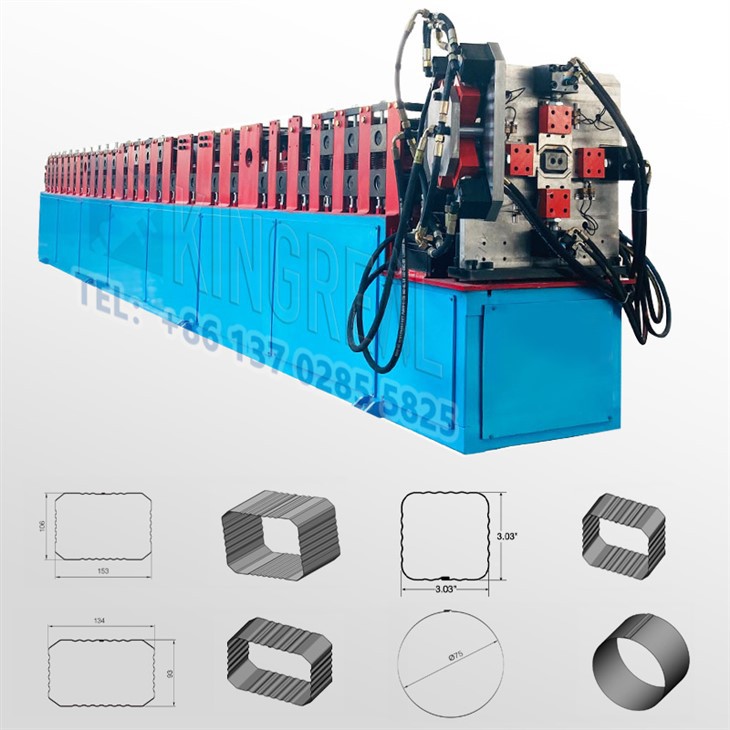

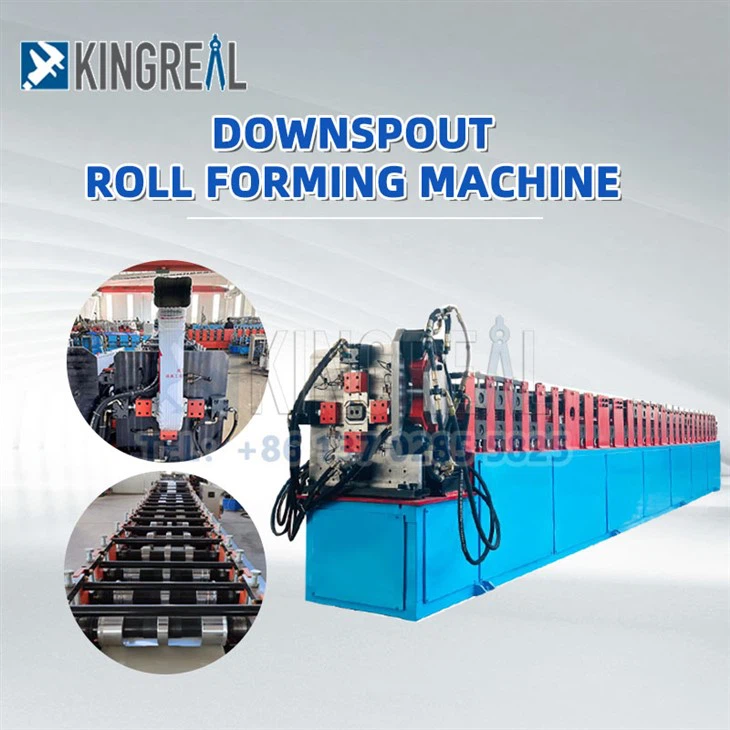

Metal Downspout making machine DESCRIPTION:
The square downspout forming machine is a roll forming machine used to produce downpipes in the steel structure industry. The finished product produced by the machinery and equipment is a downpipe, which is mostlyused in the drainage pipes of personal houses, villas, and other family-style houses.
The downspout forming machine has a longer service life than traditional PPC pipes, and is not easy to age, which makes the entire project more unified and helps improve the image of the entire project.

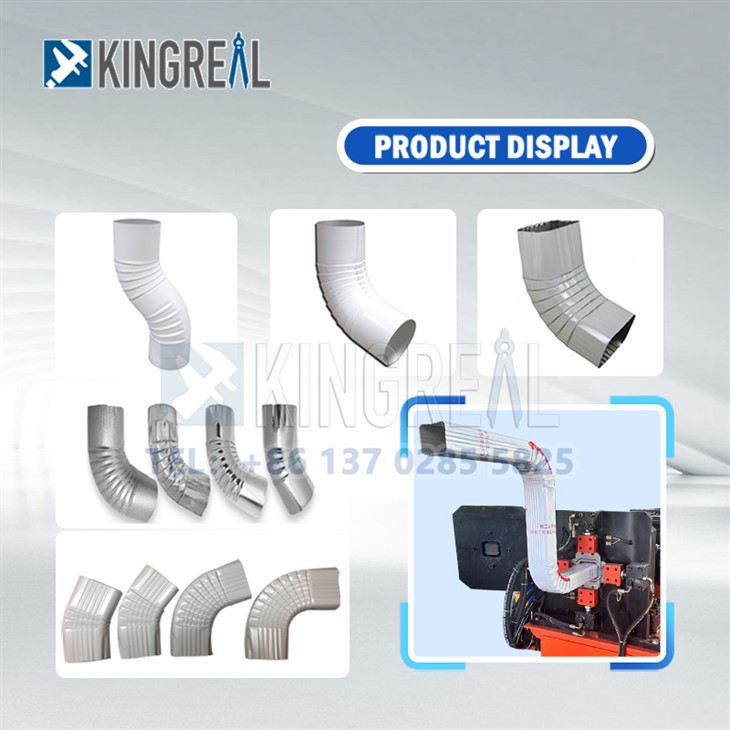

The downpipe supporting elbow machine can roll the rolled downpipe into a connecting elbow, so that the downpipe and its bend are connected as a whole.
Technical Specification of Metal Downspout roll forming machine:
|
Material: |
galvanized sheet, color-plated sheet |
|
Expanded width: |
According to the requirements of the version |
|
Material thickness: |
0.5-0.6 mm |
|
Speed |
8m-10m/min |
|
Drive mode: |
1.0 single-row chain drive |
|
Total motor power |
11.5 KW |
|
Control system: |
PLC Panasonic |
|
Equipment dimensions (m): |
about 8.5*1.0*1.0 |
Structure of Metal Downspout roll forming machine:
The downspout machine is composed of feeder, uncoiling device, feeding guide device, forming host, forming cutting device, hydraulic system, control system and finished product bracket.
Product drawings Parts dispaly of downspout forming machine:
Feed Guide For Downspout Machine
① Positioning plate: adjust the position of both ends to make it fit the width of the feed.
②Guide frame: play a role in supporting the transport of the material roll.
③Guide roller: The upper and lower round roller design makes the feeding process smoother.
01
Roller Assembly For Downspout Line
① Spindle diameter: φ75mm, 45# round steel.
②Roller material: heat treatment, hard chrome plating after finishing, mirror polishing.
③ Frame rod: φ20# electroplated round steel to increase the rigidity on both sides of the wall panel.
④Cold-bending forming: the process of cold-bending rolls one by one.
02
Downpout Machine Cut After Molding
①Guide mechanism: Move the shearing device to ensure that the cut is not deformed.
②Cast iron tool holder: cast iron has obvious shock absorption effect and strong impact resistance.
③Blade material: Cr12Mov The cutting life exceeds 1 million times.
④Rear scissor frame: Q235 steel plate, annealing treatment after rough milling, and finishing.
03
PLC Control Cabinet
① P L C: adopts Delta/Schneider high-precision PLC electronic control system.
②Inverter: Delta/Schneider heavy-duty inverter, running efficiently and stably.
③Control components: Schneider Electric, with long service life and low failure rate.
④Touch screen operation: input production data and automatically complete production requirements.
04
Products Drawings

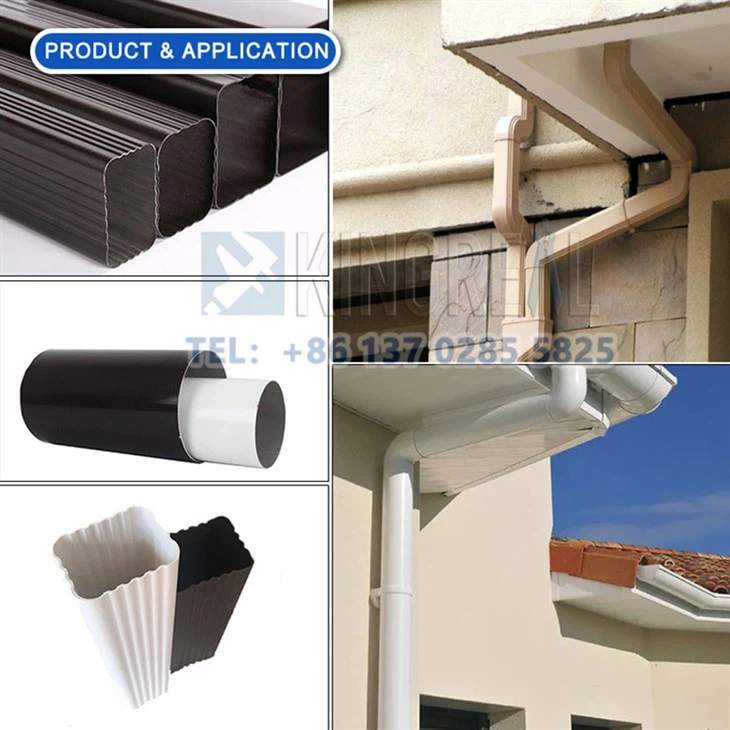

Products Applications
Metal downpipes play a crucial role in modern drainage systems, providing an efficient and reliable solution for directing rainwater away from roofs and buildings. These metal downpipes are commonly used in both residential and commercial properties due to their durability, strength, and corrosion resistance.
01
Residential Buildings
In residential buildings, metal downpipes ensure effective water management, preventing water damage to walls, foundations, and basements. They are particularly essential for homes with complex roof structures, where proper water drainage can prevent leaks and prolong the lifespan of the roofing materials. Additionally, metal downpipes come in various styles and finishes, making them a versatile choice for different architectural designs.
02
Commercial Properties
For commercial properties, the application of metal downpipes extends to large-scale drainage systems where robust performance is required. These downpipes can handle significant volumes of water, which is crucial for protecting the structural integrity of commercial buildings, especially in areas with heavy rainfall. Metal downpipes are often integrated into the building's exterior design, ensuring both functionality and aesthetic appeal.
03
Industrial Settings
In industrial settings, metal downpipes are used to manage the drainage of expansive roof areas. Their high resistance to harsh environmental conditions makes them suitable for factories, warehouses, and industrial complexes where durable and low-maintenance drainage solutions are essential. The versatility of metal downpipes allows them to be customized to meet the specific needs of industrial facilities.
04
Overall
the application of metal downpipes is vital across various types of buildings, ensuring effective water management and protection from potential water damage. Their robustness and adaptability make them a preferred choice in modern construction and renovation projects.
Package& Shipping
Package

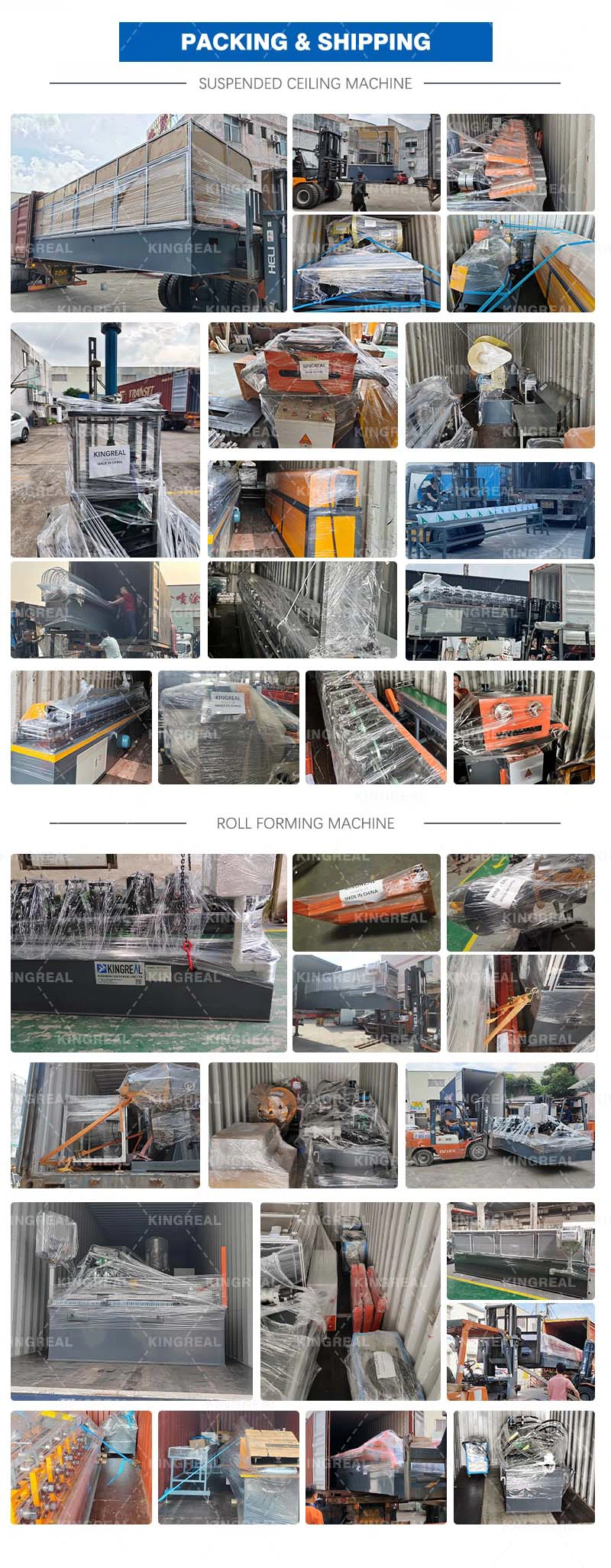

For different machines or production line parts, we have different packing solutions:
-
For the machine or production line, we will use plastic film to cover and wrap. Then will be loaded to the container by forklift or crane.
-
For the key parts such as the roll forming rollers set, we will use the metal frame to package.
-
For the electrical cabinets, molds set, we will use wooden carton to package and load.
Shipment
After the equipment was loaded into the container by forklift or heavy crane, we will fix the machines with the container by steel rods. To prevent the damages from the vibration during shipping.
Production Workshop
Professional Team
KINGREAL ROLL FORMER has its own professional technical team. With strong professional ability and rich design experience, KINGREAL engineers can design machines according to the drawings provided by customers and the corresponding production needs. Solve all technical problems during the production, installation and use of the machine.
