Customized Design Metal Shelf Panel Roll Forming Machine
Video Display-- KINGREAL Shelving system Roll Forming Machine
Machine Description
KINGREAL Metal Shelf Plate Forming Machine is designed to produce different types of shelf panel and rack panel in materials, shapes and sizes that need to be customized according to customer's production needs.
KINGREAL is a professional manufacturer of metal storage equipment with more than 20 years of experience and successful sales to countries such as Turkey, India, Saudi Arabia, UAE, Egypt and UK. Featured staple Roll Forming Machine include:
- Metal Shelf Rack Panel Roll Forming Machine
- Steel Storage Cabinet Forming Machine
- Cabinet Frame Roll Forming Machine
- Shelf Rack Upright Post Making Machine
- Pallet Step Beam Roll Forming Machine
About Customized Design
About KINGREAL This custom-designed shelf-related molding machine is specially designed to produce the IKEA RÅSKOG utility cart, which is a very hot product in the market as a popular shelf.
The basic production process includes uncoiling, punching, forming, etc., followed by a series of secondary processes including bending, welding, assembly, etc. to obtain the final RÅSKOG utility cart.
Working Process
Combine Decoiler & Straightener 2 In 1 Machine -- Double Punching Station -- Main roll Forming Machine -- Hydraulic Cutting Machine -- Output Table
Technical Specification
|
Coil Material |
Metal Steel/Aluminum/GI Steel |
|
Coil Thickness |
0.6-1.2MM |
|
Coil Width |
312/416/500MM |
|
Forming Speed |
15M/Min |
|
Product Accuracy |
±0.2MM |
|
Cutting System |
Motor/Hydraulic |
|
Output System |
Manual/Auto Stacker |
Main Component Detail
2-in-1 Uncoiler & Leveler
The 2-in-1 Uncoiler & Leveler is a highly efficient machine in the field of metal processing, which integrates the two processes of uncoiling and leveling in one machine.
Function integration: The 2-in-1 Uncoiler & Leveler has two functions, uncoiling and leveling, and is suitable for materials with widths in the range of 0-700mm.
High-precision adjustment: The upper working roller adopts advanced Japanese 4-point centimeter fine-tuning device, which is suitable for processing quality needs with high precision requirements.

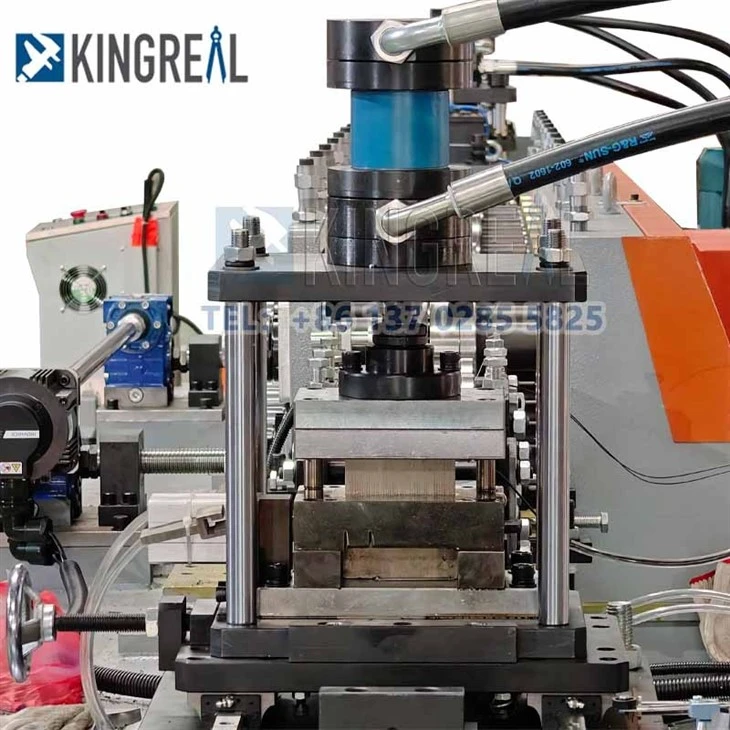

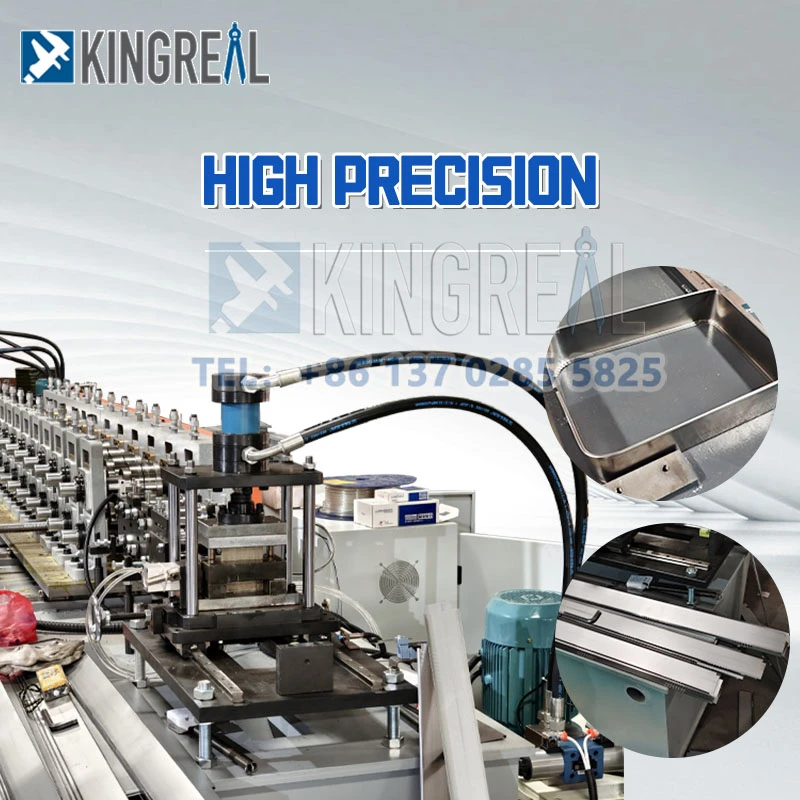

Hydraulic punching station:
High efficiency: the hydraulic punching station is able to perform punching operations quickly and continuously, increasing productivity.
Precision: Through the use of high-precision molds and punches, hydraulic punching stations can achieve accurate punching, ensuring that the location and size of the holes meet strict tolerances.
Adjustability: The punching force and punching speed of most hydraulic punching stations can be adjusted for different materials and thicknesses to meet diverse production needs.
Automation: Hydraulic punching stations are usually used in conjunction with automated feeding systems to reduce manual operation and labor intensity.

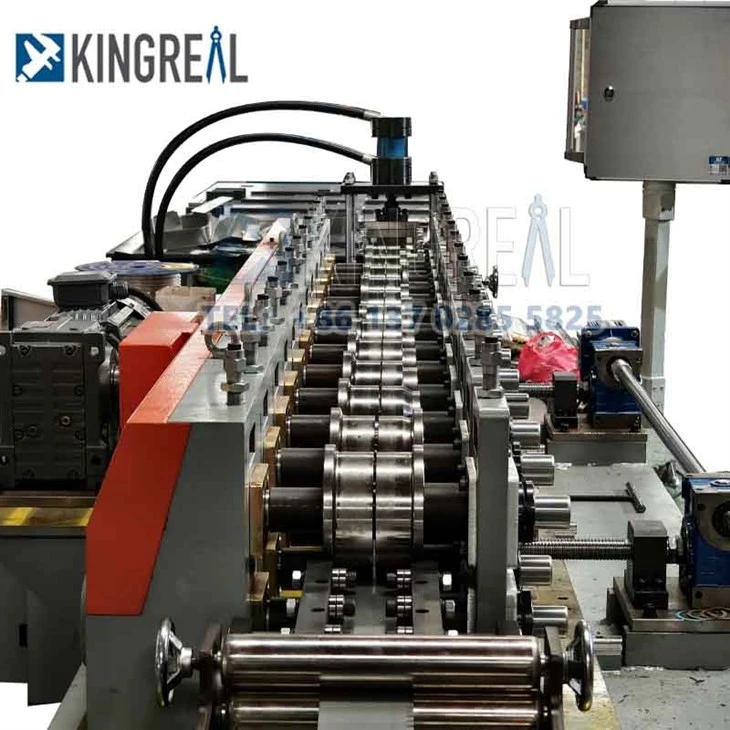

Primary Forming Equipment
3.1 Forming Roller: 20 stations plus Rub-roll to ensure a smooth surface profile.
A3 steel, 5.2 Side Panel, T.18mm, Heavy duty
3.2 Roller material: HRC56-62 °C, total quenching, roller #75.
3.3 Motor output: 7.5 kW
3.4 Main Roller 45 #95mm
3.5 Equipment base: welded steel plate, 45 # H type.
3.6 Security: all models have emergency stop buttons, making it simple to handle crises and guaranteeing the operator's and the equipment's safety. Additionally, additional equipment in the chain and personnel may readily lead to an area covered in protective covering where injuries might be transmitted, ensuring worker safety.
Final Product Display
FAQ
Q1:How long will you send the proposal and offer?
A1:We will need about 3~7 days to design the proposal upon collecting all details of the ab- ove mentioned info necessary.
Q2:When will you tell me the price?
A2:After confirming all detailed configurations of the machine line, that we are able to make offer for i
Q3. What's your Warranty ?
12 months except human error, during which all parts damaged because of quality problem will be changed for free.
Parts that are out of warranty will be provided in factory price.
Q4. What's your delivery Time ?
Within 60-80 days after receiving prepayment. Some machines in stock, can be delivered at any time.
Q5:How long do you need to install and commissioning the machine line?
A5: Usually one week for installing and teaching workers about how to operate.
