KINGREAL Metal Pallet Roll Forming Machineis a fully automatic line for recyclable

metal pallets production. The equipment is composed of two sets of equipment, column

making machine and pallet plate making machine, which produce two kinds of profiles,

column and plate respectively, then can be assembled into storage pallets.

The machine software is self-developed and the profiles can be produced according different length and orders.

The machine includes uncoilers, straighteners, main roll forming machines and output tables.Metal pallets are

currently used more frequently. The production of traditional wood pallets mainly relies on hand-made and then

fabricate. It need more production processes and strict requirements.

KINGREAL has developed an automatic metal pallet forming machine that is specialized in the production of pallet-type

equipment. The pallet production can be placed on the equipment. The machine is featured with fast production speed,

beautiful shape, and labor saving.

- Number of forming rollers set: 16 channels, 3 correction channels

- Main motor power: BWD29-43-4KW

- Hydraulic power: 3KW

- Processing thickness: 0.5-0.8 galvanized steel strip

- Wall panel: high quality A3 steel,

- Thickness: 20mm

- Roll: Cr12, GCr15, fine lathing grinding twice, HRC: 60-62°

- Spindle: 40Cr, quenched and tempered,

- Diameter; 65mm

- Transmission: Chain: 16A, sprocket; 16A15Z

- Scissors material: Cr12MoV

- Shearing method: flat hydraulic dislocation shear/vertical hydraulic punching shear

- Control method: industrial PLC control, Encoder to detect length

- Accuracy: 10m±2mm

Steel strips feeding → Guided leveling → Continuous cold bending and roll forming → Hydraulic shearing → Finished product discharge

Steel Pallet

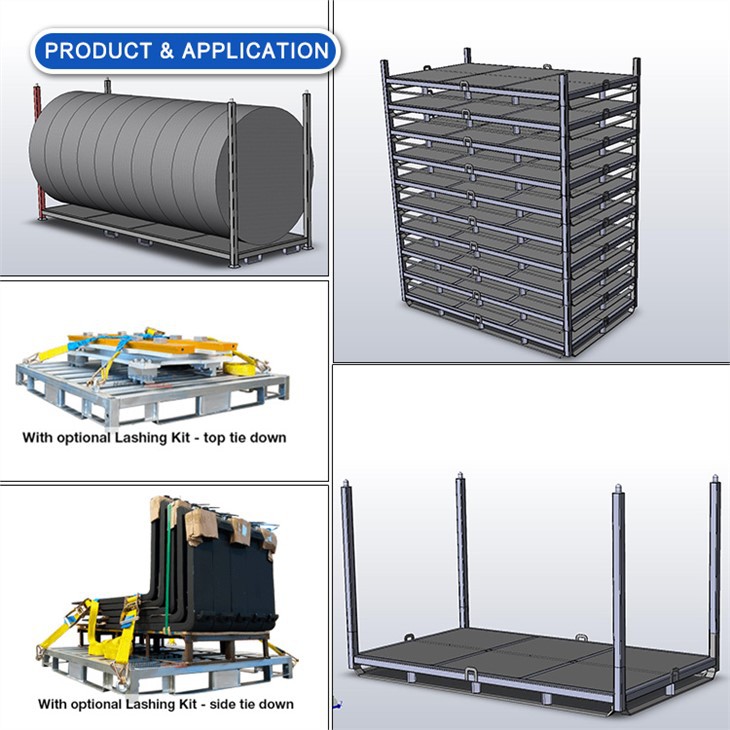

steel pallet application
