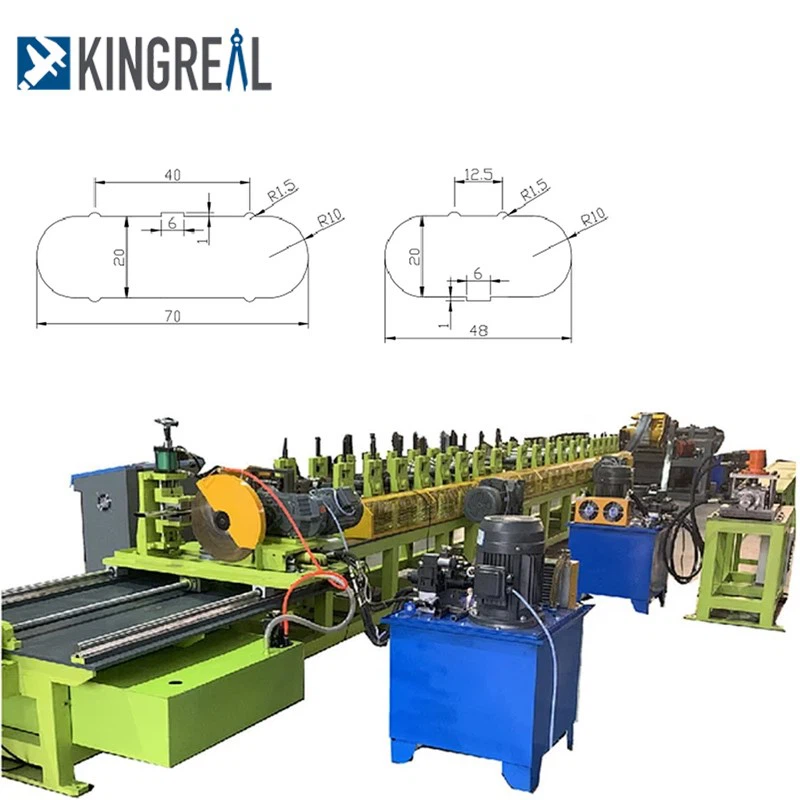

Tube Roll Forming Machine Description

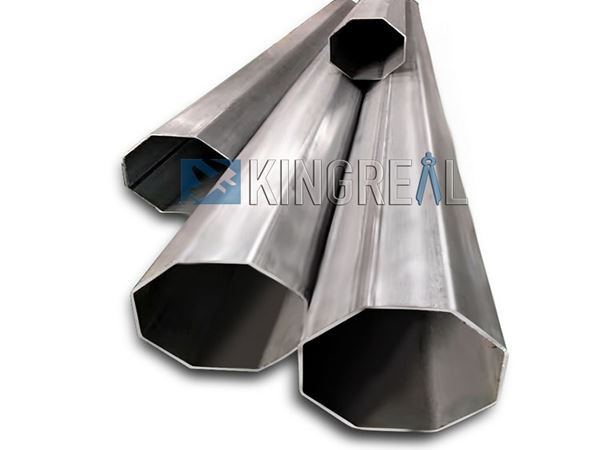

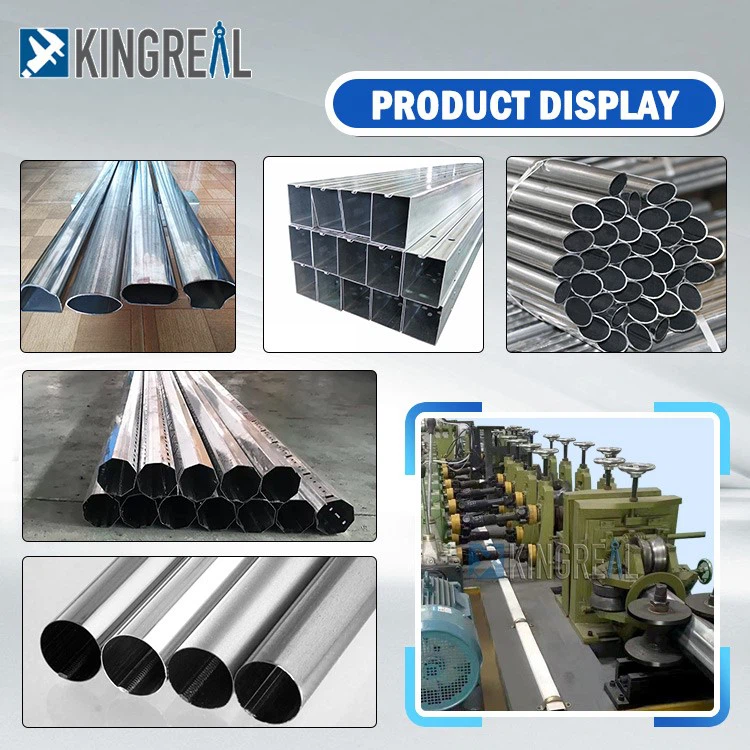

KINGREAL Tube Roll Forming Machines are our most featuring lines for different kinds of round tubes, octagon tubes, hexagon tubes,
square tubes or other special section tubes production. According to the different customers request, our tube roll forming machine can
produce the tubes with or without punching holes. The formed tubes will be cut off by saw blade to requested length.
Tube roll forming machines are our most advanced design integrate the punching, roll forming, saw blade shearing, welding (if requested),
cooling technologies.
Working Process of Tube Forming Machine
Scrolling up → Uncoiling → Shear and Welding → Spiral accumulator→ Forming → H.F. induction welding → External burr removing → Cooling → Sizing → Flying saw → Run out table
Before choosing a tube roll forming machine, you need to clarify your production needs and the general requirements for machine parameters, for example:
① What are the specific specifications (diameter, wall thickness, length) of the tubes you need the tube roll forming machine to produce?
② Would you like a tube roll forming machine semi automatic or completely automatic?
③Do you require a tube roll forming machine with single specification or multi specification?
Technical Specification
|
Raw materials |
0.4-1.2mm mild steel, stainless steel |
|
Raw material width |
Different based on different thickness |
|
Products types |
Different sizes of round tubes, octagon tubes, hexagon tubes, square tubes or other special section tubes |
|
Tube forming speed |
8-15 m / min |
|
Roll Forming stands |
20-30 Rollers station for different tubes, posts |
|
Forming rollers materials |
GCr15 quenching treatment |
|
Driving methods |
Gearbox driving, Gear Driving |
|
Line control system |
PLC automatic control system |
|
Power input |
3 Phases 380V 50HZ or according with clients request |
|
Main Forming Machine Power |
7.5~30 KW |
|
Dimension |
32*2.3*1.8M (L*W*H) |
Structure Of Container Post Roll Forming Machine
- Raw materials Decoiler
- Automatic holes punching production
- Materials input guide
- Main roll forming station
- Roll forming cooling system
- Servo Saw Blade Shearing station
- Products stacker
- Electrical & Hydraulic system
-Decoiler for tube forming machine: Its function is to support and unwind the strip so that it can enter the equipment for coiling and forming. The strip unwinding method can be hydraulic or pneumatic, and the decoiler can rotate 180 degrees. The strip unwinding speed is adjustable, and the brake device uses pneumatic or hydraulic cylinders to press the brake rubber block.
-Main roll forming station for tube forming machine: The flattened strip enters the forming station, and after a series of forming rollers, it is gradually formed into the tube shape required by the customer, ready for welding.
- Roll forming cooling system for tube forming machine: The welded and shaped pipe is usually cooled with water to fix its shape and performance. The purpose is to solidify the pipe structure and prepare for subsequent processing.
- Servo saw blade shearing station for tube forming machine: The continuous pipe is cut to the required length using a flying saw or a rotary cutter to produce a single steel pipe of the required length.
1/How Does Tube Forming Machine Work?
The tube forming machine processes flat metal strip into a tube through the high-speed operation of a series of precision components such as decoilers, automatic cutting butt welding, horizontal loopers, forming and sizing units, hot grinding computer saws, output rollers, rollers, cutting systems, etc. First, a coil of metal (usually steel or aluminum) is fed into the machine. The metal coil is unrolled and fed into a set of rollers, which gradually bend it into a tube shape. After forming, the edges of the tube are aligned and welded using high-frequency welding technology to form a continuous seamless tube. After welding, the tube will pass through further rollers to be shaped and shaped to meet precise dimensional specifications. The final stage is to cut the tube to the required length, followed by finishing to ensure a smooth surface and meet the required tolerances. KINGREAL Roll Former Roll Former tube forming machine can efficiently and quickly produce tubes for various industries such as construction, oil and sewage treatment.
2/ What Is Advantage Of Tube Forming Machine?
① Complete and professional technical services for tube forming machines. KINGREAL Roll Former can provide customers with installation guidance drawings, site design drawings and 3D drawings of tube forming machines; and KINGREAL Roll Former can provide customers with video installation instructions and remote guidance services for tube roll forming machines; there are also a series of pre-sales consultations and after-sales service consultations.
② Fully automated tube roll forming machine. An easy-to-use and simple high-precision PLC controls for this tube forming machine. You only have to adjust the system's input, and the tube forming machine will run steadily per the new parameter data supplied by the consumer-safe and dependable-if you need to alter the parameters.
③ Multifunctional production tube roll forming machine. Providing customers with flexible tube roll forming machines for various production requirements for various applications, this tube forming machine is appropriate for pipes of several sizes, thickness, and grades of various metal materials. With high output, excellent internal and external surface quality of the product, and a broad spectrum of specifications, this tube roll forming machine is appropriate for large-scale steel pipe manufacture.
Who Are We?
KINGREAL ROLL FORMER is a professional sheet metal processing machines manufacturer and supplier. We offer full automatic and high speed solutions mainly including roll forming machines, metal ceiling tile machines, metal perforation line, coil slitting lines, etc.
KINGREAL had helped our clients to build their factories successfully all over the world, such as Russia, Middle East, South Asia, South America, etc.
Professional Team
KINGREAL has its own professional technical team.
With strong professional ability and rich design experience, KINGREAL engineers can design machines according to the drawings provided by customers and the corresponding production needs.
Solve all technical problems during the production, installation and use of the machine.
How To Order?
