Glazed Tile Roof Panel Roll Forming Machine
Video About Glazed Tile Making Machine
Glazed Tile Roll forming Machine Description:
|

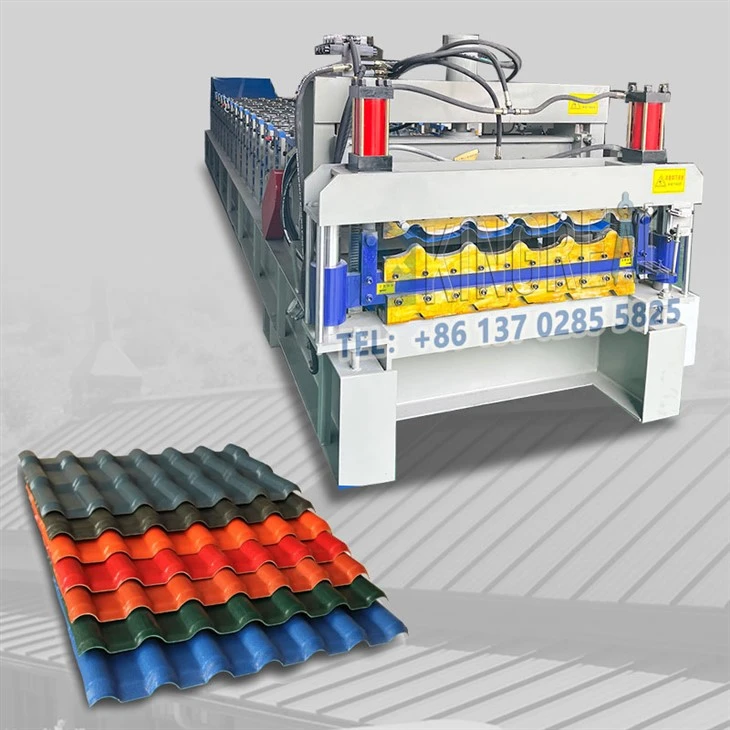

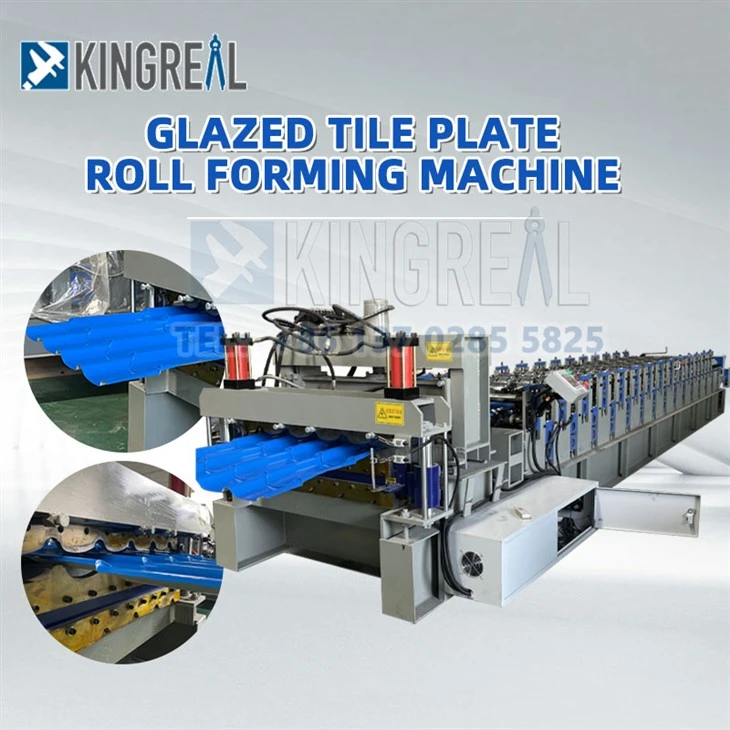

KINGREAL ROLL FORMER glazed tile roll forming machine is mainly composed of a feeding platform, a forming host, a die pressing device, a forming and shearing device, a hydraulic station, and a PLC computer control system. It has the characteristics of light weight, high strength, heavy bearing and good shock resistance.
The antique glazed tiles formed by the 1100 glazed tile press roll die have the characteristics of beautiful appearance, simple and elegant, elegant and chic, and noble taste. Glazed tile making machine can be widely used in garden-style factories, tourist attractions, pavilions, hotels, villas, etc. Exhibition halls, resorts, homes and other buildings and outdoor decoration.
Glazed tile making machine forming part of the roller table is driven by a motor, and the chain drives each roller to rotate.
The pressing part is a hydraulic cylinder that drives the mold to move up and down, which can press the color steel into many sections, which look like glazed tiles.
The cutter part is driven by a hydraulic cylinder to move the cutter up and down, which can cut the colored steel tiles.
|
 |
glazed sheet Machine Features
|
1. The glazed tile machine is controlled by PLC, and multiple safety protections are set up during normal production. 2. The bed is welded steel plate. And it is tempered to eliminate internal stress and avoid deformation of the fuselage. 3. The forming frame is a cast iron structure and has been tempered. High strength and long service life. 4. The material of the roller shaft is 40Cr, and the hardness is HB280 after quenching and tempering. 5. The material of the forming mold is GCr15, quenched, and hardness: HRC56-62℃. |
 |
Technical Specification For glazed tile making machine
|
1. Fully automatic fixed-length forming and cutting, precise fixed-length positioning, beautiful and neat board shape. |
|
2. The structure is simple and the appearance is beautiful. Because the whole machine adopts a steel structure and is processed as a whole after welding, the structure is simple and reasonable, the storage capacity is strong, and the operation is stable and reliable. |
|
3. The equipment roller is precision manufactured with high-quality No. 45 forged steel, and the surface is plated with hard chromium to achieve the effect of high hardness of the roller surface, smoothness, and no damage to the plate forming surface. |
|
4. The equipment has low noise and high work efficiency. |
|
5. The roller shaft is made of No. 45 steel after quenching and tempering treatment to improve the shaft's comprehensive mechanical properties such as strength and hardness. |
|
6. The main components of the electrical control system are all imported from Japan's Mitsubishi. |
glazed tile making machine Structure
The glazed tile pressing machine is divided into three parts: roller forming part, pressing part and cutter part.
---------------------------------------------------------------------------- Roof Tile Product Application----------------------------------------------------------------------------
---------------------------------------------------------------------------- Comprehensive Metal Roofing Tile System Solutions-----------------------------------------------------
KINGREAL Roll Former can offer complete metal roofing system solutions for you; please contact KINGREAL Roll Former directly to learn more about the various types of metal roofing machines available.
---------------------------------------------------------------------------- How To Install The Machine?----------------------------------------------------------------------------
Once the customer has visited the factory, completed the Glazed Tile Making Machine acceptance, and verified that all performance specifications are met, KINGREAL Roll Former professional team will-in strict accordance with export packaging standards-apply multi-layer protection and standardized packaging to the Glazed Tile Making Machine's precision components, and properly arrange logistics to ensure safe delivery to the customer's site.
Upon the successful arrival of the Glazed Tile Making Machine, KINGREAL Roll Former can dispatch senior engineers to provide on-site installation services.
They will handle system integration, wiring, commissioning, and trial runs, while comprehensively identifying potential operational issues to ensure the Glazed Tile Making Machine is perfectly tuned for long-term, stable, and smooth production.
---------------------------------------------------------------------------- What Our Customers Said?----------------------------------------------------------------------------
KINGREAL ROLL FORMER has rich experience in production and sales, and is committed to providing customers with the best solutions to solve customer problems. At present, it has been recognized by customers from all over the world.
