In the modern industrial manufacturing sector, the demand for warehousing and logistics systems is growing rapidly. As the core load-bearing component of shelving systems, shelf panels-and the efficiency and precision with which they are produced-directly determine the quality of project delivery. However, many storage shelf panel machines currently in use across the industry fail to achieve their nominal production capacities.
Long commissioning cycles, delayed changeover times between several specifications, and precision drift over extended running are the main causes for this gap. Manufacturers looking for a high return on investment must choose a technologically sophisticated and stable shelf panel making machine to guarantee production dependability.
This guide offers a thorough examination of important technical specifications, system integration logic, and multi-scenario uses-selecting a high-standard storage shelf panel machine.

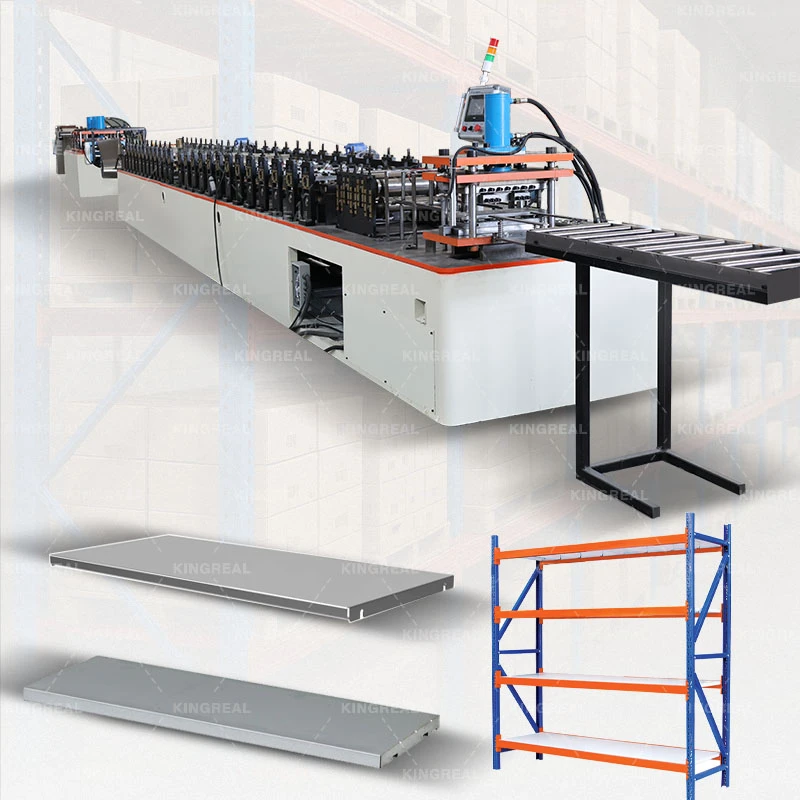

(Working Process of Shelf Panel Making Machine↑)
Key Technical Specifications for Shelf Panel Making Machines
--A Guide to Avoiding Pitfalls
When selecting a shelf panel making machine, one should not focus solely on its appearance or base price. It is crucial to examine the mechanical structure and control logic, with particular attention to the following two dimensions:
1. Duplex Design for Storage Shelf Panel Machine
Traditional, fixed-configuration shelf panel making machines are limited to producing a single panel width, making them highly inflexible when handling diverse warehousing projects. A state-of-the-art storage shelf panel machine must feature a Duplex design.
●Servo-Driven Automatic Width Adjustment:
By integrating a PLC control system with high-precision servo motors, a Duplex system allows for the synchronous or asynchronous movement of the machine's side panels. Operators simply enter the target width via a touchscreen, and the shelf panel making machine can complete a full changeover in just a few minutes.
●Production Flexibility:
A single storage shelf panel machine can accommodate a wide range of shelf panel specifications-from 150mm to 600mm (or even wider). This flexible design significantly boosts shelf panel making machine utilization and prevents the waste of factory floor space that would otherwise occur if multiple machines were required.
2. Punching Precision and System Integration Logic
The production of shelf panels involves more than just simple roll forming; it typically entails complex punching processes (such as creating holes for mounting hardware or structural reinforcements).
●Customized Punching Dies: The KINGREAL Roll Former team designs custom punching stations based on the specific project drawings and samples provided by the client. Whether the requirement is for lightweight shelf panels with minimal perforations or high-strength panels with dense hole patterns, the storage shelf panel machine can achieve precise processing through the use of interchangeable dies or program adjustments.
●Integrated Production Logic: The high-performance shelf panel making machine functions as a fully integrated automated production line.

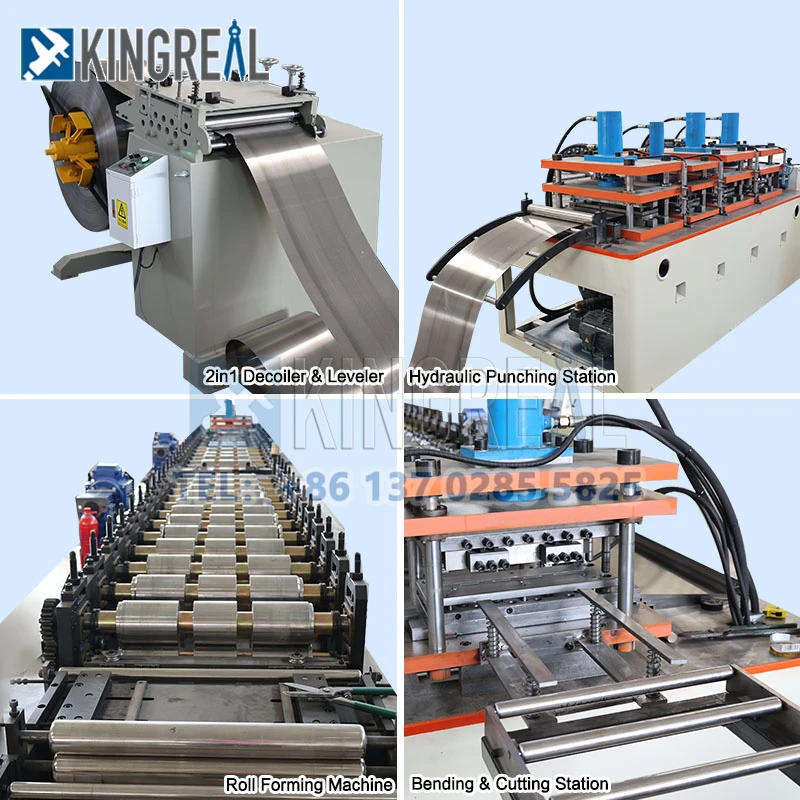

Its standard configuration includes:
Decoiler: Ensures the smooth, steady feeding of steel coils.
Leveler: Eliminates internal material stress, preventing the finished product from developing waves or warping.
Servo Punching Station: Enables high-frequency, high-precision in-line punching.
Main Roll Forming Machine: Performs multi-pass precision rolling to ensure consistent cross-sectional geometry.
Cutting Station: Utilizes either flying shear or hydraulic stop-shear mechanisms, keeping length tolerances within ±0.5mm.
This comprehensive, integrated approach ensures that the storage shelf panel machine delivers qualified finished products at a continuous and consistent production rate.
Flexible Adaptation for Diverse Applications
KINGREAL Roll Former shelf panel making machine offers exceptional versatility, allowing for targeted adjustments to meet the specific requirements of various industry sectors.
01 Supermarket and Retail Shelving
Shelving in the retail industry has to have a sleek, high-quality surface finish appropriate for painting or coating in addition to supporting great loads.
●Applications: Supermarket shelving panels, display racks, gondola shelving (island units), and checkout counter components.
●Technical Features: For this application, the storage shelf panel machine is typically equipped with highly polished rollers to prevent scratching the surface of the shelf panels-an essential feature when working with pre-coated steel or aluminum sheets.

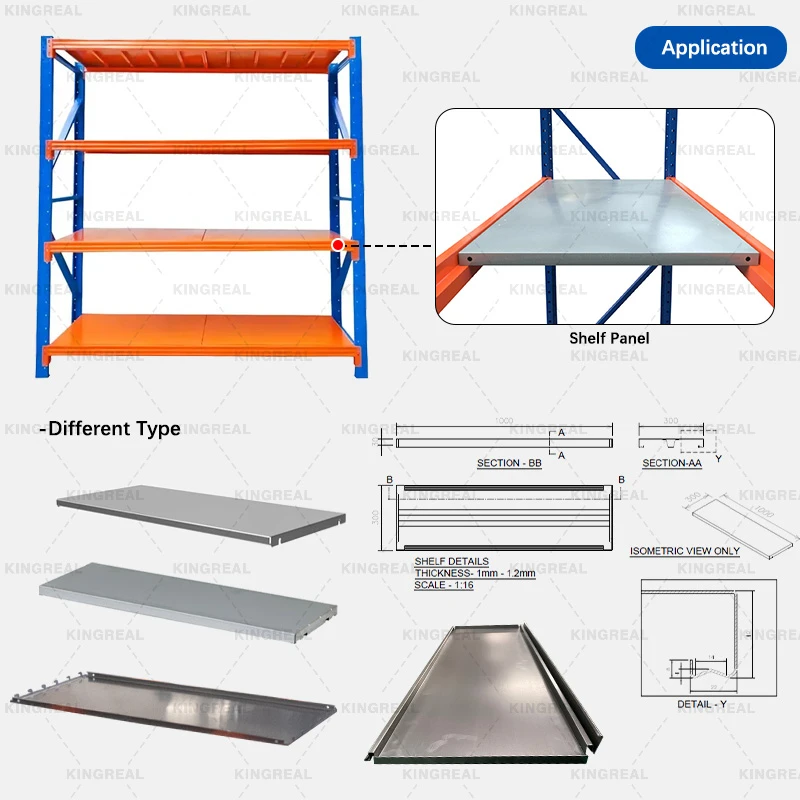

02 Warehouse Racking
This is the most common application for the shelf panel making machine, where the primary focus is on heavy-duty load-bearing capacity.
●Applications: Heavy-duty industrial warehouse racks, pallet racking systems, and warehouse shelving panels.
●Technical Specifications: For heavy-gauge materials ranging from 1.5mm to 2.5mm, the storage shelf panel machine has to have a strong frame construction and a high-torque drive system to stop structural distortion during the manufacturing of high-strength shelving panels.
03 Commercial Furniture Manufacturing
●Applications: Office furniture panels, cabinet shelving, and display unit components.
●Technical Specifications: Such products typically demand extremely high precision in edge bending and hole spacing; therefore, the shelf panel making machine must be equipped with a high-precision servo-driven feeding system.
04 Industrial Equipment Enclosures
●Applications: Machine housings, storage lockers, and industrial shelving systems.
●Technical Specifications: Leveraging the roll forming principle, the storage shelf panel machine enables the rapid, high-volume production of standardized enclosure components.
A premium shelf panel making machine-whether for light-, medium-, or heavy-duty shelving-provides the flexibility to change parameters to fit the unique load-bearing and installation needs of every customer project.
Ensuring Long-Term Production Reliability
Many times when buying a storage shelf panel machine, companies neglect the need of continuous after-sales service and technical support.
Material Compatibility
A superior storage shelf panel machine should be capable of processing a variety of materials, including GI, PPGI, and cold-rolled carbon steel.
Control Systems
The use of PLC systems from major brands (such as Siemens or Yaskawa) ensures that, in the event of a malfunction, spare parts can be sourced globally and remote diagnostics can be performed.
Commissioning and FAT
Every shelf panel making machine ought to go through strict Factory Acceptance Testing before shipment so that it can be swiftly incorporated into full-scale manufacturing at the customer's site, therefore lowering the time needed for commissioning and fine-tuning.
Developing Comprehensive Shelving System Solutions
In the warehousing equipment sector, a storage shelf panel machine is often just one component of a larger project. To assist clients in completing their entire racking system projects, KINGREAL Roll Former offers not only high-quality shelf panel making machines but also a comprehensive range of related equipment, including:
By integrating these machines, you can establish a complete production line for racking systems, therefore gaining a technical advantage in the fiercely competitive world market of today.
Please get in touch with the KINGREAL Roll Former technical team directly for thorough technical details, custom solutions, or case studies of current factory installations. From design and manufacture to installation and training, we offer a comprehensive expert service.
