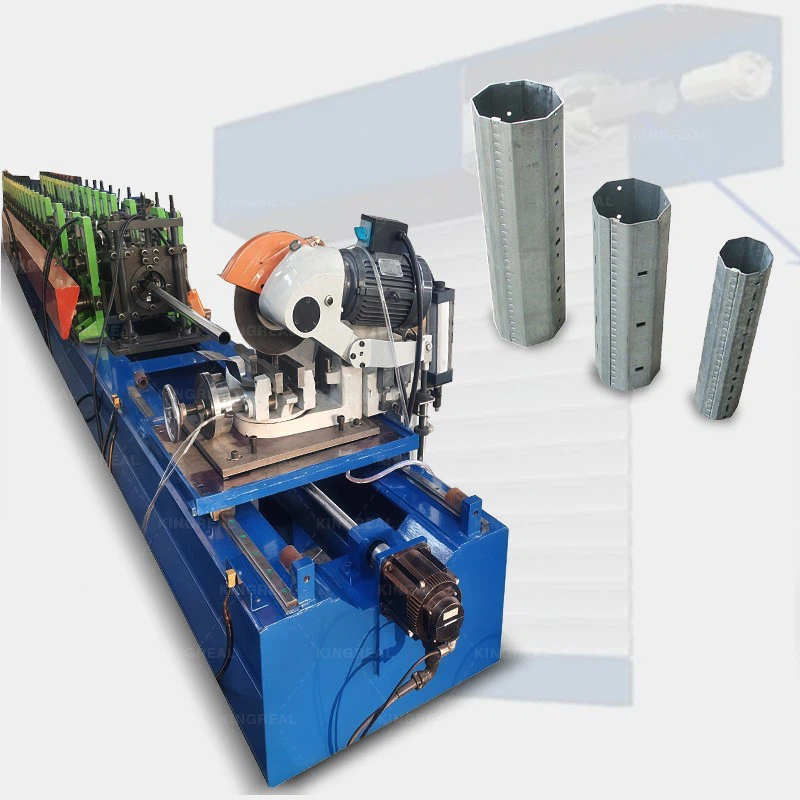

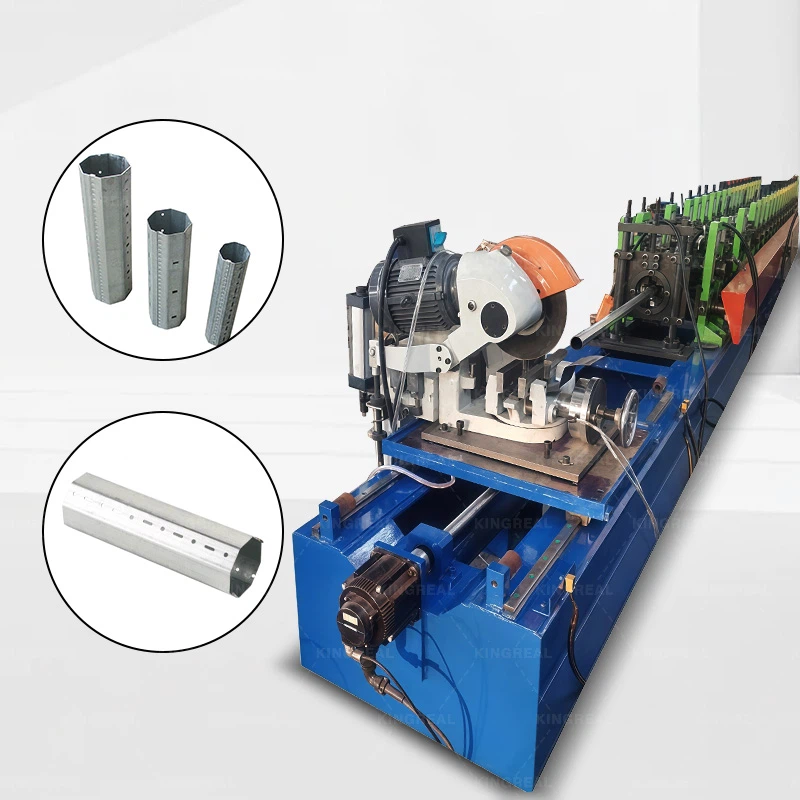

Introduction to Octagonal Tube Roll Forming Machine

The octagonal tube roll forming machine is specifically designed for the mass production of octagonal tubes of various specifications, providing the roller shutter industry with a precise structural framework production solution. The octagonal tubes produced serve as the core component supporting, rotating, and bearing the entire roller shutter slat, directly determining the roller shutter's operational stability, structural strength, and service life.

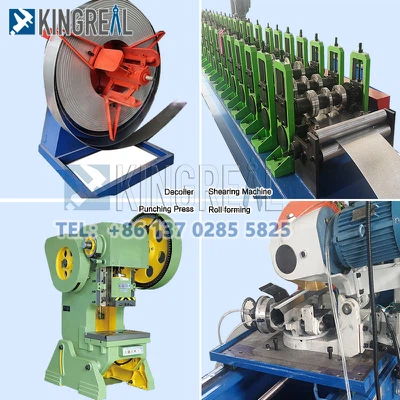

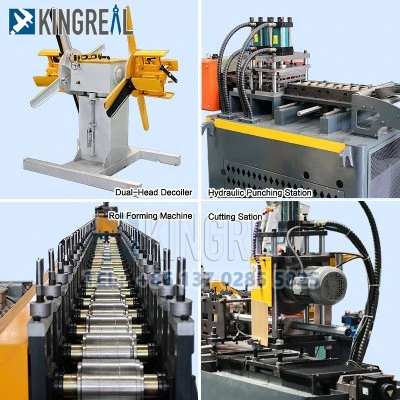

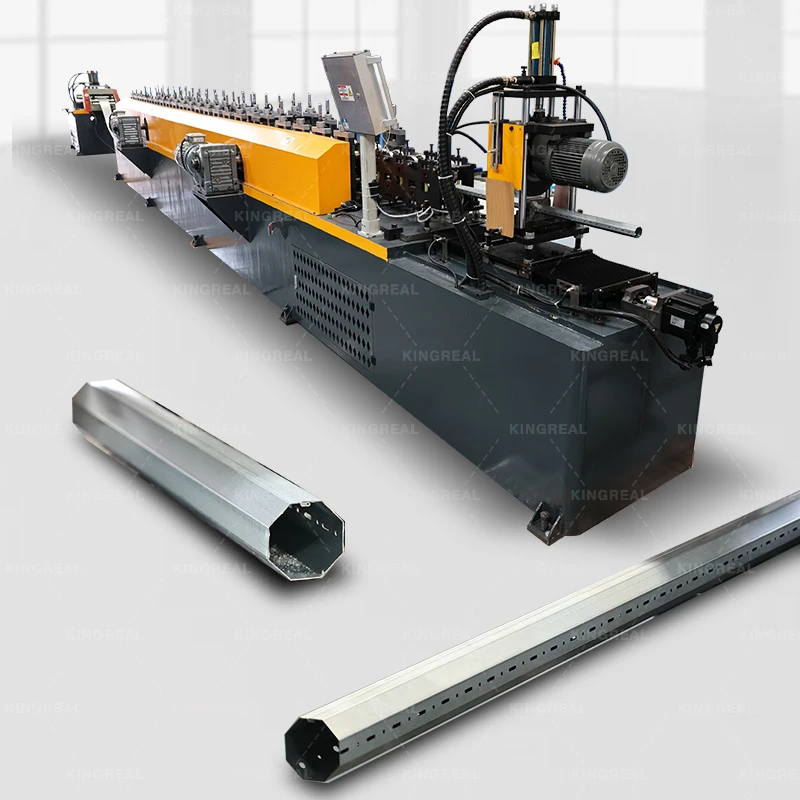

This octagonal tube forming machine consists of precision components such as a decoiler, punching machine, main roll forming machine, and cutting station. From raw material feeding to finished octagonal tube output, the entire process is fully automated, requiring minimal manual intervention. This ensures that each octagonal tube achieves seamless forming, precise and consistent dimensions, and extremely high structural integrity, significantly improving the durability and smooth operation of the roller shutter.

Notably, KINGREAL Roll Former also provides complementary roller shutter forming machines, offering customers a complete roll shutter systems solution. This provides a one-stop supply from octagonal tube production to the overall forming of the roller shutter, meeting diverse and integrated production needs.

Workflow of Octagonal Tube Roll Forming Machine

Decoiler -- Punching Machine -- Main Roll Forming Machine -- Cutting Station -- Output

Parameters of Octagonal Tube Roll Forming Machine

Material	Galvanized coils, carbon steel
Material Thickness	0.4-1.2mm
Production Speed	15m/min
Forming Specifications	40mm, 60mm, 80mm

Cassette Quick Changeover Design for Octagonal Tube Roll Forming Machine

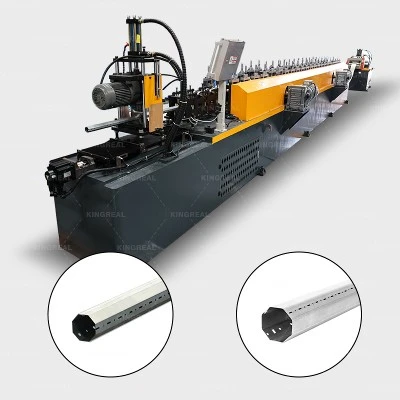

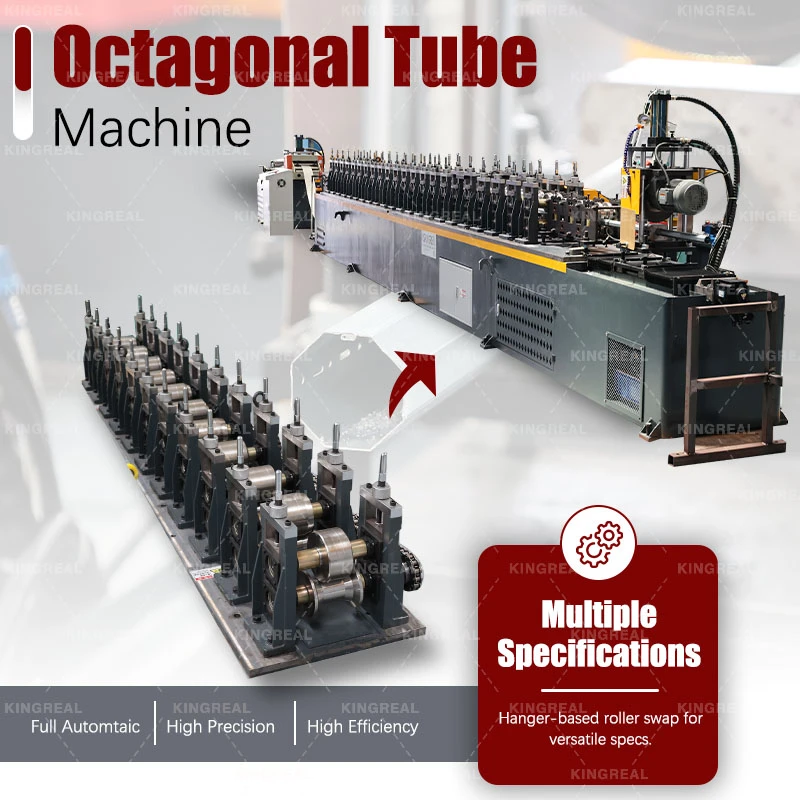

This tubular motor axis machine features a unique interchangeable hanger design, enabling flexible switching between the production of 40mm and 60mm octagonal tubes to efficiently meet diverse customer orders.

This quick-change hanger system eliminates the need to replace entire roll-forming bases or recalibrate the entire production line, significantly reducing the time required for changeover and setup.

By purchasing a single tubular motor axis machine, customers can handle the production of both mainstream octagonal tube sizes without the need for a second dedicated machine; this saves substantially on equipment procurement costs and minimizes factory floor space usage.

The flexible, modular design allows the tubular motor axis machine to adapt to the production of a wide variety of product sizes.

Advantages of Octagonal Tube Forming Machine

Production of Different Specifications

The octagonal tube roll forming machine can produce multiple specifications of octagonal tubes from a single machine by quickly changing forming stations, covering commonly used mainstream specifications such as 40mm, 60mm, and 80mm.

Customers do not need to purchase separate equipment for different specifications of octagonal tubes, significantly reducing equipment investment costs and floor space, thus significantly improving production cost-effectiveness.

High Flexibility

The octagonal tube forming machine adopts a full PLC intelligent control system. Operators only need to input relevant production data such as product quantity, length, and punching size into the control system and click the start button. The octagonal tube roll forming machine will automatically complete a series of processes including feeding, uncoiling, punching, forming, and cutting.

Meanwhile, production parameters can be flexibly adjusted according to the actual needs of the current project. Simply modifying the relevant parameters in the PLC control system allows the octagonal tube forming machine to respond quickly and produce efficiently according to the new parameters.

High Quality

The frame of KINGREAL Roll Former octagonal tube forming machine uses a high-strength formed steel structure. After precision welding, it undergoes overall processing, grinding, and calibration to ensure a stable frame structure and strong load-bearing capacity. Simultaneously, the forming rollers of the octagonal tube roll forming machine undergo high-precision CNC machining and professional heat treatment, followed by chrome plating.

This not only makes the surface of the forming rollers smoother and more wear-resistant but also significantly improves forming accuracy, ensuring that the dimensional error of the produced octagonal tubes is controlled within a very small range, with a smooth, burr-free, and seamless surface and extremely high structural integrity. Furthermore, the main electrical and mechanical components of the octagonal tube forming machine are all from well-known domestic and international brands. The core control system, motor, bearings, and other key components are of reliable quality, guaranteeing the overall performance and operational stability of the octagonal tube roll forming machine from the source, significantly reducing the equipment failure rate and extending the equipment's service life.

Common Octagonal Tube Dimensions

Thickness	Diameter	Feed width
0.5-0.6mm	40mm	143mm
0.6-0.8mm	60mm	210mm
1-1.2mm	70mm	248mm

Applications of Octagonal Tube Forming Machine

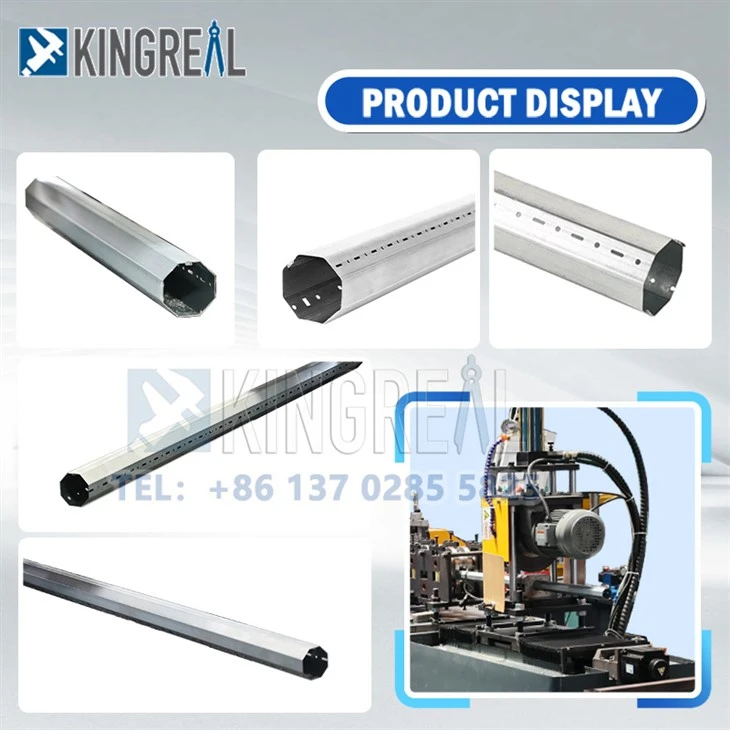

Octagonal tubes produced by octagonal tube forming machines are widely used due to their robust structure, precise dimensions, and wear resistance. They play a crucial role not only in the roller shutter door industry but also in various fields such as machinery manufacturing.

In machinery manufacturing, octagonal tubes produced by octagonal tube roll forming machines are widely used as mechanical steel pipes in automotive and motor parts, serving as core structural components in automotive chassis, motor brackets, and other parts.

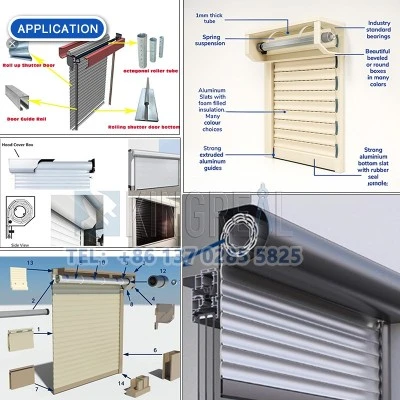

In the roller shutter door industry, octagonal tubes produced by octagonal tube roll forming machines are an important component of the roller shutter door system, primarily used to wind the outer slats of the roller shutter door, forming a key structural framework for the roller shutter door's lifting and winding functions.

Whether it's garage doors in residential communities, commercial security roller shutters in shopping streets, or industrial roller shutters in industrial parks, the winding, support, and rotation of the curtain slats all rely on octagonal tubes produced by octagonal tube roll forming machines.

KINGREAL Roll Former octagonal tube forming machines produce octagonal tubes with precise dimensions, seamless forming effects, and strong load-bearing capacity, ensuring neat winding and smooth lifting of the roller shutter slats.

They also effectively support the weight of the slats, resist external pressure and impact, and enhance the safety performance of the roller shutter.

Drawing About Octagonal Tube

2026 Project: Octagonal Tube Roll Forming Machine

KINGREAL Roll Former has successfully completed the manufacturing and pre-shipment inspection of a custom-designed tubular motor axis machine for a client in Algeria.

Following meticulous protective packaging of all components, electrical control systems, and wear parts by the project team, the entire production line has now been officially shipped to Algeria.

The delivered tubular motor axis machine was custom-engineered to meet the client's specific operational requirements, including tube specifications, raw material thickness, and production capacity targets.

This project marks another successful delivery of custom roll forming machines by KINGREAL Roll Former to the North African market; the team will continue to provide comprehensive support, including customs clearance, on-site installation and commissioning, and technical training.
