Different Types Machine For Yours Choice

linear metal ceiling machine

Customized Design

1. Aluminum Strip Ceiling Roll Forming Machine With Width Adjustable

2.Linear Strip Ceiling Making Machine With Punching Station

3. Standard Configuration Linear Ceiling Forming Machine

For Diferent Shape Linear Aluminum Ceiling

- G-Shaped linear metal ceiling machine

- R 84 aluminum strip ceiling machine

- H-Shaped linear strip ceiling Machine

And so on

Technical Description

KINGREAL MACHINERY offer full solution for the high class acoustic Linear Ceiling

Roll Forming Machines series.

They are widely used for production of different kinds of acoustic linear strip ceilings,

acoustic U shape baffle ceilings and other acoustic suspended metal ceilings.

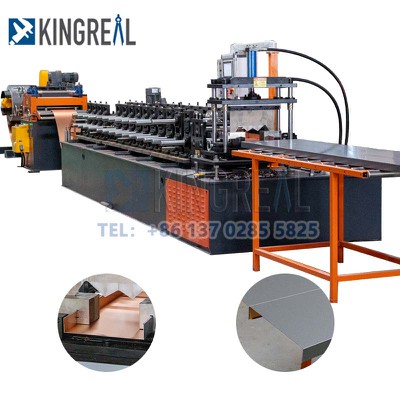

linear strip ceiling machine

We offer flexible solution for the acoustic ceilings. For the U baffle ceilings, usually the

raw materials coils need first to be perforated and acoustic fleece laminated,

then the recoiled strip will be put on the baffle ceiling machine to do the roll forming.

For other products such as linear strip ceiling, the acoustic fleece can be laminated

after the products is formed.

Also, automatic edge bending is an option for the high-ends products clients.

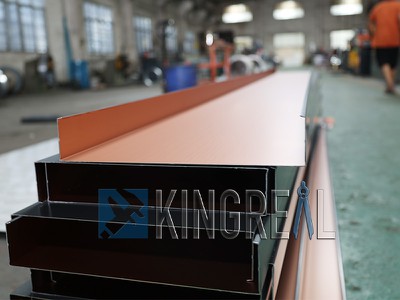

What Type Linear Strip Ceiling Can We Produce?

Technical Specification

Raw materials	Pre-painted Aluminum
Ceiling sizes	75mm -300mm according with different design
Ceiling length	Set on touch screen
Maximum forming speed	10-60 m / min for different products design
Roll Forming stands	15-21 Rollers station according with clients' request
Ends bending	Depends on customer' request
Machine Power	~ 15 KW

Structure

- Combine Hydraulic decoiler & Straightener.

- Main roll forming machine

- shearing station (With auto bending for your choice)

- Output table.

- Electrical & Hydraulic system

Machine Features

Hydraulic decoiler

To respond to changing demands, we have hydraulic decoiler and manual decoiler with integrated hydraulic

core expansion system.

For more, there is optional trolley for full-automatic metal loading.

High Precision Straightener

The machine provides high-precision straightening. To ensure straightness of materials,

we doubled the amount of precision rolls.

As a result, finished products have higher precision. Levelling rollers, which are made of

40Cr round bars, were thermal refined, quenched at high frequency, electroplated twice

and accurately ground.

They are smooth, without scratches, their hardness is above HRC62, and regulated by

4 threaded rods.

With this system, one machine can produce different multi sizes products, and featured with

flexible solution and economical investment.

High Precision Cr12MoV forming rollers

Cr12mov mold steel, heat treatment hardness up to HRC 58⁰-60⁰. Which is processed by CNC

machine after wire cut, 1^st lathe machine, then vacuum heat treatment.

After strictly following these processing procedures, the forming rollers would be endurable

and ensure our machines long time running.

Advantage

CUSTOMERIZED LOGO MAKING

Our company can customize LOGO according to customer's requirements.

For different products, we provide LOGO rolling, stamping, laser coding and other solutions.

Customized LOGO can enhance the company's image and bring publicity.

Customer Visit

Rich Projects experiences

Our company has rich experience in design, production and installation of

roll forming machines.

At present, our company has completed designing and producing of more than

500 kinds of different forming machines.

We've been successfully exported and installed our machines in more than

60 countries around the world and won joint praise of customers.

Relying on rich project experiences and customer feedback,

we continue to improve,innovate,and be dedicated to

produce faster, smarter,more automatic and efficient machines.

Strict Products Quality control System

Our company has a strict quality control system for finished products. We will strictly inspect

products according to the product drawings.

These inspections include but are not limited to product size, shear length accuracy, surface smoothness and distortion.

In addition, for some products that are allowed by conditions, we will check the performance of products through installation.

Products Application

Our Professional Team

Technical Team

KINGREAL has its own professional technical team.

With strong professional ability and rich design experience, KINGREAL engineers can design machines according to the drawings provided by customers and the corresponding production needs.

Solve all technical problems during the production, installation and use of the machine.

Technical Support

technical support

KINGREAL ROLL FORMER is able to provide technical after-sales service to our customers. In order to ensure the smooth installation and operation of the machines, KINGREAL will arrange to send engineers to the customer's project for technical guidance. Up to now, KINGREAL ROLL FORMER has helped customers from Russia, Mexico, India and Saudi Arabia to use the machines smoothly.

FAQ

01.How To Prevent The Cold Roll Forming Machine From Rusting?

Cold roll forming machine is through the sequential configuration of the multi-channel molding roll, the coil, strip and other metal sheets and strips constantly transverse bending

02.Why Should Test The Cold Roll Forming Machine?

A cold roll forming machine is a machine and equipment used to process sheet metal or metal strip into various cross-sectional shapes through a continuous cold roll forming process.

03.The Role Of Rollers in Cold Roll Forming

Cold Roll Forming (Cold Roll Forming) is a plastic process, through the sequential configuration of the multi-channel forming rolls, the coil, strip and other metal sheets and strips are continuously transverse bending, in order to make a specific cross-section of profiles.

04.How To Deal With The Deviation Of The Cold Roll Forming Machine Correctly?

The debugging method of the Cold Roll Forming Machine, such as the plate running to the right, pad the left corner (feeding frame), or drop the bottom the right (the axis runs off the axis and the axis is flat, and the upper axis falls with the bottom axis.

05.The Solution To Punching Burrs

After the roll forming machine is used for a period of time, cutting and punching will produce certain burrs, which is inevitable, so we need to deal with it for a period of time.
