AC Duct Roll Forming Machine

Video About AC Duct Making Machine →

One machine for Different sizes of AC DUCT   The AC DUCT Roll Forming Machine are mainly produce the TDF flange/angle steel flange or  C type flange. The daily processing capacity is 1000-2500 square meters.   As long as the size of the duct is input, the production line automatically completes uncoiling,  leveling, beading, angle of attack, and cutting , Joint bite, common plate flange/angle steel flange  forming or "C" flange forming, folding forming.

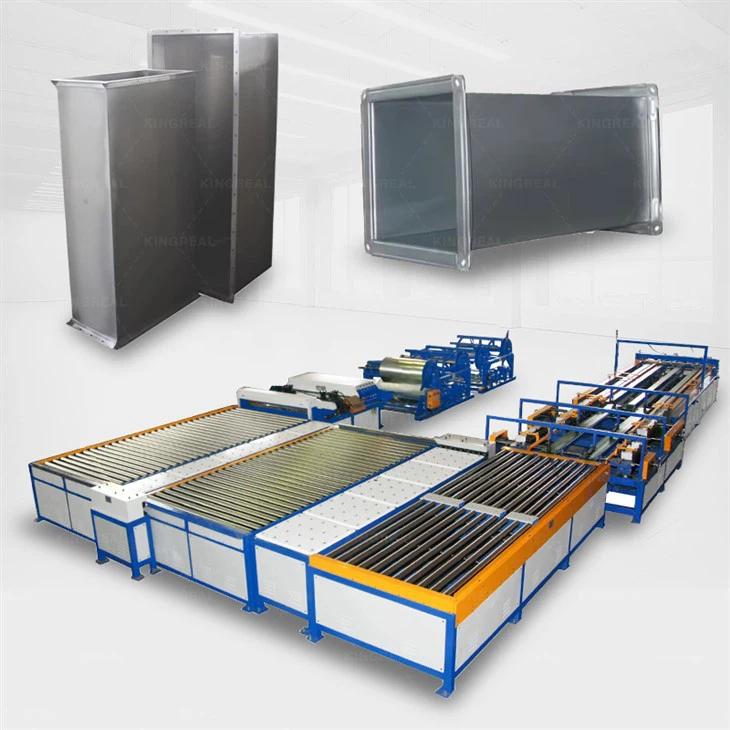

KINGREAL air duct production line, a set with all the functions required for square air ducts production,  consists of an electric feeding frame, leveling and beading, punching middle strengthening holes (optional),  punching square mouths, punching sharp corners, punching flange holes (optional) Equipped), shearing,  lifting type reeling machine (simultaneously cutting, joint angle bite forming, right angle bone bite forming),  two-machine linkage TDF common plate flange forming, angle steel flange small side forming, full C-bone  method Blue forming or C/S bone flange forming (optional), positioning transfer platform (optional), TDF  hydraulic folding machine.

It adopts PLC control and touch screen operation. It can be set to any size according to the operating requirements for cutting. It is equipped with a standard electric feeding rack with a load of 7 tons. It can be equipped with 4 tons (for construction sites), 8 tons or 10 tons according to customer requirements.

This air duct production line is one of our company's largest sales of equipment, linear processing, small footprint, high production efficiency, only one operator, direct input size, the production line is automatically completed, the daily processing capacity can reach 2000 square meters, Suitable for large-scale processing of air ducts.

Machine Features



1. U-shaped structure, small footprint, simple assembly, suitable for small and medium factories;

2. Servo-pneumatic manipulator drives the feeding to ensure stable, accurate positioning and fast speed;

3. High efficiency and labor saving. It only takes 20-25 seconds for each piece of L piece, which is twice as efficient as the linear type;

4. Fixed biting machine, saving time for moving back and forth and improving work efficiency;

5. All rolling reels are made of bearing steel, and the service life is increased by more than 5 times;

6. The CNC system adds a material saving mode, and each roll of material has only one piece of waste less than 20mm;

7, with production memory function, with production order query function.

•







•
•

Technical Specification





Raw materials	0.5-1.2mm galvanized steel
Max. width	1250mm / 1500MM
Max working speed	15m/min
Max coil weight	7tons
Dimensions	14000*5000*1500MM

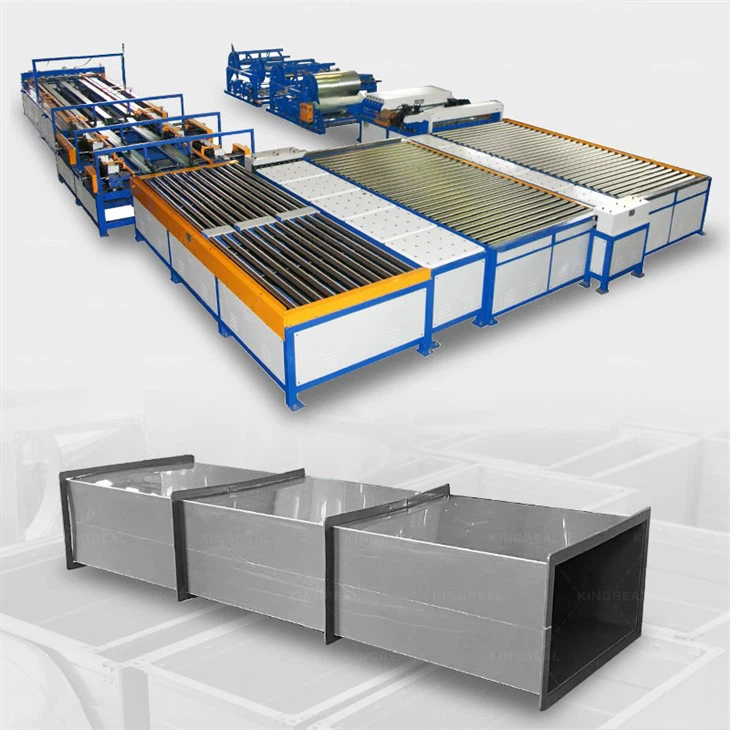

(Final Air Duct Product Display)

Advantage Of This Machine





1. One electric coil rack, 4 trays (5-7 tons per coil);

2. One supporting rack;

3. One host (second-line host);

4. Two stainless steel roller conveyor platforms;

5. One fixed joint biting machine;

6. One set of dual-machine linkage common plate flange machine;

7. One dual-machine linkage angle steel flange machine;

8. A servo feeding platform;

9. One hydraulic folding machine;

10. One computer control system.
