Telescoping Drawer Slides Roll Forming Machine

Telescopic Slide Rail Channel Making Machine (also known as Drawer Slide Molding Machine) is a cold roll forming process used to make drawer slides.

• Material decoiler : First, the cold rolled steel strip material is removed from the coil.
• Roll Forming: These steel strips are continuously roll formed by passing them through a set of rollers. Roll forming is a precision process that ensures that the geometry and dimensions of the slide meet the requirements. These roll forming rollers are accurately machined on CNC equipment to ensure that the run-out tolerance between the roll and the spindle is within 0.03 mm.

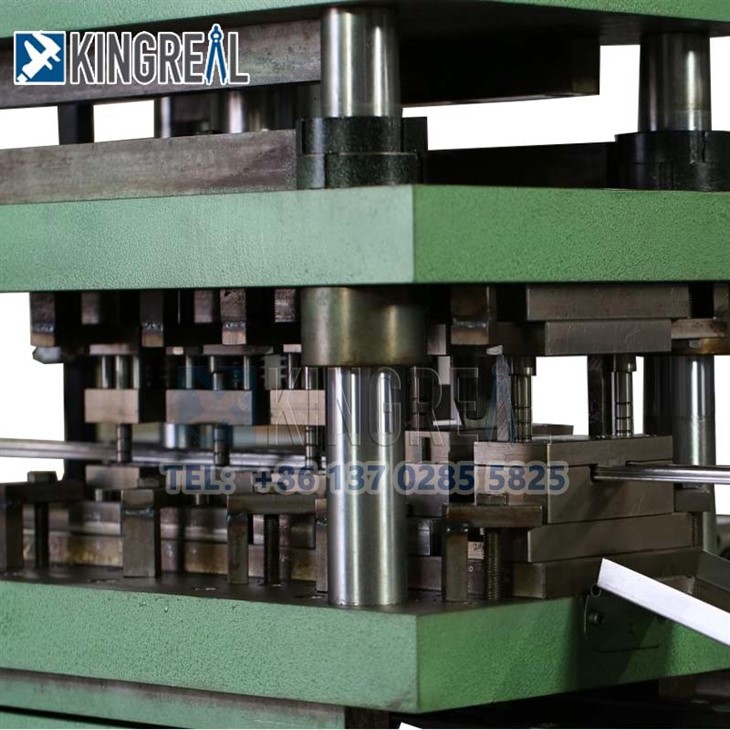

• Hydraulic Punching: After roll forming, the holes in the slide need to be hydraulically punched. These holes are used to mount the slides into drawer boxes or furniture.
• Cutting: After rolling and punching is completed, the slides are cut to the desired length.

Ball Cage Punching Machine (Ball Cage Punching Machine) is an automated machine used to manufacture ball cages. The Ball Cage Punching Machine is designed to convert rotary motion into linear motion. The main motor drives the flywheel, which drives the gears, crankshaft (or eccentric gear) and connecting rods through the clutch. In this way, the slide can realize linear motion.

Compared to conventional flywheel drives, the use of servo drives in slip cage presses increases cutting speeds, surface quality and throughput. In addition, tool changeover times are significantly reduced from several hours to 30 minutes, dramatically increasing machine availability.

Ball Bearing Press Machine is a machine for mounting and dismounting ball bearings, gears, U-joints, sleeves, ball joints and other parts. The design principle of the Ball Bearing Press Machine is to convert rotary motion into linear motion.

The main motor transmits power to the reducer through a V-belt drive. The reducer then transmits this power to two pressure rollers, which rotate in opposite directions. As the pressure rollers rotate, the material naturally enters the ball mold on the rollers.

Assembly Machine For Telescopic Drawer Slides is a machine for assembling telescopic drawer slides.

Inner Slide Riveting (Plastic Locks): First, the plastic locks for the inner slides are riveted into place.

MIDDLE SLIDE ASSEMBLY (BALL CAGE, BALL AND PLASTIC STOP): Next, the ball cage, ball and plastic stop are assembled to the middle slide.

OUTER SLIDE ASSEMBLY (PLASTIC STRIP): The plastic strip for the outer slide is then installed.

Automatic transfer: The slides are automatically transferred on the production line.

Bending of outer slide ends (end rubber): The ends of the outer slides are bent to ensure smooth sliding.

Final assembled drawer slides: Final assembled drawer slides are packed by PLC control.
