In the overall architecture of modern roller shutter systems, the tubular motor shaft serves as an indispensable core component for power transmission and structural support; it directly determines the stability of the shutter's opening and closing, operational noise levels, and service life.

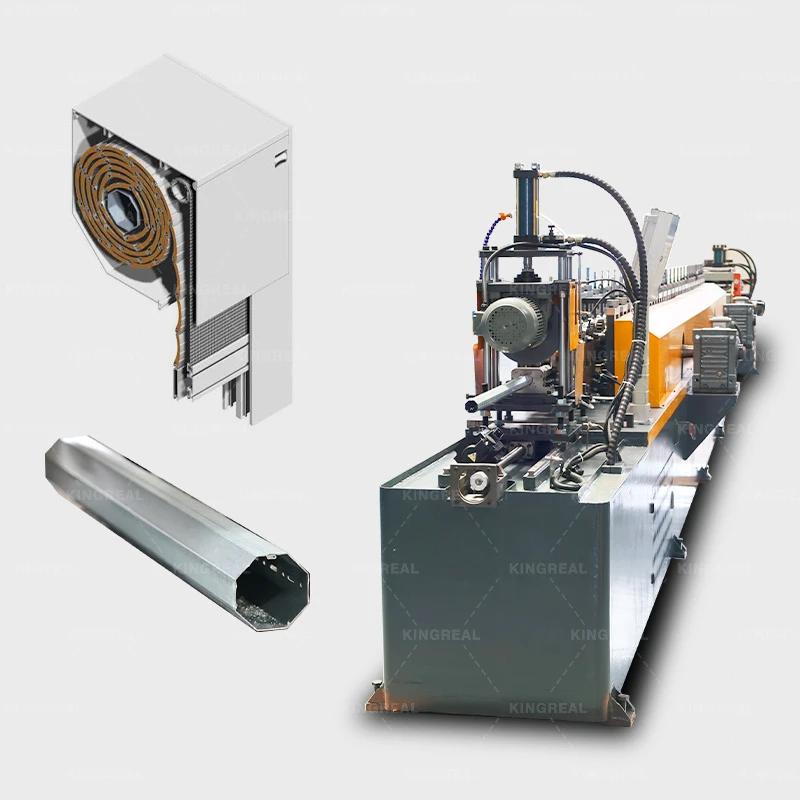

The galvanized octagonal tube machine is specifically designed to manufacture the octagonal tubes used for these shafts-components that are essential for the bearing assemblies within the shutter housing. Installed inside the bearing assembly on either the left or right side of the housing, the octagonal tube acts as the central axis around which the shutter curtain winds; it bears the full load during winding and unwinding operations, serving as a fundamental component for the system's smooth performance.
Consequently, the octagonal pipe roll forming machine's performance, forming precision, and production stability directly influence the overall quality of the tubular motor and the entire roller shutter system.
Tubular Motor Shafts in Roller Shutter Systems
The tubular motor acts as the power core of the roller shutter system, while the octagonal motor shaft serves as its essential mechanical backbone. This shaft performs three primary functions: transmitting the motor's rotational power, supporting various precision internal components, and driving the external tube to execute opening and closing movements.
Housed within the motor's compact cylindrical casing, the octagonal tube shaft-produced by the galvanized octagonal tube machine-precisely connects the motor core, gearbox, and application interface. It fits perfectly into the motor's limited internal space.
Furthermore, its unique octagonal geometry effectively avoids the drawbacks associated with other shapes-such as the slippage common with round tubes and the stress concentration found in square tubes-thereby ensuring more uniform power transmission and superior structural stability.

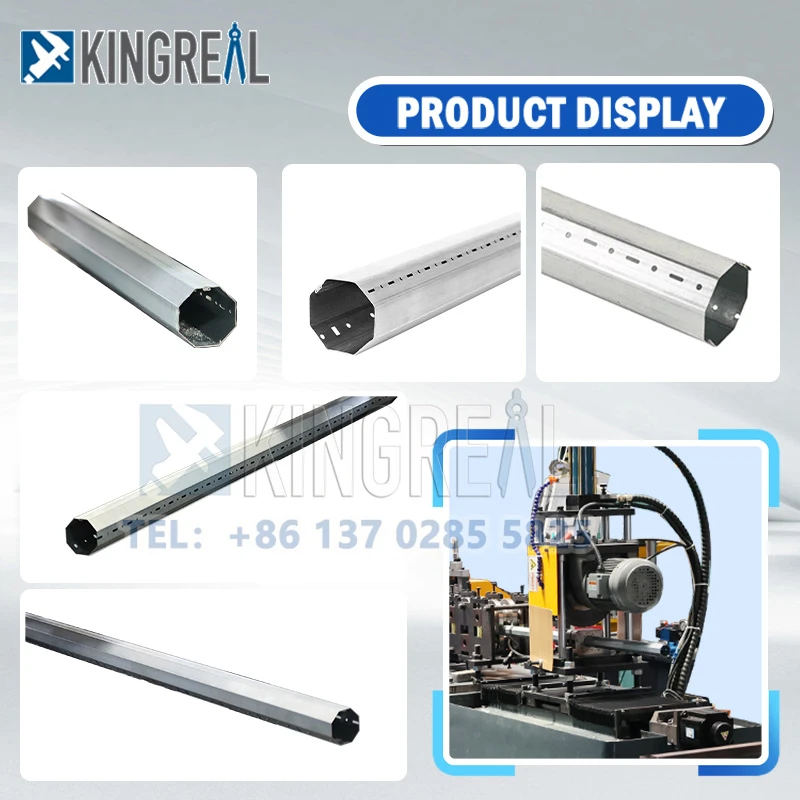

This octagonal pipe roll forming machine enables the standardized mass production of octagonal tubes in specifications such as 40mm, 60mm, 70mm, and 80mm, fully meeting the requirements for the vast majority of tubular motors used in roller shutters on the market.
There are clear industry standards regarding component compatibility: as the tube diameter increases, the power and size of the matching tubular motor and housing must also increase to accommodate wider and heavier roller shutters. The galvanized octagonal tube machine precisely meets the forming standards for various diameters, ensuring that every product specification complies with parameters and performance requirements.
Benefits of Using Octagonal Pipe Roll Forming Machine
The galvanized octagonal tube machine comes standard with core precision components-such as a decoiler, punching station, roll forming machine, cutting station, and an electronic control system. These modules work in synergy to achieve fully automated, large-scale, and standardized production of galvanized octagonal tubes.
Flexible Profile Customization
By simply swapping out tooling cassettes, the high-performance galvanized octagonal tube machine can produce a full range of octagonal tubes sized from 40mm to 80mm.
A single machine meets the production needs for various specifications and types of roller shutter motor shafts, eliminating the need for heavy investment in multiple pieces of equipment.
It also significantly reduces costs associated with daily maintenance, floor space, and labor management, making it the perfect fit for the diverse production requirements of both small-to-medium-sized component workshops and large-scale manufacturing enterprises.
High-Precision Forming
This octagonal pipe roll forming machine utilizes high-strength rollers manufactured via precision CNC machining, paired with a reinforced, stable, and integrated frame structure.
The galvanized octagonal tube machine operates without vibration or misalignment, precisely controlling the forming angle, cross-sectional dimensions, and flatness of the octagonal tube to ensure consistent geometric uniformity across all finished profiles.
The octagonal pipe roll forming machine offers exceptional production repeatability, keeping product deviations within a minimal range during batch production-fully meeting the rigorous requirements for the precision assembly of tubular motors.
Furthermore, the precise roll forming process effectively prevents issues such as material deformation from extrusion or edge damage, significantly reducing material waste during long-term, large-scale production.
Continuous Automated Production
The galvanized octagonal tube machine employs industry-proven continuous cold-roll forming technology integrated with a fully automated electronic control system to enable uninterrupted production.
With stable operating speeds and seamless process transitions, the machine automates the entire workflow-including feeding, punching, forming, and cutting. During mass production, the galvanized octagonal tube machine consistently maintains uniformity in product dimensions, strength, and appearance, ensuring an exceptionally high pass rate for finished products.
Thanks to its flexible production capabilities, superior forming precision, and high-efficiency mass production advantages, the galvanized octagonal tube machine has become a core piece of specialized equipment for manufacturing tubular motor shafts for roller shutter doors, significantly influencing both the overall quality of roller shutter systems and the development of the industry.
For more information regarding equipment specifications, customization options, and production case studies for this specialized octagonal pipe roll forming machine, please contact KINGREAL Roll Former directly.
