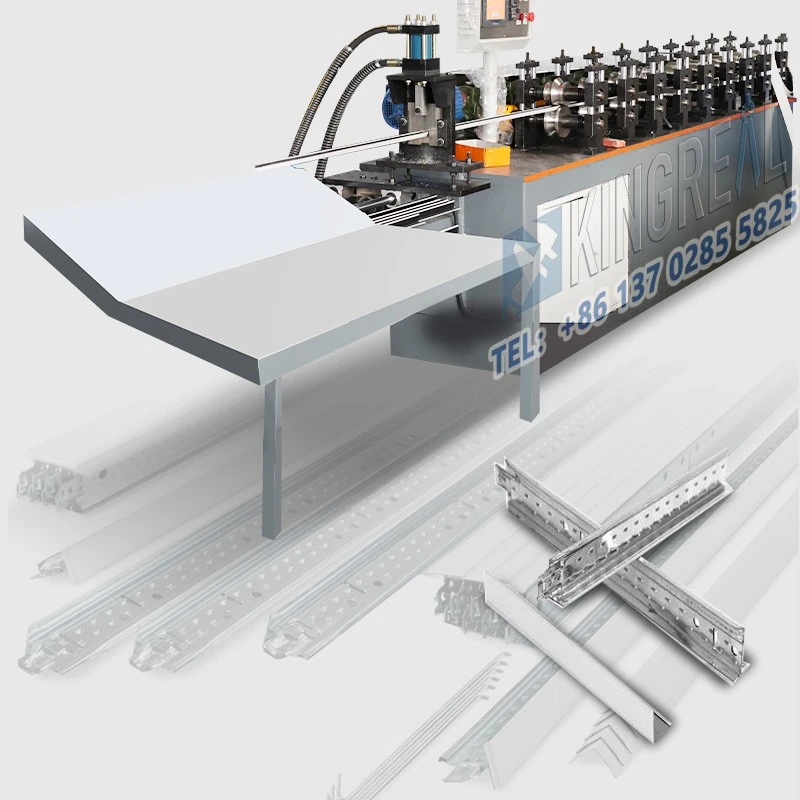

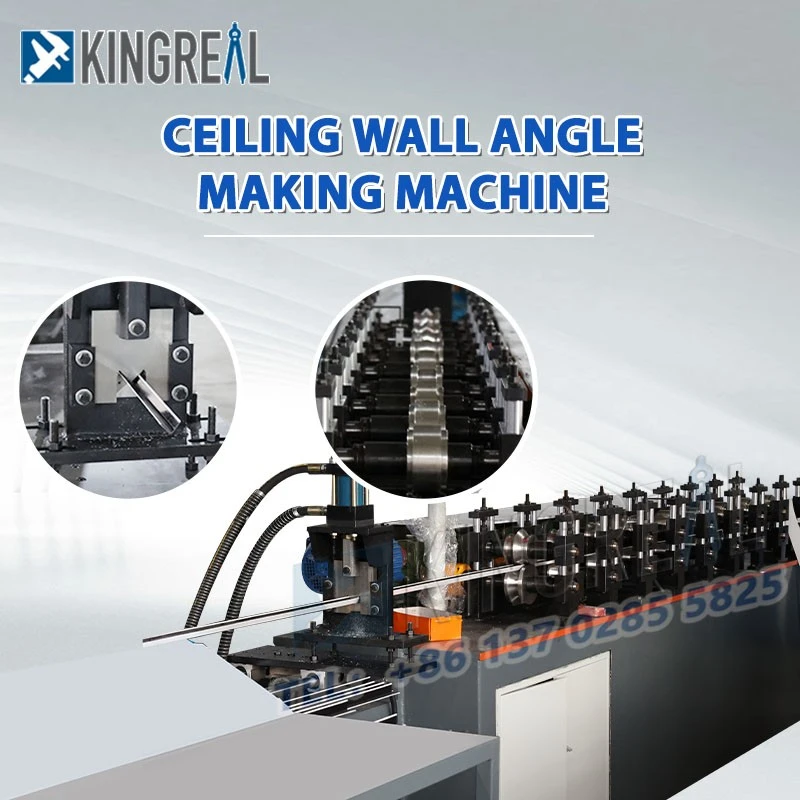

Ceiling Wall Angle Making Machine

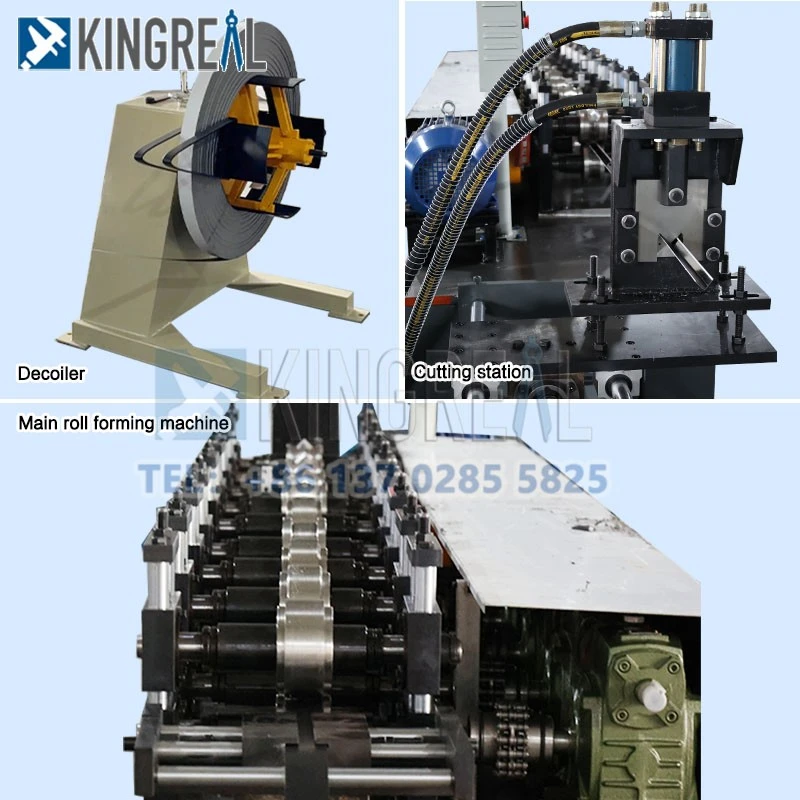

The decoiler unwinds large coils for subsequent processing. KINGREAL Roll Former decoiler has a load capacity of up to 1,100 kg and can handle coils with a diameter of 1,200 mm and an inner diameter of 480 to 510 mm, meeting diverse production needs.

The decoiler's strip width is 100 mm, accommodating common coil specifications on the market. KINGREAL Roll Former designed decoiler uses manual coil tightening to ensure the coil remains flat during unwinding, avoiding wrinkles or deformation, providing a good material foundation for the subsequent forming stage.

The roll forming machine's primary function is to form the uncoiled metal material. KINGREAL Roll Former roll forming machine base is precision-welded from high-strength steel and stress-relieved to ensure long-term stability. Each frame is equipped with an independent worm gear reducer, which, coupled with a shared drive shaft, enables synchronized operation of all rollers, improving production efficiency.

The roll forming machine's roller shaft has a diameter of 40 mm and is made of S45C, a material with excellent strength and toughness. The rollers are typically made of SKD11 material, vacuum-heat-treated to a hardness of HRC 58-61, providing excellent wear resistance and durability. This high-strength material and precision machining enable the roll forming machine to operate stably under high loads, ensuring precise forming of the metal material.

The cutting station cuts the metal material into desired lengths according to customer requirements. KINGREAL Roll Former cutting stations utilize SKD11 blades, vacuum-heat-treated to a hardness of HRC 58-61, ensuring the blades remain sharp throughout the cutting process and extending their lifespan.

The shearing length can be flexibly adjusted to meet actual production needs, providing significant convenience for customers. KINGREAL Roll Former not only provides at least three sets of shearing blades but also allows for customized designs tailored to specific production scenarios.

For countries and regions with specific machine safety regulations, KINGREAL Roll Former engineers will design protective shield for the ceiling wall angle making machines. When the machine is running, a protective shield effectively prevents workers from accidentally touching operating machine parts. When the l angle profile making machine is shut down, the shield can be opened for easy cleaning and maintenance. This design not only improves the safety of the ceiling wall angle making machine but also ensures the safety of the operator.

For customers requiring punching, KINGREAL Roll Former can flexibly install a punching machine before the forming step. The punching die is customized based on the customer's drawings, ensuring that the required punching is completed in one step during the production process, eliminating the need for subsequent secondary processing. This design significantly improves production efficiency and reduces production costs.

KINGREAL Roll Former engraving roller can engrave the customer's brand name on the finished product during the metal coil forming process. This design not only enhances the competitiveness of the finished product but also provides customers with a more unique marketing promotion method. This effectively promotes the customer's brand image and further increases market share.
