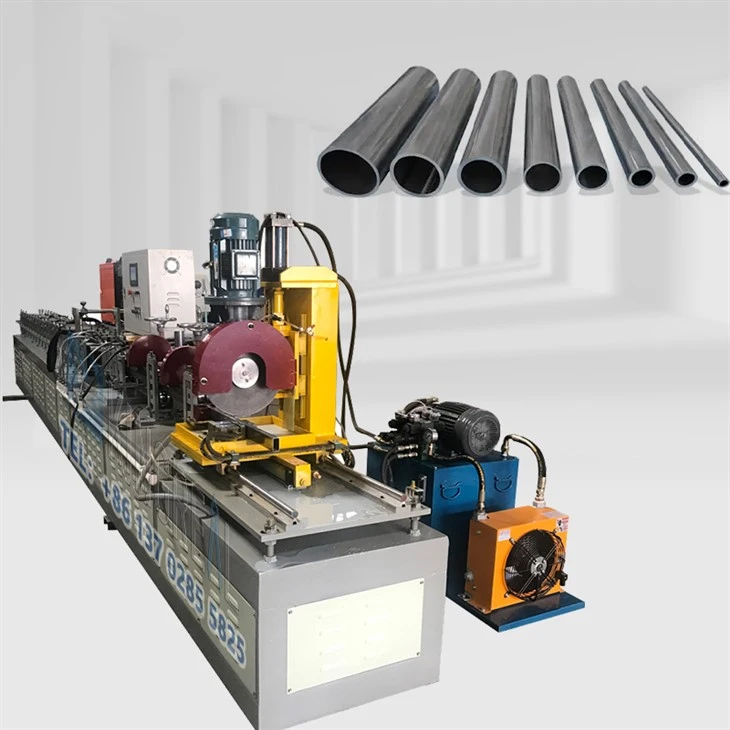

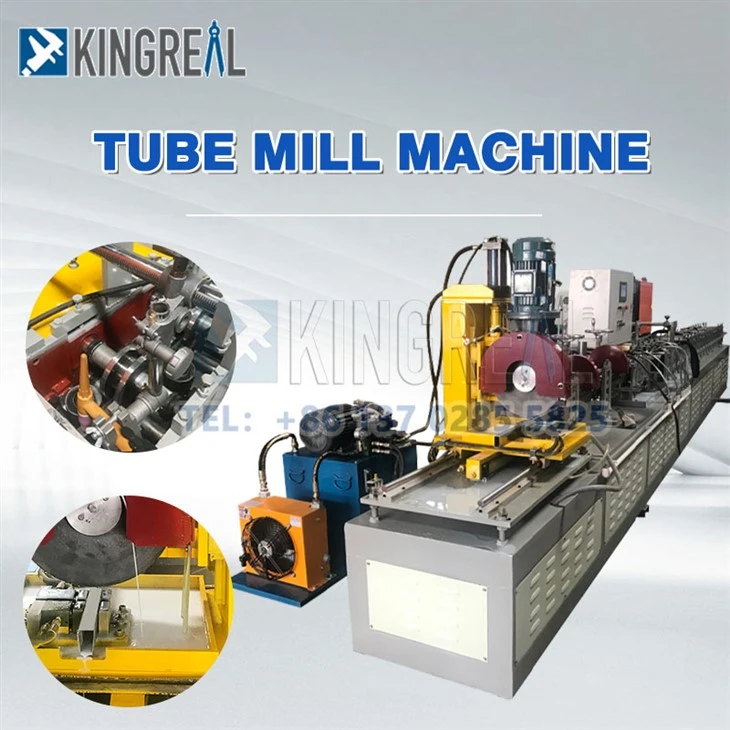

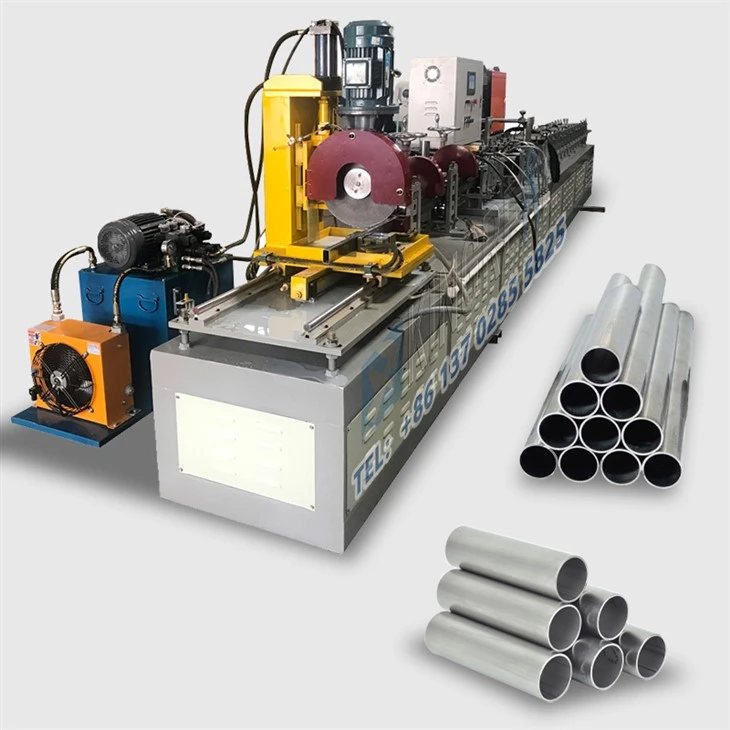

Stainless Steel Tube Mill machine Description

KINGREAL ROLL FORMER stainless steel tube mill production line adopts advanced tube making technology, such as high frequency welding, laser welding, etc. These processes not only improve production efficiency, but also improve product quality.

Modern stainless steel tube mill production line is highly automated. Through the application of technologies such as robots, sensors, and automatic control systems, the production process is automated and intelligent. KINGREAL ROLL FORMER strictly controls the quality of each link in the process of manufacturing stainless steel tube mill production line to ensure the quality and stability of the product.

KINGREAL ROLL FORMER stainless steel tube mill machine introduces the strip into the tube welding machine through the feeder, extrude the strip into shape through the roller, and then uses argon arc welding mixed gas to protect welding and rounding, outputs the required length of pipe, cuts it with a cutter mechanism, and then straightens it with a straightening machine. The spot welding machine is used for spot welding connection between strip heads. Stainless steel pipe tube making machine is a comprehensive set of equipment that continuously welds strips into pipes and rounds and straightens them.

Working Process Of SS Pipe Tube Mill Machine

Decoiler -- Forming Section -- Welding Section -- Grinding Section -- Sizing & Straighteding -- Cutting Machine -- Unloading

Technical Specification for ss tube mill machine

Level Axis OD	Vertical Axis OD	SS Tube Range	Thickness	Drive Motor	SS Tube Size
30mm	25mm	6-32mm	0.2-0.8mm	4 kW	19.5m * 1.0m
40mm	25mm	8-51mm	0.3-1.8 mm	7.5 kW	21.5m * 1.1m
50mm	30mm	25-76mm	0.3-2.0 mm	11kW	24m*1.2m
60mm	40mm	50-114mm	0.3-2.5 mm	15 kW	26m*1.4m
80mm	50mm	76-168mm	0.8-3.5 mm	18.5kw	32m * 2.3m
100mm	60mm	114-219mm	1.0-5.0 mm	22 kW	36m * 2.5m

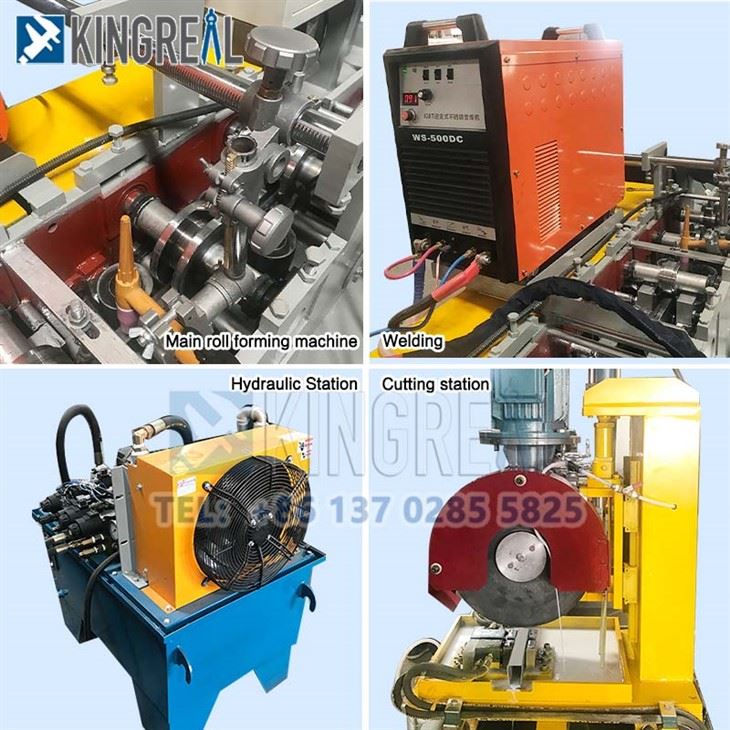

Stainless Steel Tube Mill Machine Component Details

Decoiler For SS Tube Mill Machine

The stainless steel coil is fed into the machine by the decoiler. Stainless steel sheet or strip is typically used to make the coil.

Straightener For SS Tube Making Machine

Prepares the coiled steel sheet or strip for additional processing by straightening it. This is essential to guaranteeing the pipe's consistent wall thickness and shape.

Section on Forming For Tube Mill Machine

A sequence of rollers forms the straightened strip into a cylindrical shape. In order to gradually shape the strip into a pipe, this segment has many rollers organized in a particular manner.

Tube Mill Machine Section on Welding

The edges of the strip are welded together once it has been shaped into a cylinder. Depending on the machine and the needs of the pipe, TIG welding or high-frequency induction welding (HF welding) are usually used for this.

Section On Sizing For SS Pipe Making Machine

Following welding, the pipe might need to be sized to make sure it satisfies criteria for wall thickness and diameter. A sizing roller or other precise instruments are used for this.

Cooling System

To stabilize the pipe's dimensions and solidify the weld, the welded pipe is chilled. Depending on the machine design, either water or air can be used for cooling.

Section for Cutting

The lengthy welded pipe is cut to the appropriate lengths. A range of cutting instruments, including saws and shears, can be used for this.

Testing and Inspection

SS Pipes are frequently tested for dimensional correctness, strength, and weld integrity in addition to being inspected for quality. This could involve non-destructive testing techniques like ultrasonic testing or visual inspections.

precision parts processing

Advantage Of SS Tube Mill Making Machine

1. The stainless steel pipe making machine adopts an advanced control system, which can accurately control the size and shape of the pipe to ensure that each pipe meets strict quality standards. At the same time, the equipment has a high degree of automation, which greatly improves production efficiency and reduces labor costs.

2. The stainless steel pipe making machine has undergone strict quality inspection and long-term operation tests, and has excellent stability and reliability. Whether in continuous production or in harsh working environments, it can maintain a good operating state and provide customers with stable production capacity guarantees.

3. KINGREAL ROLL FORMER fully considers energy-saving and environmental protection factors in the design of the stainless steel pipe making machine. The equipment adopts energy-saving motors and efficient transmission systems to effectively reduce energy consumption. At the same time, the generation of waste is reduced during the production process, which meets environmental protection requirements.

4. The stainless steel pipe making machine adopts a modular design, with a simple structure and easy disassembly and installation. At the same time, the equipment is equipped with a complete fault diagnosis system, which can quickly locate and solve problems, reduce downtime, and improve equipment utilization.

Application Of SS Tube Making Machine

Stainless steel pipe production lines are widely used in the construction industry, such as building water supply and drainage systems, fire protection systems, etc. In the chemical industry, stainless steel pipe production lines are used to produce various pipes and equipment, such as reactors, heat exchangers, etc. In the pharmaceutical industry, stainless steel pipe production lines are used to produce various medical devices, such as infusion tubes, syringes, etc.
