Products Description Of CZ Purlin Roll Forming Machine

CZ interchange roll forming equipment is the latest research and development result of our company. The characteristics of the equipment: quick and free change of product specifications, saving time for changing models, and simple operation.

Equipped with a universal shear combination device, each specification of C-shaped steel and Z-shaped steel can be cut, in addition to saving time and cost. KINGREAL C and Z purline roll forming machine is one of our most featuring products,and it is featured with high speed output (up to 40m/min), full automatic running (auto stacking system for your choice), easy to operate, etc.

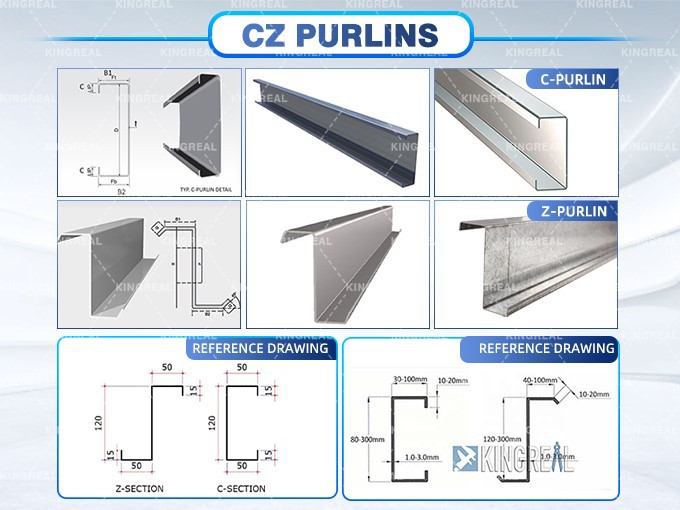

CZ Purlin Products Specification

►C-shaped steel: (a=80-300,) can be changed arbitrarily, and waist height (b=35-80) can be changed arbitrarily.

►Any change between Z-shaped steel : (a=120-300,) and waist height (b=35-80)

►Sheet thickness: 1.5 mm ~3.0 mm thickness

►Formed sheet : Q235, Q345 galvanized steel sheet

►Production speed : 20-28m/min

20230529-CZ

CZ Purlin Making Machine Features

- The cutting device has been successfully developed with a stepless adjustment tool,

which has changed the trouble of matching a pair of molds for each specification.

It saves time and is also suitable for producing profiles of various specifications with

unconventional sizes.

- Since each specification needs to be equipped with a pair of molds, the stepless adjustment

of the tool not only saves the cost of the mold, especially during the debugging process,

when the height of the two sides is inconsistent and exceeds the forming mold, the multifunctional

cutting knife can be adjusted, while the original conventional mold Failure to pass will produce waste

and re-adjust after segmented cutting, resulting in waste of raw materials during the production process

Technical Specification Of C Z Purlin Roll Forming Machine

1 Forming machine frame	16-pass forming plus multiple auxiliary forming rollers
2 Sheet thickness	1.5~3.0mm
3 Forming speed	8~12M/MIN
4 Roll material	Gcr15
5 Motor power	15KW motor with cycloid reducer
6 Side plate structure	Adopt 48MM supporting monolithic archway, blackened treatment
7 Spindle material	CR40 modulation processing, spindle diameter: 70mm
8 Cutting method	Hydraulic cutting with universal shearing knife
9 Cutting tool material	Cr12Mov
10 Hydraulic station power	7.5KW
11 Transmission mode	1.2 inch single row chain
12 Installed capacity	30KW
13 Production line length	24 meters
14 Production line weight	13T
15 Power supply voltage	380V
16 Bearings	All use Harbin bearings or Luoyang bearings
17 Safety protection	There are emergency stop buttons on the whole line, which are easy to handle emergency accidents and ensure the safety of equipment and operators. Protective covers are placed on the transmission parts that are likely to cause damage to workers, such as chains and gears, to ensure worker safety.
18 Control system	PLC control system: Panasonic brand Inverter: Yaskawa brand Encoder: Omron

Structure Of This Machine

The CZ interchange roll forming equipment is mainly composed of

a passive inner support type unwinding rack, a feeding guide mechanism,

a pinch roller table mechanism, a sheet leveling mechanism, a pinch roller

table, a punching and cutting device, a forming host, and a hydraulic

station system , PLC computer control system, finished product support

frame and other parts

C Purlin Machine

KINGREAL Factory

Technical Support

product-800-661

Packing & Shipping

20220913--

Local After-Sale Service

In order to be able to effectively solve customer needs in the first time, KINGREAL ROLL FORMER has set up localized service points in many countries and regions, such as India, Russia, Turkey, the United Arab Emirates and Qatar.

Localized service points in other countries and regions are also in progress
