Snap Lock Metal Roofing Panel Machine Seamlock
Product Introduction
Our perfect management system and rich production experience make our Roll Forming Machine, Corrugated Sheet Making Machine, Linear Ceiling Strip Machine have excellent quality. Our company has established and improved the comprehensive budget management system. Through scientific budget and effective management, we can promote the scientization of our business decision-making and improve our comprehensive profitability. The company upholds the "technology for survival, service for development" attitude, abide by the "strict precision, analysis into the micro" philosophy. We have implemented strict quality control management for all key processes. Now we have superior devices.
Snap Lock Metal Roof Tile Machine Description
|
Snap Lock Standing Seam Roll Forming Machine compared to tradition roof panel , no need to do seaming and clipper. Our Standing seam snap lock self-lock roofing sheet roll forming Machine can be used a workshop, industrial building etc.
The final product can be cut as per set length controller, and the length is automatically measured by encoder. When final product reached set length, machine will stop to cut the sheet automatically. Finish this action, the machine will run again continuously.
Snap Lock portable metal roofing panel machines are capable of producing 12 and 16-inch-wide architectural snap lock (Nail Leg) style metal roofing panels for residential and light commercial applications.
This machine forms continuous metal roofing panels for eave to ridge installation and its design eliminates the need for an additional fastener. Metal panels can be produced from steel, aluminum or copper. |
 |
Technical Specification
|
Snap locking Clip lock Roll Forming Machine For Metal Standing Seam Roofing Sheet |
||
|
1 |
Material Width |
290-600mm |
|
2 |
Effective Width |
220-530mm |
|
3 |
Thickness of Coil |
0.5-0.8mm |
|
4 |
Application |
standing seam roof panel |
|
5 |
Estimated Dimension |
1500mmX1100mmX1200mm |
|
6 |
Total Weight |
1.9 Tons |
|
7 |
Main Power |
1.5KW |
|
8 |
Decoiler |
Manual or Hydraulic Decoiler |
|
9 |
Inner Diameter |
508mm |
|
10 |
Outer Diameter |
600 |
|
11 |
Loading Weight |
4-5T |
|
12 |
Forming Speed |
0-11m/min |
|
13 |
Forming Station |
6 stations |
|
14 |
Bracket |
Welded with 36 # I-steel |
|
15 |
Material of Shaft |
High Grade forged 45# Steel with 1st Rough Finished and then 2th Refined Finished |
|
16 |
Diameter of the Roll |
60mm |
|
17 |
Material of Roller |
High Quality Cr12 Quenched HRC58-62 ° |
|
18 |
Processing Technology |
Rough Processing ---Refined Processing--Hard Chromium Plating. |
|
19 |
Material of Rack |
Complete Welded Structure of A3 Steel Plate 20 mm Thickness |
|
20 |
Transmission |
Chain driving |
|
21 |
Material of cutting blade |
Cr12 with Quenched Treatment 60-62 ° |
|
22 |
Cutting system |
Hydraulic Stop or Tracking Cutting |
|
23 |
Voltage |
380V/50HZ/3 Phase or as Customer Require |
(Product Drawing)
Machine Structure
|
- Decoiler - Precision leveler - Servo feeder - Main roll forming station - Hydraulic shearing station - Products stacker - Electrical & Hydraulic system |
 |

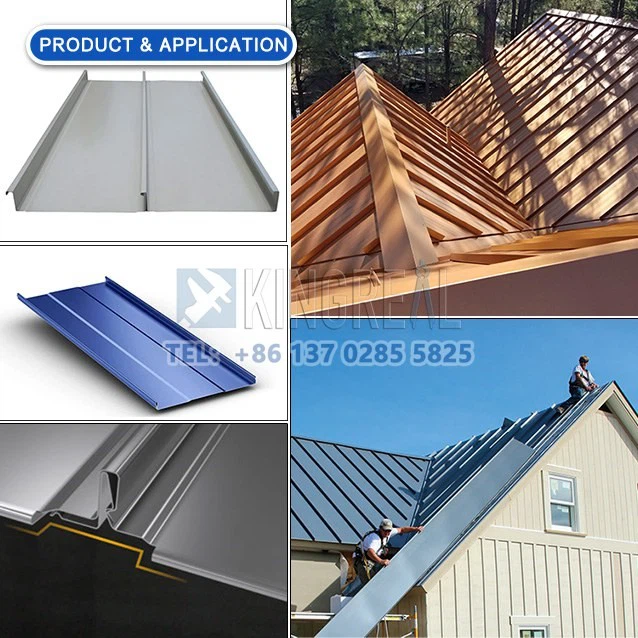

Application Of Standing Seam
Other Roof tile Making Machine Can Be Supplied
------------------------------------------------------------------------FAQ-------------------------------------------------------------------------
Q: What's your Warranty ?
12 months, during which all parts damaged because of quality problem will be changed for free.
Q: What's your delivery Time ?
Within 60-90 days after advance payment received. Some standard machines are in stock, can be delivered at any time.
Q: What's your payment terms ?
30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What's your Install and Training ?
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, manual and video is provided to show how to install and operate.
Q: What's you after-sale service ?
We provide 24-hour online service for our customers.
A.The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.
When technique men go to the buyer's place to debug the machines, the buyer should pay the expense of accommodation, and traffic for the buyer's men.
B. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.
------------------------------------------------------------------------Our Customer-------------------------------------------------------------------------
------------------------------------------------------------------------How to install the machine?-------------------------------------------------------------------------
In order to help our customers to solve machine installation problems, KINGREAL will provide both online and local installation services
Featured Profuct Of Roof Tile Forming Machine
1. Double Layer Roofing Sheet Roll Forming Machine
2. Glazed Roof Tile Roll Forming Machine
3. Gutter Roll Forming Machine
With the development of the market, our Snap Lock Metal Roofing Panel Machine Seamlock are more and more widely used due to their unique advantages. We look forward to becoming the long-term partner you need and trust! The company's standardized operation, scientific management, efficient, pragmatic and competent organization have laid a solid foundation for the company's future development. We take "care, environmental protection, health, progress" as corporate responsibility.
