High Quality Cable Tray Production Line Forming Machine
Product Introduction
We embrace cutting-edge technology, based on quality, professional technology to provide customers with better Wall Cladding Machine, Shelving Panel Making Machine, U Baffle Ceiling Machine. We are in line with the purpose of serving the public and striving for win-win to provide you with cheap and high-quality products. To encourage innovation, support innovation and tolerate innovation, we need to jointly cultivate a corporate culture that advocates innovation, dares to innovate and is good at innovation.
Video About Cable Tray Roll Forming Machine→

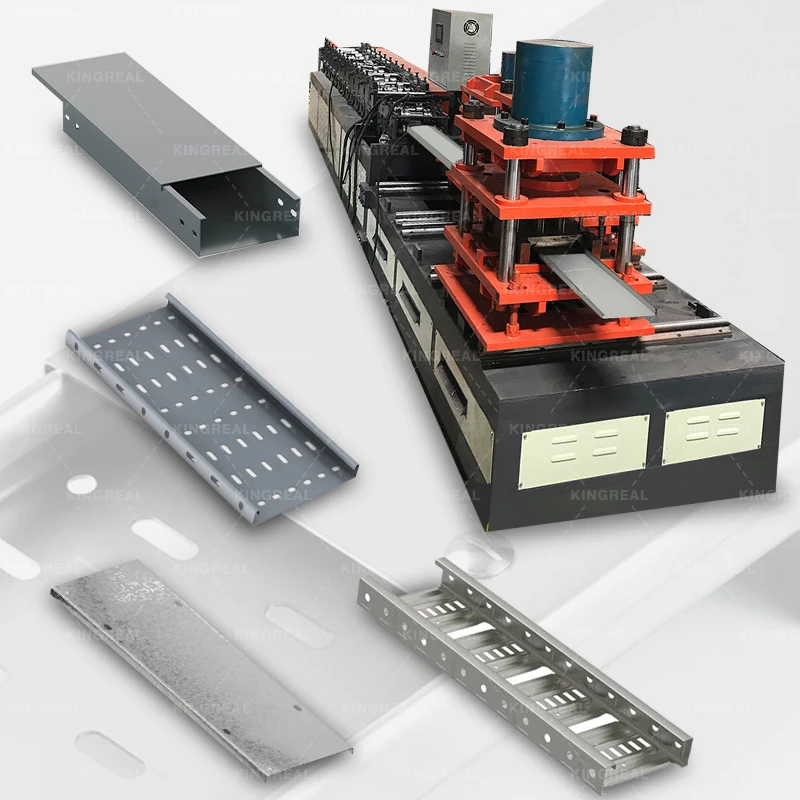

Channel Cable Tray Cover Making Machine Description
The whole cable tray ladder production line integrates the production equipment of punching/cutting, automatic conveying
(automatic blanking-optional), forming and other technologies.
The whole cable tray ladder production line is composed of unwinding system, leveling system, punching/cutting system,
automatic conveying system, forming system, electric control system, etc.
This cable tray ladder production line can produce cable trays. Different specifications can be completed by changing the die.
The roll bending machine adopts a combination and can be debugged. A set of rolls can complete all specifications
of the tray products.
The specification changes are completed by adjusting the opening and rolls of the cable tray forming production line.
Professionally provide customers with cold-formed forming machines, cold-formed steel equipment product design
and engineering cost analysis, roll design, calculation, forming process simulation, customized various precision rolls,
and various cold-formed steel equipment
KINGREAL Offer Full Solution For The Perforated Cable Tray Cover Production As Following :
-
- Perforated cable tray production line
-
- Electrical cable tray cover making machine
By simply input the requested width on touch screen, the servo motors can drive the forming
rollers to the position produce different widths of cable trays on the same machine.
Machine Features For Cable Tray Cover Machine
- Fully automatic cable tray cover production line
- Online high-speed perforation
- Width adjustable
- High quality roll forming
Technical Specification of cable tray cover making machine:
|
Raw materials |
galvanized sheet, mild steel, etc |
|
Raw material width |
≤1050mm |
|
Raw materials weight |
≤8T |
|
Raw material ID |
460～510mm |
|
Raw material OD |
≤1200mm |
|
Material thickness |
0.5-1.5mm |
|
Products width |
500-800mm adjustable |
|
Punch speed |
2.5-5m/min |
|
Production line |
Fully automatic |
|
Maximum forming speed |
12 m / min |
|
Roll Forming stands |
22 Rollers station |
|
Forming rollers materials |
GCr15 quenching treatment |
|
Driving method |
Gearbox driving |
|
Electrical control system |
PLC control |
|
Machine Power |
~ 35 KW |
|
Dimension |
32*2.3*1.8M (L*W*H) |
The main components of the cable tray ladder equipment: a complete set of components such as decoiler, leveler, servo feeding device, punching machine, cutting die, cutting, conveying, forming host, cut-to-length, receiving table and electrical control.
Cable Tray Cover Production Application
- CABLE TRUNK COVER MACHINE
- PERFORMATED CABLE TRAY SYSTEM EQUIPMEMTY
In the electrical wiring of buildings, a cable tray system is used to support insulated electric cables used for power distribution and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction. They are especially useful in situations where changes to a wiring system are anticipated, since new cables can be installed by laying them in the tray, instead of pulling them through a pipe.
Common cable trays are made of galvanized steel, stainless steel, aluminum, or glass-fiber reinforced plastic. The material for a given application is chosen based on where it will be used. Galvanized tray may be made of pre-galvanized steel sheet fabricated into tray, or may be hot-dip galvanized after fabrication. When galvanized tray is cut to length in the field, usually the cut surface will be painted with a zinc-rich compound to protect the metal from corrosion.
Complete Cable System Solutions
-Perforated Cable Tray Machine
-Cable Ladder Roll Forming Machine
-Cable Tray Cover Forming Machine
-Trough Cable Tray Roll Forming Machine
-Solid Bottom Cable Tray Machine
-Din Rail Channel Machine
Cable Tray Cover Machine Acceptance Services
After the Cable Tray Cover Machine finishes full assembly, KINGREAL Roll Former carries out strict internal pre‑commissioning work.
After passing all internal test procedures, customers are welcome to attend official factory acceptance tests at our premises. KINGREAL Roll Former's skilled technical team will offer full‑process on‑site support, checking every item strictly in line with standardized acceptance checklists.
The acceptance scope includes key checkpoints for the Cable Tray Cover Machine: exterior condition and structural assemblies, running‑performance validation, flexible specification‑switching function, as well as finished‑product dimension precision testing. Real‑world production scenarios are fully simulated in this session, so customers can intuitively observe equipment running status and finished‑product quality.
Should any non‑conformities be spotted in acceptance, our technicians will conduct on‑site parameter tuning and part modification to bring all performance indicators in line with customer expectations. Where on‑site correction cannot resolve issues, the Cable Tray Cover Machine will go through factory‑back re‑optimization, reassembly and re‑commissioning, until every performance criterion is fully satisfied.
One‑Stop Service Process
KINGREAL Roll Former delivers full‑coverage one‑stop solutions spanning pre‑sales, in‑sales and after‑sales workflows.
Our service scope covers customer factory tours for equipment performance assessment, targeted requirement analysis for custom production solution development, plus in‑house manufacturing and commissioning execution. Once production is complete, KINGREAL Roll Former arranges customer inspection for the Cable Tray Cover Machine, to confirm full alignment with project specifications and stable output of qualified end‑products. Equipment will then move forward to shipment upon customer sign‑off.
After shipment, KINGREAL Roll Former keeps sustained project tracking and fast‑response technical backup, covering field installation, operator training, spare‑parts provision and routine maintenance services.
Professional Technical and Service Team
KINGREAL Roll Former is backed by a seasoned professional technical team focusing on equipment R&D and custom‑oriented design.
When developing Cable Tray Cover Machine solutions, the team takes industry norms, client production environments and regional application demands across different nations into comprehensive consideration.
Cable Tray Cover Machines are available with recognized international credentials including CE, SGS and ISO certifications. These qualifications satisfy market access standards and support hassle‑free customs clearance and on‑site startup. Supported by a mature global service footprint, KINGREAL Roll Former adopts combined online‑offline service modes to build a full‑lifecycle closed‑loop service system across pre‑sales, project implementation and after‑sales phases.
At the pre‑sales stage, specialized engineers work against unique production demands to build custom equipment proposals, covering layout planning, parameter configuration and budget evaluation. In project implementation, our team tracks every key milestone: production progress, factory testing, inspection & acceptance and shipment arrangement. We keep customers updated timely and respond promptly to all consultations.
Post‑delivery after‑sales support consists of remote technical guidance, on‑site installation & commissioning, operational training, fault diagnosis & resolution, and spare‑parts supply.
Packing & Shipping
Customer Feedback
How To Order?
The High Quality Cable Tray Production Line Forming Machine we produced has hundreds of specifications and models and is applicable to a wide range of industries, which can greatly meet the requirements of customers for product specifications and quality. Our highly specialized process eliminates the component failure and offers our customers unvarying quality, allowing us to control cost, plan capacity and maintain consistent on time delivery. Only by standing in the perspective of customers, can we truly win the market.
