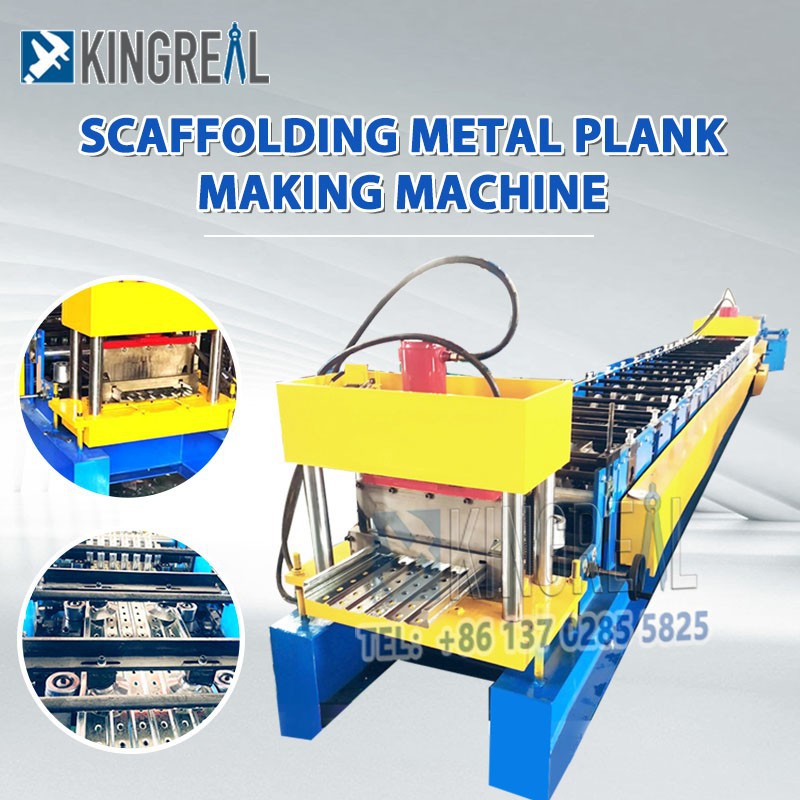

Scaffolding Metal Plank Making Machine Description

KINGREAL Roll Former scaffolding metal plank making machines are specifically designed to produce safe and reliable scaffolding. Typically, KINGREAL Roll Former scaffolding metal plank machines use 2.0-4.0mm thick coils of mild steel, galvanized sheet metal, and other materials as raw materials. Through a series of sophisticated processes, they produce scaffolding in the shape and size required by the customer. These scaffolds are widely used in multi-story steel structures such as exhibition halls and steel structure factories, providing a safe working environment for workers.

KINGREAL Roll Former scaffolding metal plank making machines are highly automated and can flexibly adjust the width of the product to meet the needs of different projects. The scaffolding produced by KINGREAL Roll Former scaffolding metal plank machines complies with all scaffolding industry standards, ensuring wide application in industrial, commercial, and residential markets. The use of scaffolding walking boards not only ensures worker safety but also provides stable support in environments where workers frequently move materials.

Workflow of Scaffolding Metal Plank Making Machine

Decoiler -- Leveling Machine -- Feeding System -- Metal Punching Machine -- Roll Forming Machine -- Cutting Station -- Output Table

Parameters of Scaffolding Metal Plank Making Machine

Roller Stations:	30-36 (depends On Final Design)	Roller Shafts Diameter:	70-90mm
Roll Forming Speed:	15-25m/min	Forming Rollers Material:	CR12MOV VACUUM HEAT TREATMENT
Motor power	30kw+2kw*2pc servo motor	Production size	190mm/260mm/300mm/320mm
Main parts
Slot cutting die	Punching holes die	Forming holes die	Punching logo/tracking NO. die
3 in 1 COMBI	Press machine capacity :400ton	Forming machine	Shear cutting off table
Packing table	Received profile Robot	Electric control system	Hydraulic station

How the Scaffolding Metal Plank Machine Works?

The scaffolding metal plank machine transforms a flat sheet of metal into the desired scaffolding board. A series of rollers press the metal into the desired shape. During the forming process, the scaffolding metal plank making machine automatically performs multiple steps, including unwinding, leveling, feeding, punching, forming, and cutting.

Once the scaffolding board is formed, an encoder equipped with the machine cuts it to the desired length. The finished product is then delivered to the output station via a conveyor. The entire process is efficient and precise, ensuring consistent dimensional and quality of the produced scaffolding boards.

Advantages of Scaffolding Metal Plank Machine

Diverse production capabilities for scaffolding metal plank machine

KINGREAL Roll Former scaffolding metal plank making machine features a flexible design and can be adjusted to any thickness ranging from 2.0mm to 4.0mm. This wide spectrum of thicknesses lets customers choose the ideal scaffolding type for their particular project demands.

Customers can also quickly change the scaffolding metal plank machine parameters to create scaffolding boards of various sizes according to the particular needs of their project. With its varied production capabilities, KINGREAL Roll Former scaffolding metal plank making machine can efficiently meet large-scale production needs, saving time and reducing labor costs.

Efficient punching system for scaffolding metal plank machine

The punching machine on this scaffolding metal plank making machine utilizes a PLC control system, enabling simultaneous cutting, flattening, and punching of steel materials. This design ensures high efficiency and accuracy during the production process, significantly improving production efficiency.

Notably, the scaffolding metal plank machine's punching system is also adaptable to a variety of materials. Whether it's mild steel or galvanized sheet metal, the scaffolding metal plank making machine can punch holes efficiently and accurately. This versatile adaptability allows customers to select the most suitable material based on their project needs.

Customized scaffolding metal plank making machine

KINGREAL Roll Former customizes the punching die for the scaffolding metal plank machine based on customer-provided drawings, enabling the punching machine to accurately punch out the hole pattern and diameter that meets actual production requirements.

Customers can choose particular hole patterns and sizes depending on project needs, therefore guaranteeing the scaffolding panels are ideally adapted for installation and utilization. Customers don't have to spend a lot of time choosing and modifying regular molds anymore. Customized punching dies can directly meet production needs, speeding up production and shortening project delivery times.

Scaffolding Metal Plank Machine-3

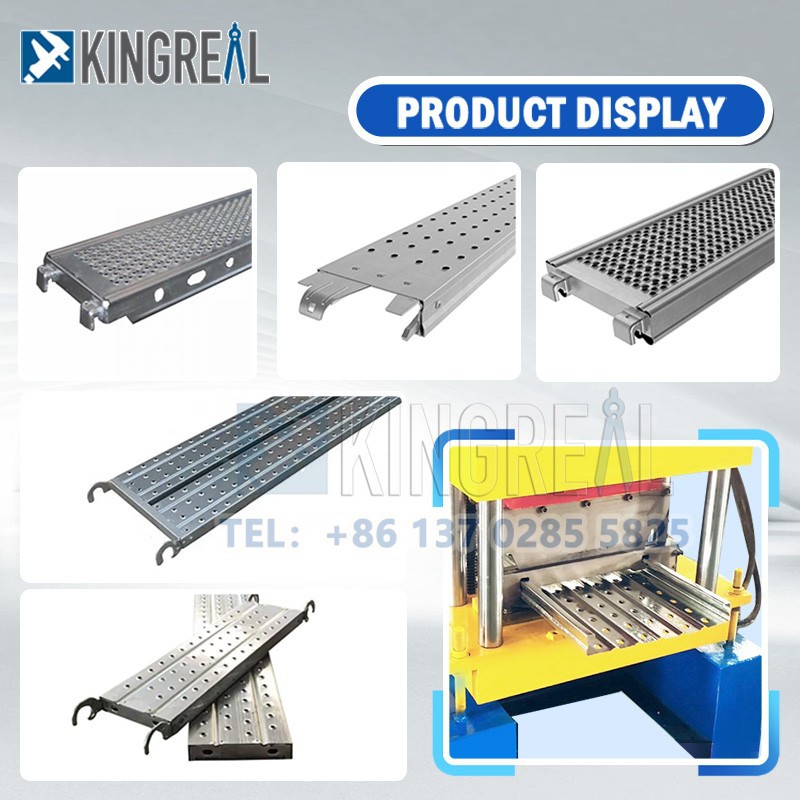

Introduction to Scaffolding Metal Plank

KINGREAL Roll Former scaffolding metal plank machines produce a variety of scaffolding planks, including Canadian-type steel planks and Dog Ear-type steel planks. These scaffolding planks are lightweight, strong, corrosion-resistant, and non-slip, making them easy to assemble and disassemble and suitable for reuse.

Customers can select the appropriate finished product based on their project needs. Through customized designs by KINGREAL Roll Former engineers, KINGREAL Roll Former scaffolding metal plank making machines efficiently produce scaffolding planks tailored to their specific needs, ensuring that each finished product performs optimally in its intended application.

Be used in a wide range of industries.

Applications to Scaffolding Metal Plank Machine

KINGREAL Roll Former scaffolding metal plank machines produce scaffolding planks in a variety of cross-sectional shapes, including V-shaped, U-shaped, trapezoidal, and corrugated. These scaffolding planks are widely used on construction sites and for work at height, facilitating material handling and ensuring construction safety. Steel scaffolding panels are used as walkways in scaffolding systems, providing a stable walking surface. Their anti-slip design further enhances construction safety.

Scaffolding Metal Plank Machine-5

Scaffolding metal plank machine for construction

In construction, scaffolding panels produced by scaffolding metal plank making machines provide workers with a safe and stable working platform.

Whether working on the facades of high-rise buildings or in complex construction environments, scaffolding panels ensure worker safety and efficiency.

Scaffolding metal plank machine for industrial applications

Scaffolding panels are also widely used in the industrial sector. Many factories and warehouses use scaffolding systems to create temporary work platforms for equipment maintenance, material handling, and other elevated work.

KINGREAL Roll Former scaffolding metal plank making machines are a preferred choice for industrial customers due to their high strength and durability.

Scaffolding metal plank machine for commercial uses

Scaffolding panels also play an important role in commercial activities. For example, in exhibitions, event setups, and stage construction, scaffolding systems provide essential support for displays and performances.

Scaffolding's flexibility and diverse design make it widely applicable in various commercial settings.
