"As a professional supplier of gypsum channel making machines, KINGREAL Roll Former offers gypsum channel roll forming machines that are fully adaptable to your diverse requirements. KINGREAL Roll Former comprehensively meet our clients' individualized needs regarding production volume and automation levels-whether for small-batch runs or large-scale assembly line operations, our gypsum channel making machine provides a precise match. Regardless of which gypsum channel making machine you select, KINGREAL Roll Former gypsum channel roll forming machine guarantees the production of perfectly functional profiles that strictly adhere to your specific project requirements, thereby helping you gain a competitive edge in a fierce market.
KINGREAL Roll Former gypsum channel making machines are capable of producing a wide variety of gypsum profiles tailored to client specifications. Among these, the CW, UW, and UA profiles stand out as core products in the construction industry, distinguished by their unique functionalities and extensive range of applications. This article begins by examining the finished characteristics and applications of these three common profiles, then transitions to the specialized gypsum channel roll forming machines designed for their production. KINGREAL Roll Former will provide a detailed overview of the gypsum channel making machine's configurations, advantages, and customization services, demonstrating how KINGREAL Roll Former gypsum channel roll forming machines precisely align with the specific production demands of different profile types."

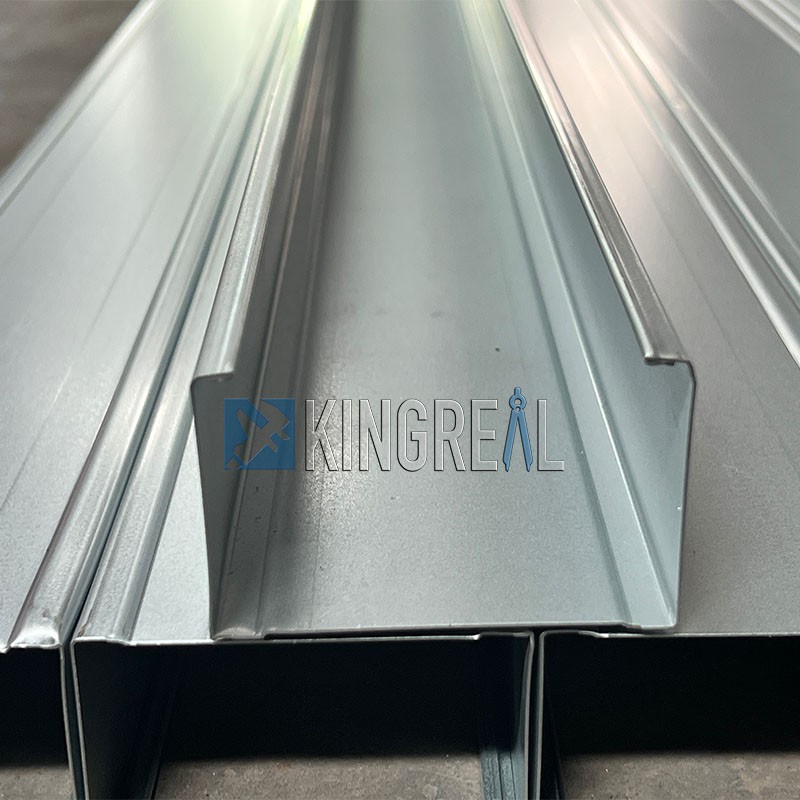

CW Metal Stud
CW metal stud serve as indispensable vertical studs within partition wall systems. Their primary function is to support the gypsum boards and stabilize the overall structure; consequently, they are widely utilized in partition wall projects across various types of buildings. The CW metal stud produced by KINGREAL Roll Former gypsum channel roll forming machines strictly adhere to industry standards, with common production widths of 50mm, 75mm, and 100mm. These three dimensions effectively cover the design requirements for the vast majority of partition walls currently found on the market, ensuring perfect compatibility with gypsum boards of varying thicknesses and guaranteeing the structural integrity of the partition wall system.
To address the specific production characteristics of CW metal stud, KINGREAL Roll Former gypsum channel making machines have undergone specialized optimization. Typically, the gypsum channel roll forming machine is designed to process materials with a thickness ranging from 0.4mm to 0.6mm. This specific thickness range strikes an optimal balance between ensuring the necessary load-bearing strength of the CW metal stud and maintaining material cost-efficiency, thereby preventing unnecessary material waste. Furthermore, recognizing the unique design requirements of various construction projects, should you require CW metal stud in specific non-standard dimensions (such as non-standard widths or thicknesses), simply convey your precise production specifications to KINGREAL Roll Former. Our engineers will then perform targeted adjustments and modifications to the gypsum channel making machine, crafting a bespoke production plan to ensure the resulting CW metal stud align perfectly with your project requirements-ready for immediate use without the need for any additional processing.
In the design of the gypsum channel roll forming machine, KINGREAL Roll Former has placed a strong emphasis on enhancing both automation levels and production continuity. The gypsum channel making machine is outfitted with a dual-head decoiler featuring two vertical coil stands; this configuration allows the machine to simultaneously hold two coils of raw material. When one coil is fully depleted, the second coil immediately feeds into the system without requiring a gypsum channel roll forming machine shutdown for coil replacement. This effectively minimizes downtime associated with coil changes, thereby ensuring the continuous operation of the production line. Additionally, when producing CW metal studs, KINGREAL Roll Former gypsum channel making machine employs an advanced roll-forming process. The gypsum channel roll forming machine's forming rollers undergo precision machining and hardening treatments to ensure uniform profile formation and a smooth surface finish-free from burrs or deformation-thereby meeting installation requirements directly without the need for subsequent sanding or finishing.

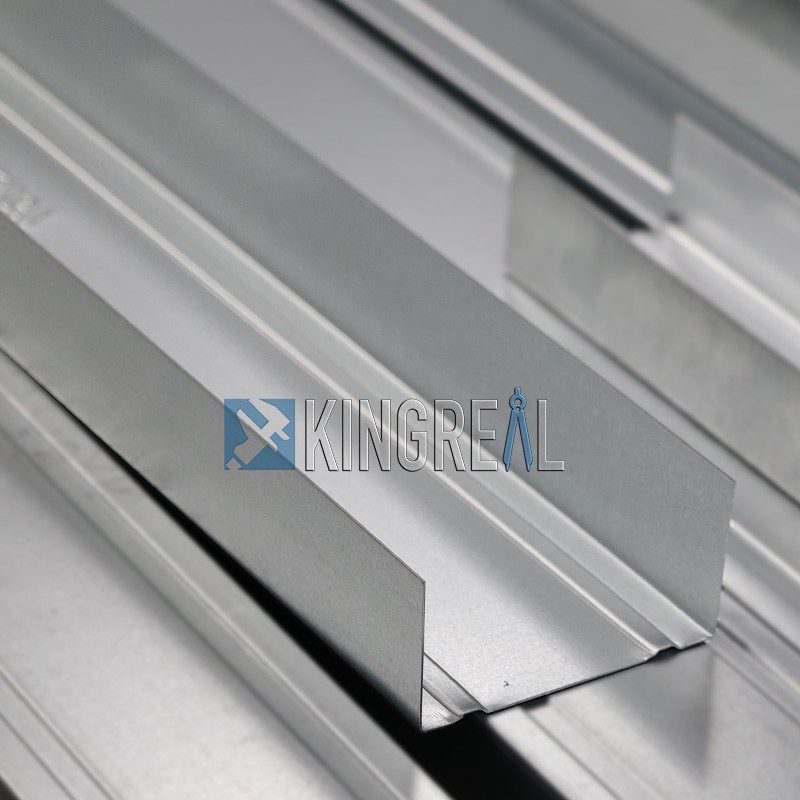

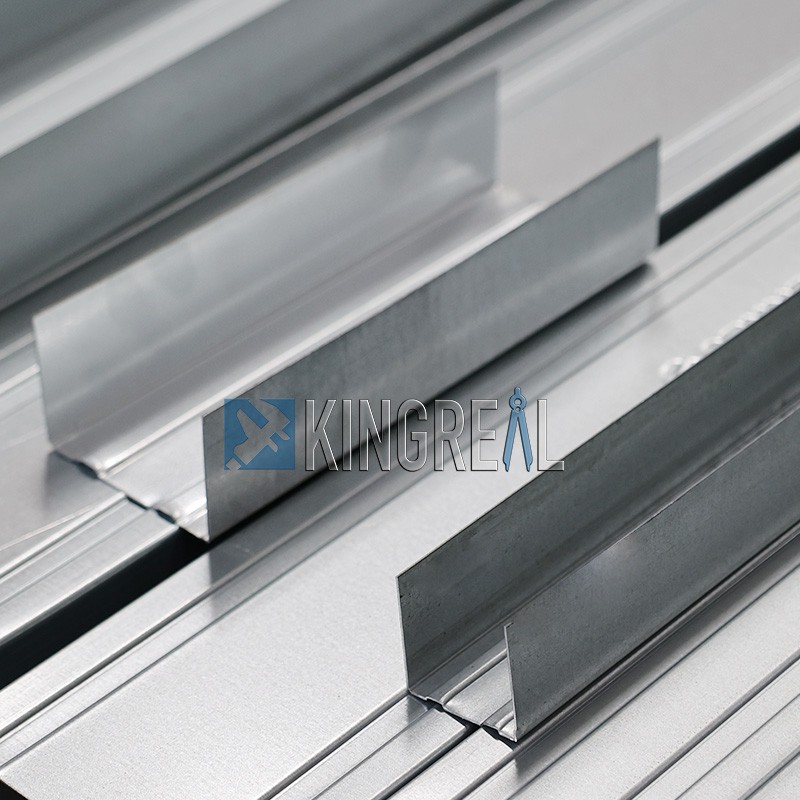

UW Drywall Profiles
UW drywall profiles are designed to be used in conjunction with CW metal studs. The dimensions of both profile types are precisely calibrated to ensure a perfect fit, thereby creating a tight, seamless framework structure for gypsum board installations that significantly enhances the overall structural integrity and stability of partition walls. In practical applications, UW drywall profiles must be installed in strict combination with CW metal studs of the corresponding specifications. Much like the CW metal profiles, the UW drywall profiles produced by KINGREAL Roll Former gypsum channel making machine are commonly manufactured in standard widths of 50mm, 75mm, and 100mm, ensuring perfect compatibility with their CW counterparts. Furthermore, the gypsum channel roll forming machine can be configured to produce UW drywall profiles in other non-standard widths upon client request, thereby meeting the unique design specifications of diverse construction projects. The manufacturing process for UW drywall profiles differs from that of CW metal studs; it demands higher standards regarding forming integrity and connection precision. Consequently, when producing UW drywall profiles, KINGREAL Roll Former gypsum channel making machine features an optimized roll-forming workflow incorporating multiple additional forming stages. This ensures that the interfaces of the UW drywall profiles are flat and their connections are tight, allowing for a seamless fit when installed in conjunction with CW metal studs. This design prevents issues such as looseness or gaps, thereby enhancing the overall stability, sound insulation, and fire resistance of the gypsum board framework.
To further boost the efficiency and automation of the entire UW drywall profile production process-and to reduce manual labor costs-KINGREAL Roll Former has equipped gypsum channel roll forming machine with a fully automatic packaging unit. This integration achieves complete process automation, spanning the entire workflow from profile production through to final packaging. The packaging unit performs a comprehensive series of operations, including automatic feeding, strapping, stacking, stretch wrapping, conveying, and palletizing; furthermore, a labeling function can be added to the system to meet specific client requirements.
UA Profiles
Compared to CW and UW profiles, the machine is capable of processing materials with a maximum thickness of 2mm. UA profiles not only provide excellent structural support but also boast superior strength, durability, fire resistance, and corrosion resistance. Consequently, they enjoy a broader range of applications within the construction and interior decoration sectors. Beyond their use in constructing gypsum board frameworks, UA profiles are utilized in suspended ceilings, partition walls, wall cladding, as well as in the fabrication of furniture, doors, and windows. This versatility effectively elevates the quality and aesthetic standard of the final product, satisfying the diverse requirements of various applications. Through precision engineering and rigorous quality control, KINGREAL Roll Former gypsum channel roll forming machine is capable of producing high-quality UA profiles. KINGREAL Roll Former has implemented specialized upgrades and customizations to the gypsum channel making machine dedicated to UA profile production, equipping it with a suite of high-precision processing components to ensure the uncompromising quality of the finished products. First, a specialized punching die was custom-designed for the gypsum channel roll forming machine. Crafted from high-quality alloy steel, this die undergoes precision machining and hardening treatments to ensure exceptional wear resistance and accuracy. It guarantees precise punching positions and uniform hole diameters for UA profiles, effectively preventing issues such as punching deviations or burrs, thereby ensuring the structural stability of the UA profiles connections. Second, the gypsum channel making machine is equipped with a robust and durable C-frame mechanical punch press. This press delivers powerful punching force and stable performance, enabling precise punching and cutting of UA profiles while ensuring dimensional accuracy and structural integrity. Furthermore, the gypsum channel roll forming machine features a high-precision fly shearing system. Utilizing a servo control system, this fly shearing maintains a cutting length tolerance within ±0.1mm, allowing for precise, fixed-length cutting of UA profiles. This process eliminates issues such as deformation or burrs during cutting, ensuring that every UA profile meets exact dimensional standards and is ready for immediate use without the need for further processing.
It is through the use of such advanced gypsum channel making machine that high-quality finished products can be realized.
The CW, UW, and UA profiles used in partition wall structures serve primarily to provide support for gypsum boards and embody a high degree of technical sophistication. Every dimensional parameter and every processing step must strictly adhere to precise performance specifications; only when these elements fit together perfectly can they collectively form a high-quality, robust, durable, and reliable gypsum board framing system. All of this is made possible by superior production equipment-specifically, the gypsum channel roll forming machine. Only a high-quality gypsum channel making machine can produce high-quality gypsum channels and, in turn, guarantee the overall quality of the construction project.
