PLC and HMI Automatic Rolling Shutter Door Machine

Our company adheres to the concept of returning users with science and technology and creating public praise with Flexible Metal Stud Track Machine, Partition Framing Machine, 300mm U Baffle Machine. With 'Outstanding quality, high capacity', we are well recognized in the market. The products of us are outstanding in all industrial fields and we also provide technical support and industry analysis to meet customers' demands. Our company is built and managed in a modern enterprise mode, and constantly introduces and draws on advanced management experience and management methods.

About KINGREAL ROLL FORMER→

KINGREAL ROLL FORMER

A professional Roll Forming Machine manufacturer in China, in addition to being able to provide customers with complete production solutions.



KINGREAL Roll Former engineers will tailor-design rolling shutter door machines based on customer-provided drawings and actual production needs to ensure that the produced roller shutters perfectly match the customer's project requirements. KINGREAL Roll Former rolling shutter door machines can produce various types of roller shutters, including industrial doors, commercial doors, hangar doors, garage doors, fire-resistant roller shutters, curtain systems, heavy-duty roller shutters, aluminum alloy roller shutters, and perforated roller shutters.

Furthermore, rolling shutter door machines can be equipped with decoilers of different parameters according to customer needs. Common options include 5t, 8t, 10t, and 15t electric motor, hydraulic motor, or passive decoilers. To ensure production safety, KINGREAL Roll Former rolling shutter door machines can be equipped with protective shields to effectively protect worker safety and reduce potential risks.



Regarding output systems, customers can choose between manual support frames or automatic stackers to meet different production needs. The parameters and performance of each component of the rolling shutter door machine can be designed and manufactured according to the customer's specific requirements. KINGREAL Roll Former is committed to providing customers with a comprehensive customized rolling shutter door machine manufacturing solution.



The galvanized rolling shutter door curtain sheet pressing equipment is  a cold bending forming machine specializing in the production of galvanized  rolling shutters based on galvanized sheets.    The fire-resistant galvanized rolling shutters are widely used in the fire partition area of industrial and civil buildings, which can effectively prevent the spread of fire.  To ensure the safety of life and property is an indispensable fire prevention facility in modern buildings.   Rolling shutter forming machine is mainly composed of frame, color steel plate installation rotating shaft, protective film installation rotating shaft, forming roller set, drive motor, gear box, sprocket set, transmission platform, cutting saw and positioning standard parts.

The forming roller set is installed in the middle and upper part of the frame, the drive motor and the gearbox are installed in the middle and lower part of the frame, the output end of the drive motor is connected with the gear box, and the output end of the gear box is connected with the forming roller set through the sprocket set.   Install the color steel plate with the color steel plate on the rotating shaft,  and place the protective film on the protective film to simultaneously install the rotating shaft on the front of the frame.   The first end of the color steel plate and the protective film are simultaneously conveyed horizontally between the upper and lower rollers of the forming roller group. The transfer platform is placed horizontally at the rear of the rack. The cutting saw and the positioning mark are vertically fixed on the conveying platform and located behind the forming roller in sequence. The invention can complete the film forming process of the roller shutter  fan bottom plate at one time.

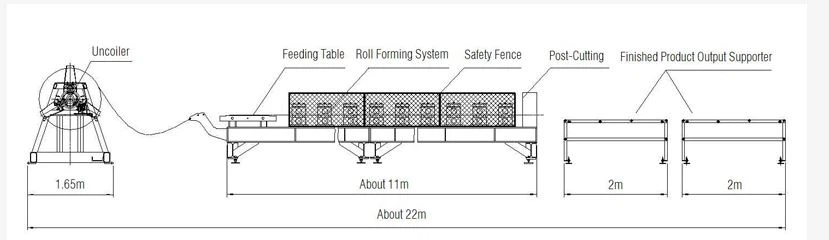

Feeder→ Feed introduction platform→ Forming host→ Forming and shearing device→ Hydraulic station→ Computer control system → Other parts

It is used with the seaming machine. Widely used in the production of rolling gates in various industrial plants, warehouses, supermarkets, and shopping malls.

1. Equipped with a high-level computer control system, which can realize automatic operation;

2. The equipment computer control system uses a highly integrated network, which has a higher degree of automation and superior quality compared to other equipment;

3. The equipment has the advantages of convenient operation and simple maintenance.

The rolling shutter roll forming machine equipment is composed of a feeding device (feeding introduction platform), a rolling gate forming host, a shearing device, a hydraulic device, a computer control system and other components. It is used to produce industrial plants, warehouses, supermarkets, and shopping malls. A machine made.





Rolling Shutter Door Machine Main Components detail

01.

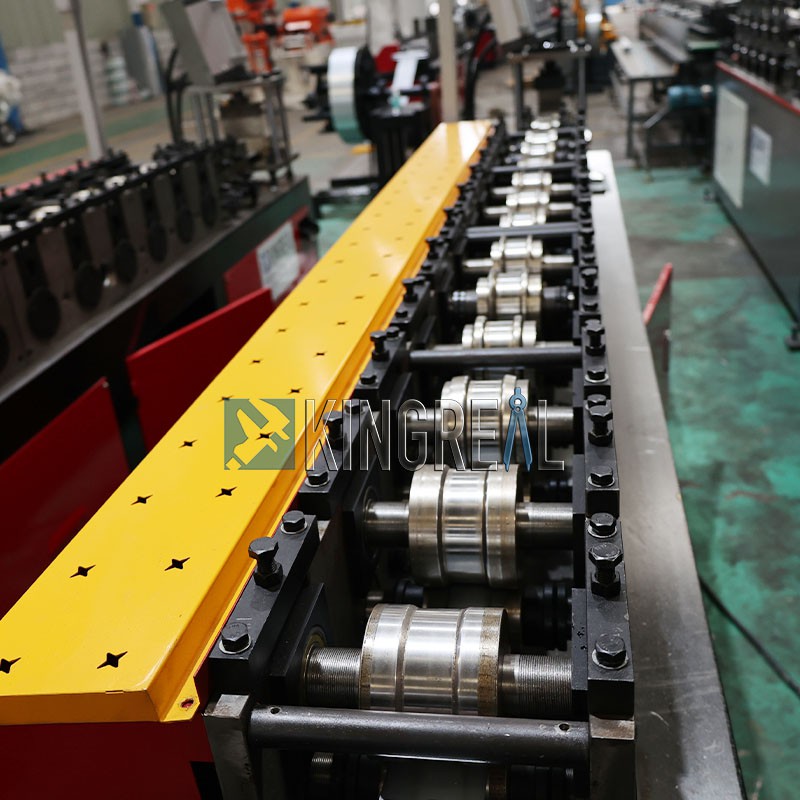

Main Roll Forming Machine

1. Production speed: 20/30/40/50/60 meters/minute can be selected according to demand.
2. Versatility: In addition to molding roll-up door panels, hole stamping and embossing are also possible.
3. Customization: the model of the roll-up door sheet can be customized according to the specific needs of the customer.
4. Automation system: Equipped with non-stop flight cutting and fully automated stacking system, the maximum line speed is up to 60 meters/minute

02.

Shutter Door Cutting Machine

1. Non-stop flight cutting: line speed up to 60 m/min in conjunction with non-stop flight cutting and fully automatic stacking systems.
2. Versatility: Snap-on platform for quick change of machine base, suitable for a wide range of profiles.
3. Patent certification: with a number of patent certifications; in line with CE certification, European quality standards

KINGREAL Roll Former rolling shutter door machines can produce a variety of shutter door types and sizes to meet diverse needs.

-Standard Sizes:

Single-leaf doors: Typically measuring 2.4 meters wide and 2.1 meters high, suitable for standard residential garages or small commercial spaces.

Double-leaf doors: Approximately 4.8 meters wide and 2.1 meters high, suitable for larger residential garages or commercial spaces requiring wider access.

-Industrial and Commercial Sizes:

Medium-duty industrial sizes: 5 to 6 meters wide and 3 to 4 meters high, suitable for medium-sized industrial environments.

Large-duty industrial sizes: For locations like warehouses or hangars, doors can reach widths of 10 meters or more and heights of 5 meters or more.

-Custom Sizes:

KINGREAL Roll Former rolling shutter door machines are capable of designing and producing shutter doors to a variety of custom sizes. Customers need to consider several factors when customizing, including the door's primary use, access requirements, and space constraints, to ensure the final product meets their specific needs.

1. Precautions For The Use Of Rolling Shutter Door Making Machine

  2. How To Deal With The Failure Of The Rolling Shutter Door Making Machine?

Our PLC and HMI Automatic Rolling Shutter Door Machine and technical level reach international standards and is the most ideal choice for users. Our employees can not only make the working atmosphere more pleasant, but also improve the economic efficiency of the company. Our company has been committed to the development of global customers, aiming to establish a long-term partnership.
