PP/PE PVC WPC Wood Plastic Composite Decking Floor Fence Post Window and Door Frame Profile Making Machine Extruder Machine
Product Introduction
We always follow the principle of honesty and trustworthiness to promote our high-quality Billboard Panle Making Machine, Supermarket Rack Panel Machine, Light Gauge Steel Framing Machine to the world. Our test equipment has advanced technology, high precision, and meets the standard requirements. It provides advanced testing means for product performance testing and quality control. With the principle of insisting on technological innovation, quality and service, we realize our commitment with high quality products and professional services. 'Quality First, Customer Paramount, Sincerity and Innovation' in our mind, We have achieved great progress in the past years. With the aim of 'compete with good quality and develop with creativity' and the service principle of 'take customers' demand as orientation', we will earnestly provide qualified products and solutions and good service for domestic and international customers.
Garage Door Panel Machine Description
The product produced by the Garage Door Panel Machine is bright in color, does not fade, and does not rust. It is widely used in shops, labor departments, warehouses and fire boards. The strength is three times that of aluminum alloy doors.
The whole machine adopts PLC fully automatic control from uncoiling, board feeding and unloading. The production line has high degree of automation, low labor intensity, simple structure, convenient operation, low investment and fast recovery. It is the first choice for the building materials industry.
Technical Specification
Material: | G330 galvanized steel strip |
Thickness: | 0.3-0.5mm |
Width: | 500-700mm |
PU material: | Polyurethane A/B material |
Width: | 400-600mm adjustable |
Panel thickness: | 40mm / 50mm (two types are selected by the customer) |
Length: | 2000mm-16000m can be set |
Foaming density: | 35-50Kg /M³ adjustable |
Working speed: | 3-8m/min |
Compound belt length: | 24 meters |
Heating temperature: | 30-60 degrees, automatic control temperature meter |
Total power: | 100Kw |
Overall dimensions: | 85m×2m×5m machine installation size |
Plant size: | 100m×15m×7m with 5T crane |

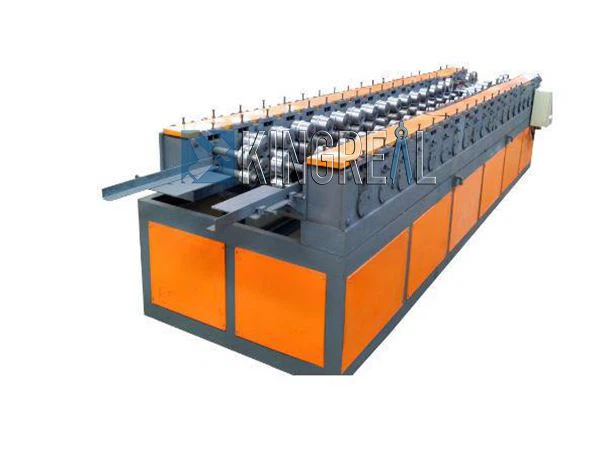

Structure Of Garage Door Making Machine
| 2. upper and lower laminating machine, PU high-pressure foaming machine, 200T hydraulic press, automatic tracking flying saw cutting machine and other automatic production equipment, which is liquid The PU raw material is sprayed at high pressure between the upp er and lower color steel panels that are pressed and formed, and the composite host PVC plastic double conveyor belt is foamed and molded, and the board is tracked and cut by a flying saw. |
3. The structure is simple and the appearance is beautiful. Because the whole machine adopts a steel structure and is processed as a whole after welding, the structure is simple and reasonable, the storage capacity is strong, and the operation is stable and reliable. | 4. The other important parts and structure of the equipment adopt the accessories of well-known domestic enterprises, thus effectively ensuring the performance of the equipment. |
5. It adopts fully automatic fixed-length cutting, punching, precise positioning, neat appearance of the plate-shaped head and tail, and small deformation. | 6. The equipment has low noise, no pollution and low consumption. The entire unit automation control system of the tile press equipment adopts a highly integrated network, which makes the performance of the automation system more superior. The color steel angle chi tile press equipment also has the advantages of operation, maintenance, maintenance, mechanical debugging, and easy mold replacement. |
Process Flow Of The Machine
Decoiler-----Feeding----- Leveling ----- Cutting -----Roll forming ----- Punching ----- Output table
Components Of This Machine
-Un-coiler
-Leveling device
-Main forming machine
-Foaming machine
-Adjusting device
-Pneumatic following cutting device
-PLC Control system
-Finished product shelf

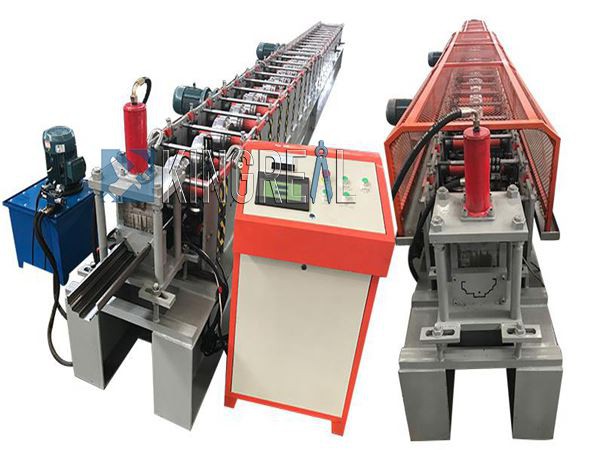

Appliation Of Garage Door Frame Machine
Customer Feedback
KINGREAL Catalogue
Sticking to the belief of 'Creating products of high quality and making friends with people from all over the world', we always put the interest of customers in the first place for PP/PE PVC WPC Wood Plastic Composite Decking Floor Fence Post Window and Door Frame Profile Making Machine Extruder Machine. We believe that professionalism will not become an obstacle to communication. Providing mature, efficient, simple and practical products is the prerequisite for creating new value. Our company unites and forge ahead, adheres to the basic principle of customer first and user first, and actively expands business ideas.
Hot Tags: garage door making machine, China, suppliers, manufacturers, factory, custom, quotation, open grid ceiling, rolling shelves, acoustic sound baffles, metal roof tile making machine, aluminum strip ceiling, metal roof sheet making machine
