Video About Light Steel Keel Hat Channel Roll Forming Machine →

Furring Channel Making Machine Description

Furring / Hat Channel roll forming machine Description:

KINGREAL fully addresses high-speed manufacturing lines for ceiling profiles, and these tools include:

1. Flexible Stud and tracks making machine

2. High speed main U channel roll forming machine

3. Angle profile channel making machine

4. Omega channel roll forming machine

The KINGREAL Furring Hat channel roll forming machine is one of our best-selling items and has attributes like high production speed (up to 120 m/min), fully automatic operation (auto stacking system of your choice), simplicity of use, etc.

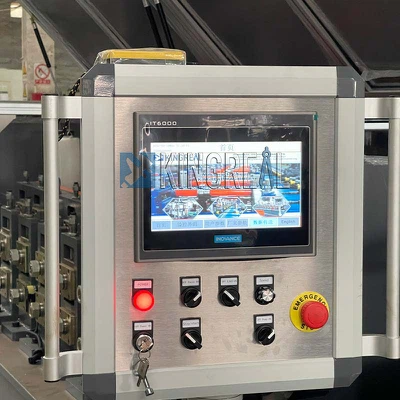

The Omega production line Utilizes an industrial computer control system that includes Taiwan Delta PLC LCD screen displays (with a Chinese and English comparison program), providing fine control of factors including plate size, platen accuracy, rolling speed, and more.

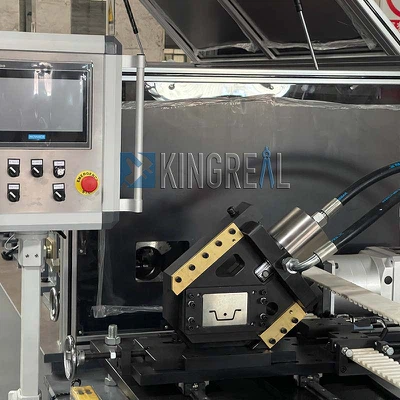

Hydraulic cutting: With a high degree of safety, the automatic ruler forms and then cuts without deforming, without creating waste, or manufacturing any of these things.After-sale Assistance: Engineers can help with staff training and installation

Furring Channel Forming Machine Feature

-You have a choice of double heads decoilers that allow you to switch the machine's raw materials without halting it.

- High speed cold roll forming up to 120M/min with fly shearing system

- Combi structure offers a flexible and space-saving method for producing various steel profiles on a single machine.

- Machine protection for your choice

- Hydraulic fly shearing with high precision Yaskawa servo motor

- Auto stacking system for your choice

Technical Specification

Raw materials	0.4-0.8MM galvanized steel strip
Products Types	Furring channel roll forming machine, Hat channel roll forming machine, Omega channel making machine
Maximum forming speed	120 m / min, high speed fly shearing. Also, 30m/min, 60m/min speed roll forming machine available according with clients request
Roll Forming stands	12-15 forming Rollers station according with different products cross section shapes
Machine Power	~ 11 KW, 7.5KW for main roll forming machine, 5.5kw for the hydraulic shearing station, 1.8kw for the Yaskawa servo motor feeder
Raw materials uncoilers	Single heads uncoilers or dual-heads decoilers, passive type, manual loading and manual expanding

Furring Channel Machine Trial In Factory

Packing Machine For Ceiling Channel

Packing Machine For Furring Channel Making Machine

package machine for hat channel

KINGREAL ROLL FORMER design an automatic packing production line for 2-6m Furring Channel Product, which can realize fully automatic production and reduce labor.

Increased Production Efficiency

By automating the packaging process, the Auto Package Machine significantly reduces manual labor and the time required for packaging. This leads to faster production cycles and higher throughput, allowing manufacturers to meet higher demand without compromising on quality.

Labor Cost Reduction

Automation reduces the need for manual intervention in the packaging process, which can lead to substantial labor cost savings. Workers can be reallocated to other critical tasks within the production line, optimizing the overall workforce efficiency.

Streamlined Workflow

Integrating the Auto Package Machine with the Furring Channel Roll Forming Machine creates a seamless and continuous production line. This integration minimizes bottlenecks and ensures a smooth transition from production to packaging, enhancing overall operational efficiency.

Quality Assurance

Automated systems can incorporate quality checks and controls throughout the packaging process, ensuring that each furring channel meets the necessary quality standards. This reduces the risk of defects and enhances the reliability of the final product.

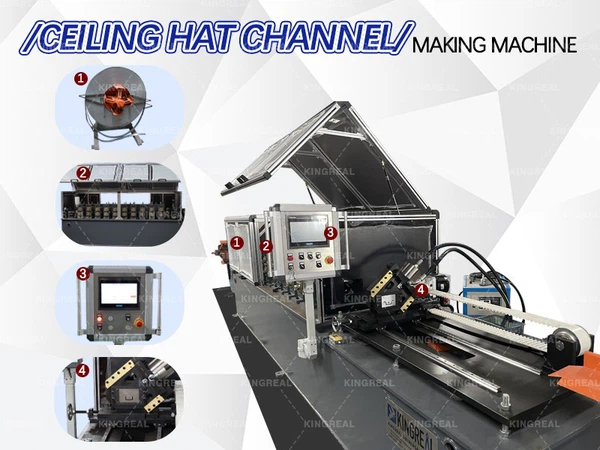

Structure of Furring Channel Roll Forming Machine

Technical process of the small hat-shaped keel machine:

uncoiling-feeding-forming-cutting-receiving.

Equipment configuration:

uncoiler, roll forming main machine, hydraulic cutter system, electric control system, hydraulic pump station system, product discharge rack

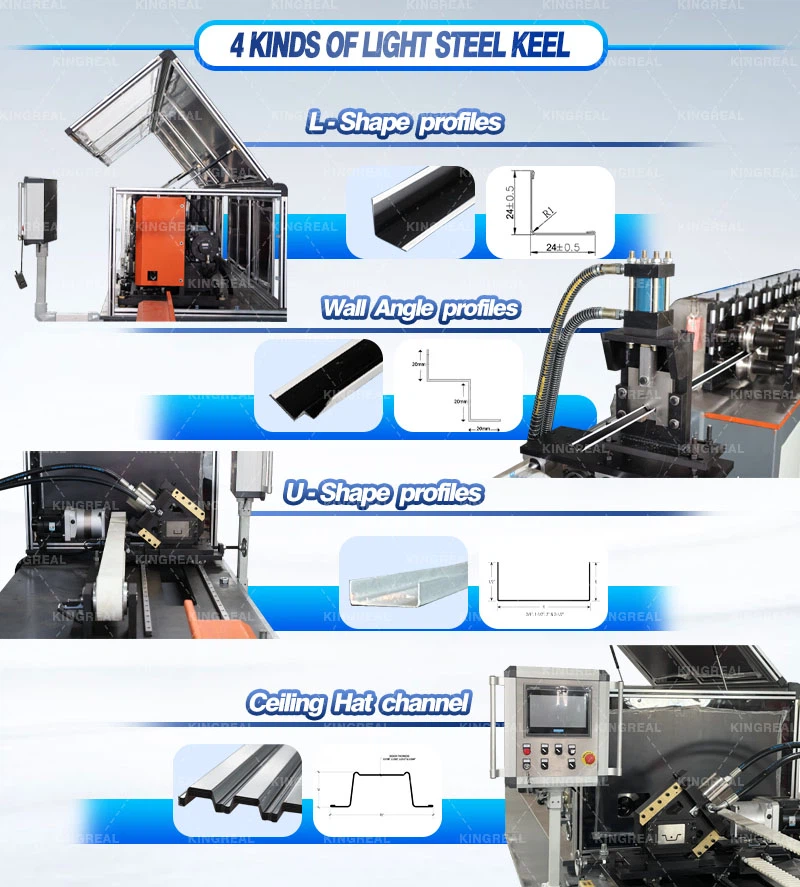

aluminium ceiling channel

Application Of Furring Channel

Furring channels are an essential component in modern construction, providing support and stability for various interior and exterior finishes.

Furring channels are widely used in ceiling systems to support plasterboard or other ceiling materials. They provide a framework that allows for the installation of recessed lighting, ventilation systems, and other ceiling fixtures. This makes them ideal for creating aesthetic and functional ceiling designs in offices, homes, and public buildings.

In drywall installation, furring channels offer a stable base for attaching drywall panels. They help create a smooth and even surface, essential for both residential and commercial buildings. By using furring channels, builders can ensure that walls are straight and sturdy, preventing cracks and imperfections over time.

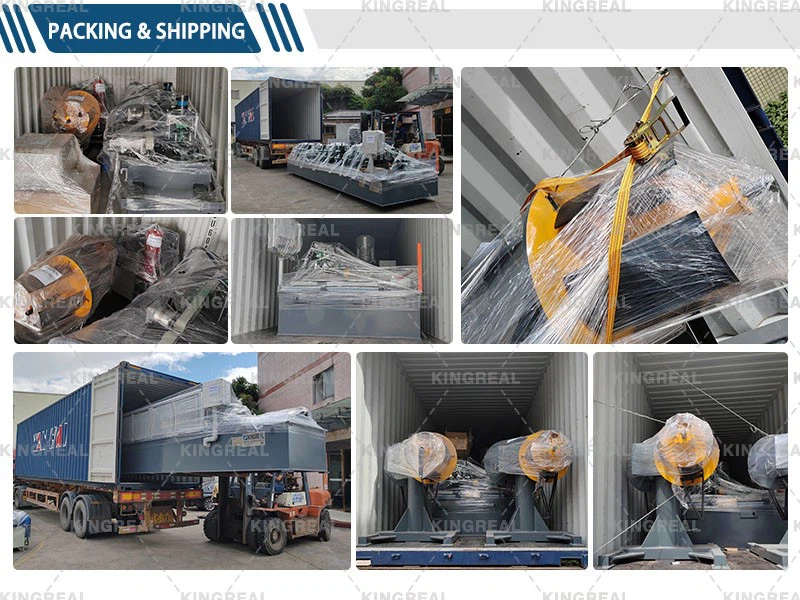

Packing & Shipping

metal furring channel machine packege

(KINGREAL Light Steel Keel Machine Shipping To Saudi Arabia)

Local After Sale Service

after sale service

KINGREAL is able to provide technical after-sales service to our customers. In order to ensure the smooth installation and operation of the machines, KINGREAL will arrange to send engineers to the customer's project for technical guidance.

Up to now, KINGREAL has helped customers from Russia, Mexico, India and Saudi Arabia to use the machines smoothly.

FAQ

01.How To Install The Ceiling Channels?

To install the ceiling channels, which is produced by Metal Ceiling Carrier Making Machine you need to stretch the wire to fix the hanging rod. After installing the main bar, install the vice bar and cover panel to avoid bending. It should be noted that the connection must be firm, and there should be no peeling and degumming.

02.What Are The Classifications Of Light Steel Keel?

Light steel keel is produced by Light Steel Keel Roll Forming Machine, which is a new type of building material, with the development of modern construction in China

03.What Is Light Steel Keel Profile?

Light Steel Keel is a new type of building material, which is produced by Ceiling Channel Roll Forming Machine.

04.Brief Introduction Of Light Steel Frame

Light steel frame, which is produced by light steel frame machine is a new type of building material. The light steel frame is made of light steel and used as the main material for the ceiling of the ceiling. It is connected with the floor slab through a screw rod to fix the ceiling or objects.

05.What is light gauge steel framing used for?

The light gauge steel framing mainly used for the construction field has covered a wide range of areas such as residential houses, commercial buildings, industrial plants and so on. Its flexibility and malleability allow light gauge steel framing to adapt to a variety of building forms and functional needs, such as villas, apartments

06.What Is Furring Channel Ceiling?

The ceiling channel system is equipped with a specialized lifting system. The aluminium ceiling channel used for the ceiling includes load-bearing keel, cladding keel, hangers, hangers, hangers inserts, load-bearing keel connectors, cladding carrier connectors, hangers
