Best Galvanized Steel Cable Ladder Cable Tray Making Roll Forming Machine
Product Introduction
The excellence of products and the pursuit of perfect service are the key to the success of our company. We will continue to strive to create the best performance Malaysia Keel Making Machine, Steel Garage Side Beams Machine, Multi Stations Roll Forming Machine to our customers all over the world. As the concept: 'All rivers run into sea then well established and vigorously developing.', we hope to expand the market in cooperation with clients. While creating corporate wealth, we also actively participate in public welfare and promote the development and progress of society.
Video About Cable Tray Machine In Factory →
Channel Ladder Cable Tray Making Machine Description
The channel ladder cable tray making machine can produce ladder-side bridges with four specifications of 100, 150, 200, and 250.
The specifications of the ladder-side bridges produced can be adjusted freely by replacing the spacer sleeve of the roll.
This production line is a special equipment for the production of one-time forming the cable trays, with servo feeding and online
punching; the main machine is a combination and adjustable form, without changing the rolls, one set of rolls can complete the rolling
of any specifications of the bridge profiles.
Machine Features
1. According to production needs, a variety of cable trays with a strip width of 200-1050mm can be rolled.
2. Production speed during online punching: 4-6m/min.
3. Continuous molding speed of molding equipment: 10-15m/min.
4. Board material thickness: 0.8-2.0mm.
5. Material requirements: Q235, galvanized steel strip, etc.
6. The production line is divided into automatic and manual operation modes, which can realize linkage and segmented operation.
Technical Specification of cable tray making machine
|
Cable tray Width |
the width of the plate is 100mm-800mm, the width is automatically adjusted by the motor guide rail, and the motor is adjusted to 0.75kw |
|
Pressing thickness: |
1.5-3mm, height: 100-200mm
|
|
Working line speed: |
0-12m/min. |
|
Number of rollers Sets: |
20 Sets |
|
Roller materials: |
high-quality Gcr15 bearing steel, forged, quenched and tempered, and the surface is plated with hard chromium. |
|
Axle material: |
45# steel quenched and tempered, shaft diameter 90mm. |
|
Main motor power: |
22kw cycloid reducer, 1 set |
|
Transmission mode: |
gearbox universal joint transmission |
|
Number of universal joints: |
Model 160, 13 in total |
|
Cut off: |
hydraulically fixed. |
|
Motor power of hydraulic station: |
7.5KW external installation |
|
Electronic control system: |
The whole machine adopts PLC frequency conversion control, the touch screen displays the value, and the Omron rotary encoder calculates the length. |
|
Voltage: |
380V, 5OHZ, 3 phase |
|
Equipment size: |
about 16.8m*2.5m*1.2m |
|
Machine Power |
~ 35 KW |
Working Process Of This Machine
Feeding--Feeding calibration import -- Leveling--Punching-- Roll forming--Computer cut to length --Finished product support
Device Configuaration
1. 10T hydraulic discharge rack, 1 towing trolley, 1 pair of flat scissors (front shear), 8 sets of beading sticks, 4 sets of punching dies, 1 set of forming host, 1 gear box, 1 electrical control system Sets, 2 1.5m finished product discharge stations
2. 1 set of PLC control box
3. 1 set of hydraulic pump station
4. Discharge table two
Cable Tray Ladder Machine Features
|
Combine decoiler & Straightener
The KINGREAL 2 in 1 decoiler & straightener apply to unwinding and straightening work of coil sheet metal. This combination contains decoiler and straightener.
To respond to changing demands, we have hydraulic decoiler and manual decoiler, and optional trolley for full-automatic metal loading.
The straightener provides high precision straightening. By doubling the amount of rollers we ensure straightness of materials and high-accuracy finished products. |
|
|
|
Strong Roll Forming Machine Structure
KINGREAL machine frame is welded by steel panel to one-piece structure. Then one 30mm thickness panel will be put on the frame after fine processed by the Plano miller. This will ensure the accuracy basic size.
Also, it will increase the machine strength to reduce the deformation and ensure the long-life time operation. |
|
Auto Width Adjustable
KINGREAL developed the own auto width adjustable system, which is drive by the high precision Yaskawa servo motor and through the precision screw rod. The system can change the width of rollers automatically or manually.
This width adjustable system is widely used on U shape baffle ceiling roll forming machine, shelf panel making machine, Drywall stud and track making machine, etc.
With this system, one machine can produce different multi sizes products, and featured with flexible solution and economical investment. |
|
Production Application

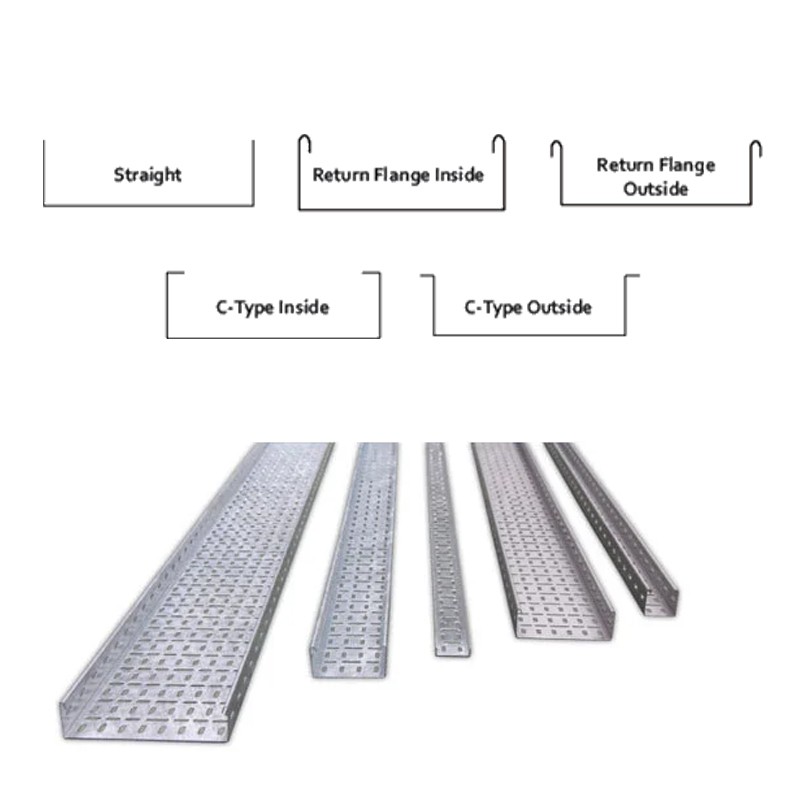

- CABLE TRAY
- CABLE LADDER

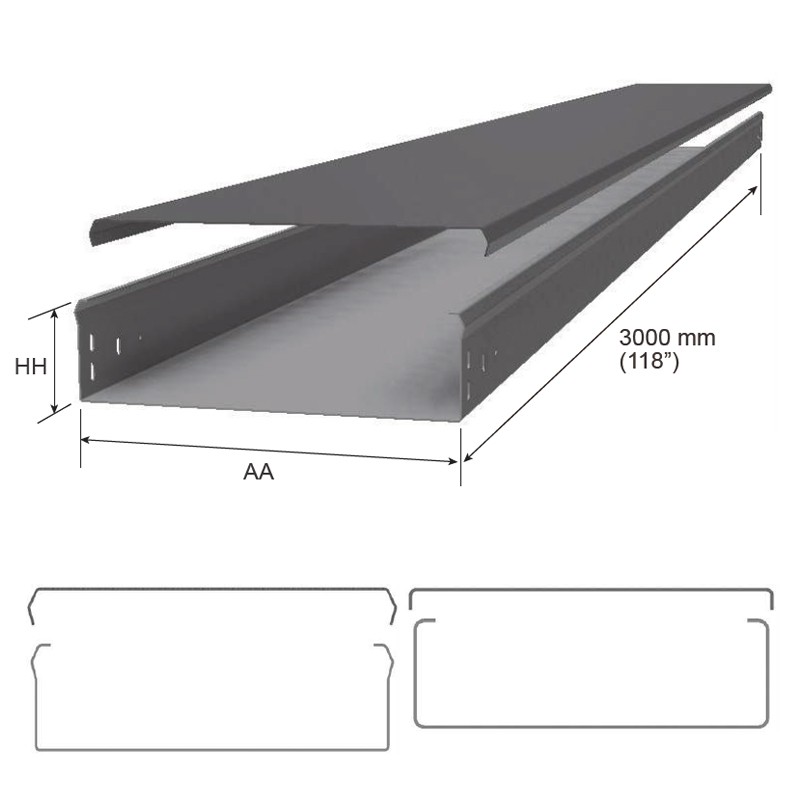

- CABLE TRUNK COVER
- PERFORMATED CABLE TRAY SYSTEM
In the electrical wiring of buildings, a cable tray system is used to support insulated electric cables used for power distribution and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction. They are especially useful in situations where changes to a wiring system are anticipated, since new cables can be installed by laying them in the tray, instead of pulling them through a pipe.
Common cable trays are made of galvanized steel, stainless steel, aluminum, or glass-fiber reinforced plastic. The material for a given application is chosen based on where it will be used. Galvanized tray may be made of pre-galvanized steel sheet fabricated into tray, or may be hot-dip galvanized after fabrication. When galvanized tray is cut to length in the field, usually the cut surface will be painted with a zinc-rich compound to protect the metal from corrosion.
Production Workshop
KINGREAL ROLL FORMER is a professional sheet metal processing machines manufacturer and supplier. We offer full automatic and high speed solutions mainly including roll forming machines, metal ceiling tile machines, metal perforation line, coil slitting lines, etc. KINGREAL had helped our clients to build their factories successfully all over the world, such as Russia, Middle East, South Asia, South America, etc.
KINGREAL Exhibitiom
Customer Feedback
Local After-Sale Service
In order to be able to effectively solve customer needs in the first time, KINGREAL has set up localized service points in many countries and regions, such as India, Russia, Turkey, the United Arab Emirates and Qatar.
Localized service points in other countries and regions are also in progress
We can assure you product quality and competitive price for Best Galvanized Steel Cable Ladder Cable Tray Making Roll Forming Machine. Our company is committed to making the enterprise bigger and stronger and contributing to the development of the industry. Our company warmly welcomes friends at home and abroad to visit, to discuss cooperation and seek common development!
