Video About Glazed Tile Making Machine

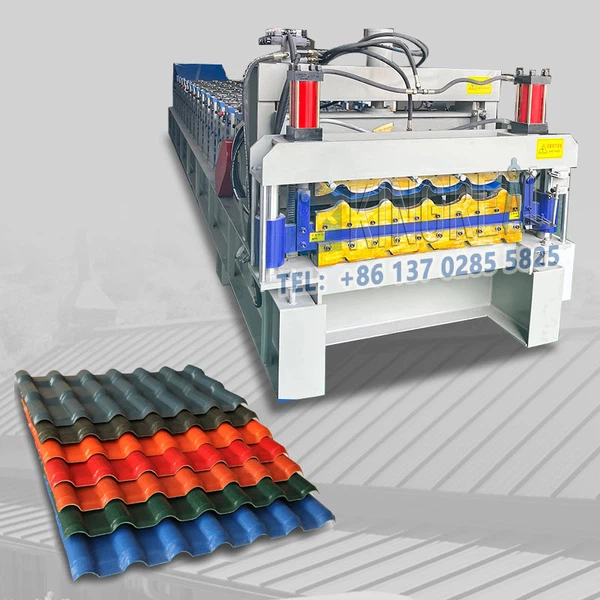

Color Glazed Tile Roll forming Machine Description:

KINGREAL ROLL FORMER glazed tile roll forming machine is mainly composed of a feeding platform,

a forming host, a die pressing device, a forming and shearing device, a hydraulic station,

and a PLC computer control system. It has the characteristics of light weight, high strength,

heavy bearing and good shock resistance.

The antique glazed tiles formed by the 1100 glazed tile press roll die have the characteristics

of beautiful appearance, simple and elegant, elegant and chic, and noble taste.

Glazed tile making machine can be widely used in garden-style factories, tourist attractions, pavilions, hotels, villas, etc.

Exhibition halls, resorts, homes and other buildings and outdoor decoration.

Glazed tile making machine forming part of the roller table is driven by a motor, and the chain drives each roller to rotate.

The pressing part is a hydraulic cylinder that drives the mold to move up and down, which can press

the color steel into many sections, which look like glazed tiles.

The cutter part is driven by a hydraulic cylinder to move the cutter up and down, which can cut the

colored steel tiles.

glazed tile roof panel machine

glazed sheet Machine Features

1. The glazed tile machine is controlled by PLC, and multiple safety protections are

set up during normal production.

2. The bed is welded steel plate. And it is tempered to eliminate internal stress and

avoid deformation of the fuselage.

3. The forming frame is a cast iron structure and has been tempered.

High strength and long service life.

4. The material of the roller shaft is 40Cr, and the hardness is HB280 after quenching

and tempering.

5. The material of the forming mold is GCr15, quenched, and hardness: HRC56-62℃.

Technical Specification For glazed tile making machine

1. Fully automatic fixed-length forming and cutting, precise fixed-length positioning, beautiful and neat board shape.

2. The structure is simple and the appearance is beautiful. Because the whole machine adopts a steel structure and is processed as a whole after welding, the structure is simple and reasonable, the storage capacity is strong, and the operation is stable and reliable.

3. The equipment roller is precision manufactured with high-quality No. 45 forged steel, and the surface is plated with hard chromium to achieve the effect of high hardness of the roller surface, smoothness, and no damage to the plate forming surface.

4. The equipment has low noise and high work efficiency.

5. The roller shaft is made of No. 45 steel after quenching and tempering treatment to improve the shaft's comprehensive mechanical properties such as strength and hardness.

6. The main components of the electrical control system are all imported from Japan's Mitsubishi.

glazed tile cold roll making machine Structure

The glazed tile pressing machine is divided into three parts: roller forming part, pressing part and cutter part.

roofing sheet production machine

---------------------------------------------------------------------------- Roof Tile Product Application----------------------------------------------------------------------------

---------------------------------------------------------------------------- How To Install The Machine?----------------------------------------------------------------------------

In order to help our customers to solve machine installation problems, KINGREAL ROLL FORMER will provide both online and local installation services.

---------------------------------------------------------------------------- What Our Customers Said?----------------------------------------------------------------------------

KINGREAL ROLL FORMER has rich experience in production and sales, and is committed to providing customers with the best solutions to solve customer problems. At present, it has been recognized by customers from all over the world.

---------------------------------------------------------------------------- How To Order?----------------------------------------------------------------------------

Our company has now developed into a manufacturer of Anti-UV Glazed Roof Tile Making Machine/ Corrugated Roof Sheet Making Machine/ Trapezoidal Roof Sheet Processing Line with scientific management and mature technology. The company has been committed to designing, manufacturing and selling first-class air conditioning products for many years, and with strong technical force, abundant serialized products, and excellent professional quality, we continue to provide our Chinese and foreign customers with high-quality and perfect services! The company strives to cultivate etiquette employees and create a civilized team.
