Precise Grille Roll Forming Machine for Ceiling Decoration Industry
Product Introduction
Since the establishment of our company, in line with the spirit of being honest and striving upward, we have provided high-quality and cost-effective Cable Tray Machine, Linear Ceiling Carrier Machine, Furring Channel Making Machine for customers. We have accumulated rich experience and won the trust and praise of many enterprises with professional pre-sales, in-sales and after-sales services. Our core values are customer first, innovation, sincere cooperation, mutual respect and due diligence. We make the quality culture permeate every field and become a conscious behavior of the company's employees. With an integrated and process-based management mechanism, our intelligent technology service industry chain is formed.
Video Display
Machin Description
A complete production solution for open cell ceilings can be obtained from Open Cell Ceiling Machine. Additionally, the various product sizes can be tailored to meet the needs of the client.
|
● Popular open cell ceiling size 10mm*30mm; 10mm*40mm, 10mm*50mm 15mm*30mm, 15mm*40mm, 15mm*50mm Or other sizes as required
By altering the sets of the shearing and punching molds, it is possible to make products with varying open cell ceiling sizes and heights on the same production line. with varying widths of open cell ceilings, such as 10 or 15 mm.
● Cell size for open ceiling as required. Such as: 50*50mm, 75*75mm, 100*100mm, 120*120mm, 150*150mm, or other size.
Different cell size products can be produced on the same machine, the distances are controlled by the servo motor.
|
 |
Technical Specification
|
Raw materials |
Pre-painted Aluminum or Pre-painted Galvanized steel |
|
Ceiling sizes |
Width: 10mm / 15mm / 25mm Height: 40mm / 50mm/ 30mm |
|
Length control |
Automatic servo control |
|
Maximum forming speed |
15 m / min |
|
Roll Forming stands |
14 roll forming stations |
|
Machine Power |
~ 12KW |
Structure Of The Production Line
|
- Combine decoiler & Leveler - Punching press machine - NC servo roller Feeder - Automatic cutting press machine - Roll forming machin - Finished product collector table - Electric control panel - Punching molds sets - Cutting molds Sets |
 |
New Design For Open Cell Ceiling Machine
|

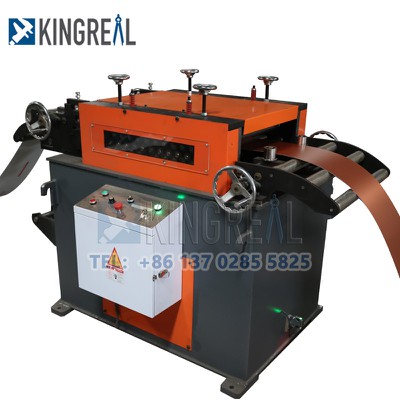

High Precision Straightener
The leveler is a precision leveler specially designed by KINGREAL for grating production. The precision leveler has 15 rollers in total, eight rollers on the top and seven rollers on the bottom.
All rollers are made of 40Cr and chrome-plated, durable and with long service life. The panels are smooth after precision leveling, no indentation or damage to the panel surface.
|
|
|
|
Double Punch Station
KINGREAL's specially designed double punching station is used for the uninterrupted and precise punching of grating panels according to the customer's production requirements.
In addition to the punching station configuration, the customer can also choose a punching machine for punching the panels, using a 16 tons + 4 tons power press for punching and shearing. Punching speed is 100-150 times per minute (adjustable)
|
|
Main Roll Forming Machine
1)Roller group: 14 groups
|
|
Open Cell Ceiling Machine In The Factory
Quality Control About Open Cell Ceiling
Check The Final Product
Technical Support
KINGREAL ROLL FORMER is able to provide technical after-sales service to our customers.
In order to ensure the smooth installation and operation of the machines, KINGREAL ROLL FORMER will arrange to send engineers to the customer's project for technical guidance.
Up to now, KINGREAL ROLL FORMER has helped customers from Russia, Mexico, India and Saudi Arabia to use the machines smoothly.

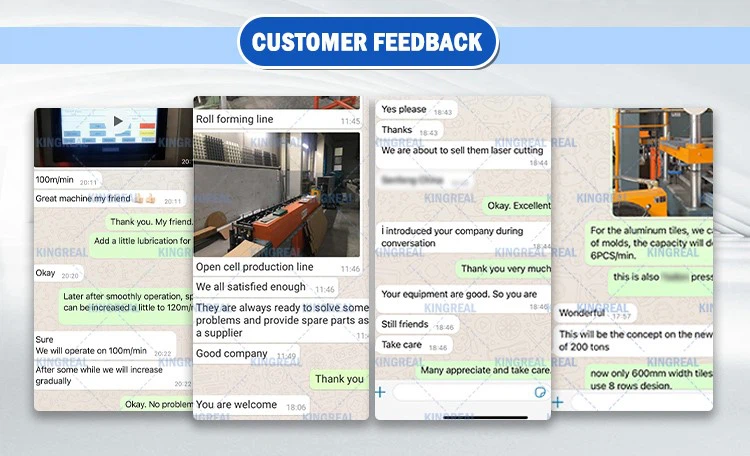

Customer Feedback
KINGREAL ROLL FORMER has rich experience in production and sales, and is committed to providing customers with the best solutions to solve customer problems. At present, it has been recognized by customers from all over the world.
From management to production staff, we are committed to developing and producing a variety of Precise Grille Roll Forming Machine for Ceiling Decoration Industry with the attitude of focusing on quality, improving quality, working efficiently, and being a giant in action. The user services provided by our website not only include service hotline, call center, after-sales service, goods return and exchange, but also include timely information update, effective site navigation system and support for a wide range of users. Our core competence is continuous innovation and quick response.
