tdc flange Making machine

Products Description

KINGREAL ROLL FORMER Air Duct Flanges roll forming machine is a fully automatic line for AC duct flanges production.

TDC plug-in flange system is one of the two major systems for flange connection in the international general

pipeline manufacturing.

It has the characteristics of saving time and materials, high work efficiency, good sealing, sturdiness and durability, and strong connection.

It is especially suitable for air ducts with large cross-sectional area of ventilation ducts. According to its working performance, flange strength

and sealing grade, it can be divided into four models: T-20, T-30, T-40, and the corresponding connection angle codes are T-20DC, T-30DC and

T-40DC. KINGREAL TDC flange roll forming machine is including a feeding frame, a cold-rolled forming host and a cutting part.

The cutting part can be divided into grinding wheel cutting and non-stop cutting system. Non-stop cutting system can realize cut to length.

The cutting burr is small, and fully automated production can be realized. Its working speed is 6 m/min.

tdc flange forming machine Features

The multi stations roll forming machine is specially designed for the production of C channel profiles,

U channel profiles, Z channel profiles and etc. We can also design the machine according with

customers'requirements.

The machine software is self-developed and the profiles can be produced according different length

and orders. The machine includes uncoilers, straighteners, main roll forming machines and output tables.

TDF/TDC flangesforming is one of the main international flange forming processes for ventilation ducts.

The common plate flange (TDF/TDC) forming machine produced by the KINGREAL company method is

based on absorbing foreign advanced technology.

Manufactured by optimized design, 14 pairs of wheels heavy-duty structure design, high-precision bearings;

heavy-duty chassis; hard and rounded roller shaft; professional roller materials and processing, high forming speed,

long roller life.

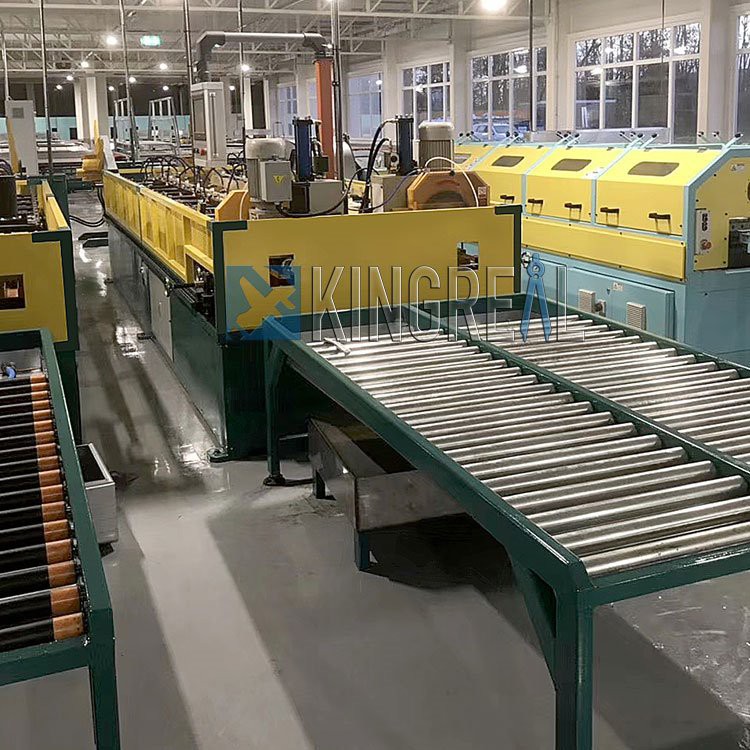

Main Components Of Multi Stations Roll Forming Machine

- Decoiler

- Main roll forming station

- Saw Blade cutting or Hydraulic shearing station

- Products stacker

- Electrical & Hydraulic system

More Details For tDC duct flange machine

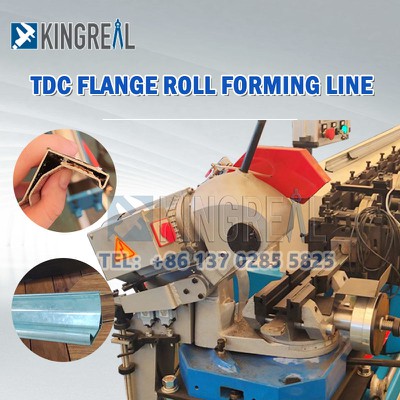

Saw Blade Cutting Device

The saw blade cutting device of the flange forming machine is a core component specially used for efficient and precise cutting of flange blanks (ring-shaped or toothed connectors). It uses CNC technology to drive high-speed saw blades to complete automated cutting.

Multi stations roll forming machine

We can design a variety of profiles to be produced by one machine in accordance with client's requirements, and to save space.

Also by using programs we simultaneously control the sequential production of different lengths of multiple profiles to provide clients with flexible production solutions.

ROLLER LUBRICATION SYSTEM

After being pumped into the pipes by pressure pump, emulsion is sprayed evenly on the forming rollers through the nozzle. Excess lubricant will be filtered and recycled through the sink on the side of the machine.

The roller lubrication system is suitable for reducing friction and heat problems during high-speed running of the profiles, and deformation problems caused by the heat of the roller mold.

Advantages

Self-developed Software & Multi Language support

Our machines have integrated self-developed software, which is more professional and can fully perform their functions.

In addition, we are able to provide a multi-language operation interface, including English, Russian, Spanish and so on. This makes our machines easy to operate, more user-friendly and provides a better user experience.

Multi cutting methods

For different products we use different methods to cut them. Usual cutting methods includes hydraulic cutting, sawing and rotary cutting.

According to speed of the machine, methods can be divided into shutdown cutting, deceleration cutting, high-speed follow shearing, fly shearing, etc. The cutting speed of machine can reach 150m/min maximum depends on different shapes of products.

Aviation Plug Design

Our machines use aviation plug design to connect the circuit. The design has the characteristics of simple installation and beautiful appearance.

Final Product Display

TDF Flange Machine

After-Sale Service

after sale service
