Gypsum Channel False Ceiling Tee Grid T Bar Roll Forming Making Machine

Our company is a professional manufacturer of Flange Making Machine, Metal Ceiling Machine, Cable Tray Forming Machine. We uphold the concept of employing people to the best of their abilities and talents, and provide smooth promotion channels and development space for each employee. We have the advantages of abundant inventory, fast and timely transportation and perfect after-sales service.

↓ Video About Ceiling T Bar Making Machine :

KINGREAL Ceiling T Bar Roll Forming Machine

For the manufacture to create Ceiling T Bar Suspended Panels, KINGREAL can offer a great production facility with roll forming technologies.



Another of China's most cutting-edge technologies is KINGREAL, which consists of three cold roll forming machines for producing Main Tee Grid, Cross Tee Grid, and Wall Angle Profile.

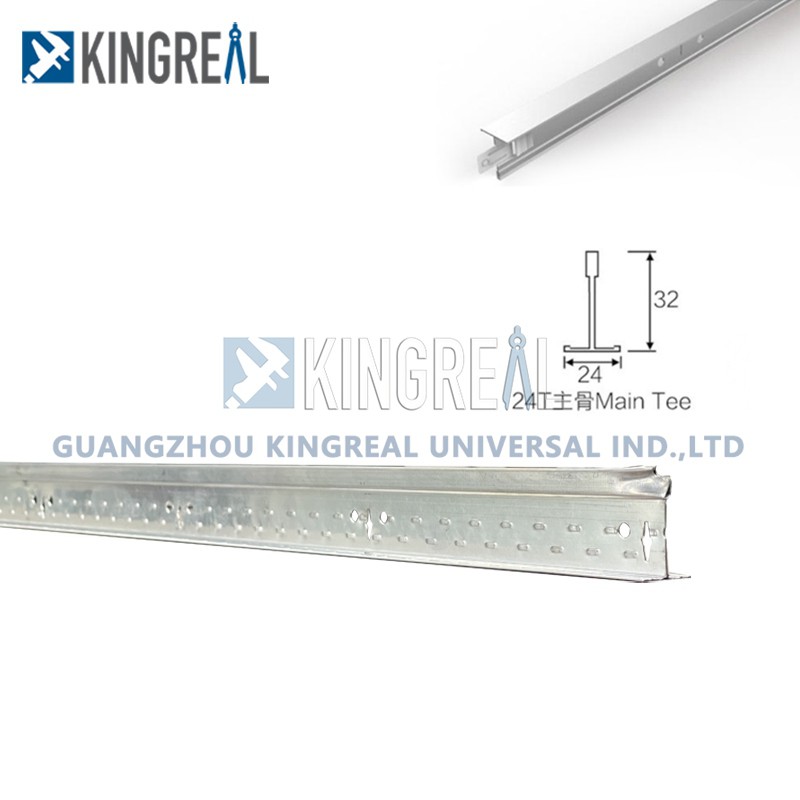

Main Tee Grid Making Machine



Components of T bar Production line:

-Decoilers

- Main roll forming machine

Automatic hydraulic cutting off station

Hydraulic cooling station and electric control

system, etc.



- Main Tee bar size:H38*24mm, H32*24mm

- Length: 3600mm

- Thickness:0.20-0.40mm

Cross Tee Grid Making Machine



Components of  T grid production line :



- Decoilers

- Main roll forming machine

- Automatic hydraulic cutting off station

- Hydraulic cooling station and electric control

system, etc.



- Cross Tee:H26*24mm, H24*23mm

- Length: 1200mm, 600mm

- Thickness:0.20-0.40mm



Wall Angle Profile Making Machine



Wall angle profile making machine is composed by



- Decoiler

- Main roll forming machine

- Automatic hydraulic cutting off station

- Hydraulic cooling station and electric control

system, etc.



- Angle:22*22, 22*20MM

- According with customer's request

- Thickness:0.3-0.50mm

In addition, KINGREAL ROLL FORMER provides a variety of completely automatic metal drop ceiling tile production lines for the creation of ceiling boards in various sizes, including 600*600mm, 300*300mm, and 600*1200mm. These machines' metal ceiling tiles can be made into an entire exposed metal ceiling suspending system.

01.

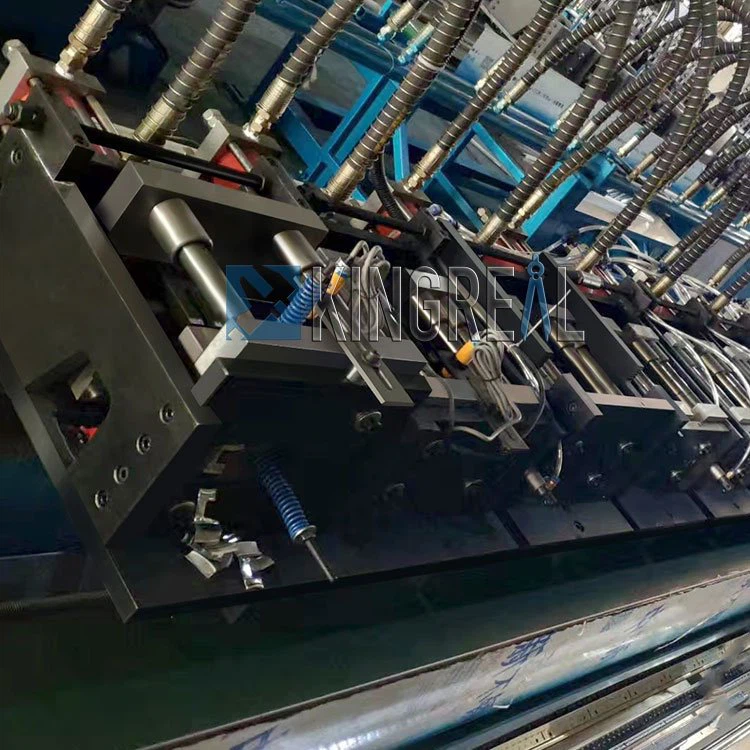

Main Roll Forming Machine

Roll forming line: this is the core part of the t grid, responsible for forming the metal strip into the required T-bar by roll forming.



Multiple sizes, pitches and profile sections: the main forming machine can produce T-bar of different sizes and shapes to suit different building requirements.



Production of complex profiles with special shapes and systems: in addition to the standard T-grid, the master forming machine can also produce complex profiles with special designs (e.g. with or without clips)



02.

Cutting Punching system

The Cutting Punching System for metal t bar forming machine usually has the following features:



• High Accuracy: The system is capable of cutting and punching with high accuracy, ensuring that the size of the keel and the position of the holes are accurate.
• Automated operation: Most systems are equipped with advanced automated controls that allow the entire cutting and punching process to be completed without human intervention.
• Rapid Production: Designed for high speed production, these systems are capable of accomplishing a large number of cutting and punching tasks in a short period of time.
• Ease of Maintenance: Systems are designed with ease of maintenance in mind to minimize downtime and increase productivity.







- Completely automated production with an auto decoiler, constantly roll forming, and automatic cutting off.

- Driving Full Worm wheel gearbox reducers

- Main roll forming station with high precision.

- Servo feeder control and high precision PLC

- Your choice of machine protection

- Decoilers

- Punch press & servo feeder

- Main roll forming machine

- Auto shearing station

- Output table.

- Electrical & Hydraulic system

The Metal False Ceiling T-Grid System was especially created with accessibility and distinctive appearance in mind. The 10 mm. gap connections between the panels give the ceiling a unique and distinctive appearance while also emphasizing the smooth, premium surface of the metal tiles, which can be either perforated or plain.

High-quality galvanized T-frames are used to reinforce the system, allowing for quick installation, simple maintenance, straightforward leveling, and easy access to above-ceiling components.T-bars are created with outstanding craftsmanship quality and perform well for ceiling systems consisting of metal, mineral fiber, gypsum, and other materials.

- FLAT CEILING T BAR

- FUT false ceiling T bar

- Main TEE, Cross Tee, Angle bar

KINGREAL specializes in an automatic production line for the 2-6m drywall profiles, aluminum tube and other building materials industry, with a lot of labor, low obedience, and research and development.The work process of automatic buckle, automatic rectification, automatic arm palletizing and automatic plastic steel bundling is adopted to form an automatic/efficient/stable automatic palletizing and packing line.

This production line adopts PLC control and has a high degree of automation. And it has the advantages of saving manpower, reducing labor intensity, reducing costs, and reducing injuries to employees, and is more suitable for industry competition.

The automatic bundling line and other automatic equipment can be customized according to customer requirements

Application Of Metal Ceiling Channel Making Machine



1. C-Shape Channel Profiles, U-Shape Channel Profiles (Mostly used)

50mm Cross Profiles, 38mm Main Profiles

C U Studs and Tracks

2. Wall Angle Profiles

L-Shape Profiles

3. Furring Hat Omega Channels



KINGREAL is one of the best sheet metal processing machines and roll forming machine manufacturer in China.

 How to Provide Installation ?

 In order to help our customers to solve machine installation problems, KINGREAL will provide both online and local installation services.

KINGREAL warmly welcomes all customers to visit our factory to see the manufacturing and trial run of the machines. You can see the quality of our machines with your own eyes.

We rely on strong technology research and development strength and sophisticated equipment to manufacture Gypsum Channel False Ceiling Tee Grid T Bar Roll Forming Making Machine with core competitiveness. In the potential, we sincerely invite you to mature up with us and create a vivid foreseeable future jointly! In line with the business philosophy of 'mutual benefit, small profits and high sales', our company uses the logistics channel to provide high-quality service and preferential prices for customers in various regions.
