Silhuette T Bar Roll Forming Machine

38 Semi-automatic Silhouette machines

is for the silhouette T bar production semi-automatically. The raw material strip width for 38 silhouette T grid is 108mm, the thickness of the material can be produced: 0.27~0.4mm, and the forming speed is 0-22m/min.

There are 6 sets of punching molds for 3D silhouette T bar production, which are adjustable blanking metric system and Imperial system. And Punching length in metric system including 3000mm, 3600mm, 1200mm

▼ Advantage Of This Machine

1.Focus on Suspension Ceiling T Bar/T Grid Roll Forming Machinery;

2.Strict quality control of forming Rollers, Mold / Die Material, Processing and Heat treatment

3.Electric control Cabinet and PLC by our own Electric engineer with Superb Performance

4.The Most Automatic, Advanced and Fast Speed while Stable performance

5.Fully Automatic Non-stop Flying Cutting off;

6.Worm Gearbox Reducer Transmission;

7.Stitching Mold and Patented Steel head Clip Lock Continuous Mold

8.Perfect service and High standard QC;

9.Fire-proof Hole and Customer's Logo on T Bar;

10.Lifetime QWP (quick weary parts) support and Technology upgrade service.

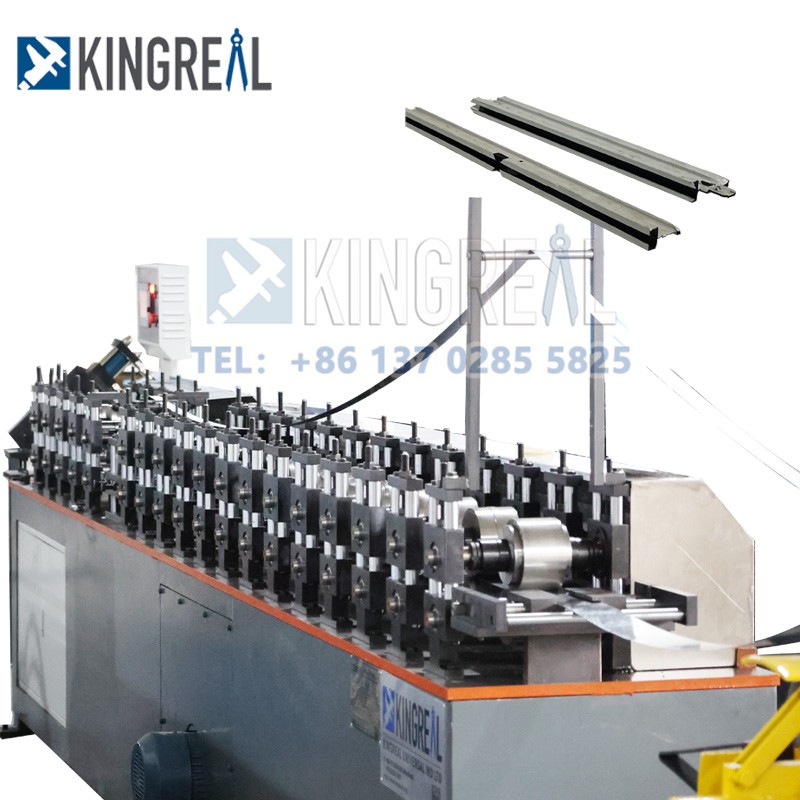

ceiling t bar roll forming machine

Technical Specification

Product size:	H*W(MM)28x24; 26x24,28x15 etc. Length: 600/1200mm Any size and any demand we can do as per customer's drawing or sample.
Main Tee and Cross Tee production	Exchangeable Die for 2 lengths Cross Tee produced in one production line
Cross Tee	600mm length Cross Tee 2 pcs at one punching
Maximum forming speed	Speed: 20--25M/Min(20--40Pcs/Min)
Roll Forming stands	15-20 Rollers station
Machine Power	16KW(worm gearbox)
Machine Frame	The machine is 20mm thick, after welding, the whole anti-corrosion treatment, finishing plane, precise guide column frame;
Forming Rollers	CR12 material, aperture (roller diameter of axle) Φ 39, inner hole and cylindrical lathe machining, vacuum heat treatment hardness of 58 HRC, symmetry control within the scope of 0.02;
Shaft	material is 40Cr. After the round roughing, the shaft material is quenched and tempered with high frequency treatment The grinder is finished.

Working Process Of Ceiling T Grid Making Machine

2 Decoilers for GI& PPGI － Main Machine Roll Former － Automatic Punching& Cutting-off System－2 Hydraulic stations－ Run-out Table

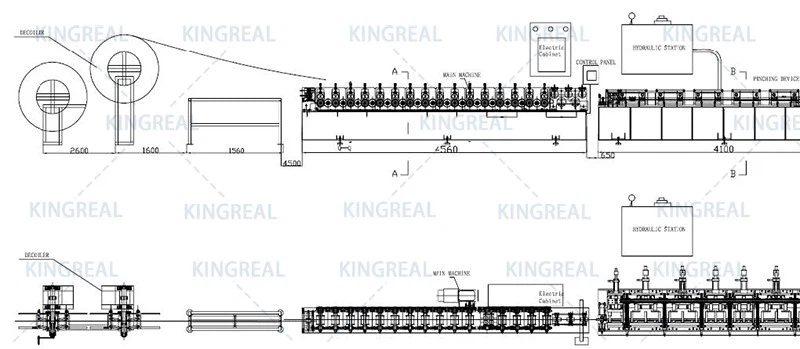

layout_main_tee_bar_forming_machine

Machine Feature

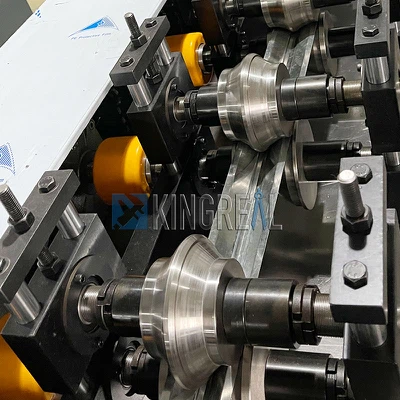

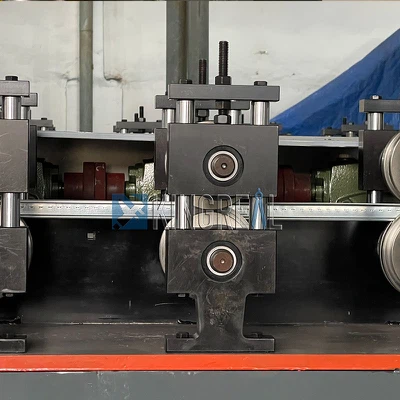

High Precision Cr12MoV forming rollers

Cr12mov mold steel, heat treatment hardness up to HRC 58⁰-60⁰. Which is processed by CNC machine after wire cut, 1^st lathe machine, then vacuum heat treatment.

After strictly following these processing procedures, the forming rollers would be endurable and ensure our machines long time running.

Multi rollers driving system For your choice

On the basis of different products, speed requirements and so on we have multiple methods of driving to choose: Driving by chains and gears, or driving through gears powered by main motors and planetary reducer.

Our driving system can provide high-speed production and stable operation.

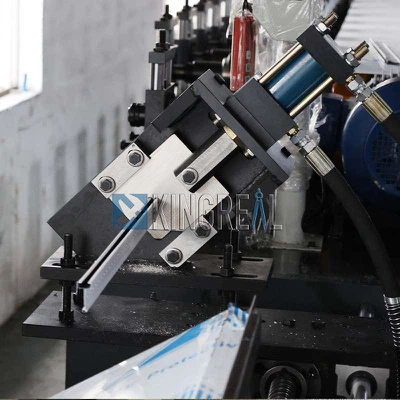

ONE TIME PUNCH & SHEARING

KINGREAL ceiling T bar roll forming line is featured with fully automatic production. For the main T bar can cross T bar, they will be punched and sheared in one time after roll forming.

The machine is featured with fully automatic and easy to operate. For the main T bar roll forming machine, all the holes and ends shearing can be finished in one step. For the Cross T machine, it can produce one piece of 1200mm profiles or two pieces of 600mm profiles.

Steel T Grid Product Display

t bar ceiling grid

Other Type Ceiling T Bar roll forming Machine

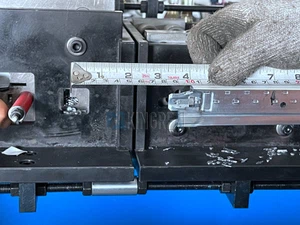

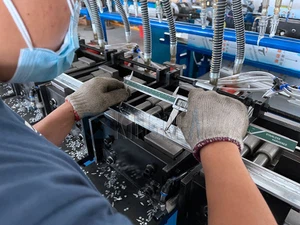

Machine Quality Control

QC Process

Our products have passed the international ISO9001 certification,obtained European CE certification, and exported to many European countries.

How To Install The Machine?

How to Provide Installation?

In order to help our customers to solve machine installation problems, KINGREAL will provide both online and local installation services!

T Bar Roll Forming Machine

▼ Local After-Sale Service

KINGREAL has established specialized service locations in numerous nations and areas, such as India, Russia, Turkey, the United Arab Emirates, and Qatar, in order to be able to properly address customer demands the first time.

Localized service locations are also being developed in other nations and regions.
