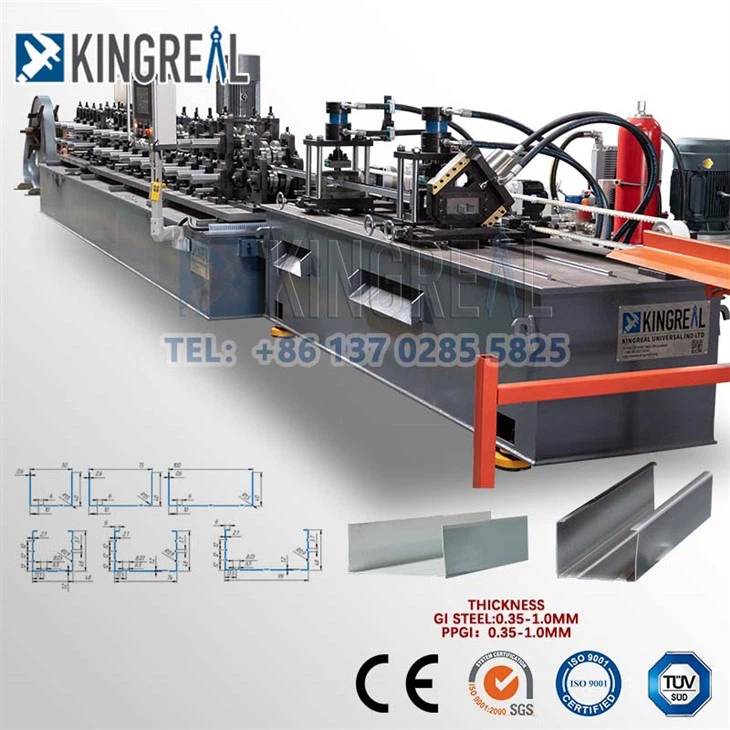

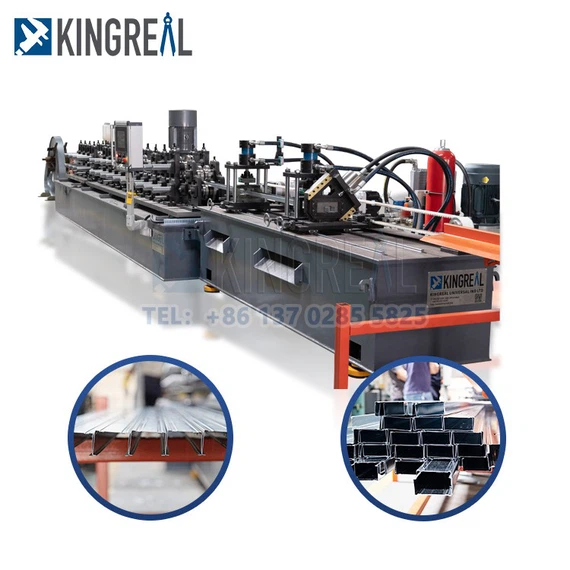

Uw Cw Drywall Steel Profiles Roll Forming Machine with Automatic Packing Machine
Product Introduction
We care about your needs, we pay attention to the quality of S300 Linear Ceiling Machine, Roof Tile Making Machine, Ceiling T Bar Making Machine, your satisfaction is our eternal pursuit, quality and integrity is our goal. Our staffs are rich in experience and trained strictly, with professional knowledge, with energy and always respect their customers as the No. We emphasize technology value-added, and we value the business strategies focusing on core competitiveness. Our pursuit is to provide customers with excellent products and technical services. Our company owns a wide range of upstream and downstream resources in the industry.
Video About Drywall Stud And Track Roll Forming Machine →
Machine Description
The Metal Stud Machine of KINGREAL Machinery can produce a variety of steel stud framing of different shapes, and process materials of different materials, such as hot rolled, cold rolled, galvanized, galvanized, annealed galvanized, color coated steel, etc.
The production line speed is fast, usually 50 M/min, the fastest equipment can reach 120 m/min, and the metal track specification is 50mm-250mm.
At the same time, it ensures high precision and complex punching requirements. Other main features include:
Stepless continuous size change
It can process various non-standard size keels.
Quick size change
Generally, the size change can be completed within 5 minutes. And for material thickness
changes, no need to adjust equipment.
Ability to short profiles production
Ordinary front cutting roller press, usually the shortest component is only 1800mm, and the
multifunctional keel rolling mill of Ruisi Machinery can produce components with a length of 200mm.

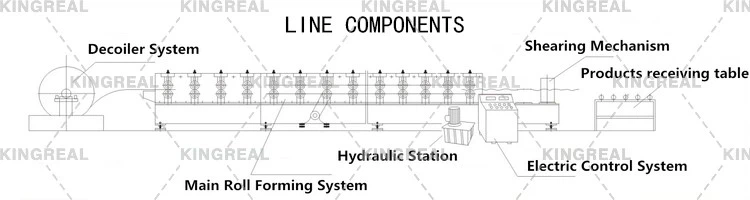

The basic structure of metal framing studs making machine is Double heads decoiler, continuously
cold roll forming, Hydrualic fly punch, hydraulic fly shearing output table and etc.
Machine Features
- Double heads decoiler
- High speed cold roll forming
- Full servo motors driving to adjust the width and height
- Easy Machine operation
- Hydraulic fly shearing & Fly punch
- Auto stacking system for your choice.
Technical Specification
|
Raw materials width |
determined by the different CW UW profiles sizes |
|
Thickness of Formed material |
0.4-1.2mm based on customers request |
|
Formed material |
Q235 color plate, galvanized plate, stainless steel plate |
|
Forming speed |
120m/min with fly punching and shearing |
|
Number of forming Stations |
14 stations including one set of embossing rollers for the stud and track profile dotted design, other special design depends on the plate type |
|
Forming Roller materials |
Cr12Mov high quality mold steel, with vaccum treatment |
|
Axle materials |
No. 45 high quality round steel Φ60mm |
|
Control method |
The whole machine adopts industrial computer PLC control, Final products length, holes quantity, production quantity can be set on touch screen |
|
Width Settings |
CW, UW profiles height and width adjustable, automatic set by the Yaskawa Servo motors. (hand crank type for your choice) |
|
Punching & shearing |
Fly punching and shearing, controlled by high precision servo motor |
Machine Features
|
Double heads decoiler
The double-head decoiling machine is mainly used for unwinding raw materials for high-speed keel forming machine.
Materials can be loaded when the machine is working,therefore ensure the production line can continuously work at high speed.
In addition, the machine can be used for multi-size production with multi-spec keel forming machines.It is time-saving in changing materials and efficiency-improving. |
|
|
STRONG ROLL FORMING MACHINE STRUCTURE
KINGREAL machine frame is welded by steel panel to one-piece structure.
Then one 30mm thickness panel will be put on the frame after fine processed by the Plano miller.
This will ensure the accuracy basic size. Also, it will increase the machine strength to reduce the deformation
and ensure the long-life time operation.
|
|
|
High precision full servo control system
We use high precision full servo control system for our machines. 1, We use Yaskawa servo feeder to adjust height and width of roller sets. 2, We use Yaskawa servo feeder for the follow shearing system. 3, These feeders ensure high-precision, high-speed and stable operation of our machines. |
|
Advantage
|
Fly Punching and Shearing System
KINGREAL fly punching and shearing system can be used to do the high speed punching and shearing of different kinds of metal profiles. The Logo can be punched with the shearing station.
With this unstop following shearing system, the channel production speed is up to 120m/min. |
 |
|
Full Auto Servo Width Adjustable System
Only need simply input the request width and height on touch screen, the servo feeder will drive the rollers to the requested position.
With this system, one machine can produce different width or flange height products. It is widely used for the production of U baffle ceiling, Drywall partition stud and track, shelf panel, etc. |
 |
|
Multi Sizes products on one machine
KINGREAL drywall partition studs and tracks roll forming can produce different width and flange height profiles on one machine. Only need simply input the request width and height on touch screen, the servo feeder will drive the rollers to the requested position.
|
 |
Drywall Partition Drawing
Products Application
Dry Wall Partition System 1. Dry Wall Angle 2. Track 3. Stud 4. Gypsum Board
The Steel Stud Drywall Framing System provides a durable, practical and lightweight structure for internal plasterboard walls and for specific external walls.
Metal Profile Stud & track for partition system is made of hot galvanized steel, including Stud, Track, C-Channel, Corner bead & accessories
- Studs & Tracks on one machine
- Width and flange height size adjustable
- High speed production
Machine Quality
To guarantee that each stage of the production process complies with the norms and specifications, KINGREAL has built a rigorous quality control method. This comprises acquiring raw materials, the manufacturing procedure, assembly, testing, etc. to make certain that the machine's components all adhere to quality standards.
Additionally, it has obtained a global CE certified certification.
How To Install The Machine
KINGREAL will provide both online and local installation services!
We will continue to give full play to the leading technological advantages of Uw Cw Drywall Steel Profiles Roll Forming Machine with Automatic Packing Machine, and strive to lead the development of the industry with continuous innovation. To be pragmatic, to be far sighted, to be honest first, to ensure quality and to achieve mutual benefit and win-win situation is our philosophy. We welcome new and old customers from all walks of life to contact us for future business relationships and achieve mutual success!
Hot Tags: CW UW profiles machine, China, suppliers, manufacturers, factory, custom, quotation, metal cable tray, acoustic panels for walls, slotted angle shelving making machine, metal roof panel machine, corrugated roof tile making machine, machine post
